Omron
E3Z-G61-M3J
Omron E3Z-G61-M3J E3Z-G

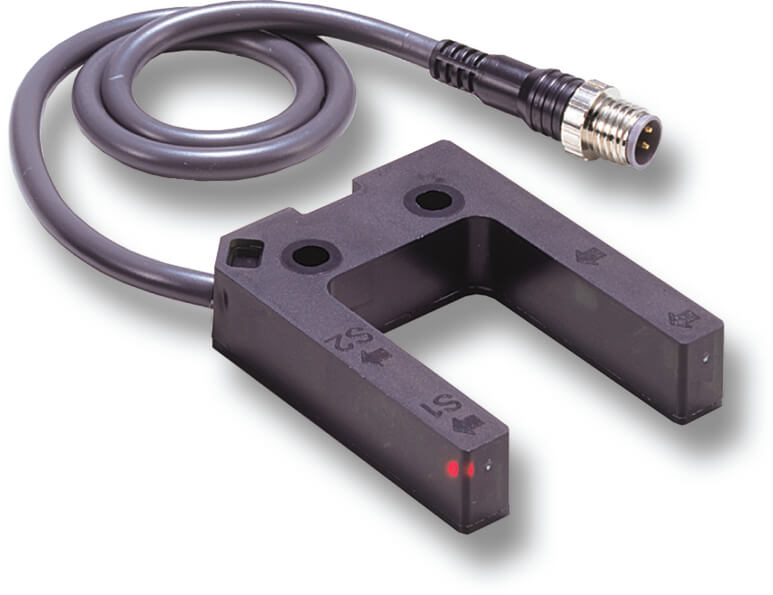

The Omron E3Z-G61-M3J is a U-shaped slot-type through-beam photoelectric sensor featuring two optical axes and an infrared light source with a 25 mm sensing distance. It is constructed with an ABS housing rated to IP64 and utilizes an NPN output supporting both Dark-ON and Light-ON operation modes with a 1 ms response time. Operating on a 12 to 24 V power supply voltage, this model includes manual adjustment capabilities and a 0.3 m cable length terminated with a 4-pin M8 pigtail connector. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- E3Z-G61-M3J
- Product series
- E3Z-G
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to E3Z-G61-M3J.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- E3Z-G
- Shape
- U-shaped
- Sensing method
- Through-beam with slot
- Sensing distance
- 25 mm
- Setting method
- Manual adjustment
- Connection method
- M8 pigtail connector 4 pin
- Cable length
- 0.3 m
- Output type
- NPN
- Operation mode
- Dark-ON, Light-ON
- Response time
- 1 ms
- Material housing
- ABS
- Thread size
- Other
- Type of light
- Infrared light
- Power supply voltage
- 12-24 V
- Features
- Two optical axis
- Degree of protection (IP)
- IP64
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron E3Z-G61-M3J. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
