Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Omron
E3Z-LL66

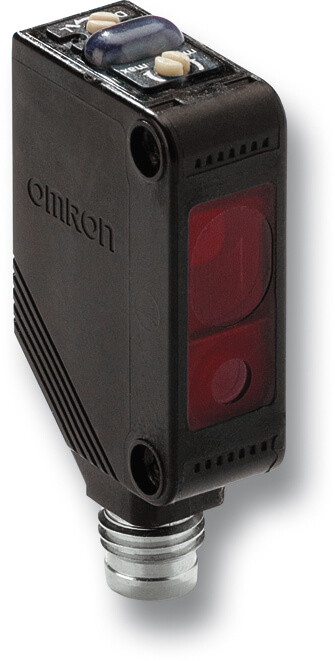

Omron E3Z-LL66 E3Z-LASER
The Omron E3Z-LL66 is an E3Z-LASER cuboid background suppression sensor featuring a class 1 red laser diode with a 0.5 mm spot size for high precision positioning and detection. It operates on a 12-24 V power supply with an NPN output type, offering selectable Dark-ON and Light-ON operation modes, a 1 ms response time, and manual adjustment for sensing distances ranging from 20 mm to 300 mm. Housed in durable PBT material with an IP67 degree of protection, this unit connects via an M8 4-pin connector. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- E3Z-LL66
- Product series
- E3Z-LASER
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to E3Z-LL66.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- E3Z-LASER
- Shape
- Cuboid
- Sensing method
- Background suppression
- Sensing distance
- 300 mm
- Sensing distance (min.)
- 20 mm
- Setting method
- Manual adjustment
- Connection method
- Connector M8 - 4 pin
- Output type
- NPN
- Operation mode
- Dark-ON, Light-ON
- Response time
- 1 ms
- Material housing
- PBT
- Type of light
- Laser diode, red light
- Laser class
- 1
- Spot size
- 0.5 mm
- Power supply voltage
- 12-24 V
- Features
- High precision positioning & detection
- Degree of protection (IP)
- IP67
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron E3Z-LL66. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
