Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

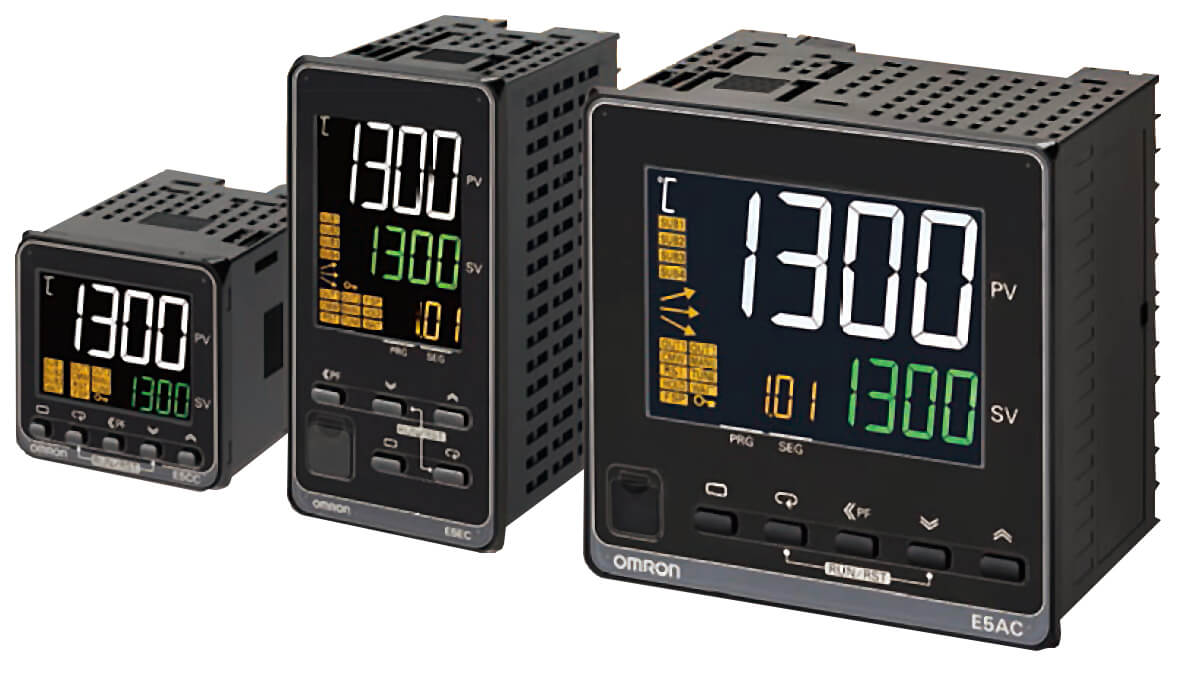

Reference imageConfirm configuration by manufacturer part number.
Omron
E5CC-TQX3A5M-000
Omron E5CC-TQX3A5M-000 E5-C-T
The Omron E5CC-TQX3A5M-000 is a 1/16 DIN (48 x 48 mm) temperature controller from the E5-C-T product family featuring an SV programmer supporting 8 programs of 32 segments. This single-loop unit operates on 100-240 VAC supply voltage and accepts broad temperature input types ranging from -200 to 2300 °C, alongside linear analog inputs of 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, and 4 to 20 mA. It provides ON/OFF and PID control with a voltage pulse control output, 3 alarm outputs, and screw terminals, while containing 0 event inputs. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- E5CC-TQX3A5M-000
- Product series
- E5-C-T
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to E5CC-TQX3A5M-000.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- E5-C-T
- Size
- 1/16 DIN (48 x 48 mm)
- Functions
- ON/OFF control, PID control
- Number of control loops
- 1
- Temperature range
- -200-2300 °C
- Temperature input type
- B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
- Linear analog input type
- 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
- Features
- SV programmer (8 programs of 32 segments)
- Number of event inputs
- 0
- Number of alarm outputs
- 3
- Supply voltage AC
- 100-240 V
- Control output
- Voltage pulse
- Terminal type
- Screw
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron E5CC-TQX3A5M-000. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
