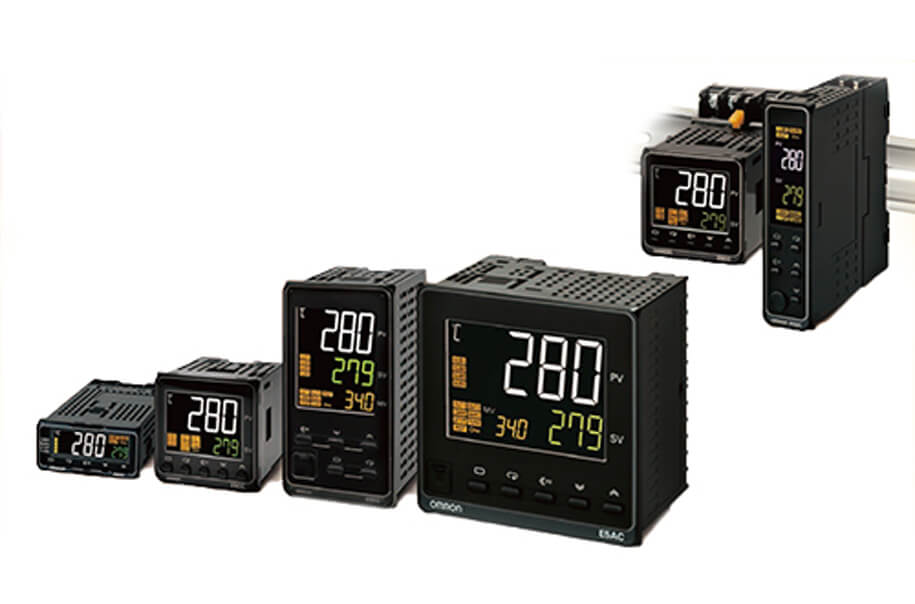

Reference imageConfirm configuration by manufacturer part number.
Omron
E5DC-RX2ASM-002
Omron E5DC-RX2ASM-002 E5-C
The Omron E5DC-RX2ASM-002 is a 22.5 mm single-loop temperature and process controller from the E5-C family, featuring PID control and an HB/HS alarm for 1-phase heaters. It accepts universal temperature inputs—including Pt100, JPt100, and thermocouples B, C, E, J, K, L, N, P, R, S, T, U—as well as linear analog signals ranging from 0 to 10 V, 0 to 5 V, 1 to 5 V, 0 to 20 mA, and 4 to 20 mA across a temperature range of -200 to 2300 °C. Powered by 100 to 240 VAC, this device is equipped with a relay control output, two alarm outputs, a serial RS-485 communication port, and screw terminals. Submit the exact part number, quantity, and application requirements to receive a quote for this unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- E5DC-RX2ASM-002
- Product series
- E5-C
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to E5DC-RX2ASM-002.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- E5-C
- Size
- 22.5 mm
- Functions
- HB/HS alarm for 1-phase heaters, PID control
- Number of control loops
- 1
- Temperature input type
- B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
- Linear analog input type
- 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
- Temperature range
- -200-2300 °C
- Number of event inputs
- 0
- Number of alarm outputs
- 2
- Supply voltage AC
- 100-240 V
- Control output
- Relay
- Communication port(s)
- Serial RS-485
- Terminal type
- Screw
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron E5DC-RX2ASM-002. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
