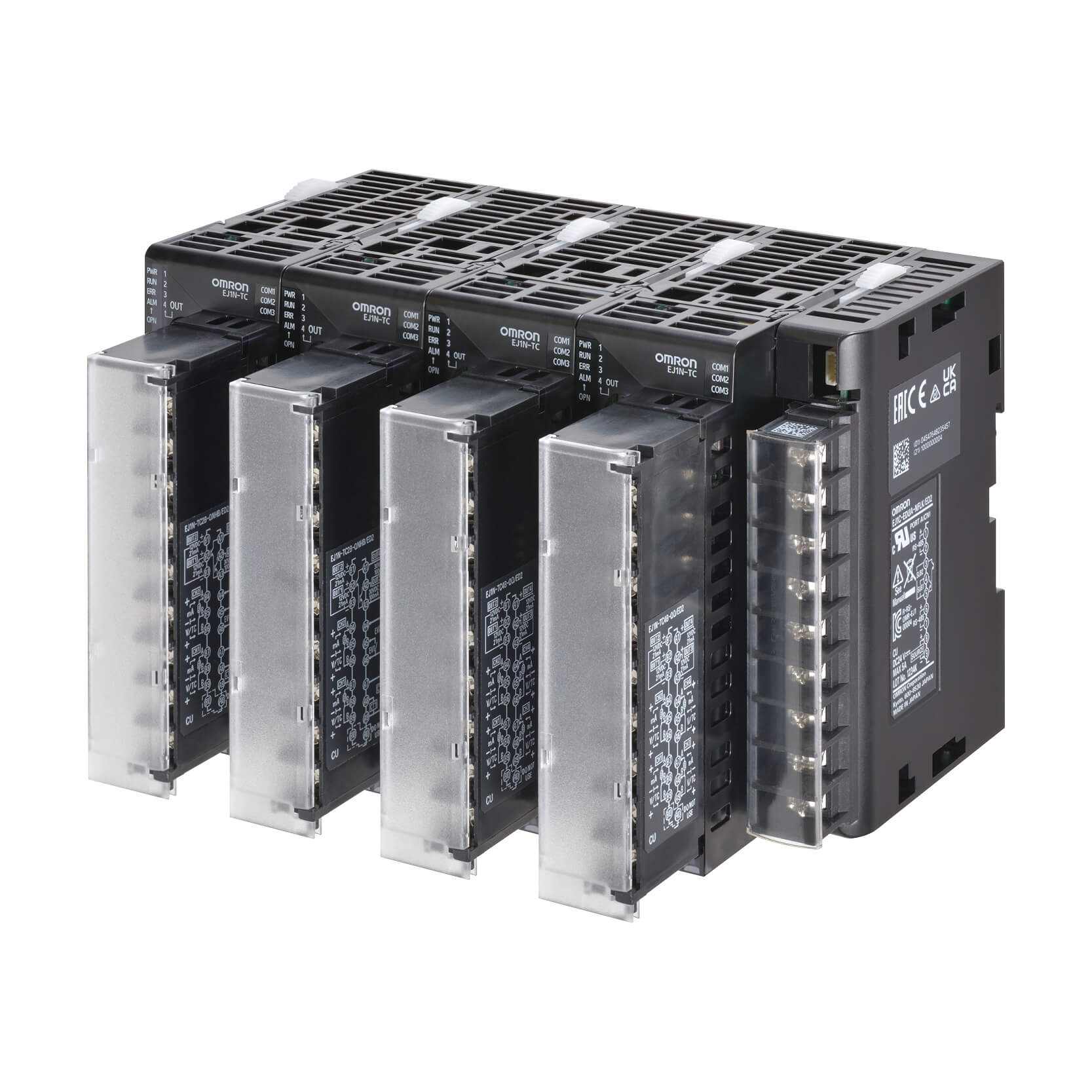

Reference imageConfirm configuration by manufacturer part number.
Omron
EJ1N-TC2A-QNHB
Omron EJ1N-TC2A-QNHB EJ1N
The Omron EJ1N-TC2A-QNHB is a modular temperature controller measuring 31 x 90 x 109 mm, featuring two control loops with advanced PID control and a wide temperature input range of -200 to 2300 °C supporting B, C, E, J, JPt100, K, L, N, P, Pt100, R, S, T, and U thermocouple and RTD types alongside linear analog inputs from 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, and 4 to 20 mA. It operates on a 20.4 to 26.4 VDC supply voltage and includes two voltage pulse control outputs, two alarm outputs, two event inputs, current transformer input capability, and an RS-485 serial communication port terminating via screw connections. Please submit the exact part number, quantity, and application requirements to receive an official price and lead time quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- EJ1N-TC2A-QNHB
- Product series
- EJ1N
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to EJ1N-TC2A-QNHB.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- EJ1N
- Size
- 31 x 90 x 109 mm
- Functions
- PID control
- Number of control loops
- 2
- Temperature range
- -200-2300 °C
- Temperature input type
- B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
- Linear analog input type
- 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
- Features
- Current transformer input
- Number of event inputs
- 2
- Number of alarm outputs
- 2
- Supply voltage DC
- 20.4-26.4 V
- Control output
- 2 Voltage pulse
- Communication port(s)
- Serial RS-485
- Terminal type
- Screw
