Omron
F3SG-2RE0190P30

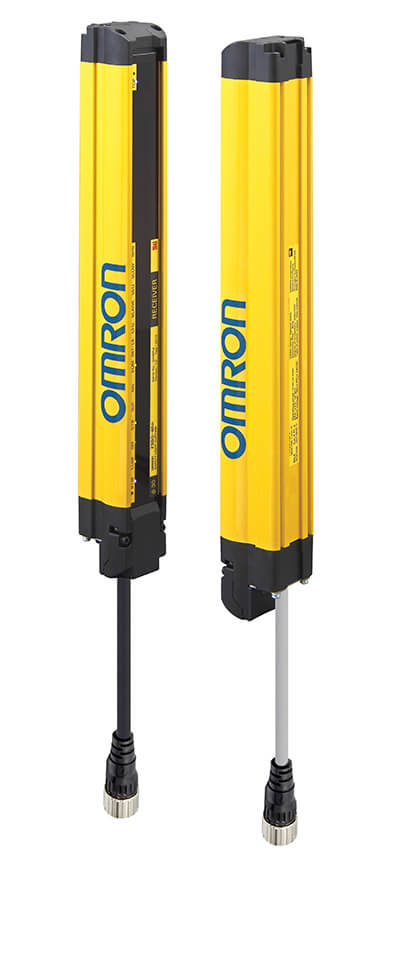

Omron F3SG-2RE0190P30 F3SG-RE
The Omron F3SG-2RE0190P30 is an F3SG-RE series Type 2 safety light curtain providing hand protection with a 30 mm detection capability and a 190 mm safety field height. This non-cascadable device features 8 beams with a 20 mm beam gap, a 5 ms response time, and a maximum safety range of 20 m alongside a minimum operating distance of 0.3 m. It incorporates 2 PNP safety switching outputs (OSSDs) with no signaling outputs, no muting function, and no beam coding, while supporting fast response ON/OFF applications and simple wiring. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- F3SG-2RE0190P30
- Product series
- F3SG-RE
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to F3SG-2RE0190P30.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- F3SG-RE
- Type of safety according to IEC 61496-1
- 2
- Type of protection
- Hand protection
- Detection capability
- 30 mm
- Safety field height
- 190 mm
- Beam gap
- 20 mm
- Number of beams
- 8
- Number of protected semiconductor outputs
- 2
- Number of semiconductor outputs with signalling function
- 0
- Maximum safety range
- 20 m
- Minimum operating distance
- 0.3 m
- Response time
- 5 ms
- Cascadable
- No
- With muting function
- No
- With beam coding
- No
- Type of switching output of the OSSD
- PNP
- Key features
- Fast response (ON/OFF applications), Simple wiring
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron F3SG-2RE0190P30. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
