Omron
F430-F000W03M-SRV
Omron F430-F000W03M-SRV F430-F

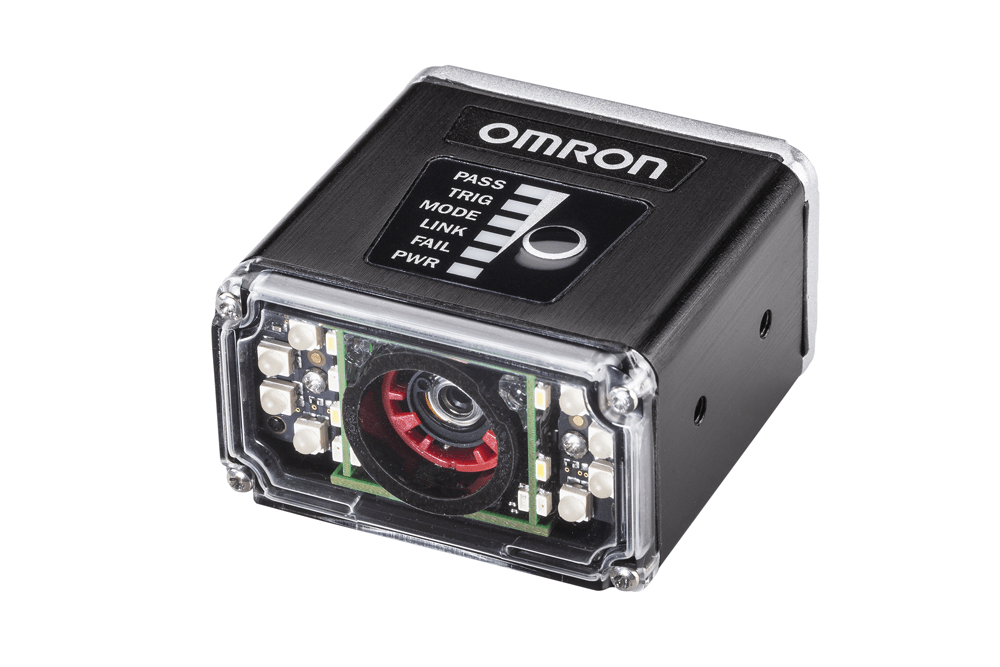

The Omron F430-F000W03M-SRV is a 0.3 MP monochrome autofocus smart camera featuring a 5.2 mm focal length, a 50 to 300 mm focus distance, and a global shutter operating at 52 fps with red LED illumination. Equipped with AutoVISION and Visionscape software options, this IP65/IP67-rated unit supports EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, and Serial RS-232C communication ports for code reading, code verification, counting, measurement inspection, OCR/OCV, and presence/absence tasks. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- F430-F000W03M-SRV
- Product series
- F430-F
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to F430-F000W03M-SRV.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- F430-F
- Number of pixels
- 0.3 MP
- Camera type
- Monochrome
- Autofocus
- Yes
- Focus distance
- 50-300 mm
- Focal length
- 5.2 mm
- Field of view (width)
- 51-277 mm
- Frame rate
- 52 fps
- Shutter type
- Global
- Illumination
- Red LED
- Software option(s)
- AutoVISION, Visionscape
- Image width
- 752 pixels
- Image height
- 480 pixels
- Communication port(s)
- EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, Serial RS-232C
- Degree of protection (IP)
- IP65/IP67
- Application
- Code reading, Code verification, Counting, Measurement inspection, OCR / OCV, Presence / Absence
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron F430-F000W03M-SRV. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
