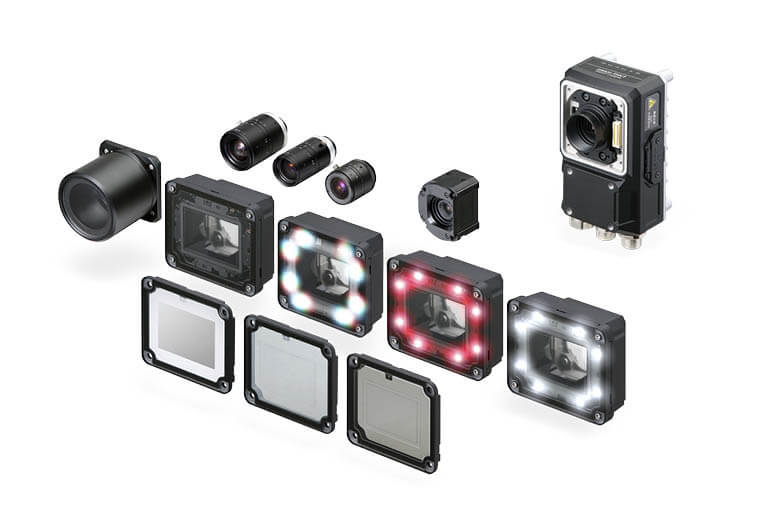

Reference imageConfirm configuration by manufacturer part number.
Omron
FHV7X-C016-C
Omron FHV7X-C016-C FHV7
The Omron FHV7X-C016-C is a 1.6 MP color camera featuring a 1/2.9" CMOS global shutter image sensor with 1440 x 1080 pixel resolution and a 3.45 µm pixel size. This FHV7 series model utilizes a C-mount lens interface, provides an IP40 protection rating, supports a 224 fps frame rate, and includes EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, Serial RS-232C, and EtherCAT Slave communication ports without integrated illumination or a lens. It is applied in 2D robot guidance, bead inspection, code reading, code verification, color inspection, counting, defect inspection, measurement inspection, OCR/OCV, and presence/absence tasks. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- FHV7X-C016-C
- Product series
- FHV7
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to FHV7X-C016-C.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- FHV7
- Number of pixels
- 1.6 MP
- Camera type
- Color
- Frame rate
- 224 fps
- Camera with lens
- No
- Camera family
- FHV
- Illumination
- None
- Image width
- 1440 pixels
- Image height
- 1080 pixels
- Pixel size
- 3.45 µm
- Shutter type
- Global
- Image sensor format
- 1/2.9"
- Image sensor type
- CMOS
- Lens mount
- C-mount
- Degree of protection (IP)
- IP40
- Communication port(s)
- EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, Serial RS-232C
- Communication option(s)
- EtherCAT Slave
- Application
- 2D Robot guidance, Bead inspection, Code reading, Code verification, Color inspection, Counting, Defect inspection, Measurement inspection, OCR / OCV, Presence / Absence
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron FHV7X-C016-C. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
