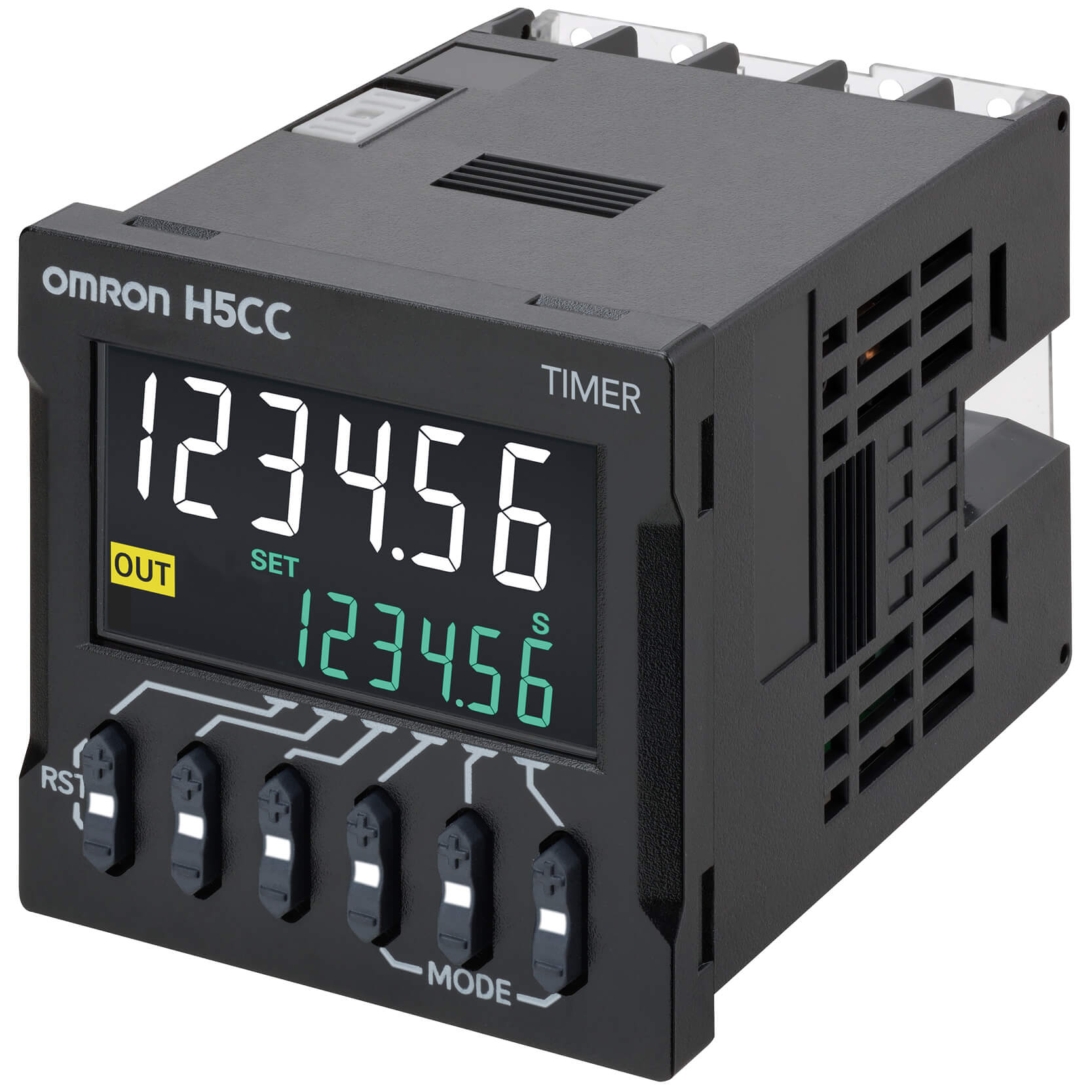

Reference imageConfirm configuration by manufacturer part number.
Omron
H5CC-A
Omron H5CC-A H5CC
The Omron H5CC-A is a digital 1/16 DIN multi-functional timer featuring an LED display and screw terminals configured for DIN rail, on-panel, or socket installation. It operates on a supply voltage of 100-240 VAC, providing an SPDT relay output and supporting multiple operating modes including Flicker OFF Start, Flicker ON Start, Interval, OFF Delay, Power ON Start ON Delay, Signal Start ON Delay, and Signal ON/OFF Delay with NPN/PNP Gate, Reset, and Signal inputs. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- H5CC-A
- Product series
- H5CC
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to H5CC-A.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- H5CC
- Type
- Digital
- Installation type
- DIN rail, On-panel, Socket
- Functions
- Multi-functional
- Size
- 1/16 DIN (48 x 48 mm)
- Terminal type
- Screw
- Operating mode
- Flicker OFF Start (Signal Start), Flicker ON Start (Signal Start), Interval (Signal Start), OFF Delay (Signal), ON Delay (Power ON Start), ON Delay (Signal Start), Signal ON/OFF Delay
- Output type
- Relay
- Contact description
- SPDT
- Supply voltage AC
- 100-240 V
- Inputs
- Gate (NPN/PNP), Reset (NPN/PNP), Signal (NPN/PNP)
- Features
- LED
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron H5CC-A. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
