Omron
H7CC-A8
Omron H7CC-A8 H7CC

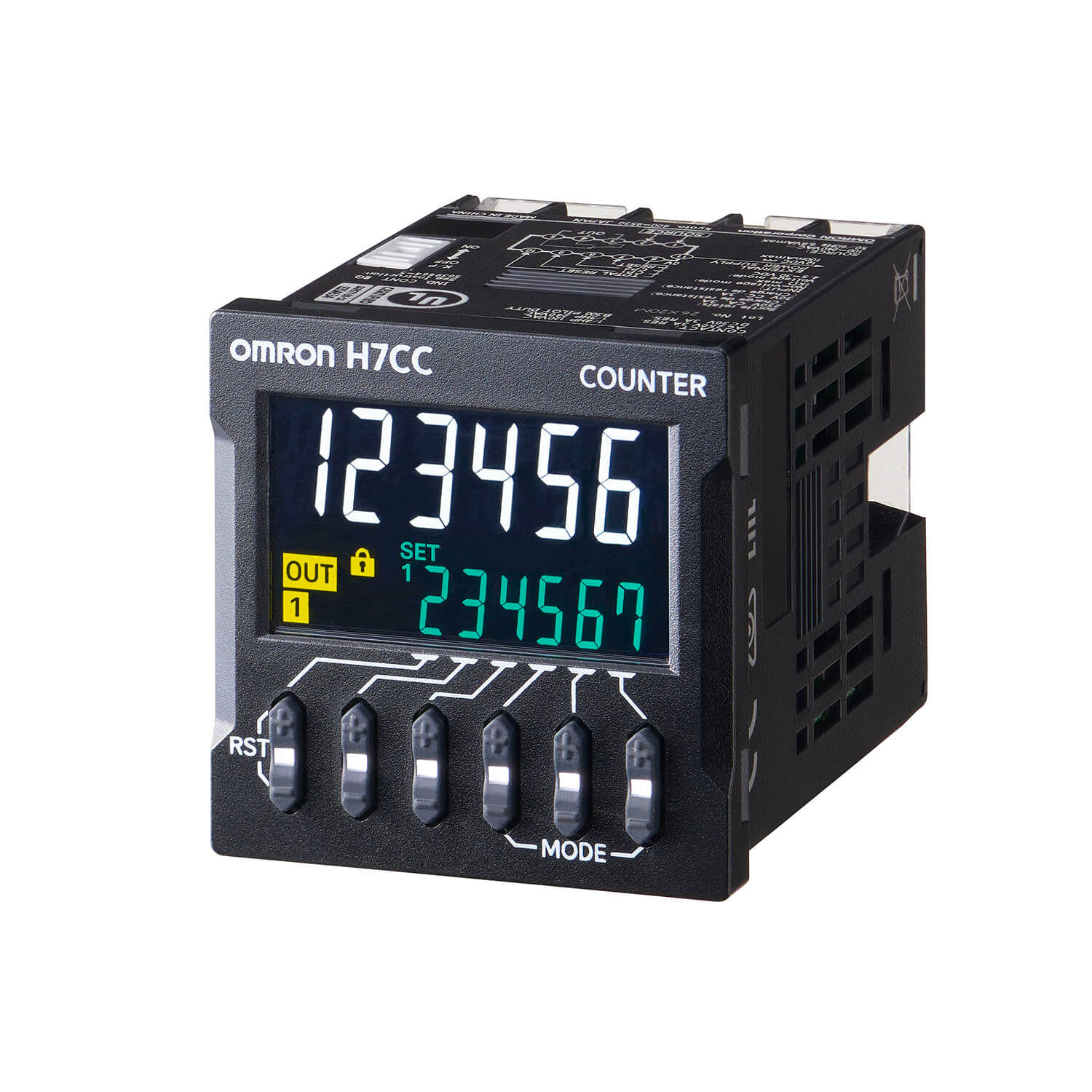

The Omron H7CC-A8 is a 1/16 DIN pre-set counter measuring 48 x 48 x 63.7 mm featuring a 6-digit LCD display with backlight and a black body. Operating on a supply voltage of 100-240 VAC, this socket-installed, plug-in terminal unit supports DC voltage and no-voltage inputs with a counting range of -99999 to 999999 at speeds up to 10000 Hz. It includes 1 relay output and 1-stage counting functions with a total counter. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- H7CC-A8
- Product series
- H7CC
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to H7CC-A8.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- H7CC
- Type
- Pre-set counter
- Size
- 1/16 DIN (48 x 48 mm)
- Counting functions
- 1-stage counter, 1-stage counter with total counter
- Counting range
- -99999 - 999999
- LCD backlight
- With backlight
- Number of digits
- 6
- Body color
- Black
- Installation type
- Socket
- Terminal type
- Plug-in
- Output type
- Relay
- Relay output
- 1
- Transistor output
- 0
- Inputs
- DC voltage, No-voltage
- Supply voltage AC
- 100-240 V
- Speed
- 10000 Hz
- Product Width (unpacked)
- 48 mm
- Product Height (unpacked)
- 48 mm
- Product Depth (unpacked)
- 63.7 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron H7CC-A8. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
