Omron
H7EC-NV-H

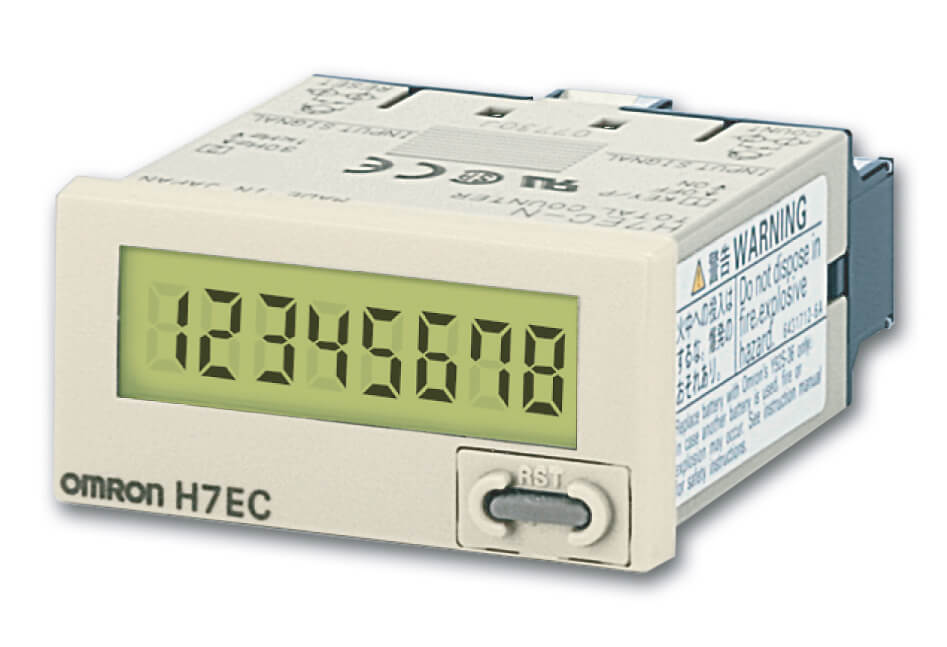

Omron H7EC-NV-H H7EC
The Omron H7EC-NV-H is a 1/32 DIN totalising counter featuring an 8-digit LCD with a backlight housed in a light grey, on-panel installation body measuring 48 by 24 by 48.5 mm. This DC voltage input unit operates at a 24 VDC supply voltage, supports a counting range of 0 to 99999999 at speeds up to 1000 Hz, and connects via screw terminals with zero relay outputs. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- H7EC-NV-H
- Product series
- H7EC
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to H7EC-NV-H.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- H7EC
- Type
- Totalising
- Size
- 1/32 DIN (48 x 24 mm)
- Counting range
- 0 - 99999999
- LCD backlight
- With backlight
- Number of digits
- 8
- Body color
- Light grey
- Installation type
- On-panel
- Terminal type
- Screw
- Inputs
- DC voltage
- Supply voltage DC
- 24-24 V
- Speed
- 1000 Hz
- Product Width (unpacked)
- 48 mm
- Product Height (unpacked)
- 24 mm
- Product Depth (unpacked)
- 48.5 mm
- Relay output
- 0
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron H7EC-NV-H. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
