Omron
R89F-MS0938HP
Omron R89F-MS0938HP R89F-M

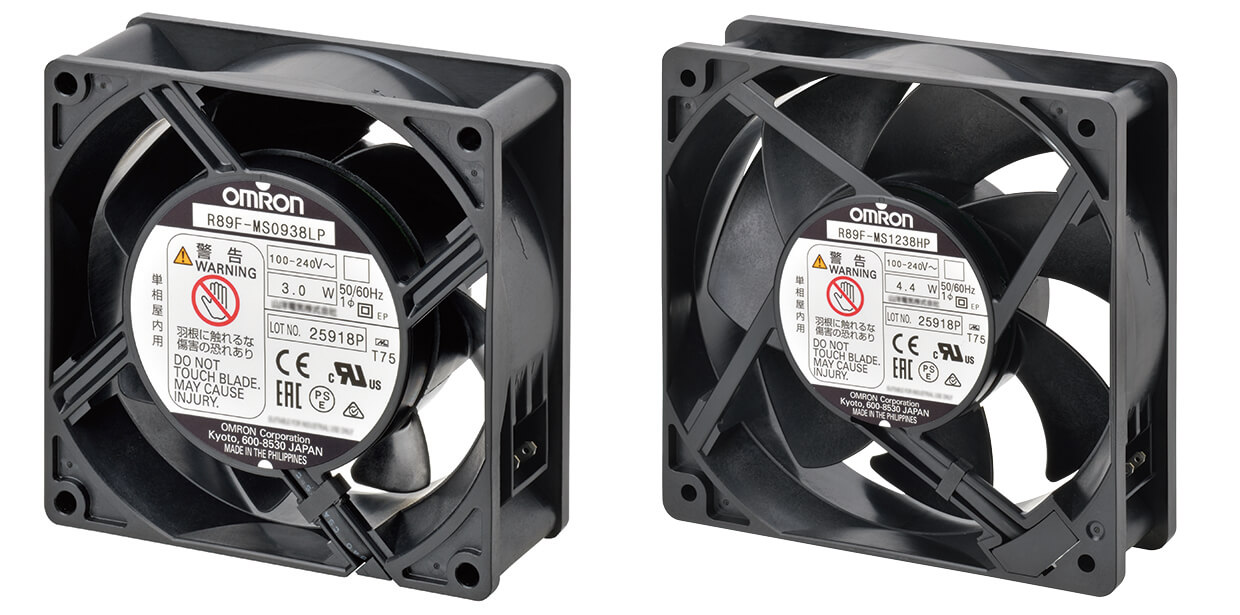

The Omron R89F-MS0938HP is an R89F-M series fan measuring 92 x 92 x 38 mm and supplied as fan only. Operating at an AC voltage of 90-264 V at 50 Hz, it draws a rated current of 0.08 A with a rated power of 4.5 VA. This unit achieves a maximum rotational speed of 3850 r/min, delivering a maximum flow rate of 1.5 m³/min and a maximum static pressure of 90 Pa while maintaining a noise emission level of 40 dB(A). Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- R89F-MS0938HP
- Product series
- R89F-M
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to R89F-MS0938HP.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- R89F-M
- Size
- 92 x 92 x 38 mm
- Rated current
- 0.08 A
- Rated rotational speed
- 3850 r/min
- Maximum flow rate
- 1.5 m³/min
- Maximum static pressure
- 90 Pa
- Set content
- Fan only
- Rated power
- 4.5 VA
- Noise emission
- 40 dB(A)
- Operating voltage at AC 50 Hz
- 90-264 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron R89F-MS0938HP. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
