Omron
S8FS-C05024
Omron S8FS-C05024 S8FS-C

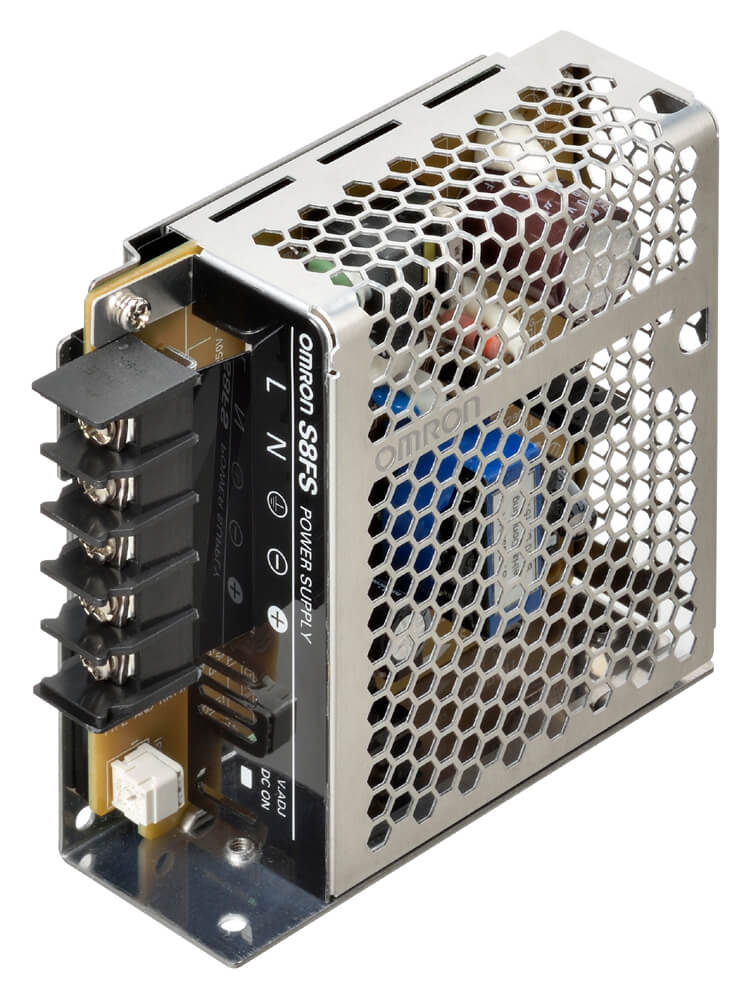

The Omron S8FS-C05024 is a single-phase enclosed power supply delivering a 50 W power output and a 24 V output voltage at a rated output current of 2.2 A. This unit operates on a rated supply voltage of 100-240 V AC at 50 Hz, with an allowable AC supply voltage range of 85-264 V and a DC range of 120-370 V, achieving 86% efficiency across a -20 to 60 °C temperature range. Featuring direct mounting, screw terminals with an upward-facing terminal block, and dimensions of 97 mm width, 38 mm height, and 129 mm depth, it includes one output branch without communication ports or alarm functions. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- S8FS-C05024
- Product series
- S8FS-C
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to S8FS-C05024.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- S8FS-C
- Type
- Enclosed
- Mounting method
- Direct mounting
- Phase
- Single
- Output voltage
- 24 V
- Power output
- 50 W
- Rated output current
- 2.2 A
- Temperature range
- -20-60 °C
- Features
- Terminal block facing upward
- Terminal type
- Screw
- Communication port(s)
- None
- Alarm function
- -
- Number of output branches
- 1
- Efficiency
- 86 %
- Rated supply voltage at AC 50 Hz
- 100-240 V
- Allowable supply voltage AC
- 85-264 V
- Allowable supply voltage DC
- 120-370 V
- Product Width (unpacked)
- 97 mm
- Product Height (unpacked)
- 38 mm
- Product Depth (unpacked)
- 129 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron S8FS-C05024. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
