Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Omron
S8FS-G03024CD
Omron S8FS-G03024CD S8FS-G

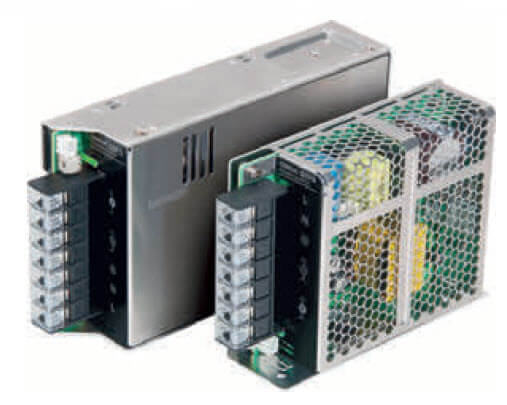

The Omron S8FS-G03024CD is a single-phase enclosed DIN rail power supply delivering a 24 V output voltage, a 30 W power output, and a 1.5 A rated output current with 89% efficiency. This unit operates within a temperature range of -20 to 70 °C and accepts a rated supply voltage of 100 to 240 V at AC 50 Hz, with allowable supply voltage ranges of 85 to 264 V AC and 80 to 370 V DC. Featuring forward-facing screw terminal blocks across a single output branch, the device measures 82 mm in width, 35 mm in height, and 99 mm in depth without communication ports. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- S8FS-G03024CD
- Product series
- S8FS-G
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to S8FS-G03024CD.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- S8FS-G
- Type
- Enclosed
- Mounting method
- DIN rail
- Phase
- Single
- Output voltage
- 24 V
- Power output
- 30 W
- Rated output current
- 1.5 A
- Temperature range
- -20-70 °C
- Features
- Terminal block facing forward
- Terminal type
- Screw
- Communication port(s)
- None
- Alarm function
- -
- Number of output branches
- 1
- Efficiency
- 89 %
- Rated supply voltage at AC 50 Hz
- 100-240 V
- Allowable supply voltage AC
- 85-264 V
- Allowable supply voltage DC
- 80-370 V
- Product Width (unpacked)
- 82 mm
- Product Height (unpacked)
- 35 mm
- Product Depth (unpacked)
- 99 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron S8FS-G03024CD. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
