SKF
M202-2000+399

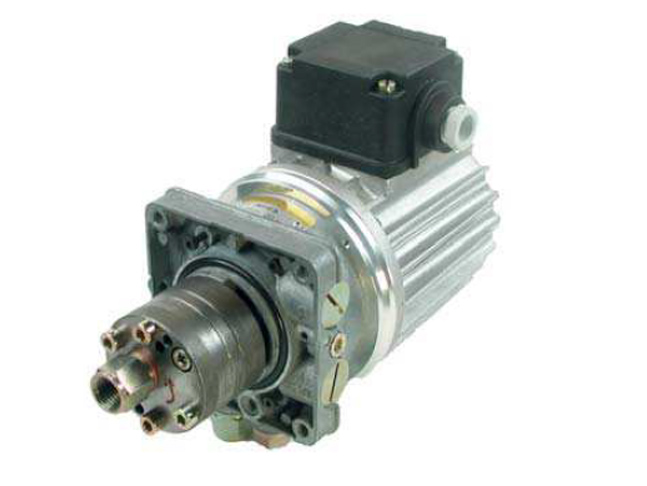

SKF M202-2000+399 — Industrial Component
The SKF M202-2000+399 is an electric industrial component operating on three-phase power (Drehstrom) in an S1 operating mode without a reservoir or integrated control. This unit delivers a flow rate of 0.2 l/min for oil media within an operating viscosity range of 20 to 1500 mm²/s, featuring an M14x1,5 connection thread, two outlets, and an IP54 ingress protection rating for temperatures between +10 and +60 °C at a maximum operating pressure of 12 bar. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued SKF references — within one business day.
- Manufacturer
- SKF
- Part number
- M202-2000+399
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to M202-2000+399.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Manufacturer Model
- 2-KREIS ZP-AGGREGAT 260/450V M202-2000+399 | 211645
- Connection Thread
- M14x1,5
- Number of Outlets
- 2
- Reservoir
- none Behälter
- Operating Mode
- S1
- Operating Voltage
- Drehstrom
- Operating Temperature
- +10 ... +60°C
- Operating Viscosity
- 20 ... 1500 mm²/s
- Actuation Type
- elektrisch
- Fluid
- Öl
- Flow Rate
- 0,2 l/min
- Integrated Control
- Nein
- Maximum Operating Pressure
- 12 bar
- Level Monitoring
- Nein
- Ingress Protection Rating
- IP54
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against SKF M202-2000+399. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
