Festo
5813
Pneumatic valve CL-5/2-1/2
The Festo part number 5813 is a 5/2-way monostable industrial valve featuring G1/2 pneumatic connections across ports 1, 2, 3, 4, and 5. This component operates within a pressure range of 1 bar to 10 bar and requires a pilot pressure between 2 bar and 10 bar. It conforms to VDMA24364 Zone III LABS (PWIS) specifications. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Danfoss Industrieautomatik
032U147016

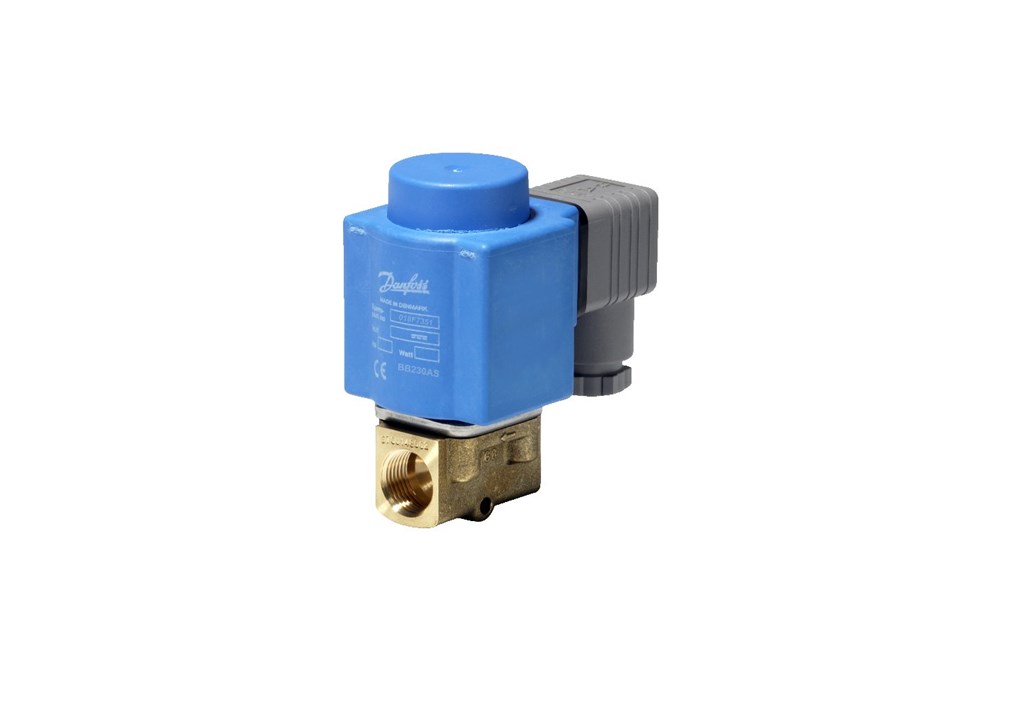

Danfoss Industrieautomatik 032U147016 — Solenoid Valve
The Danfoss Industrieautomatik 032U147016 is a direct-acting solenoid valve featuring a G 1/4 port size, a nominal size of 3,0 mm, and a normally closed function housed in brass. This component utilizes an FKM seal and operates within a differential pressure range of 0 to 20 bar while supporting media temperatures from -10 to 100 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
577213
Compact cylinder ADNGF-20-40-PPS-A
The Festo 577213 is a double-acting industrial component featuring a 20 mm piston diameter and a 40 mm stroke, constructed with a piston, piston rod, and profile barrel based on ISO 21287. It incorporates self-adjusting pneumatic end-position cushioning, a guide rod with a yoke for torsion protection, and position sensing via proximity switch, operating within a pressure range of 1.9 bar to 10 bar. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -20 °C to 80 °C, this unit delivers a theoretical retracting force of 141 N and advancing force of 188 N at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
578281
Push-in L-fitting NPQH-L-G18-Q6-P10
This Festo industrial component, part number 578281, is an L-shaped push-pull fitting with a nominal width of 5 mm, a 15.8 mm tubing insertion depth, and a sealing ring on the screwed plug. It operates across a pressure range of -0.95 bar to 20 bar, supports compressed air and liquid water mediums, and features a corrosion resistance class of 3 along with ISO 14644-1 Class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements to receive an RFQ quote.
View product details →
Festo
576107
Stopper cylinder DFSP-32-25-F-PA
This Festo double-acting industrial component features a 32 mm piston diameter, a 25 mm stroke, and an M6 internal thread on the piston rod with a round rod configuration for torsion protection. The unit operates on compressed air within a pressure range of 0.12 MPa to 1 MPa and incorporates elastic cushioning rings at both ends, supporting an ambient temperature range of -10 °C to 80 °C. Position sensing is accomplished via proximity switch, while the structural design includes a profile barrel and accommodates any mounting position with a moderate corrosion resistance class of 2. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
5811
Basic valve C-5/2-1/2
The Festo basic valve C-5/2-1/2, part number 5811, is an industrial component featuring LABS (PWIS) conformity in accordance with VDMA24364 Zone III specifications. This official Festo EN-US data sheet item is designated as a basic valve C-5/2-1/2. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
577212
Compact cylinder ADNGF-20-30-PPS-A
The Festo part number 577212 is a double-acting industrial component featuring a 20 mm piston diameter and a 30 mm stroke, built on a profile barrel structural design with a piston and piston rod conforming to ISO 21287. It operates within a pressure range of 1.9 bar to 10 bar using compressed air as per ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 188 N advancing and 141 N retracting at 6 bar. Equipped with self-adjusting pneumatic end-position cushioning, a guide rod with a yoke for anti-torsion protection, and position sensing via proximity switch, this unit functions across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →
Festo
576106
Stopper cylinder DFSP-32-20-F-PA
The Festo 576106 is a double-acting industrial component featuring a 32 mm piston diameter and a 20 mm stroke, operating via compressed air in accordance with ISO 8573-1:2010 [7:4:4] at pressures from 0.12 MPa to 1 MPa. Constructed with a profile barrel, round piston rod with internal M6 thread, and elastic cushioning rings at both ends, it supports position sensing via proximity switch and operates within an ambient temperature range of -10 °C to 80 °C. This unit achieves a moderate corrosion resistance class (CRC 2) and ISO Class 5 cleanroom suitability, withstanding a permissible impact force of 3270 N on the advanced piston rod and a 595 N lateral force during switching. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
578280
Push-in L-fitting NPQH-L-G18-Q4-P10
This Festo industrial component, part number 578280, is an L-shaped standard-size fitting featuring a nominal width of 3 mm, a tubing insertion depth of 13 mm, and a sealing ring on the screwed plug for mounting in any position. Utilizing a push-pull structural design, it operates at pressures from -0.095 MPa to 2 MPa (-0.95 bar to 20 bar, -13.775 psi to 290 psi) across an ambient temperature range of 0 °C to 150 °C, accommodating compressed air and liquid water with a nominal tightening torque of 6 Nm (±20%). The unit provides CRC 3 high corrosion stress resistance, VDMA24364-B1/B2-L LABS conformity, ISO 14644-1 Class 4 cleanroom suitability, and NSF/ANSI 169 food industry certification via issuing authority NSF C0523185, supplied in a pack size of 10. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
5802
Sub-base CAU-1/2
The Festo sub-base CAU-1/2 is an industrial component detailed in official manufacturer documentation. This part features LABS (PWIS) conformity according to VDMA24364-B2-L. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
577211
Compact cylinder ADNGF-20-25-PPS-A
The Festo 577211 is a double-acting industrial component featuring a 20 mm piston diameter and a 25 mm stroke based on the ISO 21287 norm. Built with a piston, piston rod, and profile barrel, this unit includes a guide rod with yoke for torsion protection and self-adjusting pneumatic end-position cushioning. It operates on compressed air within a 1.9 bar to 10 bar pressure range across an ambient temperature span of -20 °C to 80 °C, delivering 188 N advancing and 141 N retracting theoretical forces at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
576105
Stopper cylinder DFSP-32-15-F-PA
The Festo 576105 is a double-acting pulling industrial component featuring a 32 mm piston diameter, a 15 mm stroke, and an internal M6 thread on the round piston rod. It operates with compressed air according to ISO 8573-1:2010 [7:4:4] at pressures from 0.12 MPa to 1 MPa, incorporating elastic cushioning rings at both ends and position sensing via proximity switch. Built with a profile barrel structural design, it achieves a moderate corrosion resistance class of 2, ISO Class 5 cleanroom suitability, and an ambient temperature range of -10 °C to 80 °C while withstanding a permissible impact force of 3270 N on the advanced piston rod. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
5801
Sub-base CAS-1/2
The Festo Sub-base CAS-1/2, identified by part number 5801, features LABS (PWIS) conformity according to VDMA24364-B2-L based on the official Festo EN-US data sheet. Request a formal quotation for this industrial component by submitting the exact part number, required quantity, and application parameters.
View product details →
Festo
578279
Push-in L-fitting NPQH-L-M7-Q6-P10
The Festo part number 578279 is an L-shaped industrial component featuring a 3.25 mm nominal width, a 15.8 mm tubing insertion depth, and a push-pull structural design with a sealing ring on the screwed plug. Operating at pressures from -0.95 bar to 20 bar across an ambient temperature range of 0 °C to 150 °C, this component supports compressed air and liquid water media while offering NSF/ANSI 169 conformity and a Class 4 cleanroom suitability rating under ISO 14644-1. Supplied in a pack size of 10, the unit requires a nominal tightening torque of 3 Nm with a ±20% tolerance and provides a corrosion resistance class of 3 for high corrosion stress environments. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Danfoss Industrieautomatik
032U147002
Danfoss Industrieautomatik 032U147002 — Solenoid Valve
The Danfoss Industrieautomatik 032U147002 is a direct-acting NC solenoid valve featuring a brass housing and a G 1/4 port size with a 3,0 mm nominal size. Equipped with an FKM seal material, this unit operates within a differential pressure range of 0 to 20 bar and handles a media temperature of -10 to 100 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
577210
Compact cylinder ADNGF-20-20-PPS-A
The Festo part number 577210 is a double-acting industrial component featuring a 20 mm piston diameter, a 20 mm stroke, and a profile barrel structural design built on the ISO 21287 norm. This unit operates within a pressure range of 0.19 MPa to 1 MPa (1.9 bar to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4] and includes self-adjusting pneumatic end-position cushioning with a 3 mm cushioning length. Equipped with a guide rod with yoke for torsion protection and a moving mass of 78 g, it delivers a theoretical force of 188 N advancing and 141 N retracting at 6 bar across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
579184
Pressure regulator MS4-LR-1/4-D5-RG
The Festo Size 4 industrial component from the MS series is a directly controlled diaphragm regulator featuring a rotary knob with detent actuator lock and a red/green scale pressure gauge. It delivers a constant output pressure with secondary exhausting and return flow characteristics, accommodating an operating pressure range of 0.8 bar to 14 bar and a regulation range of 0.3 bar to 4 bar. Designed with a normal nominal flow rate of 2100 l/min, it operates on compressed air matching ISO 8573-1:2010 [7:4:4] or inert gases within an ambient and medium temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
576104
Stopper cylinder DFSP-32-25-PS-PA
The Festo 576104 is a single-acting industrial component featuring a 32 mm piston diameter, a 25 mm stroke, and a pulling mode of operation housed in a profile barrel with a round piston rod. Designed with elastic cushioning rings at both ends and position sensing via proximity switch, this unit operates within a pressure range of 0.12 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It delivers a maximum cycle rate of 5 Hz, withstands an ambient temperature range of -10 °C to 80 °C, and achieves ISO Class 5 cleanroom suitability alongside a CRC 2 moderate corrosion resistance rating. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
578278
Push-in L-fitting NPQH-L-M7-Q4-P10
The Festo 578278 is an L-shaped industrial component utilizing a push-pull structural design with a 3 mm nominal width, 13 mm tubing insertion depth, and a sealing ring on the screwed plug. Operating across a temperature range of 0 °C to 150 °C, it handles compressed air per ISO 8573-1:2010 [7:-:-] and liquid, ice-free water with pressures ranging from -0.095 MPa to 2 MPa. This standard-sized unit features Class 4 cleanroom suitability per ISO 14644-1, NSF C0523185 and NSF/ANSI 169 certifications, a corrosion resistance class of 3, and is supplied in a pack size of 10. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
577209
Compact cylinder ADNGF-20-15-PPS-A
The Festo 577209 is a double-acting industrial component built on a profile barrel structural design with a piston, piston rod, and a guide rod with yoke providing protection against torsion. Featuring a 20 mm piston diameter, a 15 mm stroke, and ISO 21287 compliance, this unit operates within a pressure range of 1.9 bar to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. It includes self-adjusting pneumatic end-position cushioning, position sensing via proximity switch, and delivers a theoretical force of 188 N advancing and 141 N retracting at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
