Festo
The Festo industrial component, part number 537261, is an ISO 21287 compliant size 100 unit weighing 814 g with high corrosion protection and a Corrosion Resistance Class (CRC) rating of 3 for high corrosion stress. Its construction features a steel bracket with a protective coating, VDMA24364-B2-L LABS conformity, and RoHS compliant materials, alongside specific constraints regarding metals containing more than 5% by mass of copper, zinc, or nickel for Li-ion battery production. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 536303 is a double-acting industrial component featuring a 40 mm piston diameter and a 25 mm stroke with an M8 internal thread on the piston rod. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.6 bar to 10 bar pressure range, this ISO 21287 conforming unit delivers a theoretical advancing force of 754 N and a retracting force of 686 N at 6 bar. It incorporates elastic cushioning rings at both ends, position sensing via proximity switch, and offers an ambient operating temperature range of -20 °C to 80 °C with ISO 14644-1 Class 5 cleanroom suitability. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 537715 is a round industrial component utilizing a reflection light barrier optoelectronic measuring principle with red polarized light for position sensing across a 2000 mm working range. It conforms to EN 60947-5-2 and features an NPN dark-switching output with a maximum switching frequency of 1000 Hz, 200 mA max output current, and a 10 V to 36 V DC operating voltage range. Rated for an ambient temperature range of -25 °C to 55 °C, this unit includes pulsed short-circuit protection and carries RCM, c UL us, CE, and UKCA compliance markings. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 537260 is an industrial component of size 80 based on the ISO 21287 norm, featuring high corrosion protection with a corrosion resistance class (CRC) of 3 and VDMA24364-B2-L LABS conformity. This RoHS-compliant unit weighs 634 g and includes a steel bracket with a protective coating, while excluding metals with more than 5% by mass of copper, zinc, or nickel for the production of Li-ion batteries, subject to standard material exceptions. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →
Festo
The Festo 536850 is an MS series size 6 industrial component featuring a fiber filter design with a 1 µm filtration grade and 99.99% filter efficiency, operating within a working pressure range of 2 to 12 bar and a standard flow rate between 140 and 950 l/min. This unit incorporates a fully automatic condensate drain, a 38 cm3 maximum condensate volume, an integrated metal shell bowl guard, and a visual differential pressure display for compressed air or inert gas media conforming to ISO8573-1:2010 [6:8:4]. Designed for a vertical assembly position within +/- 5°, it functions at ambient and medium temperatures from 5 to 60 ¼ircC, delivering an output air purity class of ISO8573-1:2010 [2:7:3] with a residual oil content of 0.5 mg/m3. Submit the exact part number, quantity, and application requirements for an RFQ.
View product details →
Festo
The Festo 536302 is a double-acting industrial component featuring a 40 mm piston diameter, a 20 mm stroke, and an M8 internal piston rod thread conforming to ISO 21287. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.6 bar to 10 bar pressure range, this unit delivers theoretical forces of 754 N advancing and 686 N retracting at 6 bar. It incorporates elastic cushioning rings at both ends, position sensing via proximity switch, and achieves ISO 14644-1 class 5 cleanroom suitability with a moderate corrosion resistance class of 2. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 537259 is an industrial component based on the ISO 21287 norm in size 63, featuring high corrosion protection with a corrosion resistance class (CRC) of 3 for high corrosion stress. This RoHS compliant part weighs 328 g, incorporates a steel bracket with a protective coating, and conforms to VDMA24364-B2-L LABS (PWIS) standards. It is suitable for the production of Li-ion batteries subject to restrictions excluding metals with more than 5% by mass of copper, zinc, or nickel, excluding specified exceptions. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo 537714 is a round optoelectronic position sensor utilizing a reflection light barrier with red polarized light and a 2000 mm working range. Conforming to EN 60947-5-2 with RCM and c UL us-Listed certifications, this component features an NPN dark-switching output with a max switching frequency of 1000 Hz, 200 mA output current, and 10 V to 36 V DC operating voltage range. Built with pulsed short-circuit protection, reverse polarity protection for all electrical connections, and an ambient temperature range of -25 °C to 55 °C, it complies with the EU EMC directive. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 537258 is an industrial component of size 50 based on the ISO 21287 norm, featuring high corrosion protection with a corrosion resistance class of CRC 3 for high corrosion stress. This RoHS-compliant unit weighs 278 g and incorporates a steel bracket with a protective coating, conforming to VDMA24364-B2-L LABS (PWIS) standards. Its suitability for the production of Li-ion batteries excludes metals with more than 5% by mass of copper, zinc, or nickel, subject to specific material exceptions. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 536301 is a double-acting industrial component featuring a 40 mm piston diameter, a 15 mm stroke, and an internal M8 piston rod thread conforming to ISO 21287. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.6 bar to 10 bar pressure range, this unit incorporates elastic cushioning rings at both ends and allows position sensing via a proximity switch. It achieves a theoretical force of 754 N advancing and 686 N retracting at 6 bar, while rated for a moderate corrosion resistance class of 2 and ISO Class 5 cleanroom suitability. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo 537713 is a round optoelectronic industrial component utilizing a reflection light barrier method of measurement with red polarized light to monitor position across a 2000 mm working range. Conforming to EN 60947-5-2 with RCM and c UL us - Listed certifications, this unit operates on a 10 V to 36 V DC voltage range and features an NPN dark-switching output with a maximum switching frequency of 1000 Hz and 200 mA output current. It operates within an ambient temperature range of -25 °C to 55 °C and includes pulsed short-circuit protection along with CE and UKCA markings per EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 536847 is an industrial component from the MS series, size 6, featuring a fiber filter with a 1 µm filtration grade and 99.99% filter efficiency. It operates within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar, 29 psi to 174 psi) using compressed air as per ISO 8573-1:2010 [6:-:4] or inert gases, delivering an output air quality class of ISO 8573-1:2010 [5:-:3] at standard flow rates between 140 l/min and 950 l/min. The unit includes a fully automatic and manual non-detenting condensate drain, a 38 cm³ max condensate volume, an integrated metal bowl guard, and a corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 537257 is a size 40 industrial component based on the ISO 21287 norm featuring high corrosion protection with a corrosion resistance class of CRC 3. Weighing 157 g, this RoHS compliant unit includes a steel bracket with a protective coating, conforms to VDMA24364-B2-L LABS (PWIS), and restricts specific metals containing over 5% copper, zinc, or nickel for Li-ion battery manufacturing suitability. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 536300 is a double-acting industrial component featuring a 40 mm piston diameter and a 10 mm stroke, conforming to ISO 21287. This unit operates at pressures from 0.06 MPa to 1 MPa using compressed air according to ISO 8573-1:2010 [7:4:4], delivering a theoretical advancing force of 754 N and a retracting force of 686 N at 6 bar. Designed with elastic cushioning rings at both ends, internal piston rod threads, and position sensing via proximity switch, the assembly functions in any mounting position within an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo

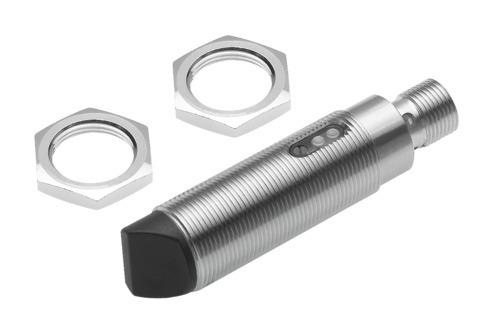

The Festo part number 537712 is a round optoelectronic through-beam sensor receiver designed to measure position over a 20000 mm working range in ambient temperatures from -25 °C to 55 °C. It features an antivalent NPN switching output, a maximum switching frequency of 1000 Hz, a 4-pin M12x1 plug connection, and operates on a DC voltage range of 10 V to 36 V with pulsed short-circuit protection and reverse polarity protection for all electrical connections. Conforming to EN 60947-5-2 with CE marking per the EU EMC directive, this component also carries RCM compliance and c UL us - Listed (OL) certifications. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 536846 is an industrial component featuring a size 6 MS series fiber filter design structure with a 1 µm filtration grade and 99.99% filter efficiency. Operating within a working pressure of 2 to 12 bar, this unit handles an operating medium of compressed air in accordance with ISO8573-1:2010 [6:8:4] or inert gases, delivering an output air purity class of ISO8573-1:2010 [2:7:3]. It includes a fully automatic condensate drain, integrated metal shell bowl guard, visual differential pressure display, and a maximum condensate volume of 38 cm3, operating at standard flow rates between 140 l/min and 950 l/min within a temperature range of 5 to 60 µC. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 537256 is an industrial component of size 32 built on the ISO 21287 norm, featuring high corrosion protection with a corrosion resistance class of CRC 3 for high corrosion stress. Weighing 123 g, it incorporates a RoHS-compliant steel bracket with a protective coating and adheres to VDMA24364-B2-L LABS conformity. Its suitability for the production of Li-ion batteries excludes metals with more than 5% by mass of copper, zinc, or nickel, subject to standard material exceptions. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 536299 is a double-acting industrial component featuring a 40 mm piston diameter, a 5 mm stroke, and an internal M8 piston rod thread at one end. Built to ISO 21287 standards, this unit operates on compressed air within a pressure range of 0.06 MPa to 1 MPa and incorporates elastic cushioning rings at both ends for 0.7 J of end-position impact energy. It delivers theoretical forces of 754 N advancing and 686 N retracting at 6 bar, utilizes proximity switches for position sensing, and is rated for an ambient temperature range of -20 °C to 80 °C with ISO 14644-1 Class 5 cleanroom suitability. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

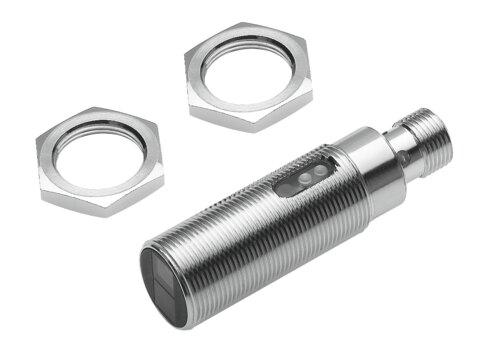

The Festo 537711 is a round optoelectronic through-beam sensor receiver designed to measure position across a 20000 mm working range in ambient temperatures from -25 °C to 55 °C. Conforming to EN 60947-5-2, this component features an NPN antivalent switching output with a maximum switching frequency of 1000 Hz, a 200 mA maximum output current, and a DC operating voltage range of 10 V to 36 V. It includes pulsed short-circuit protection, reverse polarity protection for all electrical connections, and operates with a 2 V voltage drop, 20% residual ripple, and 10 mA idle current. Regulatory compliance is verified by the RCM compliance mark, c UL us - Listed (OL) certification, along with CE and UKCA markings per EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 536845 is a size 6 industrial component from the MS series featuring a fiber filter design structure with a 1 µm filtration grade and 99.99% filter efficiency. This unit operates within a working pressure of 2 to 12 bar, a standard flow rate ranging from 140 to 950 l/min, and handles compressed air according to ISO 8573-1:2010 [6:8:4] or inert gases within a medium and ambient temperature range of 5 to 60 ¼irc}C. Equipment features include a fully automatic condensate drain with a 38 cm3 maximum volume, an integrated metal shell bowl guard, a visual differential pressure display, and a CRC 2 corrosion resistance classification, yielding an output air purity class of ISO 8573-1:2010 [2:7:3] with 0.5 mg/m3 residual oil content in a vertical +/- 5° assembly position. Submit the exact part number, quantity, and application requirements for a quote.
