Festo
The Festo 8076241 is a double-acting industrial component featuring an 80 mm piston diameter, a 15 mm stroke, and an M16x1,5 female piston-rod end. Built in accordance with ISO 21287 with a single-ended piston rod design and self-adjusting pneumatic end-position cushioning (PPS), it operates at pressures from 1 to 10 bar (0.1 to 1 MPa) across an ambient temperature range of -20 to 80 °C. Position detection is supported via proximity sensors, and the unit accommodates compressed air media matching ISO 8573-1:2010 [7:4:4] standards with provisions for lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo
The Festo part number 8075980 is a double-acting industrial component featuring a 40 mm piston diameter, a 50 mm stroke, and an M10x1,25 female threaded piston-rod end configured as a single-ended piston rod design. Built to ISO 21287 standards with flexible cushioning rings at both ends and position detection for proximity sensors, it operates on compressed air within a 0.06 to 1 MPa range across ambient temperatures from -20 to 80 °C. This unit delivers a theoretical retracting force of 686 N at 0.6 MPa, maintains a CRC corrosion resistance classification of 1, and allows lubricated operation subsequent to initial use. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

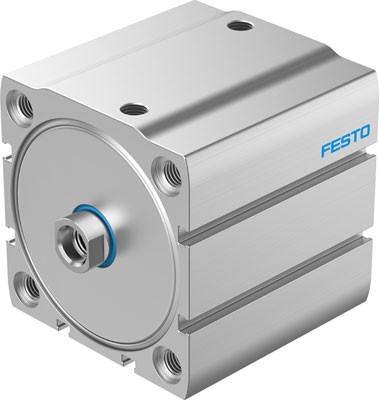

The Festo 8076240 is a double-acting industrial component featuring an 80 mm piston diameter, a 10 mm stroke, and an ISO 21287 compliant design structure with a single-ended piston rod and M16x1,5 female thread. Operating within a pressure range of 0.1 to 1 MPa (1 to 10 bar) on compressed air conforming to ISO 8573-1:2010 [7:4:4], it incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 7.5 mm cushioning length and 8 J impact energy capacity. Designed for ambient temperatures between -20 and 80 °C with any assembly position and position detection via proximity sensor, this unit maintains a CRC 1 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo

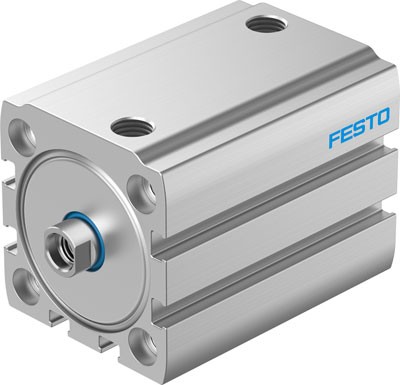

The Festo 8075979 is a double-acting industrial component featuring a 40 mm piston diameter, a 20 mm stroke, and an M10x1,25 female piston-rod end thread complying with ISO 21287. This unit operates on compressed air within a working pressure range of 0.6 to 10 bar and incorporates flexible cushioning rings at both ends with an impact energy rating of 0.7 J. Designed for any assembly position, it accommodates position detection via proximity sensors and delivers a theoretical retracting force of 686 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076239 is a double-acting industrial component featuring an 80 mm piston diameter and an 80 mm stroke, conforming to ISO 21287 standards with a single-ended male M16x1,5 piston rod thread. Engineered with self-adjusting pneumatic end-position cushioning (PPS), this piston and piston rod assembly operates within a pressure range of 1 to 10 bar (0.1 to 1 MPa) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It accommodates any assembly position, includes position detection for proximity sensors, and functions across an ambient temperature range of -20 to 80 °C under a low corrosion stress classification (CRC 1). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 8075978 is a double-acting industrial component featuring a 40 mm piston diameter, a 10 mm stroke, and an M10x1,25 female piston-rod thread conforming to ISO 21287. Operating within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) using compressed air according to ISO 8573-1:2010 [7:4:4], this single-ended piston rod unit incorporates flexible cushioning rings at both ends and allows for position detection via proximity sensor. It is rated for an ambient temperature range of -20 to 80 °C, a CRC corrosion resistance of 1, and delivers a theoretical retracting force of 686 N at 0.6 MPa with an impact energy of 0.7 J in its end positions. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 8076238 is a double-acting industrial component featuring an 80 mm piston diameter, a 70 mm stroke, and an M16x1,5 male piston-rod thread conforming to ISO 21287. Designed with self-adjusting pneumatic end-position cushioning (PPS) and position detection for proximity sensors, this unit operates on compressed air within a working pressure range of 1 to 10 bar (0.1 to 1 MPa) and an ambient temperature range of -20 to 80 °C. The assembly supports any mounting position and permits lubricated operation subsequent to initial use under a low corrosion stress classification (CRC 1). Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This Festo industrial component, part number 8075977, is a double-acting pneumatic cylinder featuring a 40 mm piston diameter, a 70 mm stroke, and an ISO 21287 compliant design structure comprising a piston and a single-ended piston rod with an M10x1,25 female thread. Operating within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], it incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 5 mm cushioning length and a 1.7 J impact energy rating in end positions. The unit includes position detection capabilities for proximity sensors, allows for lubricated operation, and operates across an ambient temperature range of -20 to 80 °C with a CRC 1 corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 8076237 is a double-acting industrial component featuring an 80 mm piston diameter and a 60 mm stroke with an M16x1,5 male piston rod thread. Built in accordance with ISO 21287, this piston and piston rod assembly incorporates self-adjusting pneumatic end-position cushioning (PPS) and operates within a working pressure range of 1 to 10 bar (0.1 to 1 MPa) on compressed air conforming to ISO 8573-1:2010 [7:4:4]. It is equipped for position detection via proximity sensors, functions in any assembly position across an ambient temperature range of -20 to 80 °C, and withstands an impact energy of 8 J in the end positions with a 7.5 mm cushioning length. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →
Festo
The Festo 8075976 is a double-acting industrial component featuring a 40 mm piston diameter, a 30 mm stroke, and an M10x1,25 female threaded piston-rod end configured as a single-ended piston rod design. Operating at pressures from 1 to 10 bar (0.1 to 1 MPa), this ISO 21287 conforming unit integrates self-adjusting pneumatic end-position cushioning (PPS) with a 5 mm cushioning length and 1.7 J impact energy capacity in end positions. It accommodates any assembly position, includes position detection for proximity sensors, and functions within an ambient temperature range of -20 to 80 °C using compressed air meeting ISO 8573-1:2010 [7:4:4] standards with provisions for lubricated operation. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo 8076236 is a double-acting industrial component featuring an 80 mm piston diameter, a 50 mm stroke, and an M16x1,5 male piston-rod thread conforming to ISO 21287. Operating within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air compliant with ISO 8573-1:2010 [7:4:4], this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 7.5 mm cushioning length and 8 J impact energy capacity. Designed for assembly in any position with a single-ended piston rod and provisions for proximity sensor position detection, it functions across an ambient temperature range of -20 to 80 °C under a CRC 1 low corrosion stress classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

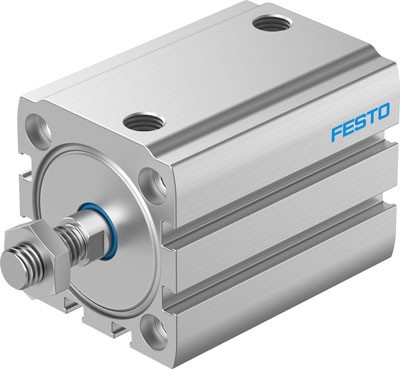

Manufactured by Festo, part number 8075975 is a double-acting industrial component featuring a 40 mm piston diameter, a 15 mm stroke, and an M10x1,25 male piston rod thread conforming to ISO 21287. It operates with compressed air according to ISO 8573-1:2010 [7:4:4] within a working pressure range of 0.6 to 10 bar (0.06 to 1 MPa), delivering a theoretical retracting force of 686 N at 0.6 MPa (6 bar, 87 psi). The unit incorporates flexible cushioning rings at both ends (P), position detection for proximity sensors, and an operating ambient temperature range of -20 to 80 °C with any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076235 is a double-acting industrial component featuring an 80 mm piston diameter, a 40 mm stroke, and an M16x1,5 male piston rod thread conforming to ISO 21287. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a pressure range of 0.1 to 1 MPa (1 to 10 bar), this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 7.5 mm cushioning length and 8 J impact energy capacity. Designed with a single-ended piston rod and position detection for proximity sensors, it permits installation in any assembly position across an ambient temperature range of -20 to 80 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
This Festo industrial component features a double-acting design with an 80 mm piston diameter, a 35 mm stroke, and an M16x1,5 male piston rod thread conforming to ISO 21287. It operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air in accordance with ISO 8573-1:2010 [7:4:4], and incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 7.5 mm cushioning length and 8 J impact energy. The unit supports position detection via proximity sensors, allows for lubricated operation, and maintains an ambient temperature range of -20 to 80 °C with a CRC 1 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 8075974 is a double-acting industrial component featuring a 40 mm piston diameter and a 50 mm stroke with a single-ended piston rod and female M10x1,25 thread conforming to ISO 21287. It operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], and incorporates PPS self-adjusting pneumatic end-position cushioning with a 5 mm cushioning length and 1.7 J impact energy in end positions. Designed for any assembly position with provisions for proximity sensor position detection, the unit withstands ambient temperatures from -20 to 80 °C and features a CRC corrosion resistance classification of 1 along with VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076233 is a double-acting industrial component featuring an 80 mm piston diameter and a 30 mm stroke, conforming to the ISO 21287 standard. Operating on compressed air within a pressure range of 0.1 to 1 MPa (1 to 10 bar) and an ambient temperature span of -20 to 80 °C, this unit includes self-adjusting pneumatic end-position cushioning (PPS) and an M16x1,5 male piston rod thread. It is designed with a single-ended piston rod, accommodates position detection via proximity sensor, and permits lubricated operation when subsequently required. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
Engineered by Festo with a 40 mm piston diameter and a 15 mm stroke, part number 8075973 is a double-acting industrial component featuring an ISO 21287 design structure, M10x1,25 female piston-rod end, and self-adjusting PPS pneumatic end-position cushioning. This unit operates within a 1 to 10 bar working pressure range across an ambient temperature span of -20 to 80 °C, utilizing compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It includes position detection for proximity sensors, accommodates any assembly position, and maintains a CRC 1 low corrosion stress classification. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →
Festo

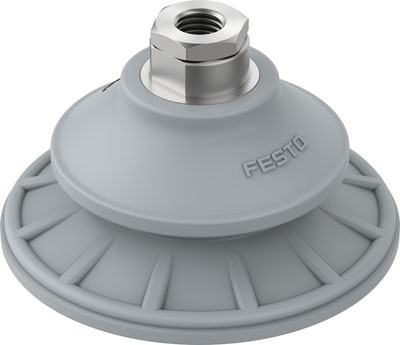

This Festo industrial component, part number 8073846, is a round 1.5-convolution bellows suction cup with a 100 mm diameter, a nominal size of 8 mm, and an internal volume of 115 cm3. It features a 26 mm height compensator, a top connection position, and operates at pressures ranging from -95 to 0 kPa (-0.95 to 0 bar) while providing a retention force of 318 N and a lateral force of 147 N at a nominal operating pressure of -60 kPa. Weighing 109 g with a moderate corrosion resistance classification of CRC 2, it functions within an ambient temperature range of 10 to 120 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-] in any assembly position. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo

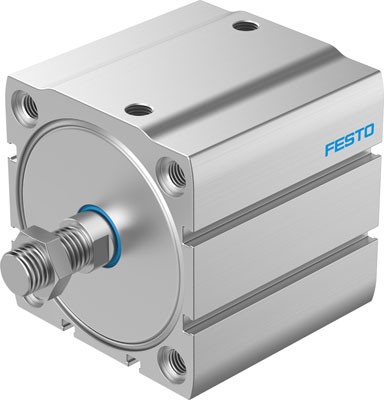

The Festo 8076232 is an ISO 21287 compliant industrial component featuring a double-acting design with an 80 mm piston diameter and a 25 mm stroke. It incorporates self-adjusting pneumatic end-position cushioning (PPS), a male M16x1,5 piston rod thread, and position detection capabilities for proximity sensors. Operating within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], the unit functions across an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075972 is a double-acting industrial component featuring a 40 mm piston diameter, a 5 mm stroke, and an M10x1,25 male piston rod thread in accordance with ISO 21287. Operating on compressed air within a 0.06 to 1 MPa range, this single-ended piston rod unit utilizes flexible cushioning rings at both ends and includes position detection capabilities for proximity sensors. It functions reliably across an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 686 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
