Festo
The Festo 8073845 is a round, 1.5-convolution bellows industrial suction cup component featuring a 50 mm diameter, a 15 cm3 volume, and an 11.5 mm height compensator with a top connection position. Operating within a pressure range of -95 to 0 kPa (-0.95 to 0 bar) with atmospheric air per ISO 8573-1:2010 [7:-:-], this 41 g component delivers a retention force of 93 N and a lateral force of 88 N at a nominal operating pressure of -60 kPa. It accommodates a minimum workpiece radius of 35 mm, functions in ambient temperatures from 10 to 120 °C, and conforms to VDMA24364-A1-L with a CRC rating of 2 for moderate corrosion stress in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076231 is a double-acting industrial component featuring an 80 mm piston diameter and a 20 mm stroke, conforming to the ISO 21287 standard with a single-ended male M16x1,5 piston rod thread. Engineered for a working pressure of 1 to 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4], it incorporates self-adjusting pneumatic end-position cushioning (PPS) with an 8 J impact energy tolerance across an ambient temperature range of -20 to 80 °C. This unit includes position detection capabilities for proximity sensors and can be mounted in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

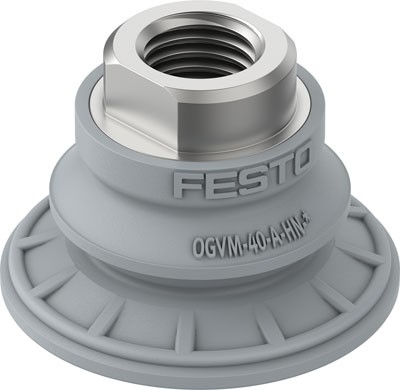

Festo
The Festo part number 8073844 is a round, 1.5-convolute bellows suction cup industrial component featuring a 40 mm diameter, a 10 mm height compensator, and a 4.0 mm nominal size with a top connection position. It operates within a pressure range of -95 to 0 kPa (-0.95 to 0 bar, or -13.775 to 0 psi) using atmospheric air based on ISO 8573-1:2010 [7:-:-], delivering a retention force of 69 N and a lateral force of 59 N at a nominal operating pressure of -60 kPa. Weighing 17 g with a suction volume of 7.8 cm3, this component supports any assembly position, an ambient temperature range of 10 to 120 °C, a minimum workpiece radius of 30 mm, a CRC rating of 2 for moderate corrosion stress, and VDMA24364-A1-L PWIS conformity. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 8075971 is a double-acting industrial component featuring a 40 mm piston diameter, a 50 mm stroke, and an M10x1,25 male piston-rod end thread conforming to ISO 21287. Designed with flexible cushioning rings at both ends and position detection for proximity sensors, this unit operates within a pressure range of 0.06 to 1 MPa using compressed air according to ISO 8573-1:2010 [7:4:4]. It delivers a theoretical retracting force of 686 N at 0.6 MPa while functioning across an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

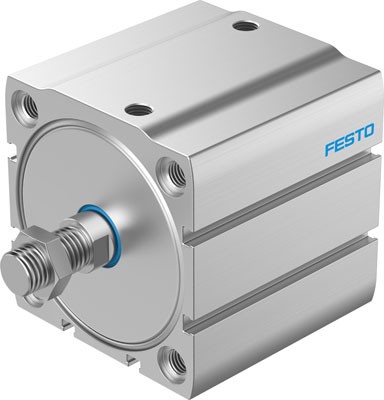

Festo
The Festo 8076230 is a double-acting industrial component featuring an 80 mm piston diameter and a 15 mm stroke conforming to ISO 21287. This piston and piston rod assembly operates at pressures from 1 to 10 bar (0.1 to 1 MPa) utilizing compressed air per ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -20 to 80 °C. It incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 7.5 mm cushioning length and 8 J impact energy capacity, alongside a male M16x1,5 piston rod thread and position detection capability for proximity sensors. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →

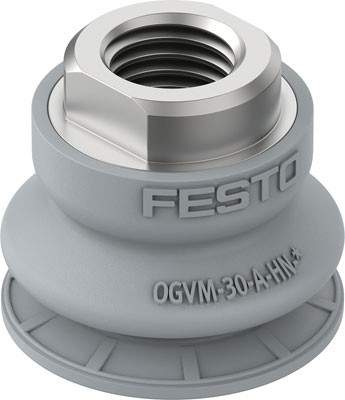

Festo
The Festo 8073843 is a round, 1.5-convolute bellows industrial component featuring a 30 mm suction cup diameter, a 4 mm nominal size, and a 9 mm suction cup height compensator with a top connection position for installation in any assembly position. Operating within a pressure range of -95 to 0 kPa (-0.95 to 0 bar / -13.775 to 0 psi) using atmospheric air based on ISO 8573-1:2010 [7:-:-], this 15 g part delivers a retention force of 37 N and a lateral force of 38 N at a nominal operating pressure of -60 kPa (-0.6 bar), while accommodating a minimum workpiece radius of 25 mm within an ambient temperature range of 10 to 120 °C. It features a CRC rating of 2 for moderate corrosion stress and VDMA24364-A1-L PWIS conformity, with a suction cup volume of 5.5 cm3. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 8075970 is a double-acting industrial component featuring an 80 mm stroke and a 40 mm piston diameter with an M10x1,25 female piston-rod end. Built to ISO 21287 standards, this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 5 mm cushioning length and 1.7 J impact energy capacity. It operates on compressed air within a 1 to 10 bar working pressure range across an ambient temperature of -20 to 80 °C, and includes position detection capabilities for proximity sensors in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076229 is a double-acting industrial component featuring an 80 mm piston diameter, a 10 mm stroke, and an M16x1,5 male piston rod thread conforming to ISO 21287. Engineered with self-adjusting pneumatic end-position cushioning (PPS) and a cushioning length of 7.5 mm, it operates within a pressure range of 1 to 10 bar (0.1 to 1 MPa) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. This single-ended piston rod unit accommodates any assembly position, includes position detection for proximity sensors, and withstands ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →

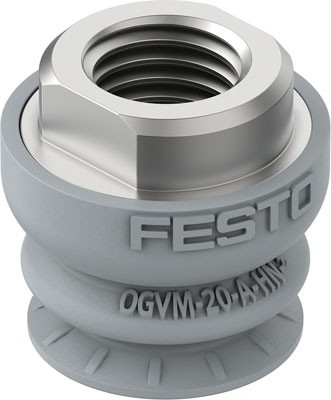

Festo
The Festo 8073842 is a round, 1.5-convolution bellows industrial component featuring a 20 mm suction cup diameter, a 4 mm nominal size, and a 5.8 mm height compensator with a top-positioned connection. Engineered for omnidirectional installation with an atmospheric air operating medium compliant with ISO 8573-1:2010 [7:-:-], this 12 g assembly operates within a pressure range of -95 to 0 kPa (-0.95 to 0 bar) and delivers a retention and lateral force of 18 N at a nominal operating pressure of -60 kPa across ambient temperatures of 10 to 120 °C. It maintains a moderate corrosion resistance classification CRC of 2 and VDMA24364-A1-L PWIS conformity while accommodating workpieces with a minimum radius of 12.5 mm and a 2 cm3 suction cup volume. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →

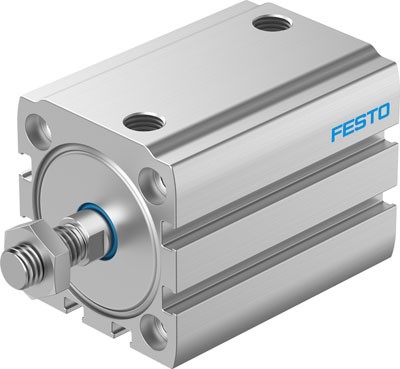

Festo
The Festo 8075969 is a double-acting industrial component featuring a 40 mm piston diameter, a 15 mm stroke, and an M10x1,25 male piston rod thread conforming to ISO 21287. Designed with a piston and piston rod structure, it includes self-adjusting pneumatic end-position cushioning (PPS), position detection for proximity sensors, and an operating pressure range of 0.1 to 1 MPa (1 to 10 bar). It operates within an ambient temperature range of -20 to 80 °C using compressed air in accordance with ISO 8573-1:2010 [7:4:4], supporting lubricated operation and featuring a CRC 1 corrosion resistance classification. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo 8076228 is a double-acting industrial component featuring an 80 mm piston diameter, an 80 mm stroke, and a female M16x1,5 piston rod thread conforming to ISO 21287. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a pressure range of 0.04 to 1 MPa, this single-ended piston rod unit incorporates flexible cushioning rings at both ends and allows for position detection via proximity sensors. It delivers a theoretical retracting force of 2,827 N at 0.6 MPa while functioning across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
View product details →
Festo
The Festo 8075968 is a double-acting industrial component featuring a 40 mm piston diameter, a 40 mm stroke, and a male M10x1,25 piston rod thread conforming to ISO 21287. Designed with flexible cushioning rings at both ends and provisions for proximity sensor position detection, this unit operates within a pressure range of 0.06 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It delivers a theoretical retracting force of 686 N at 0.6 MPa across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076227 is a double-acting industrial component featuring an 80 mm piston diameter, a 70 mm stroke, and an M16x1,5 female piston-rod thread conforming to ISO 21287. Designed with flexible cushioning rings at both ends, a single-ended piston rod, and position detection for proximity sensors, this unit operates on compressed air within a 0.04 to 1 MPa pressure range and a -20 to 80 °C ambient temperature span. It delivers a theoretical retracting force of 2,827 N at 0.6 MPa with 1.8 J of impact energy in the end positions, featuring a CRC 1 corrosion resistance classification and VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8075967 is a double-acting industrial component featuring a 40 mm piston diameter, a 40 mm stroke, and a female M10x1,25 piston rod thread conforming to ISO 21287. Designed with a single-ended piston rod, self-adjusting pneumatic end-position cushioning (PPS), and integrated position detection for proximity sensors, it operates on compressed air within a working pressure range of 1 to 10 bar (0.1 to 1 MPa) and an ambient temperature range of -20 to 80 °C. This unit offers a 5 mm cushioning length, 1.7 J impact energy in end positions, a CRC rating of 1 for low corrosion stress, and allows for lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

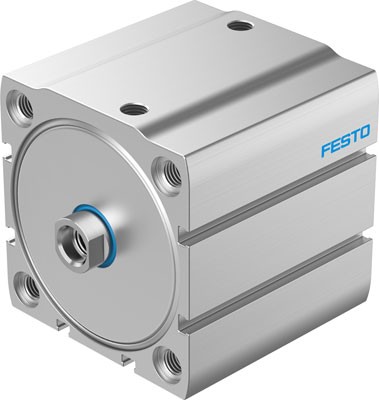

Festo
The Festo 8076226 is a double-acting industrial component featuring an 80 mm piston diameter and a 60 mm stroke, conforming to the ISO 21287 standard. Operating on compressed air within a pressure range of 0.04 to 1 MPa (0.4 to 10 bar), this unit utilizes flexible cushioning rings at both ends and incorporates a female M16x1,5 piston rod thread. It accommodates ambient temperatures from -20 to 80 °C and includes provisions for position detection via proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 8075966 is a double-acting industrial component featuring a 40 mm piston diameter, a 30 mm stroke, and an M10x1,25 male piston-rod thread conforming to ISO 21287. Operating within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) using compressed air according to ISO 8573-1:2010 [7:4:4], this unit incorporates flexible cushioning rings at both ends and accommodates proximity sensors for position detection. It operates at ambient temperatures between -20 and 80 °C, delivering a theoretical retracting force of 686 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076225 is a double-acting industrial component featuring an 80 mm piston diameter, a 50 mm stroke, and an M16x1,5 female piston-rod thread conforming to ISO 21287. Operating within a pressure range of 0.4 to 10 bar (0.04 to 1 MPa), this single-ended piston rod unit utilizes flexible cushioning rings or plates at both ends and accommodates compressed air per ISO 8573-1:2010 [7:4:4] within an ambient temperature span of -20 to 80 °C. It delivers a theoretical retracting force of 2,827 N at 0.6 MPa (6 bar, 87 psi) and includes provisions for position detection via proximity sensor in any assembly position. Submit part number 8076225 with your required quantity and application specifications to receive a formal quotation.
View product details →

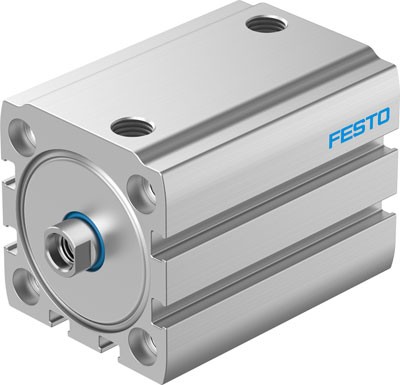

Festo
The Festo 8075965 is a double-acting industrial component featuring a 40 mm piston diameter, a 40 mm stroke, and an M10x1,25 female piston-rod end. Conforming to ISO 21287, this unit operates on compressed air within a working pressure range of 0.6 to 10 bar and incorporates flexible cushioning rings at both ends. It includes position detection for proximity sensors and functions across an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076224 is a double-acting industrial component featuring an 80 mm piston diameter and a 40 mm stroke with an M16x1,5 female piston-rod thread. Built to ISO 21287 standards, this unit operates on compressed air within a 0.04 to 1 MPa pressure range and incorporates flexible cushioning rings at both ends. It functions in any assembly position across an ambient temperature range of -20 to 80 °C and includes position detection capabilities for proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075964 is a double-acting industrial component featuring a 40 mm piston diameter, a 70 mm stroke, and an M10x1,25 male piston rod thread conforming to ISO 21287. Operating on compressed air within a working pressure range of 0.6 to 10 bar, this unit incorporates flexible cushioning rings at both ends and allows for position detection via proximity sensor. It functions across an ambient temperature range of -20 to 80 °C and delivers a theoretical retracting force of 686 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to request a quote.
