Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
This Festo industrial component (Part Number 8076185) is a double-acting pneumatic piston and piston rod assembly conforming to ISO 21287 with a 50 mm piston diameter, a 15 mm stroke, and an M12x1,25 male piston rod thread. Designed with PPS self-adjusting pneumatic end-position cushioning over a 6 mm cushioning length, it operates across a working pressure of 1 to 10 bar (0.1 to 1 MPa) utilizing compressed air meeting ISO 8573-1:2010 [7:4:4] standards within an ambient temperature range of -20 to 80 °C. The unit features position detection capabilities for proximity sensors, a single-ended piston rod, a CRC corrosion resistance classification of 1, and VDMA24364-B2-L PWIS conformity while allowing for lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

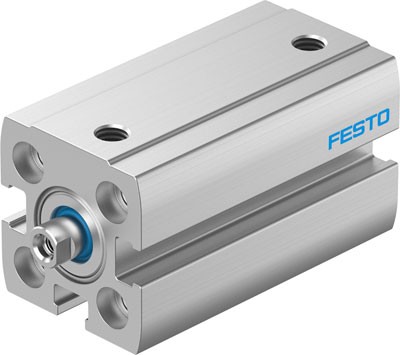

The Festo 8075942 is a double-acting industrial component featuring a 12 mm piston diameter, a 5 mm stroke, and an M5 female thread on the piston rod. Built in accordance with ISO 21287, this single-ended piston rod unit operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It includes flexible cushioning rings or plates at both ends, accommodates position detection via proximity sensors, and delivers a theoretical retracting force of 51 N at 0.6 MPa (87 psi). Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 8076184 is a double-acting industrial component featuring a 50 mm piston diameter and a 15 mm stroke conforming to ISO 21287. Designed with a single-ended piston rod with an M12x1,25 male thread, this piston structure operates on compressed air within a working pressure range of 0.4 to 10 bar (0.04 to 1 MPa) across an ambient temperature range of -20 to 80 °C. It incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and delivers a theoretical retracting force of 1,057 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8075941 is a double-acting industrial component featuring a 12 mm piston diameter, a 60 mm stroke, and an M5 male piston rod thread conforming to ISO 21287. This unit operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], and is equipped with flexible cushioning rings at both ends for 0.07 J of impact energy dissipation. Designed with a single-ended piston rod and position detection capability for proximity sensors, it functions in any assembly position at ambient temperatures from -20 to 80 °C, delivering a theoretical retracting force of 51 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

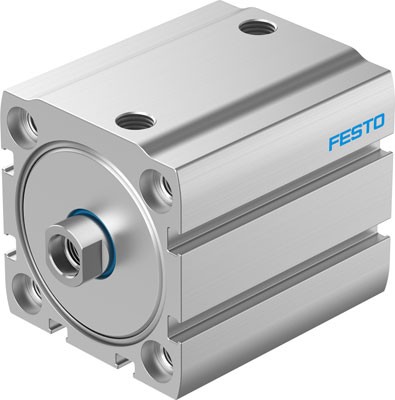

The Festo 8076183 is a double-acting industrial component featuring a 50 mm piston diameter and a 15 mm stroke conforming to ISO 21287. This piston and piston rod assembly incorporates a female M12x1,25 piston-rod thread, self-adjusting PPS pneumatic end-position cushioning with a 6 mm cushioning length, and provision for position detection via proximity sensors. Operating within a pressure range of 0.1 to 1 MPa and an ambient temperature of -20 to 80 °C, it utilizes compressed air matching ISO 8573-1:2010 [7:4:4] standards and supports lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8075940 is a double-acting industrial component featuring a 12 mm piston diameter and a 50 mm stroke, conforming to ISO 21287 standards. Designed with a single-ended piston rod, male M5 thread, and flexible cushioning rings at both ends, it operates within a pressure range of 0.1 to 1 MPa using compressed air according to ISO 8573-1:2010 [7:4:4]. This unit functions in any assembly position across an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 51 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076182 is a double-acting industrial component featuring a 50 mm piston diameter, an 80 mm stroke, and an M12x1,25 male piston-rod thread conforming to ISO 21287. Operating on compressed air within a 0.04 to 1 MPa range, this unit incorporates flexible cushioning rings at both ends, position detection for proximity sensors, and an operating temperature range of -20 to 80 °C. It delivers a theoretical retracting force of 1,057 N at 0.6 MPa while maintaining a CRC 1 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

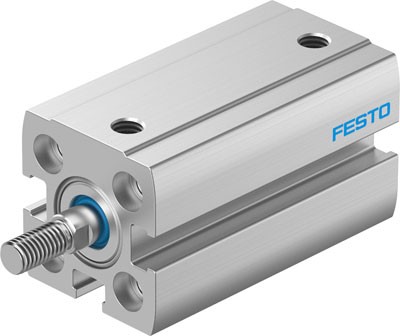

The Festo 8075939 is a double-acting industrial component featuring a 12 mm piston diameter, a 40 mm stroke, and an M5 piston rod thread with a male end. Built to ISO 21287 standards with flexible cushioning rings at both ends, this unit operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It delivers a theoretical retracting force of 51 N at 0.6 MPa, accommodates proximity sensors for position detection, and functions across an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo part number 8076181 is a double-acting industrial component featuring a 50 mm piston diameter, a 10 mm stroke, and an M12x1,25 male piston rod thread conforming to ISO 21287. Designed with flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and an operating pressure range of 0.4 to 10 bar (0.04 to 1 MPa), this unit operates within ambient temperatures from -20 to 80 °C using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It delivers a theoretical retracting force of 1,057 N at 0.6 MPa (6 bar, 87 psi) and allows for any assembly position with a single-ended piston rod structure. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075938 is a double-acting industrial component featuring a 12 mm piston diameter, a 35 mm stroke, and an M5 male piston rod thread designed in a piston and piston rod structure. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 0.1 to 1 MPa (1 to 10 bar), this unit incorporates flexible cushioning rings at both ends and accommodates position detection via proximity sensors. It conforms to ISO 21287, operates in any assembly position within an ambient temperature range of -20 to 80 °C, and delivers a theoretical retracting force of 51 N at 0.6 MPa with an end-position impact energy of 0.07 J. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo
This Festo 8076180 industrial component is a double-acting pneumatic cylinder featuring a 50 mm piston diameter, a 35 mm stroke, and an M12x1,25 male piston rod thread conforming to ISO 21287. It operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4] and incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 6 mm cushioning length and 2.8 J impact energy tolerance. The unit is designed for any assembly position, accommodates position detection via proximity sensors, and maintains an ambient temperature operating range of -20 to 80 °C alongside a CRC 1 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo 8075937 is a double-acting industrial component featuring a 12 mm piston diameter and a 30 mm stroke with an M5 male piston rod thread. Built with flexible cushioning rings at both ends and an ISO 21287 design structure, it operates on compressed air within a pressure range of 1 to 10 bar across an ambient temperature of -20 to 80 °C. This model includes position detection for proximity sensors and delivers a theoretical retracting force of 51 N at 0.6 MPa. Submit your exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo

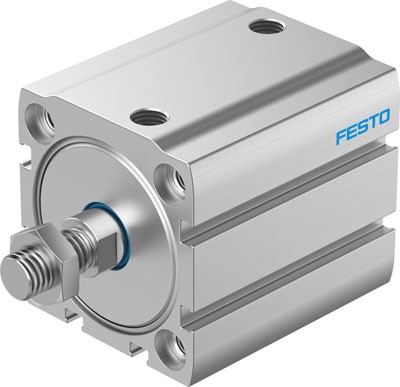

This Festo industrial component, part number 8076178, is a double-acting pneumatic cylinder featuring a 50 mm piston diameter, a 70 mm stroke, and an M12x1,25 male piston-rod thread conforming to ISO 21287. Operating at pressures from 1 to 10 bar (0.1 to 1 MPa) with compressed air meeting ISO 8573-1:2010 [7:4:4], the unit incorporates PPS self-adjusting pneumatic end-position cushioning with a 6 mm cushioning length and 2.8 J end-position impact energy. Designed with a single-ended piston rod for any assembly position, it includes position detection for proximity sensors, a CRC 1 low corrosion stress classification, and an ambient temperature range of -20 to 80 °C. Request a quote today by submitting your required quantity and application details for part number 8076178.
View product details →
Festo
The Festo 8075936 is a double-acting industrial component featuring a 12 mm piston diameter and a 25 mm stroke with a male M5 piston rod thread. Built with flexible cushioning rings at both ends and integrated position detection for proximity sensors, it operates on compressed air within a working pressure range of 1 to 10 bar and an ambient temperature range of -20 to 80 °C. This model conforms to ISO 21287 with any assembly position and delivers a theoretical retracting force of 51 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076177 is a double-acting industrial component featuring a 50 mm piston diameter, a 20 mm stroke, and an M12x1,25 male piston rod thread conforming to ISO 21287. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a working pressure range of 0.4 to 10 bar, this unit delivers a theoretical retracting force of 1,057 N at 0.6 MPa. It is equipped with flexible cushioning rings or plates at both ends, position detection capabilities for proximity sensors, and functions within an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075935 is a double-acting industrial component featuring a 12 mm piston diameter and a 20 mm stroke, conforming to ISO 21287 standards with a male M5 piston rod thread. This model operates within a pressure range of 1 to 10 bar (0.1 to 1 MPa) utilizing compressed air per ISO 8573-1:2010 [7:4:4], and includes flexible cushioning rings at both ends with an end-position impact energy of 0.07 J. It accommodates any assembly position, features provisions for position detection via proximity sensors, and delivers a theoretical retracting force of 51 N at 0.6 MPa (6 bar, 87 psi). Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo part number 8076176 is a double-acting industrial component featuring a 50 mm piston diameter, a 60 mm stroke, and an M12x1,25 male piston-rod end configured as a single-ended variant conforming to ISO 21287. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a pressure range of 0.04 to 1 MPa (0.4 to 10 bar), this unit incorporates flexible cushioning rings at both ends and provisions for proximity sensor position detection in any assembly position. It delivers a theoretical retracting force of 1,057 N at 0.6 MPa (6 bar, 87 psi) across an ambient temperature range of -20 to 80 °C with a CRC corrosion resistance rating of 1 and VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075934 is a double-acting industrial component featuring a 12 mm piston diameter and a 15 mm stroke with a male M5 piston rod thread. Conforming to ISO 21287, this piston-and-rod design incorporates flexible cushioning rings at both ends, position detection for proximity sensors, and an operating pressure range of 0.1 to 1 MPa (1 to 10 bar). It operates within an ambient temperature range of -20 to 80 °C using compressed air meeting ISO 8573-1:2010 [7:4:4] standards and delivers a theoretical retracting force of 51 N at 0.6 MPa (6 bar, 87 psi). Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076175 is a double-acting industrial component featuring a 50 mm piston diameter, a 40 mm stroke, and an M12x1,25 male piston rod thread designed to ISO 21287 standards. This model operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4] and includes self-adjusting pneumatic end-position cushioning (PPS) with a 6 mm cushioning length and 2.8 J impact energy handling. It supports any assembly position, accommodates position detection via proximity sensors, and functions in ambient temperatures between -20 and 80 °C with a CRC 1 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

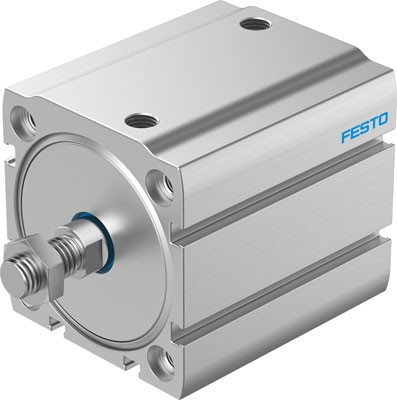

This Festo industrial component, part number 8075933, is a double-acting pneumatic cylinder featuring a 63 mm piston diameter, a 50 mm stroke, and an M12x1,25 male piston-rod thread. Built to ISO 21287 standards with a piston and piston rod design structure, it operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. The unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 7 mm cushioning length and 4.8 J impact energy, alongside provisions for proximity sensor position detection and any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
