Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

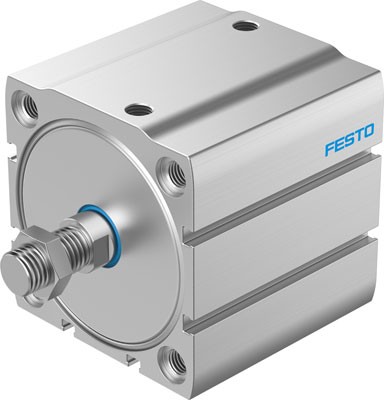

The Festo 8076213 is a double-acting industrial component featuring an 80 mm piston diameter, a 40 mm stroke, and an M16x1,5 male piston rod thread conforming to ISO 21287. This single-ended piston rod unit operates within a pressure range of 0.04 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], and includes flexible cushioning rings at both ends with an end-position impact energy of 1.8 J. It delivers a theoretical retracting force of 2,827 N at 0.6 MPa while accommodating any assembly position across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →
Festo
This Festo industrial component features a 40 mm piston diameter with a 25 mm stroke and an M10x1,25 female threaded piston-rod end, operating on double-acting compressed air within a 1 to 10 bar working pressure range. Built to ISO 21287 standards with any assembly position, it incorporates self-adjusting pneumatic end-position cushioning and integrated position detection for proximity sensors across a -20 to 80 °C ambient temperature range. Submit the exact part number, quantity, and application requirements to receive an RFQ quote.
View product details →
Festo
The Festo part number 8076212 is a double-acting industrial component featuring an 80 mm piston diameter, a 35 mm stroke, and an M16x1,5 male piston-rod end that conforms to ISO 21287. Operating within a pressure range of 0.04 to 1 MPa (0.4 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit incorporates flexible cushioning rings at both ends and provisions for proximity sensor position detection. It delivers a theoretical retracting force of 2,827 N at 0.6 MPa while accommodating an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8075951 is a double-acting industrial component featuring a 12 mm piston diameter, a 60 mm stroke, and an M5 female thread on the piston-rod end. Built to ISO 21287 standards with flexible cushioning rings at both ends and a single-ended piston rod, it operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) on compressed air conforming to ISO 8573-1:2010 [7:4:4]. This versatile unit accommodates any assembly position, integrates position detection for proximity sensors, and delivers a theoretical retracting force of 51 N at 0.6 MPa while withstanding ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →
Festo
The Festo 8076211 is a double-acting industrial component featuring an 80 mm piston diameter, a 30 mm stroke, and an M16x1,5 male piston rod thread conforming to ISO 21287. Operating on compressed air within a working pressure range of 0.4 to 10 bar (0.04 to 1 MPa), this single-ended piston rod model incorporates flexible cushioning rings at both ends and enables position detection via proximity sensors in any assembly position. It delivers a theoretical retracting force of 2,827 N at 0.6 MPa (6 bar, 87 psi) across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →
Festo
The Festo 8075950 is a double-acting industrial component featuring a 12 mm piston diameter, a 50 mm stroke, and an M5 female thread on the single-ended piston rod. Built in accordance with ISO 21287, this piston-and-rod design operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range and an ambient temperature range of -20 to 80 °C. It includes flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and delivers a theoretical retracting force of 51 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076210 is a double-acting industrial component featuring an 80 mm piston diameter, a 25 mm stroke, and an M16x1,5 male piston rod thread conforming to ISO 21287. This unit operates with compressed air according to ISO 8573-1:2010 [7:4:4] within a working pressure range of 0.4 to 10 bar and an ambient temperature range of -20 to 80 °C. It utilizes flexible cushioning rings or plates at both ends, accommodates position detection via proximity sensors, and delivers a theoretical retracting force of 2,827 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8075949 is a double-acting industrial component featuring a 12 mm piston diameter and a 40 mm stroke with an M5 female threaded piston rod end. This ISO 21287 compliant unit incorporates flexible cushioning rings at both ends, operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar), and accommodates position detection via proximity sensors in any assembly position. It delivers a theoretical retracting force of 51 N at 0.6 MPa while functioning within an ambient temperature range of -20 to 80 °C using compressed air according to ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo 8076209 is a double-acting industrial component featuring an 80 mm piston diameter, a 15 mm stroke, and a male M16x1,5 piston rod thread conforming to ISO 21287. Operating on compressed air within a pressure range of 0.04 to 1 MPa (0.4 to 10 bar), this unit utilizes flexible cushioning rings at both ends, supports any assembly position, and includes position detection for proximity sensors with a retracting theoretical force of 2,827 N at 0.6 MPa. It functions within an ambient temperature range of -20 to 80 °C, exhibits a 1 - Low corrosion stress classification, and permits lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8075948 is a double-acting industrial component featuring a 35 mm stroke, a 12 mm piston diameter, and an M5 female piston rod thread conforming to ISO 21287. Operating within a pressure range of 0.1 to 1 MPa (1 to 10 bar) on compressed air matching ISO 8573-1:2010 [7:4:4], this unit utilizes flexible cushioning rings at both ends with 0.07 J impact energy and yields a theoretical retracting force of 51 N at 0.6 MPa. It incorporates position detection for proximity sensors, accommodates any assembly position, and functions across an ambient temperature range of -20 to 80 °C with low corrosion stress and lubricated operation capability. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076207 is a double-acting industrial component featuring an 80 mm piston diameter and a 20 mm stroke, conforming to ISO 21287 with a single-ended male M16x1,5 piston rod thread. Operating within a pressure range of 0.04 to 1 MPa using compressed air per ISO 8573-1:2010 [7:4:4], it incorporates flexible cushioning rings at both ends and accommodates proximity sensors for position detection. This unit delivers a theoretical retracting force of 2,827 N at 0.6 MPa while functioning across ambient temperatures from -20 to 80 °C with a CRC 1 corrosion resistance rating. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →
Festo
This Festo 8075947 industrial component is a double-acting piston and piston rod assembly featuring a 12 mm piston diameter, a 30 mm stroke, and a female M5 piston rod thread conforming to ISO 21287. Designed for any assembly position, it operates on compressed air meeting ISO 8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar (0.1 to 1 MPa) and an ambient temperature range of -20 to 80 °C. The unit incorporates flexible cushioning rings at both ends for 0.07 J end-position impact energy, provisions for proximity sensor position detection, and delivers a theoretical retracting force of 51 N at 0.6 MPa (6 bar, 87 psi). Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076206 is a double-acting industrial component featuring an 80 mm piston diameter and a 10 mm stroke conforming to ISO 21287. Operating at pressures from 0.04 to 1 MPa (0.4 to 10 bar) using compressed air in accordance with ISO 8573-1:2010 [7:4:4], this unit provides flexible cushioning rings at both ends and delivers a theoretical retracting force of 2,827 N at 0.6 MPa. It includes a male M16x1,5 piston rod thread, position detection capability for proximity sensors, and functions within an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8075946 is a double-acting industrial component featuring a 12 mm piston diameter, a 25 mm stroke, and an M5 female threaded piston rod end conforming to ISO 21287. Operating on compressed air within a 1 to 10 bar working pressure and an ambient temperature range of -20 to 80 °C, this unit incorporates flexible cushioning rings at both ends and position detection for proximity sensors. It delivers a theoretical retracting force of 51 N at 0.6 MPa and is rated for a low corrosion stress classification of CRC 1. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →
Festo
Manufactured by Festo, this double-acting industrial component features a 50 mm piston diameter and a 60 mm stroke conforming to ISO 21287 standards. The unit utilizes an M12x1,25 female piston-rod end with flexible cushioning rings at both ends and supports proximity sensor position detection across an operating pressure range of 0.4 to 10 bar (0.04 to 1 MPa). Designed with a single-ended piston rod and any assembly position, it operates within an ambient temperature range of -20 to 80 °C using compressed air meeting ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

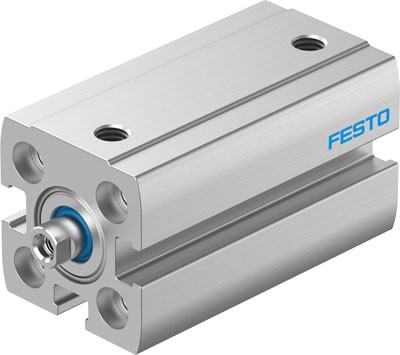

The Festo 8075945 is a double-acting industrial component featuring a 12 mm piston diameter, a 20 mm stroke, and an M5 female threaded piston rod end conforming to ISO 21287. Operating on compressed air within a pressure range of 0.1 to 1 MPa (1 to 10 bar), this unit utilizes flexible cushioning rings at both ends and includes position detection capabilities for proximity sensors. It functions in any assembly position across an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 51 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →
Festo
The Festo 8076187 is a double-acting industrial component featuring a 50 mm piston diameter, a 35 mm stroke, and an M12x1,25 female piston-rod end thread built to ISO 21287 standards. Designed with flexible cushioning rings at both ends and integrated position detection for proximity sensors, this single-ended piston rod unit operates within a pressure range of 0.04 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It delivers a theoretical retracting force of 1,057 N at 0.6 MPa while accommodating an ambient temperature range of -20 to 80 °C and a CRC 1 low corrosion stress classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075944 is a double-acting industrial component featuring a 12 mm piston diameter, a 15 mm stroke, and an M5 female piston rod thread conforming to ISO 21287. Designed with flexible cushioning rings at both ends, a single-ended piston rod, and position detection capabilities for proximity sensors, it operates on compressed air within a pressure range of 0.1 to 1 MPa and an ambient temperature range of -20 to 80 °C. This unit delivers a theoretical retracting force of 51 N at 0.6 MPa and exhibits a CRC rating of 1 with VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

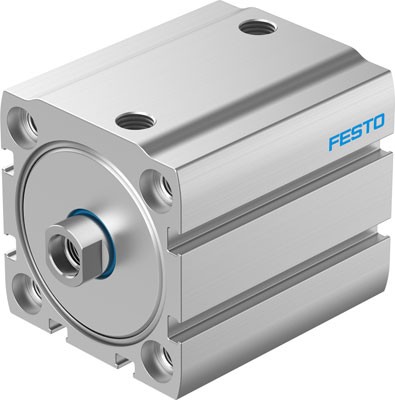

This Festo industrial component, part number 8076186, is a double-acting pneumatic cylinder featuring a 50 mm piston diameter, a 10 mm stroke, and an M12x1,25 female piston-rod thread. Built to ISO 21287 standards with a single-ended piston rod design, it operates at pressures from 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4] and includes self-adjusting PPS pneumatic end-position cushioning. The unit functions across an ambient temperature range of -20 to 80 °C, accommodates proximity sensors for position detection, and has a CRC corrosion resistance classification of 1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075943 is a double-acting industrial component featuring a 12 mm piston diameter, a 10 mm stroke, and an M5 female thread on the single-ended piston rod. Conforming to ISO 21287, this piston and piston rod assembly operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4] and includes flexible cushioning rings or plates at both ends. It supports any assembly position, features position detection for proximity sensors, and provides a theoretical retracting force of 51 N at 0.6 MPa (6 bar, 87 psi) across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
