Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 8075903 is a double-acting industrial component featuring a 63 mm piston diameter, a 40 mm stroke, and an M12x1,25 male piston rod thread in accordance with ISO 21287. This single-ended piston rod unit operates within a 1 to 10 bar working pressure using compressed air conforming to ISO 8573-1:2010 [7:4:4] and incorporates self-adjusting pneumatic end-position cushioning. It includes position detection for proximity sensors, a CRC 1 low corrosion stress rating, and functions across an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

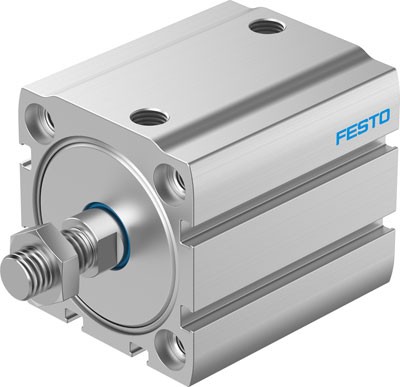

Festo
This Festo double-acting industrial component, part number 8076144, features a 50 mm piston diameter, a 10 mm stroke, and an M12x1,25 male piston-rod thread conforming to ISO 21287. Engineered with self-adjusting pneumatic end-position cushioning (PPS), it operates at pressures from 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -20 to 80 °C. The unit includes a single-ended piston rod with position detection for proximity sensors, a CRC corrosion resistance classification of 1, and VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

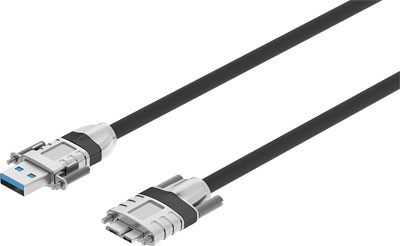

Festo
This Festo industrial component, part number 8072582, features a 422 g weight and operates within a 0 to 30 V DC voltage range with a 1.8 A acceptable current load at 40°C and 0.3 kV surge strength. The field device side has an angular USB 3.0 type B micro plug with 10 pins (9 occupied), straight cable outlet, and M2x0.4 screw mounting, while the controller side utilizes an angular USB 3.0 type A plug with 9 pins and straight cable outlet, supplied without an inscription label holder. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
This Festo industrial component features a 63 mm piston diameter, an 80 mm stroke, and a double-acting mode of operation conforming to ISO 21287. It operates with compressed air according to ISO 8573-1:2010 [7:4:4] within a working pressure range of 0.4 to 10 bar (0.04 to 1 MPa), delivering a theoretical retracting force of 1,750 N at 0.6 MPa (6 bar, 87 psi). The design incorporates a single-ended piston rod with an M12x1,25 female thread, flexible cushioning rings or plates at both ends, and position detection capabilities for proximity sensors. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

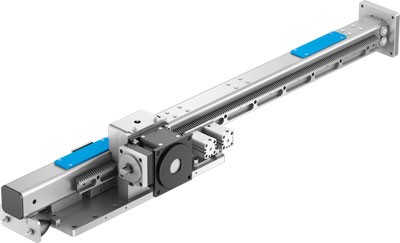

Festo
The Festo 8068234 is an electromechanical linear module featuring a gear rack design and a right-angle servo gear unit with a 5:1 gear unit ratio. Built with a recirculating roller bearing guide, this size 140 component has a width of 467 mm, a height of 235 mm, and a length ranging from 732 mm at the minimum stroke length to 3232 mm at the maximum stroke length. It provides a working stroke of 250 to 2,500 mm, operates at a working pressure of 6 bar, and achieves a maximum efficiency of 96% within an ambient temperature range of 10 to 40 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

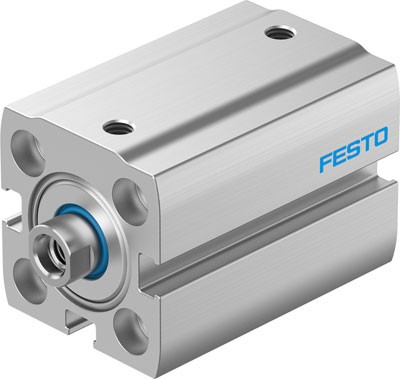

Festo
The Festo 8076115 is a double-acting industrial component featuring a 20 mm piston diameter, a 70 mm stroke, and an M8 female thread piston-rod end configured for any assembly position. Operating at a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this ISO 21287 compliant unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 0.65 J impact energy rating and position detection capabilities for proximity sensors. It operates within ambient temperatures from -20 to 80 °C, exhibits a CRC 1 corrosion resistance classification, and permits lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

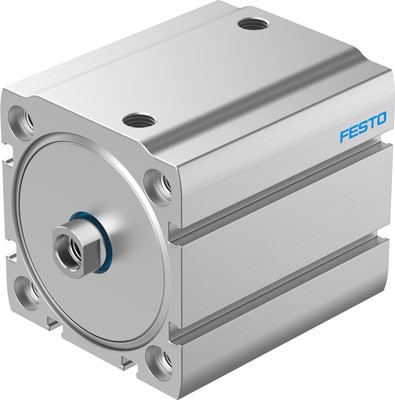

Festo
The Festo 8075901 is a double-acting industrial component featuring a 63 mm piston diameter, a 35 mm stroke, and an ISO 21287 compliant design structure utilizing a piston and single-ended piston rod with an M12x1,25 female thread. Operating within a working pressure range of 1 to 10 bar (0.1 to 1 MPa) on lubricated or unlubricated compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 7 mm cushioning length and 4.8 J impact energy capacity. It accommodates any assembly position, includes position detection for a proximity sensor, and operates across an ambient temperature range of -20 to 80 °C with a CRC 1 corrosion resistance classification and VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 8068233 is an electromechanical linear module with a gear rack design structure featuring a recirculating roller bearing guide and a right-angle servo gear unit with a 5:1 gear unit ratio. This component accommodates a working stroke of 250 to 2,500 mm, a size of 80, a width of 411 mm, a height of 245 mm, and a length ranging from 768 mm at minimum stroke length to 3,268 mm at maximum stroke length. Built for vertical assembly positions, it operates at a working pressure of 6 bar, achieves a maximum efficiency of 96 percent, maintains an IP20 protection class, and utilizes materials that conform to RoHS while functioning within an ambient temperature range of 10 to 40 degrees Celsius and a storage temperature range of -10 to 40 degrees Celsius. Submit the exact part number, quantity, and application requirements to receive a quote for this industrial component.
View product details →
Festo
The Festo 8076114 is a double-acting industrial component featuring a 20 mm piston diameter, a 60 mm stroke, and an M8 female thread on the piston-rod end. Built to ISO 21287 standards with a single-ended piston rod design and position detection for proximity sensors, this unit operates at pressures ranging from 0.15 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 3 mm cushioning length and a 0.65 J impact energy capacity, functioning within an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8075900 is a double-acting industrial component featuring a 63 mm piston diameter and a 25 mm stroke conforming to ISO 21287. Operating on compressed air within a working pressure range of 0.4 to 10 bar, this unit utilizes flexible cushioning rings at both ends and includes position detection capabilities for proximity sensors. It provides a theoretical retracting force of 1,750 N at 0.6 MPa and supports an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 8076113 is a double-acting industrial component featuring a 20 mm piston diameter, a 50 mm stroke, and an M8 female thread on the single-ended piston rod. Conforming to ISO 21287, this unit operates at pressures from 0.15 to 1 MPa (1.5 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4] and includes self-adjusting pneumatic end-position cushioning (PPS) with a 3 mm cushioning length and 0.65 J impact energy. Designed with position detection for proximity sensors, it permits installation in any assembly position within an ambient temperature range of -20 to 80 °C, a CRC rating of 1, and VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 8075899 is a double-acting industrial component featuring a 63 mm piston diameter, a 40 mm stroke, and an M12x1,25 male piston rod thread conforming to ISO 21287. This unit operates within a pressure range of 0.04 to 1 MPa (0.4 to 10 bar) using compressed air in accordance with ISO 8573-1:2010 [7:4:4], delivering a theoretical retracting force of 1,750 N at 0.6 MPa. Integrated with flexible cushioning rings at both ends for 1.3 J of end-position impact energy, the assembly accommodates any mounting position and includes position detection capabilities for proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076112 is a double-acting industrial component featuring a 20 mm piston diameter, a 40 mm stroke, and an M8 female thread on the piston-rod end. Built to ISO 21287 standards with a single-ended piston rod design and any assembly position, it operates on compressed air within a 0.15 to 1 MPa range and includes self-adjusting PPS pneumatic end-position cushioning. Position detection is enabled for proximity sensors across an ambient temperature range of -20 to 80 °C, accompanied by a CRC rating of 1 and VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →

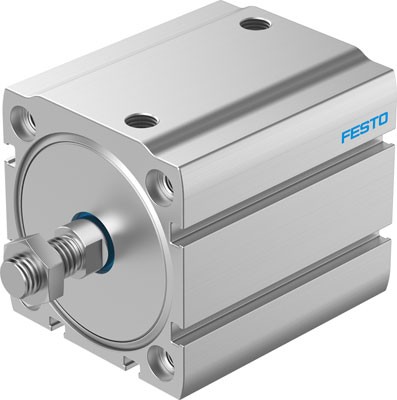

Festo
The Festo 8075898 is a double-acting industrial component featuring a 63 mm piston diameter and a 60 mm stroke conforming to ISO 21287 standards. This single-ended piston rod design incorporates M12x1,25 male threading, PPS self-adjusting pneumatic end-position cushioning with a 7 mm cushioning length, and position detection capabilities for proximity sensors. Operating within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air in accordance with ISO 8573-1:2010 [7:4:4], it functions in any assembly position across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Festo
The Festo 8076111 is a double-acting industrial component featuring a 20 mm piston diameter, a 35 mm stroke, and an M8 female thread piston-rod end configured with a single-ended piston rod. Conforming to ISO 21287, this unit operates within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4] and incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 3 mm cushioning length and 0.65 J impact energy capacity. Designed for any assembly position with integrated position detection for proximity sensors, it functions in ambient temperatures from -20 to 80 °C under a CRC 1 corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 8075897 is a double-acting industrial component featuring a 63 mm piston diameter, a 10 mm stroke, and a female M12x1,25 piston rod thread conforming to ISO 21287. Designed with a single-ended piston rod, self-adjusting pneumatic end-position cushioning (PPS), and position detection for proximity sensors, it operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. This unit supports any assembly position, a 4.8 J impact energy in end positions, a 7 mm cushioning length, lubricated operation, and an ambient temperature range of -20 to 80 °C under a CRC 1 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8076110 is a double-acting industrial component featuring a 20 mm piston diameter, a 30 mm stroke, and an M8 female thread on the single-ended piston rod. Built to ISO 21287 standards with any assembly position, it operates on compressed air within a 0.15 to 1 MPa pressure range and incorporates PPS self-adjusting pneumatic end-position cushioning. Position detection is enabled for proximity sensors across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075896 is a double-acting industrial component featuring a 63 mm piston diameter, a 20 mm stroke, and an M12x1,25 male piston rod thread conforming to ISO 21287. This piston and piston rod assembly incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 7 mm cushioning length, handles operating pressures from 1 to 10 bar (0.1 to 1 MPa), and operates within an ambient temperature range of -20 to 80 °C using compressed air meeting ISO 8573-1:2010 [7:4:4]. Designed with position detection for proximity sensors, a single-ended piston rod, and a CRC 1 low corrosion stress classification, it supports any assembly position and permits lubricated operation. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 8076109 is a double-acting industrial component featuring a 20 mm piston diameter, a 25 mm stroke, and an M8 female thread piston-rod end configured for any assembly position. Operating within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this ISO 21287 compliant unit incorporates PPS self-adjusting pneumatic end-position cushioning and integrated position detection for proximity sensors. It functions in ambient temperatures from -20 to 80 °C with a 3 mm cushioning length, 0.65 J impact energy in end positions, CRC 1 low corrosion stress, and VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075895 is a double-acting industrial component featuring a 63 mm piston diameter, a 15 mm stroke, and an M12x1,25 male piston rod thread conforming to ISO 21287. Designed with self-adjusting pneumatic end-position cushioning (PPS), a cushioning length of 7 mm, and integrated position detection for proximity sensors, it operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. This unit supports any assembly position, features a CRC corrosion resistance classification of 1, and accommodates an ambient temperature range of -20 to 80 °C with a 4.8 J impact energy limit in end positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
