Festo

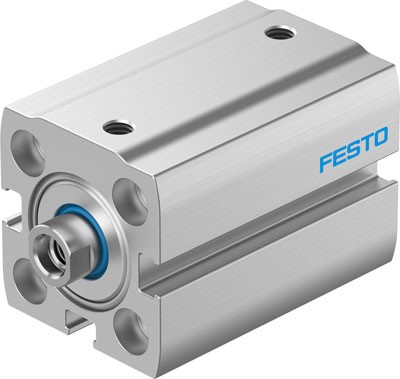

The Festo 8076108 is a double-acting industrial component featuring a 20 mm piston diameter, a 20 mm stroke, and an M8 female thread on the single-ended piston rod. Conforming to ISO 21287, this design structure incorporates PPS self-adjusting pneumatic end-position cushioning with a 3 mm cushioning length and 0.65 J impact energy capacity. It operates on compressed air matching ISO 8573-1:2010 [7:4:4] standards within a pressure range of 0.15 to 1 MPa and an ambient temperature span of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 8075894 is a double-acting industrial component featuring a 63 mm piston diameter, a 30 mm stroke, and an M12x1,25 female threaded piston-rod end configured as a single-ended variant. Conforming to ISO 21287, this piston and piston rod assembly operates within a pressure range of 0.04 to 1 MPa (0.4 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], and includes flexible cushioning rings or plates at both ends with an ambient temperature range of -20 to 80 °C. It supports position detection via proximity sensors and delivers a theoretical retracting force of 1,750 N at 0.6 MPa (6 bar, 87 psi). Submit part number 8075894, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo 8076107 is a double-acting industrial component featuring a 20 mm piston diameter and a 15 mm stroke conforming to ISO 21287. Operating within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar), this single-ended piston rod design incorporates self-adjusting PPS pneumatic end-position cushioning and integrated position detection for proximity sensors. It functions across an ambient temperature range of -20 to 80 °C using compressed air compliant with ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

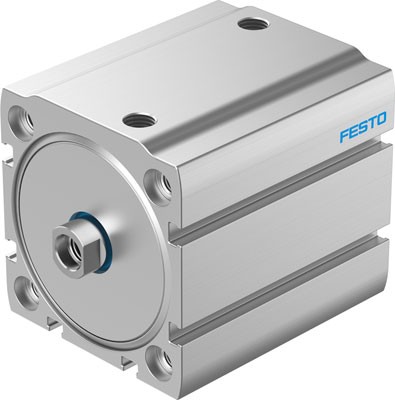

The Festo 8075893 is a double-acting industrial component featuring a 63 mm piston diameter, a 70 mm stroke, and an M12x1,25 female threaded piston-rod end conforming to ISO 21287. Designed with flexible cushioning rings at both ends, this single-ended piston rod operates within a pressure range of 0.4 to 10 bar (0.04 to 1 MPa) utilizing compressed air per ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -20 to 80 °C. It delivers a theoretical retracting force of 1,750 N at 0.6 MPa (6 bar, 87 psi), incorporates position detection for proximity sensors, and provides any assembly position with a CRC 1 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →
Festo
The Festo 8076106 is a double-acting industrial component featuring a 20 mm piston diameter and a 10 mm stroke, conforming to ISO 21287 standards with a female M8 piston rod thread and single-ended piston rod design. Operating at pressures from 0.15 to 1 MPa (1.5 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], it incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 3 mm cushioning length and 0.65 J impact energy capacity. The unit includes position detection capabilities for proximity sensors, allows for any assembly position within an ambient temperature range of -20 to 80 °C, and carries a CRC rating of 1 with VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075892 is a double-acting industrial component featuring a 63 mm piston diameter, a 35 mm stroke, and an M12x1,25 female piston-rod end thread conforming to ISO 21287. This single-ended piston rod unit operates on compressed air within a working pressure range of 0.4 to 10 bar (0.04 to 1 MPa), incorporating flexible cushioning rings at both ends and position detection for proximity sensors. It functions in any assembly position across an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 1,750 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 8076105 is a double-acting industrial component featuring a 20 mm piston diameter, a 70 mm stroke, and an M8 male piston-rod thread conforming to ISO 21287. It operates with compressed air within a 0.15 to 1 MPa range across ambient temperatures from -20 to 80 °C, utilizing PPS self-adjusting pneumatic end-position cushioning with a 3 mm cushioning length and 0.65 J impact energy. Designed with a single-ended piston rod in any assembly position, this unit includes position detection for proximity sensors and maintains a CRC 1 corrosion resistance classification with VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

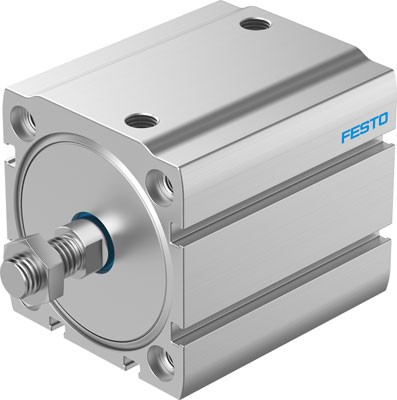

The Festo 8075891 is a double-acting industrial component featuring a 63 mm piston diameter, a 50 mm stroke, and an M12x1,25 male piston-rod thread conforming to ISO 21287. Operating within a pressure range of 0.04 to 1 MPa (0.4 to 10 bar), this single-ended piston rod unit utilizes flexible cushioning rings or plates at both ends and provides integrated position detection for proximity sensors. It functions with compressed air matching ISO 8573-1:2010 [7:4:4] standards across an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 1,750 N at 0.6 MPa (6 bar, 87 psi). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076104 is a double-acting industrial component featuring a 20 mm piston diameter, a 60 mm stroke, and an M8 male piston rod thread conforming to ISO 21287. It operates with compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) and incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 3 mm cushioning length and 0.65 J impact energy capacity. Designed with a single-ended piston rod for any assembly position, the unit includes position detection capabilities for proximity sensors and functions within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →
Festo
The Festo 8075890 is a double-acting industrial component featuring a 63 mm piston diameter, a 35 mm stroke, and an M12x1,25 male piston rod thread conforming to ISO 21287. Operating on compressed air within a 0.4 to 10 bar working pressure range, this unit utilizes flexible cushioning rings at both ends and includes position detection capabilities for proximity sensors. It operates in any assembly position across an ambient temperature range of -20 to 80 °C, delivering a theoretical retracting force of 1,750 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076103 is a double-acting industrial component featuring a 20 mm piston diameter, a 50 mm stroke, and an M8 male piston rod thread in a single-ended piston rod design conforming to ISO 21287. It operates within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4] and includes self-adjusting pneumatic end-position cushioning (PPS) with a 3 mm cushioning length and 0.65 J impact energy in end positions. Designed for any assembly position with position detection for proximity sensors, this unit accommodates lubricated operation and functions within an ambient temperature range of -20 to 80 °C under a CRC 1 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

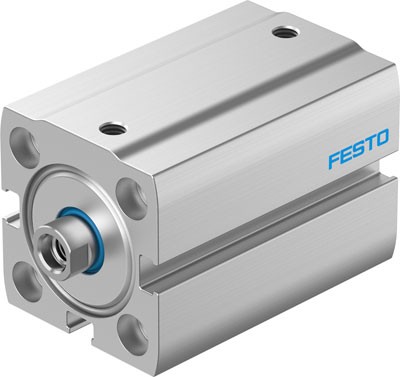

The Festo 8075742 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and a female M8 piston rod thread conforming to ISO 21287. Operating on compressed air within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) and an ambient temperature span of -20 to 80 °C, this unit utilizes flexible cushioning rings at both ends and accommodates position detection via proximity sensors. It delivers a theoretical retracting force of 247 N at 0.6 MPa with a single-ended piston rod design that supports any assembly position and lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo

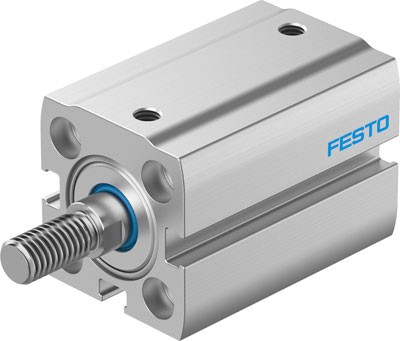

The Festo 8076102 is a double-acting industrial component featuring a 20 mm piston diameter, a 40 mm stroke, and an M8 male piston rod thread conforming to ISO 21287. Operating within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) using compressed air compliant with ISO 8573-1:2010 [7:4:4], this unit includes self-adjusting pneumatic end-position cushioning (PPS) with a 3 mm cushioning length and 0.65 J impact energy capacity. Designed for any assembly position with position detection for proximity sensors, it functions in ambient temperatures from -20 to 80 °C and features a CRC 1 corrosion resistance classification alongside VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 8075741 is a double-acting industrial component featuring a 25 mm piston diameter, an 80 mm stroke, and a female M8 piston rod thread conforming to ISO 21287. Designed with flexible cushioning rings at both ends and provisions for proximity sensor position detection, this unit operates on compressed air within a 0.06 to 1 MPa range and an ambient temperature span of -20 to 80 °C. It delivers a theoretical retracting force of 247 N at 0.6 MPa while maintaining a CRC 1 corrosion resistance classification and a single-ended piston rod design. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076101 is a double-acting industrial component featuring a 20 mm piston diameter, a 35 mm stroke, and an M8 male piston rod thread conforming to ISO 21287. Operating within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) using ISO 8573-1:2010 [7:4:4] compressed air, it incorporates PPS self-adjusting pneumatic end-position cushioning with a 3 mm cushioning length and 0.65 J impact energy handling. This single-ended piston rod unit is designed for any assembly position, accommodates position detection via proximity sensors, and functions across an ambient temperature range of -20 to 80 °C with CRC 1 low corrosion stress resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8075740 is a double-acting industrial component featuring an ISO 21287 compliant design with a 25 mm piston diameter, an 80 mm stroke, and a female M8 piston rod thread. Operating within a pressure range of 0.15 to 1 MPa using compressed air per ISO 8573-1:2010 [7:4:4], this single-ended piston rod unit incorporates PPS self-adjusting pneumatic end-position cushioning, position detection for proximity sensors, and an ambient temperature operating range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 8076100 is a double-acting industrial component featuring a 20 mm piston diameter, a 30 mm stroke, and an M8 male piston rod thread conforming to ISO 21287. This model operates with compressed air according to ISO 8573-1:2010 [7:4:4] within an operating pressure range of 0.15 to 1 MPa (1.5 to 10 bar) and temperatures from -20 to 80 °C. Equipped with self-adjusting pneumatic end-position cushioning (PPS) providing 0.65 J of impact energy absorption over a 3 mm cushioning length, it includes position detection for proximity sensors and supports any assembly position with a CRC rating of 1. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 8075739 is a double-acting industrial component featuring a 25 mm piston diameter and a 30 mm stroke, designed in accordance with ISO 21287 with a single-ended piston rod and female M8 thread. It operates within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], and incorporates flexible cushioning rings at both ends to absorb 0.3 J of impact energy. This unit accommodates any assembly position, includes position detection for proximity sensors, and delivers a theoretical retracting force of 247 N at 0.6 MPa while withstanding ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8076099 is a double-acting industrial component featuring a 20 mm piston diameter and a 25 mm stroke with an M8 male piston rod thread. Built in accordance with ISO 21287, this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) and provisions for position detection via proximity sensor. It operates within a pressure range of 0.15 to 1 MPa (1.5 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo

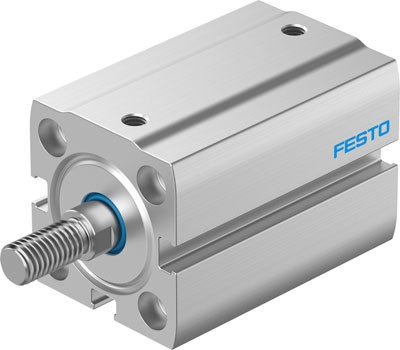

The Festo 8075738 is a double-acting industrial component featuring a 25 mm piston diameter, a 60 mm stroke, and an M8 male piston rod thread conforming to ISO 21287. Designed with self-adjusting pneumatic end-position cushioning (PPS) and a single-ended piston rod, it operates on compressed air within a working pressure range of 1.5 to 10 bar (0.15 to 1 MPa) across ambient temperatures from -20 to 80 °C. This unit accommodates position detection via proximity sensor, allows lubricated operation, and exhibits a Class 1 corrosion resistance classification with VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
