Festo

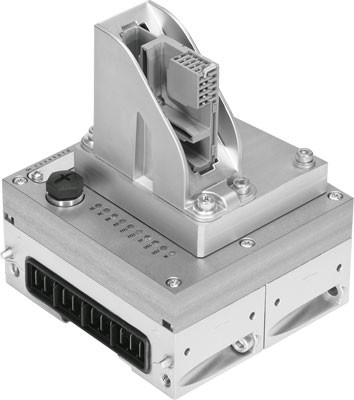

The Festo part number 572334 is an industrial component utilizing the Interbus protocol with a Rugged line FOC connection for incoming signals and a baud rate of 500 or 2000 kBit/s. This unit measures 100 mm in width, 110 mm in length, and 130 mm in height including the interlinking block, and operates at a nominal DC voltage of 24 V within a range of 18 to 30 V. It features IP65 and IP67 protection classes, channel and module-orientated diagnostics, and a maximum address volume of 12 bytes each for inputs and outputs. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

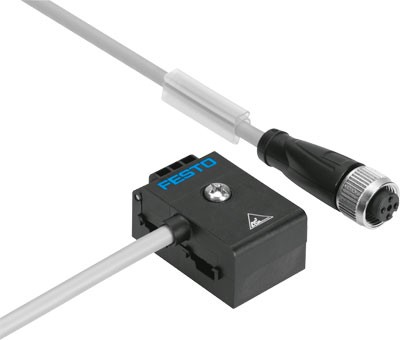

The Festo 572227 industrial component features dimensions of 36 mm in width, 40 mm in height, and 40 mm in length, with a total product weight of 60 g and a housing and cover made of PA. Equipped with an M12x1, 4-pin, A-coded fieldbus interface bushing, it operates on a DC AS-interface voltage of 26.5 to 31.6 V and a load voltage of 20.4 to 26.4 V within an ambient temperature range of -25 to 75 °C. This RoHS-compliant unit achieves IP65 protection in an assembled condition to IEC 60529 and conforms to VDMA24364-B2-L PWIS standards while mounting via a through hole. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

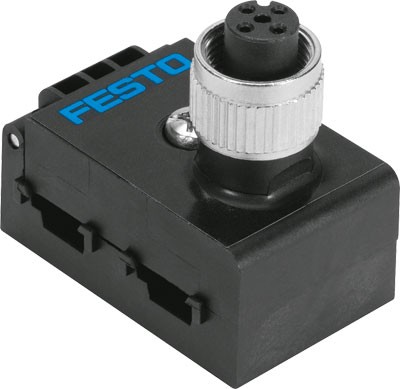

The Festo 572226 is an industrial component featuring a PA housing and cover with dimensions of 36 mm in width, 40 mm in height, and 40 mm in length, weighing 30 g. Designed with through-hole mounting, it operates on a DC operating voltage of 26.5 to 31.6 V for the AS interface and 20.4 to 26.4 V for load voltage, while providing IP65 protection in the assembled condition to IEC 60529. This unit includes an M12x1, 4-pin, A-coded bush fieldbus interface, adheres to VDMA24364-B2-L PWIS conformity, and meets RoHS material standards within an ambient temperature range of -25 to 75 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

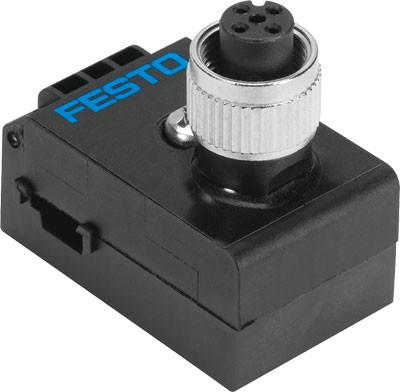

This Festo industrial component, part number 572225, features dimensions of 36 mm in width, 40 mm in height, and 40 mm in length with a product weight of 30 g. Constructed with a polyamide (PA) housing and cover, it includes an M12x1, 4-pin, A-coded bush fieldbus interface and mounts via a through hole. It operates on a nominal DC operating voltage of 26.5 V and an AS interface DC operating voltage range of 26.5 to 31.6 V across an ambient temperature range of -25 to 75 °C. The unit provides IP65 protection in assembled condition conforming to IEC 60529, adheres to VDMA24364-B2-L PWIS conformity, and conforms to RoHS materials notes. Submit your exact part number, quantity, and application requirements for a quote.
View product details →
Festo

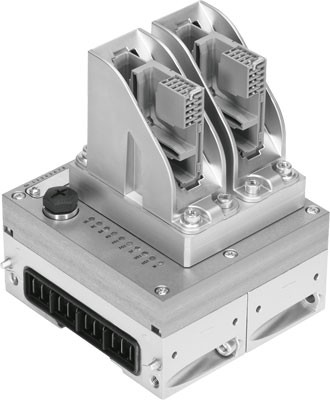

The Festo part number 572221 is an industrial component featuring an Interbus protocol with a fieldbus interface utilizing Rugged Line FOC connections for incoming and outgoing signals at baud rates of 500 and 2000 kbit/s. Measuring 100 mm by 110 mm by 130 mm including the interlinking block and weighing 1,255 g, this device operates on a nominal DC voltage of 24 V within a range of 18 to 30 V while consuming a typical intrinsic current of 90 mA. It provides IP65 and IP67 protection classes, channel and module-oriented diagnostics, undervoltage module monitoring, a diagnostics memory, and maximum address volumes of 12 bytes for both inputs and outputs. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 572094 is a green Polyamide 12 industrial component featuring a 6 mm outside diameter, a 4 mm inside diameter, and a Shore hardness of D 65 +/-3. Operating with compressed air in accordance with ISO8573-1:2010 [7:-:-], this RoHS-compliant and copper- and PTFE-free tubing functions within a temperature-dependent working pressure of -0.95 to 36 bar and an ambient temperature range of -60 to 100 °C. It exhibits a product weight of 0.016 kg/m, a minimum bending radius of 15 mm, and a bending radius relevant for flow rate of 35 mm. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo

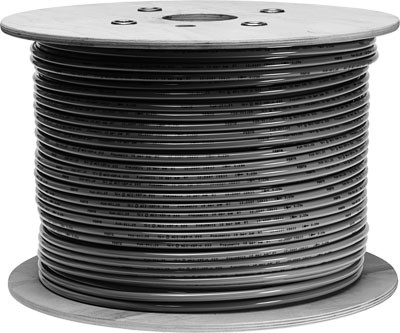

This green Festo industrial component with part number 572092 is a Polyamide 12 tubing featuring an outside diameter of 4 mm, an inside diameter of 2.5 mm, and a Shore hardness of D 65 +/-3. It operates with compressed air in accordance with ISO8573-1:2010 [7:-:-] across a temperature-dependent working pressure of -0.95 to 42 bar and an ambient temperature range of -60 to 100 °C. The tubing has a product weight of 0.008 kg/m, a minimum bending radius of 10 mm, a bending radius relevant for flow rate of 15 mm, and a materials construction free of copper and PTFE while conforming to RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
This Festo 12 mm industrial component (Part Number: 572090) features a 9 mm inside diameter, a 50 mm minimum bending radius, and a 70 mm bending radius relevant for flow rate. Constructed from Polyamide 12 tubing with a Shore hardness of D 65 +/-3 and a weight of 0.051 kg/m, the neutral-colored part operates within an ambient temperature range of -60 to 100 °C and a temperature-dependent working pressure of -0.95 to 26 bar for compressed air meeting ISO8573-1:2010 [7:-:-]. The materials are RoHS compliant and free of copper and PTFE. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 572089 is an industrial component featuring a Polyamide 12 tubing construction with an outside diameter of 10 mm, an inside diameter of 7.5 mm, and a neutral color. Designed with a Shore hardness of D 65 +/-3 and a weight of 0.035 kg/m, this part operates with compressed air in accordance with ISO8573-1:2010 [7:-:-] across a temperature-dependent working pressure of -0.95 to 26 bar and an ambient temperature range of -60 to 100 °C. The material is free of copper and PTFE, conforms to RoHS, and maintains a minimum bending radius of 45 mm alongside a bending radius relevant for flow rate of 65 mm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 572088 is a green Polyamide 12 industrial component featuring an 8 mm outside diameter, a 6 mm inside diameter, and a Shore hardness of D 65 +/-3. It operates within an ambient temperature range of -60 to 100 °C and a temperature-dependent working pressure of -0.95 to 26 bar for compressed air compliant with ISO8573-1:2010 [7:-:-]. This RoHS-conforming tubing has a product weight of 0.022 kg/m, a minimum bending radius of 35 mm, a flow-relevant bending radius of 50 mm, and a materials note indicating it is free of copper and PTFE. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 572087 is a neutral Polyamide 12 industrial component featuring an outside diameter of 8 mm, an inside diameter of 6 mm, and a shore hardness of D 65 +/-3. This tubing operates at a temperature-dependent working pressure ranging from -0.95 to 26 bar within ambient temperatures of -60 to 100 °C, utilizing compressed air in accordance with ISO8573-1:2010 [7:-:-]. Weighing 0.022 kg/m, the RoHS-conforming, copper-free and PTFE-free unit specifies a minimum bending radius of 35 mm and a bending radius relevant for flow rate of 50 mm. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
Engineered with polyamide 12 tubing in a green color, this Festo industrial component features a 6 mm outside diameter, a 4 mm inside diameter, and a D 65 +/-3 shore hardness with a product weight of 0.016 kg/m. The tubing operates with compressed air in accordance with ISO8573-1:2010 [7:-:-] across an ambient temperature range of -60 to 100 °C and a temperature dependent working pressure of -0.95 to 36 bar, incorporating a min. bending radius of 15 mm and a bending radius relevant for flow rate of 35 mm while remaining free of copper and PTFE and compliant with RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 572085 is an industrial component featuring a neutral polyamide 12 tubing construction with a 6 mm outside diameter, 4 mm inside diameter, and D 65 +/-3 shore hardness. Weighing 0.016 kg/m, this part operates with compressed air in accordance with ISO8573-1:2010 [7:-:-] at a temperature-dependent working pressure of -0.95 to 36 bar and an ambient temperature range of -60 to 100 °C. It maintains a minimum bending radius of 15 mm and a bending radius relevant for flow rate of 35 mm, while remaining free of copper and PTFE alongside RoHS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This green Festo industrial component with part number 572084 is a Polyamide 12 tubing featuring a 4 mm outside diameter, a 2.5 mm inside diameter, and a Shore hardness of D 65 +/-3. The tubing operates with compressed air in accordance with ISO8573-1:2010 [7:-:-] across a temperature-dependent working pressure range of -0.95 to 42 bar and an ambient temperature range of -60 to 100 °C. Featuring a product weight of 0.008 kg/m, a minimum bending radius of 10 mm, and a flow rate bending radius of 15 mm, the construction is free of copper and PTFE while conforming to RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
This Festo industrial component, part number 572083, is a neutral Polyamide 12 tubing featuring a 4 mm outside diameter, a 2.5 mm inside diameter, and a D 65 +/-3 Shore hardness with a weight of 0.008 kg/m. The tubing operates with compressed air in accordance with ISO8573-1:2010 [7:-:-] across a temperature-dependent working pressure range of -0.95 to 42 bar and an ambient temperature range of -60 to 100 °C. It provides a 10 mm minimum bending radius and a 15 mm bending radius relevant for flow rate, while remaining free of copper and PTFE and conforming to RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 572015 is a double-acting industrial component featuring an 80 mm stroke, a 50 mm piston diameter, and an M10 piston rod thread based on ISO 21287. This unit incorporates flexible cushioning rings at both ends, a female thread piston-rod end, and position detection capabilities for proximity sensors while operating within a pressure range of 0.6 to 10 bar using compressed air meeting ISO 8573-1:2010 [7:4:4]. It delivers a theoretical force of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar, with a CRC 2 moderate corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 572014 is a double-acting industrial component featuring a 50 mm piston diameter and a 60 mm stroke, built to ISO 21287 standards with a single-ended piston rod and female M10 thread. It operates on compressed air matching ISO 8573-1:2010 [7:4:4] across a working pressure range of 0.6 to 10 bar, utilizing flexible cushioning rings at both ends and integrated position detection for proximity sensors. The unit delivers a theoretical return force of 1,057 N and advance force of 1,178 N at 6 bar, while maintaining a CRC 2 moderate corrosion resistance classification within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal price quote.
View product details →
Festo
The Festo 572013 is a double-acting industrial component featuring a 50 mm piston diameter and a 50 mm stroke, constructed with a piston, piston rod, and cylinder barrel based on ISO 21287. This single-ended piston rod unit incorporates an M10 female thread at the rod end, flexible cushioning rings at both ends, and position detection capabilities for proximity sensors. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar pressure range, the cylinder delivers a theoretical advance force of 1,178 N and a return force of 1,057 N at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 572012 is a double-acting industrial component with a 50 mm piston diameter, a 40 mm stroke, and an M10 female piston rod thread conforming to ISO 21287. It operates within a working pressure range of 0.6 to 10 bar using compressed air meeting ISO 8573-1:2010 [7:4:4], featuring flexible cushioning rings at both ends and position detection for proximity sensors. This compact unit delivers a theoretical advance force of 1,178 N and a return force of 1,057 N at 6 bar across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 572011 is a double-acting industrial component featuring a 50 mm piston diameter, a 30 mm stroke, and an M10 female piston rod thread based on ISO 21287. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar pressure range, this unit delivers a theoretical advance force of 1,178 N and a return force of 1,057 N at 6 bar. It incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a CRC 2 moderate corrosion resistance classification for operation in ambient temperatures from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
