Festo
The Festo 571996 is a double-acting industrial component featuring a 32 mm piston diameter, a 60 mm stroke, and an M8 piston rod thread with a female end. Built on the ISO 21287 standard, this single-ended piston rod cylinder operates on compressed air within a 0.6 to 10 bar working range and incorporates flexible cushioning rings at both ends. It delivers theoretical forces of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, while supporting an ambient temperature range of -10 to 60 °C and CRC 2 moderate corrosion resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

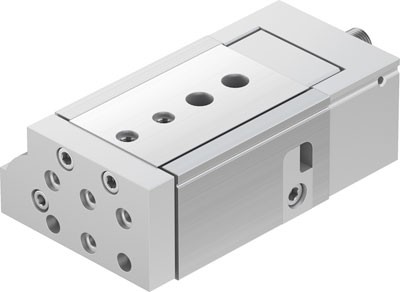

Engineered by Festo, the part number 570245 is a double-acting industrial component utilizing a yoke drive unit, piston, piston rod, and slide design with a 32 mm piston diameter and a 10 mm stroke. This unit operates within a working pressure range of 1 to 8 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4], featuring short elastic cushioning rings at both ends, a ball bearing cage guide, and provisions for proximity sensor position detection. It achieves a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, an impact energy of 0.55 Nm in end positions, and functions in ambient temperatures from 0 to 60 °C with a CRC corrosion resistance classification of 0. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo

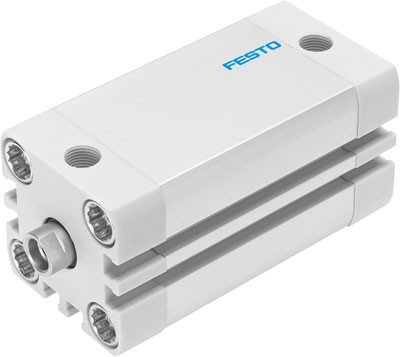

The Festo 571995 is a double-acting industrial component featuring a 32 mm piston diameter, a 50 mm stroke, and an M8 female piston rod thread based on the ISO 21287 standard. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working range and -10 to 60 °C ambient temperatures, this single-ended piston rod unit incorporates flexible cushioning rings at both ends, position detection capability for proximity sensors, and a CRC 2 moderate corrosion resistance classification. At 6 bar, it delivers a theoretical advance force of 483 N and a return force of 415 N with a moving mass of 45 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo

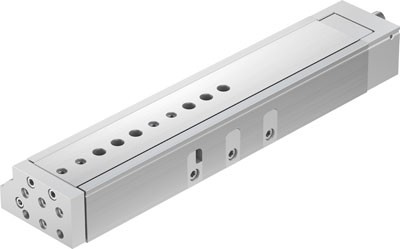

Engineered by Festo, part number 570244 is a double-acting industrial component featuring a 25 mm piston diameter, a 200 mm stroke, and a yoke drive unit design with a ball bearing cage guide. This unit operates within a working pressure range of 1 to 8 bar, achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm, and incorporates short elastic cushioning rings at both ends for end position management. The assembly supports any mounting position, utilizes compressed air in accordance with ISO8573-1:2010 [7:4:4], and includes provisions for position detection via a proximity sensor within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →
Festo
The Festo 571994 is a double-acting industrial component featuring a 32 mm piston diameter, a 40 mm stroke, and a female M8 piston rod thread based on the ISO 21287 standard. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and position detection for proximity sensors. It delivers a theoretical advance force of 483 N and a return force of 415 N at 6 bar while functioning in any assembly position across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

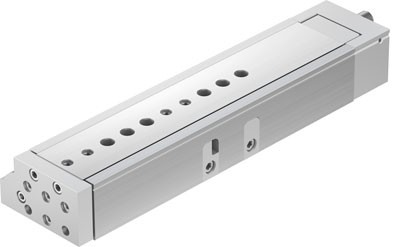

The Festo 570243 is a double-acting industrial component featuring a 25 mm piston diameter, a 150 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating at working pressures from 1 to 8 bar with a max speed of 0.8 m/s, this unit incorporates short elastic cushioning rings or pads at both ends with a 1.2 mm cushioning length and 0.45 Nm impact energy in end positions. It includes a ball bearing cage guide, position detection for proximity sensors, an adjustable end position range of 50.5 mm at the front and 5.5 mm at the rear, and achieves a repetition accuracy of 0.3 mm across any assembly position. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
This Festo industrial component, part number 571993, is a double-acting piston actuator with a 32 mm piston diameter, a 30 mm stroke, and an M8 female piston rod thread based on ISO 21287. It operates on compressed air within a 0.6 to 10 bar working range and -10 to 60 °C ambient temperature, featuring flexible cushioning rings at both ends and position detection for proximity sensors. The unit delivers a theoretical return force of 415 N and advance force of 483 N at 6 bar, with a moving mass of 45 g at 0 mm stroke and a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

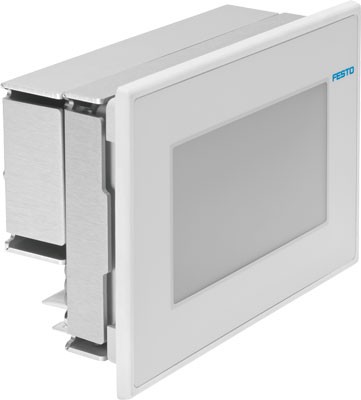

The Festo part number 570864 is an industrial component featuring a 4.3-inch TFT color touchscreen display with a resolution of 480x272 pixels and 256 colors. Powered by a nominal operating voltage of 24 V DC within a range of 18 to 30 V DC, it consumes 0.4 A at nominal voltage and includes a 3 V / 270 mA lithium backup battery, a real-time clock with a deviation of 130 seconds per month, and 2 Mbyte of user memory. Hardware dimensions measure 56 mm in depth, 109 mm in height, and 149 mm in length, supporting a maximum front panel thickness of 5 mm while providing storage capacity for 1,024 alarms, 256 event lists, and 32 kByte of recipe data. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Festo

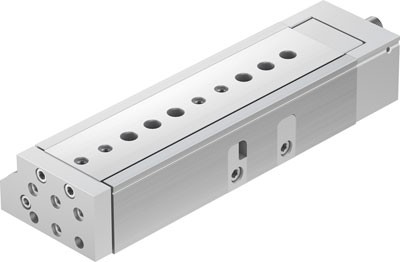

This Festo industrial component, part number 570242, is a double-acting drive unit featuring a 25 mm piston diameter, a 100 mm stroke, and a yoke design structure incorporating a piston, piston rod, and slide. It operates with compressed air in accordance with ISO 8573-1:2010 [7:4:4] across a working pressure range of 1 to 8 bar, achieving a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. The unit utilizes short elastic cushioning rings or pads at both ends with a 1.2 mm cushioning length, supports an ambient temperature range of 0 to 60 °C, and includes position detection capabilities for a proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 571992 is a double-acting industrial component featuring a 32 mm piston diameter, a 25 mm stroke, and an M8 female piston-rod end built on the ISO 21287 standard. Operating on compressed air within a 0.6 to 10 bar range, this unit utilizes flexible cushioning rings at both ends and includes position detection capabilities for proximity sensors. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar while accommodating an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →
Festo

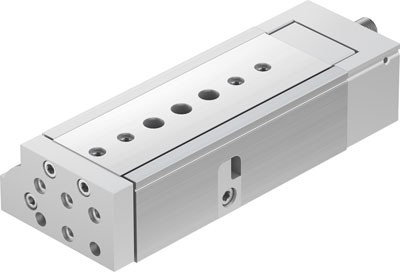

The Festo 570241 is a double-acting industrial component featuring a 25 mm piston diameter, an 80 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide with a ball bearing cage guide. This unit operates on compressed air within a working pressure range of 1 to 8 bar, achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm, and includes short elastic cushioning rings or pads at both ends providing a 1.2 mm cushioning length and 0.45 Nm impact energy in end positions. Position detection is configured for a proximity sensor, and the assembly position is unrestricted across an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 571991 is a double-acting industrial component featuring a 32 mm piston diameter, a 20 mm stroke, and an M8 piston rod thread with a female end. Built on the ISO 21287 standard with a single-ended piston rod, this unit operates on compressed air from 0.6 to 10 bar and incorporates flexible cushioning rings at both ends. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar while accommodating an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 570240 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating within a working pressure range of 1 to 8 bar, this unit incorporates short elastic cushioning rings or pads at both ends with a 1.2 mm cushioning length and 0.45 Nm impact energy in end positions. It accommodates compressed air conforming to ISO8573-1:2010 [7:4:4], achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm, and includes ball bearing cage guide positioning alongside proximity sensor detection capabilities. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 571990 is a double-acting industrial component featuring a 32 mm piston diameter and a 15 mm stroke, built to ISO 21287 standards with a single-ended piston rod and female M8 thread. It operates on compressed air within a 0.6 to 10 bar working range and -10 to 60 °C ambient temperature, utilizing flexible cushioning rings at both ends and integrated position detection for proximity sensors. This piston-rod design delivers theoretical forces of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, while maintaining a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 570239 is a double-acting industrial component featuring a 25 mm piston diameter, a 40 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar, this unit achieves a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and incorporates short elastic cushioning rings or pads at both ends with a 1.2 mm cushioning length. It operates in ambient temperatures from 0 to 60 °C, supports position detection via proximity sensors, and utilizes a ball bearing cage guide with an adjustable end position range of 6.5 mm at the front and 5.5 mm at the rear. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 571989 is a double-acting industrial component featuring a 32 mm piston diameter, a 10 mm stroke, and an M8 female thread piston-rod end based on the ISO 21287 standard. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working pressure range, this single-ended piston rod cylinder incorporates flexible cushioning rings at both ends and provisions for position detection via proximity sensors. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, with a moving mass of 45 g at 0 mm stroke and a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →
Festo
The Festo 570238 is a double-acting industrial component featuring a 25 mm piston diameter, a 30 mm stroke, and a yoke drive unit operating via compressed air within a 1 to 8 bar working pressure range. Built with a ball bearing cage guide, a slide, a piston, and a piston rod, this assembly incorporates short elastic cushioning rings at both ends to manage a 0.45 Nm end position impact energy at a maximum speed of 0.8 m/s. It accommodates position detection using a proximity sensor, functions across an ambient temperature range of 0 to 60 °C, and provides an adjustable end position range of 6.5 mm at the front and 5.5 mm at the rear with a repetition accuracy of 0.3 mm. Submit part number 570238 with your required quantity and application specifications to request a formal quotation.
View product details →
Festo
The Festo 571988 is a double-acting industrial component featuring a 25 mm piston diameter, a 60 mm stroke, and an M6 female piston rod thread based on the ISO 21287 standard. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and position detection for proximity sensors. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, with a moderate corrosion resistance classification CRC 2 and an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo part number 570237 is a double-acting industrial component featuring a 25 mm piston diameter, a 20 mm stroke, and a yoke drive unit design structure comprised of a piston, piston rod, and slide. Operating at working pressures from 1 to 8 bar with a max speed of 0.8 m/s, it utilizes short elastic cushioning rings or pads at both ends, a ball bearing cage guide, and integrated position detection for proximity sensors. This unit functions within an ambient temperature range of 0 to 60 °C, utilizing compressed air according to ISO 8573-1:2010 [7:4:4] with a 0.3 mm repetition accuracy and a CRC rating of 0. Submit your exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →
Festo
The Festo 571987 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and an M6 female piston-rod thread based on the ISO 21287 standard. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working range, this unit delivers theoretical forces of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a moderate corrosion resistance classification of CRC 2 for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
