Festo
The Festo 570236 is a double-acting industrial component featuring a 25 mm piston diameter, a 10 mm stroke, and a ball bearing cage guide within a yoke, piston, piston rod, and slide design structure. It operates on compressed air in accordance with ISO 8573-1:2010 [7:4:4] at a working pressure of 1 to 8 bar, achieving a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. Integrated with short elastic cushioning rings or pads at both ends, the unit accommodates an adjustable end position range of 6.5 mm at the front and 5.5 mm at the rear while functioning across an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 571986 is a double-acting industrial component featuring a 25 mm piston diameter, a 40 mm stroke, and an M6 female piston-rod end based on the ISO 21287 standard. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 0.6 to 10 bar, this unit incorporates flexible cushioning rings at both ends and provisions for position detection via proximity sensor. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, while maintaining a CRC 2 moderate corrosion resistance classification across ambient temperatures of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 570235 is a double-acting industrial component featuring a 20 mm piston diameter, a 150 mm stroke, and a yoke drive unit design structure incorporating a ball bearing cage guide. This unit operates on compressed air within a working pressure range of 1 to 8 bar, achieving a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm, and includes short elastic cushioning rings at both ends along with position detection for proximity sensors. It functions within an ambient temperature range of 0 to 60 °C and features an adjustable end position range of 38.5 mm at the front and 5.5 mm at the rear. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 571985 is a double-acting industrial component featuring a 25 mm piston diameter, a 30 mm stroke, and an M6 female thread on its single-ended piston rod based on the ISO 21287 standard. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working range, it incorporates flexible cushioning rings at both ends and position detection for proximity sensors. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, with a moving mass of 20 g at 0 mm stroke and a CRC 2 moderate corrosion resistance classification across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 570234 is a double-acting industrial component featuring a 20 mm piston diameter, a 100 mm stroke, and a yoke drive unit design structure that incorporates a piston, piston rod, and slide with a ball bearing cage guide. Operating at a working pressure of 1 to 8 bar with compressed air matching ISO8573-1:2010 [7:4:4], this unit achieves a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and utilizes short elastic cushioning rings at both ends with an end position range of 38.5 mm at the front and 5.5 mm at the rear. It functions in ambient temperatures from 0 to 60 °C, includes position detection for a proximity sensor, and operates with a CRC corrosion resistance classification of 0 under no corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 571984 is a double-acting industrial component featuring a 25 mm piston diameter, a 25 mm stroke, and an M6 female piston rod thread based on the ISO 21287 standard. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] across a working pressure range of 0.6 to 10 bar, this unit delivers theoretical forces of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, a single-ended piston rod with a moving mass of 20 g at 0 mm stroke, position detection capabilities for a proximity sensor, and a CRC 2 moderate corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 570233 is a double-acting industrial component featuring a 20 mm piston diameter, an 80 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating at a working pressure of 1 to 8 bar with compressed air matching ISO8573-1:2010 [7:4:4], this unit incorporates a ball bearing cage guide, short elastic cushioning rings or pads at both ends, and provisions for position detection via a proximity sensor. It achieves a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and functions within an ambient temperature range of 0 to 60 °C with a CRC corrosion resistance classification of 0. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 571983 is a double-acting industrial component featuring a 25 mm piston diameter, a 20 mm stroke, and a female M6 piston rod thread based on the ISO 21287 standard. Operating at a working pressure of 0.6 to 10 bar with compressed air in accordance with ISO 8573-1:2010 [7:4:4], this single-ended piston rod unit incorporates flexible cushioning rings at both ends and allows for any assembly position within a -10 to 60 °C ambient temperature range. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, while offering position detection for proximity sensors and a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
Festo
The Festo 570232 is a double-acting industrial component featuring a 20 mm piston diameter, a 50 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Driven by compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar, this unit operates at speeds up to 0.8 m/s with a repetition accuracy of 0.3 mm. It incorporates short elastic cushioning rings or pads at both ends providing a 1.2 mm cushioning length, a ball bearing cage guide, and provisions for position detection via proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This Festo industrial component, part number 571982, is a double-acting pneumatic cylinder featuring a 25 mm piston diameter, a 15 mm stroke, and an M6 female piston rod thread based on ISO 21287. It operates within a working pressure range of 0.6 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], and incorporates flexible cushioning rings at both ends with a CRC 2 moderate corrosion resistance classification. The unit delivers theoretical forces of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, while supporting position detection via proximity sensors in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This Festo industrial component, part number 570231, is a double-acting drive unit featuring a 20 mm piston diameter, a 40 mm stroke, and a yoke design structure incorporating a piston, piston rod, and slide guided by a ball bearing cage guide. It operates on compressed air conforming to ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar, achieving a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and features short elastic cushioning rings or pads at both ends with a 1.2 mm cushioning length. The unit includes position detection for proximity sensors, an adjustable end position range of 3.5 mm at the front and 5.5 mm at the rear, a CRC corrosion resistance classification of 0, and functions in ambient temperatures from 0 to 60 °C with lubricated operation possible. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 571981 is a double-acting industrial component featuring a 25 mm piston diameter, a 10 mm stroke, and an M6 female piston rod thread based on the ISO 21287 standard. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] across a working pressure range of 0.6 to 10 bar, this unit delivers theoretical forces of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a moderate corrosion resistance classification of CRC 2 for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →

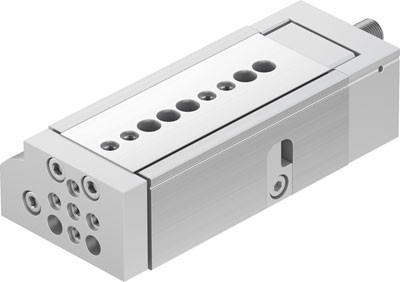

Festo
The Festo 570230 is a double-acting industrial component featuring a 20 mm piston diameter, a 30 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air within a working pressure range of 1 to 8 bar, achieving a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and an impact energy in end positions of 0.35 Nm with short elastic cushioning rings or pads at both ends. The unit includes position detection for proximity sensors, an adjustable end position range of 3.5 mm at the front and 5.5 mm at the rear, a cushioning length of 1.2 mm, and functions in ambient temperatures from 0 to 60 °C with a CRC corrosion resistance classification of 0. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →

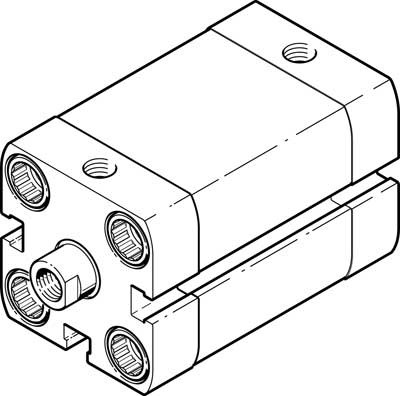

Festo
The Festo 571980 is a double-acting industrial component featuring a 25 mm piston diameter, a 5 mm stroke, and an M6 female piston rod thread based on the ISO 21287 standard. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and position detection capabilities for proximity sensors. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, while maintaining a moderate corrosion resistance classification CRC of 2 across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →

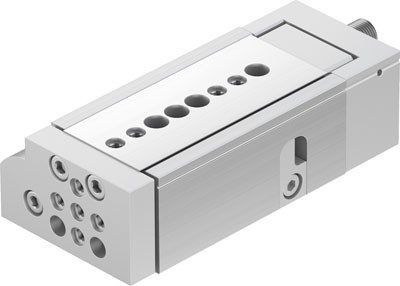

Festo
The Festo 570229 is a double-acting industrial component featuring a 20 mm piston diameter, a 20 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide with a ball bearing cage guide. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar and ambient temperatures from 0 to 60 °C, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. It includes short elastic cushioning rings or pads at both ends providing a 1.2 mm cushioning length and 0.35 Nm impact energy in end positions, an adjustable end position range of 3.5 mm at the front and 5.5 mm at the rear, position detection for proximity sensors, and a CRC corrosion resistance classification of 0 with any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 571979 is a double-acting industrial component featuring a 20 mm piston diameter and a 60 mm stroke based on the ISO 21287 standard. Operating on compressed air within a 0.6 to 10 bar working range, it incorporates flexible cushioning rings at both ends, a female M6 piston rod thread, and position detection for proximity sensors. It delivers a theoretical force of 188 N on the advance stroke and 141 N on the return stroke at 6 bar while functioning within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →

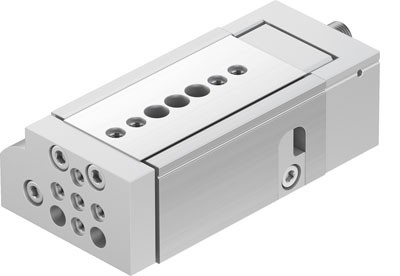

Festo
The Festo 570228 is a double-acting industrial component featuring a 20 mm piston diameter, a 10 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide. Operating at working pressures from 1 to 8 bar with compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit achieves a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm, and incorporates short elastic cushioning rings or pads at both ends with a 1.2 mm cushioning length. It operates in ambient temperatures between 0 and 60 °C in any assembly position, includes position detection for a proximity sensor, and utilizes a ball bearing cage guide alongside an adjustable end position range of 3.5 mm at the front length and 5.5 mm at the rear length. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 571978 is a double-acting industrial component featuring a 20 mm piston diameter, a 50 mm stroke, and a female M6 piston rod thread built to ISO 21287 standards. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working range, it delivers a theoretical advance force of 188 N and a return force of 141 N at 6 bar. This single-ended piston rod cylinder incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a CRC 2 moderate corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

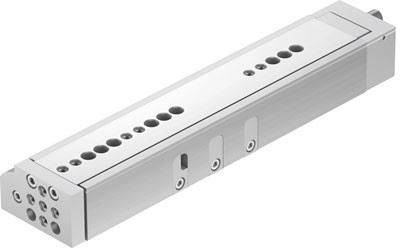

Festo
The Festo 570227 is a double-acting industrial component featuring a 16 mm piston diameter and a 150 mm stroke, operating via a yoke drive unit design structure that includes a piston, piston rod, and slide. Driven by compressed air in accordance with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 8 bar, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm. It is equipped with a ball bearing cage guide, short elastic cushioning rings or pads at both ends providing a 1 mm cushioning length, and integrated position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 571977 is a double-acting industrial component featuring a 20 mm piston diameter and a 40 mm stroke, designed in accordance with ISO 21287 with a single-ended piston rod and female M6 piston rod thread. Operating on compressed air complying with ISO 8573-1:2010 [7:4:4] within a pressure range of 0.6 to 10 bar, this unit delivers a theoretical force of 188 N on the advance stroke and 141 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, position detection for proximity sensors, and a moderate corrosion resistance classification of CRC 2 for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
