Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

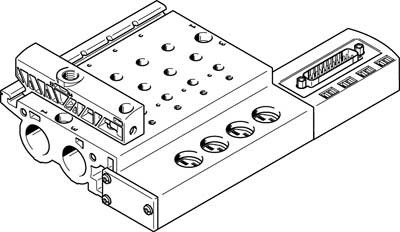

The Festo 568181 is a wrought aluminum alloy industrial component featuring a 21 mm grid dimension and a maximum of 4 valve positions. Constructed with a CRC 2 moderate corrosion stress classification, this 690 g unit includes NPT1/8-27 auxiliary pilot air ports 12/14, NPT1/2-14 pneumatic connection ports, and materials that are free of copper and PTFE while conforming to RoHS. Installation requires a maximum tightening torque of 1.5 Nm for H-rail mounting, 2 Nm for valve mounting, and 5 Nm for wall mounting. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 570585 is a double-acting industrial component featuring a 32 mm piston diameter, a 160 mm stroke, and a yoke drive unit operating mode with a plain-bearing guide. It operates on compressed air compliant with ISO 8573-1:2010 [7:4:4] across a working pressure range of 1.5 to 10 bar, delivering a theoretical force of 482 N advancing and 415 N retracting at 6 bar. This unit incorporates flexible cushioning rings at both ends, position detection capability for proximity sensors, 1/8 NPT pneumatic connections, and a wrought aluminum alloy cover with a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 570584 is a double-acting industrial component featuring a 32 mm piston diameter and a 125 mm stroke driven by a yoke operating mode. Engineered with a plain-bearing guide and flexible cushioning rings at both ends, this unit operates within a 1.5 to 10 bar pressure range on ISO8573-1:2010 [7:4:4] compressed air. It delivers a theoretical retracting force of 415 N and an advancing force of 482 N at 6 bar, utilizing a 1/8 NPT pneumatic connection and a wrought aluminum alloy cover. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 570583 is a double-acting industrial guide component featuring a 32 mm piston diameter, a 100 mm stroke, and a plain-bearing guide with a yoke operating mode. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] across a working pressure range of 1.5 to 10 bar, it delivers theoretical forces of 415 N retracting and 482 N advancing at 6 bar. This unit incorporates flexible cushioning rings at both ends, position detection for proximity sensors, 1/8 NPT pneumatic connections, and a wrought aluminum alloy cover with a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive an official price quote.
View product details →
Festo
The Festo 570582 is a double-acting industrial component featuring a 32 mm piston diameter, an 80 mm stroke, and a yoke operating mode with a plain-bearing guide. It operates on compressed air matching ISO 8573-1:2010 [7:4:4] within a 1.5 to 10 bar working pressure range, delivering a theoretical retracting force of 415 N and an advance force of 482 N at 6 bar. Constructed with a wrought aluminum alloy cover and flexible cushioning rings at both ends, this unit provides position detection for proximity sensors and 1/8 NPT pneumatic connections. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
Engineered with a 32 mm piston diameter and a 50 mm stroke, this Festo industrial component part number 570581 operates in a double-acting mode via a yoke drive unit and plain-bearing guide. The unit functions within a working pressure range of 1.5 to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4], delivering a theoretical retracting force of 415 N and an advance force of 482 N at 6 bar. Featuring flexible cushioning rings at both ends, a wrought aluminum alloy cover, and 1/8 NPT pneumatic connections, the assembly accommodates any mounting position across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 570580 industrial component is a double-acting guide featuring a 32 mm piston diameter, a 40 mm stroke, and a yoke operating mode driven by compressed air meeting ISO 8573-1:2010 [7:4:4] standards. Operating within a working pressure range of 1.5 to 10 bar, this unit incorporates flexible cushioning rings at both ends, a plain-bearing guide, and position detection capabilities for proximity sensors. It delivers a theoretical retracting force of 415 N and an advance force of 482 N at 0.6 MPa (6 bar, 87 psi) across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 570579 is a double-acting industrial component featuring a 32 mm piston diameter, a 30 mm stroke, and a yoke drive unit operating via compressed air. Built with a plain-bearing guide, a wrought aluminum alloy cover, and flexible cushioning rings at both ends, this guide design supports a working pressure range of 1.5 to 10 bar across ambient temperatures from -20 to 80 °C. It provides 482 N of theoretical advance force and 415 N of retracting force at 6 bar, utilizing 1/8 NPT pneumatic connections with position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →
Festo

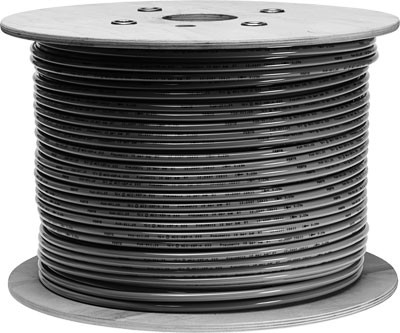

The Festo 568019 industrial component is a black TPE-U(PU) tubing featuring a 5/16-inch outer diameter and a Shore hardness of D 52 +/-3. It operates with compressed air in accordance with ISO8573-1:2010 [7:-:-] across a temperature-dependent working pressure range of -14.4 to 145 psi and an ambient temperature range of -31 to 145 °F. The material is RoHS compliant, free of copper and PTFE, meets food safety standards according to the manufacturer's declaration, and exhibits a product weight of 0.31 oz/ft with a minimum bending radius of 0.065 feet and a flow-relevant bending radius of 0.121 feet. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 570578 is a double-acting industrial guide component featuring a 32 mm piston diameter and a 25 mm stroke, driven via a yoke operating mode with a plain-bearing guide and flexible cushioning rings at both ends. It operates within a working pressure range of 1.5 to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4], delivering a theoretical retracting force of 415 N and an advance force of 482 N at 0.6 MPa. Constructed with a wrought aluminum alloy cover and rated for an ambient temperature range of -20 to 80 °C, this unit includes 1/8 NPT pneumatic connections and provisions for position detection via proximity sensors. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 570577 is a double-acting industrial component featuring a 32 mm piston diameter, a 20 mm stroke, and a yoke-style drive unit operating mode with a plain-bearing guide and wrought aluminum alloy cover. It operates on compressed air matching ISO 8573-1:2010 [7:4:4] standards within a 1.5 to 10 bar working pressure range, delivering theoretical forces of 415 N retracting and 482 N advancing at 6 bar. Designed with flexible cushioning rings at both ends, 1/8 NPT pneumatic connections, and position detection capabilities for proximity sensors, it functions in ambient temperatures from -20 to 80 °C under moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
Engineered with a 25 mm piston diameter and a 100 mm stroke, the Festo 570576 double-acting drive unit features a plain-bearing guide design structure and operates via a yoke operating mode. This component functions within a working pressure range of 2 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], delivering a theoretical retracting force of 247 N and an advancing force of 295 N at 6 bar. Incorporating flexible cushioning rings at both ends, a wrought aluminum alloy cover, and 1/8 NPT pneumatic connections, the unit accommodates any assembly position and permits lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

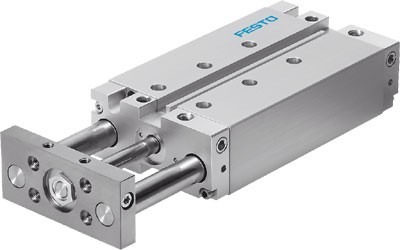

The Festo 570575 is a double-acting industrial component featuring a 25 mm piston diameter, an 80 mm stroke, and a plain-bearing yoke drive unit operating between 2 and 10 bar. Built with a wrought aluminum alloy cover, this model incorporates flexible cushioning rings at both ends, position detection for proximity sensors, and a 1/8 NPT pneumatic connection functioning within an ambient temperature range of -20 to 80 °C. It delivers a theoretical force of 295 N advancing and 247 N retracting at 0.6 MPa, utilizing compressed air compliant with ISO 8573-1:2010 [7:4:4] with a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 570574 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and a yoke operating mode with flexible cushioning rings or plates at both ends. Constructed with a plain-bearing guide, a wrought aluminum alloy cover, and 1/8 NPT pneumatic connections, this guide design operates within a working pressure range of 2 to 10 bar and an ambient temperature range of -20 to 80 °C. It provides position detection for proximity sensors, achieves a theoretical retraction force of 247 N and advance force of 295 N at 6 bar, and conforms to RoHS standards with a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

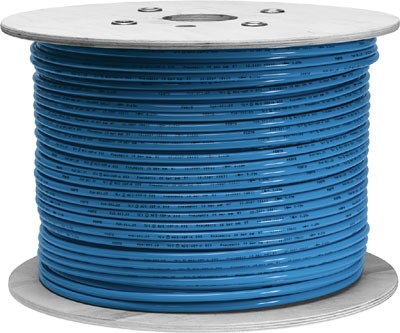

The Festo 568015 is a blue TPE-U(PU) industrial component featuring a 5/16-inch outer diameter, a Shore hardness of D 52 +/-3, and a unit weight of 0.31 oz/ft. It operates with compressed air in accordance with ISO8573-1:2010 [7:-:-] across a temperature-dependent working pressure range of -14.4 to 145 Psi and an ambient temperature range of -31 to 145 °F. This RoHS-compliant part is free of copper and PTFE, includes a food safety classification according to the manufacturer's declaration, and possesses a minimum bending radius of 0.065 feet alongside a bending radius relevant for flow rate of 0.121 feet. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 570573 is a double-acting industrial guide component featuring a 25 mm piston diameter, a 40 mm stroke, and a yoke drive unit operating mode with a plain-bearing guide. It operates on compressed air within a 2 to 10 bar working pressure range across an ambient temperature span of -20 to 80 °C, delivering theoretical forces of 295 N advancing and 247 N retracting at 0.6 MPa. Constructed with a wrought aluminum alloy cover and flexible cushioning rings at both ends, this unit includes 1/8 NPT pneumatic connections and provisions for position detection via proximity sensor. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 570572 is a double-acting industrial component featuring a 25 mm piston diameter, a 30 mm stroke, and a yoke operating mode of the drive unit with a plain-bearing guide. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 2 to 10 bar working pressure range, it delivers a theoretical retracting force of 247 N and an advancing force of 295 N at 6 bar. This unit includes flexible cushioning rings or plates at both ends, 1/8 NPT pneumatic connections, a wrought aluminum alloy cover, and a CRC 2 moderate corrosion resistance classification for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This blue Festo industrial component with part number 568013 is a TPE-U(PU) tubing featuring a 5/32-inch outer diameter and a Shore hardness of D 52 +/-3. It operates with compressed air in accordance with ISO8573-1:2010 [7:-:-] across a temperature-dependent working pressure range of -14.4 to 145 psi and ambient temperatures from -31 to 145 °F. The tubing has a product weight of 0.09 oz/ft, a minimum bending radius of 0.02 ft, and a bending radius relevant for flow rate of 0.052 ft, while conforming to RoHS with materials free of copper and PTFE alongside food safety to the manufacturer's declaration. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 570571 is a double-acting industrial component featuring a 25 mm piston diameter, a 25 mm stroke, and a yoke drive unit design with a plain-bearing guide. It operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] within a 2 to 10 bar working pressure range, delivering theoretical forces of 295 N on advance and 247 N on retraction at 6 bar. Constructed with a wrought aluminum alloy cover and offering flexible cushioning rings at both ends, this unit functions within an ambient temperature range of -20 to 80 °C and includes provisions for position detection via proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

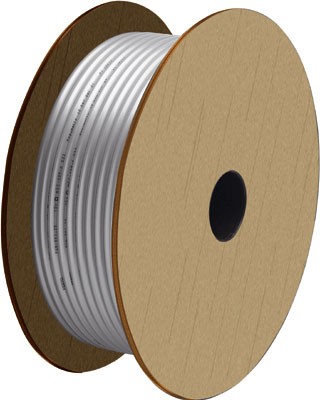

This Festo industrial component, part number 568012, is a silver TPE-U(PU) tubing featuring a 3/8-inch outer diameter, a Shore hardness of D 52 +/-3, and a linear weight of 0.48 oz/ft. It operates with compressed air conforming to ISO8573-1:2010 [7:-:-] across a temperature-dependent working pressure range of -14.4 to 145 Psi and an ambient temperature range of -31 to 145 °F. The material conforms to RoHS, is free of copper and PTFE, meets food safety requirements according to the manufacturer's declaration, and possesses a minimum bending radius of 0.081 feet alongside a bending radius relevant for flow rate of 0.171 feet. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
