Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 570606 is a double-acting industrial component featuring a 63 mm piston diameter, a 160 mm stroke, and a yoke drive unit design with a plain-bearing guide. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range, this unit utilizes flexible cushioning rings or plates at both ends and provides 1,870 N of theoretical advance force at 6 bar. Constructed with a wrought aluminum alloy cover and a moderate corrosion resistance classification of CRC 2, it supports an ambient temperature range of -20 to 80 °C and includes 1/4 NPT pneumatic connections with position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 571935 is a double-acting industrial component featuring a 25 mm piston diameter, a 5 mm stroke, and an M8 male piston rod thread designed to ISO 21287 standards. Operating within a pressure range of 0.6 to 10 bar using compressed air meeting ISO 8573-1:2010 [7:4:4], this unit incorporates flexible cushioning rings at both ends and provisions for proximity sensor position detection. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar while maintaining a CRC 2 moderate corrosion resistance classification across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 570605 is a double-acting industrial component featuring a 63 mm piston diameter, a 125 mm stroke, and a yoke drive unit design with a plain-bearing guide. Operating within a working pressure range of 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], it delivers a theoretical retracting force of 1,750 N and an advancing force of 1,870 N at 0.6 MPa (6 bar, 87 psi). Built with a wrought aluminum alloy cover, flexible cushioning rings or plates at both ends, and 1/4 NPT pneumatic connections, this unit is designed for position detection via proximity sensors and functions across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →
Festo

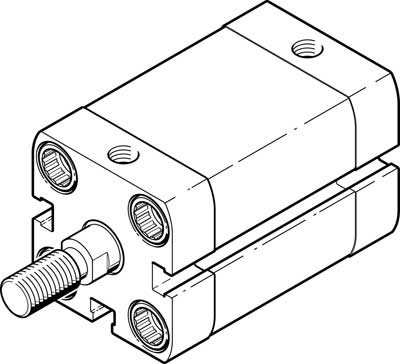

The Festo 571934 is a double-acting industrial component featuring a 20 mm piston diameter, a 60 mm stroke, and an M8 male piston rod thread based on the ISO 21287 standard. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working range, it delivers theoretical forces of 188 N for the advance stroke and 141 N for the return stroke at 6 bar. This unit incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a moderate corrosion resistance classification of CRC 2 for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 570604 is a double-acting industrial guide component featuring a 63 mm piston diameter and a 100 mm stroke driven by a yoke operating mode. It utilizes a plain-bearing guide and flexible cushioning rings or plates at both ends, operating within a working pressure range of 1 to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. Constructed with a wrought aluminum alloy cover and offering a moderate corrosion resistance classification of CRC 2, this unit delivers a theoretical force of 1,870 N advancing and 1,750 N retracting at 0.6 MPa. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 571933 is a double-acting industrial component featuring a 20 mm piston diameter, a 50 mm stroke, and an M8 male piston rod thread designed in accordance with ISO 21287. Operating on compressed air within a 0.6 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a moderate corrosion resistance classification of CRC 2. It delivers theoretical forces of 188 N on the advance stroke and 141 N on the return stroke at 6 bar across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 570603 is a double-acting industrial component featuring a 63 mm piston diameter, an 80 mm stroke, and a plain-bearing guide design structure operated via a yoke. This unit functions with a working pressure range of 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], delivering a theoretical retracting force of 1,750 N and an advance force of 1,870 N at 0.6 MPa (6 bar, 87 psi). Equipped with flexible cushioning rings/plates at both ends (P cushioning), 1/4 NPT pneumatic connections, and position detection for a proximity sensor, it operates within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 571932 is a double-acting industrial component featuring a 20 mm piston diameter, a 40 mm stroke, and an M8 male piston rod thread designed in accordance with the ISO 21287 standard. Operating on compressed air within a 0.6 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and provisions for position detection via proximity sensor. It delivers a theoretical advance force of 188 N and a return force of 141 N at 6 bar while functioning within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this specification.
View product details →
Festo
The Festo part number 570602 is a double-acting industrial component featuring a 63 mm piston diameter, a 50 mm stroke, and a yoke operating mode driven by compressed air meeting ISO8573-1:2010 [7:4:4] standards. Operating within a working pressure range of 1 to 10 bar and ambient temperatures from -20 to 80 °C, this guide design incorporates a plain-bearing guide, flexible cushioning rings at both ends, and position detection for proximity sensors, delivering theoretical forces of 1,870 N advancing and 1,750 N retracting at 6 bar. Constructed with a wrought aluminum alloy cover and 1/4 NPT pneumatic connections, the unit achieves a CRC 2 moderate corrosion resistance classification and supports lubricated operation. Submit your exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 571931 is a double-acting industrial component featuring a 20 mm piston diameter and a 30 mm stroke based on the ISO 21287 standard. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and provides position detection for proximity sensors. It delivers a theoretical force of 188 N for the advance stroke and 141 N for the return stroke at 6 bar while operating across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo part number 570601 is a double-acting industrial component featuring a 63 mm piston diameter, a 25 mm stroke, and a yoke operating mode of the drive unit with a plain-bearing guide. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this guide design incorporates flexible cushioning rings or plates at both ends and provides a 1/4 NPT pneumatic connection. It delivers a theoretical force of 1,870 N on advance and 1,750 N on retracting at 0.6 MPa (6 bar, 87 psi), while functioning across an ambient temperature range of -20 to 80 °C with moderate corrosion stress resistance (CRC 2). Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 571930 is a double-acting industrial component featuring a 20 mm piston diameter, a 25 mm stroke, and an M8 piston rod thread with a male end. Built on the ISO 21287 standard with a single-ended piston rod, this unit operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a working pressure range of 0.6 to 10 bar and an ambient temperature of -10 to 60 °C. It includes flexible cushioning rings or plates at both ends, position detection for a proximity sensor, and delivers a theoretical force of 188 N on the advance stroke and 141 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

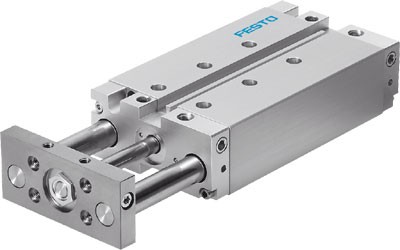

The Festo 570600 is a double-acting industrial component featuring a 50 mm piston diameter, a 200 mm stroke, and a yoke drive unit design with a plain-bearing guide. It operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards within a working pressure range of 1 to 10 bar, delivering theoretical forces of 1,057 N retracting and 1,178 N advancing at 6 bar. Constructed with a wrought aluminum alloy cover and rated for ambient temperatures from -20 to 80 °C, this unit incorporates flexible cushioning rings at both ends and 1/4 NPT pneumatic connections. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 571929 is a double-acting industrial component featuring a 20 mm piston diameter, a 20 mm stroke, and an M8 male piston rod thread based on the ISO 21287 standard. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 0.6 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and accommodates position detection via proximity sensors. It delivers a theoretical force of 188 N on the advance stroke and 141 N on the return stroke at 6 bar while withstanding a moderate corrosion stress classification of CRC 2 across ambient temperatures from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 570599 is a double-acting industrial component featuring a 50 mm piston diameter, a 160 mm stroke, and a yoke drive unit design with a plain-bearing guide. It operates on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar, delivering a theoretical retracting force of 1,057 N and an advance force of 1,178 N at 0.6 MPa. Equipped with flexible cushioning rings at both ends, 1/4 NPT pneumatic connections, and position detection for proximity sensors, this unit functions across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 571928 is a double-acting industrial component featuring a 20 mm piston diameter, a 15 mm stroke, and an M8 male piston rod thread based on ISO 21287. Built with a piston, piston rod, and cylinder barrel design, it operates on compressed air from 0.6 to 10 bar, providing flexible cushioning rings at both ends, position detection for proximity sensors, and theoretical forces of 188 N for advance and 141 N for return at 6 bar. This single-ended piston rod unit functions across ambient temperatures of -10 to 60 °C with a CRC 2 moderate corrosion resistance classification and a moving mass of 20 g at 0 mm stroke. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo part number 570598 is a double-acting industrial component featuring a 50 mm piston diameter, a 125 mm stroke, and a yoke drive unit design with a plain-bearing guide. It operates within a working pressure range of 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], delivering a theoretical advance force of 1,178 N and a retracting force of 1,057 N at 0.6 MPa (6 bar, 87 psi). This unit includes flexible cushioning rings or plates at both ends, position detection capabilities for a proximity sensor, 1/4 NPT pneumatic connections, a wrought aluminum alloy cover, and a CRC 2 moderate corrosion resistance classification for ambient temperatures between -20 and 80 °C. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 571927 is a double-acting industrial component featuring a 20 mm piston diameter, a 10 mm stroke, and an M8 male piston rod thread designed in accordance with ISO 21287. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 0.6 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and accommodates proximity sensors for position detection. It delivers theoretical forces of 188 N on the advance stroke and 141 N on the return stroke at 6 bar while operating in ambient temperatures from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 570597 is a double-acting industrial component featuring a 50 mm piston diameter, a 100 mm stroke, and a yoke drive unit operating mode with a plain-bearing guide and flexible cushioning rings at both ends. It operates on compressed air within a 1 to 10 bar working pressure range, delivering a theoretical retracting force of 1,057 N and an advance force of 1,178 N at 6 bar through 1/4 NPT pneumatic connections. Constructed with a wrought aluminum alloy cover and a CRC 2 moderate corrosion resistance classification, this unit functions in ambient temperatures from -20 to 80 °C and includes position detection capabilities for proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 570596 is a double-acting industrial guide component featuring an 80 mm stroke, a 50 mm piston diameter, and a plain-bearing guide operating via a yoke drive unit. Designed with flexible cushioning rings at both ends and provisions for position detection via proximity sensors, it operates on compressed air within a 1 to 10 bar working pressure range across ambient temperatures of -20 to 80 °C. This wrought aluminum alloy unit delivers a theoretical retracting force of 1,057 N and an advance force of 1,178 N at 6 bar through 1/4 NPT pneumatic connections, maintaining a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
