Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

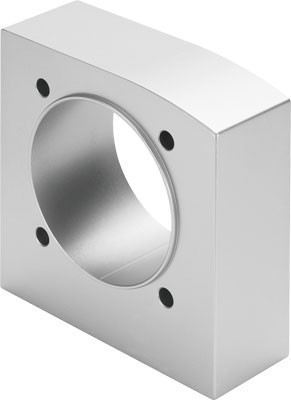

The Festo industrial component, part number 558014, features an actuator interface code of L95 and a coupling housing interface code of 95A, with materials that conform to RoHS. It supports any assembly position, an ambient temperature range of -10 to 60 °C, a storage temperature range of -25 to 60 °C, and a relative air humidity operating range of 0 to 95 %. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

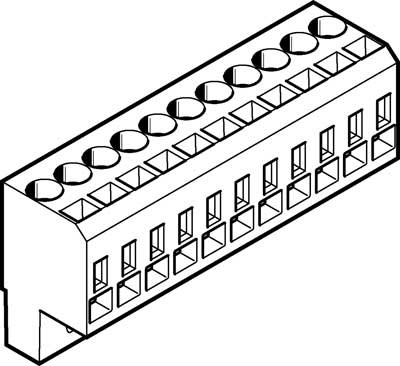

The Festo 558328 is an industrial component featuring an 11-pin plug electrical connection with a cage clamp terminal, an operating voltage range of 160 V AC, and a nominal operating voltage of 24 V DC. Measuring 7.8 mm in width, 22.9 mm in height, and 39.2 mm in length, this part supports any assembly position, a permissible cable diameter of 1 to 1.5 mm, and a terminal cross-section of 0.2 to 1.5 mm2. It accommodates an acceptable current load of 8 A at 40°C, possesses a corrosion resistance classification of CRC 0 for no corrosion stress, and conforms to RoHS materials notes. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

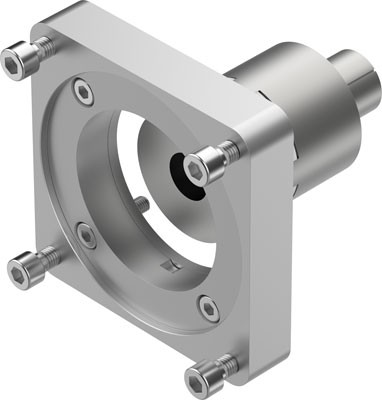

The Festo 557996 industrial component weighs 2,720 g, features an actuator interface code of K95 with a motor input interface code of 140A, and delivers a transferable torque of 143 Nm. This assembly accommodates any mounting position and complies with RoHS and VDMA24364-B2-L PWIS conformity standards, functioning within a 0 to 95% relative air humidity range, storage temperatures from -25 to 60 °C, and ambient temperatures between -10 and 60 °C under an IP40 protection class. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 559262 is a double-acting industrial component featuring a 25 mm piston diameter, a 500 mm stroke, and a male M10x1,25 piston rod thread. Built to ISO 6432 and CETOP RP 52 P standards with a single-ended piston rod, this unit operates on compressed air within a 1 to 10 bar pressure range and incorporates PPS self-adjusting pneumatic end-position cushioning. It delivers theoretical forces of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar, while withstanding ambient temperatures from -20 to 80 °C under moderate corrosion stress. Request a quote by submitting the exact part number, quantity, and application requirements today.
View product details →Festo

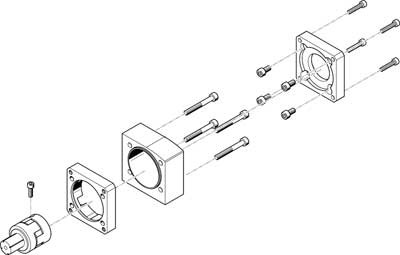

The Festo 557995 is an industrial component featuring an L95 actuator interface code and a 120G motor-in interface code with a transferable torque of 150 Nm. Weighing 3,660 g, this RoHS-compliant part supports any assembly position and operates within an ambient temperature range of -10 to 60 °C, a storage temperature range of -25 to 60 °C, and a relative air humidity of 0 to 95%, while maintaining an IP40 protection class. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 559261 is a double-acting industrial component featuring a 25 mm piston diameter, a 400 mm stroke, and a single-ended piston rod with an M10x1,25 male thread. Conforming to ISO 6432 and CETOP RP 52 P standards, it operates on compressed air within a 1 to 10 bar pressure range and a -20 to 80 °C ambient temperature span. Self-adjusting pneumatic end-position cushioning (PPS) manages a 0.3 J impact energy across its 17 mm cushioning length while delivering theoretical forces of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

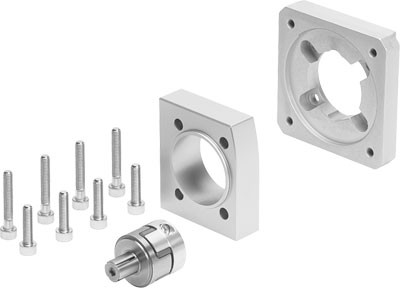

The Festo 557994 is an industrial component featuring an actuator interface code of L95 and a motor input interface code of 140A with a transferable torque of 143 Nm. Weighing 3,710 g with an assembly position rated for any orientation, this RoHS-compliant unit operates within an ambient temperature range of -10 to 60 °C, a storage temperature range of -25 to 60 °C, and relative air humidity levels from 0 to 95% while maintaining an IP40 protection class. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 559260 is a double-acting industrial component featuring a 25 mm piston diameter, a 320 mm stroke, and a male M10x1,25 piston rod thread conforming to ISO 6432 and CETOP RP 52 P standards. It operates within a 1 to 10 bar pressure range using compressed air meeting ISO 8573-1:2010 [7:4:4], utilizing PPS self-adjusting pneumatic end-position cushioning across a 17 mm cushioning length. This model incorporates a single-ended piston rod design structure with a CRC 2 moderate corrosion resistance classification, functioning in ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →Festo

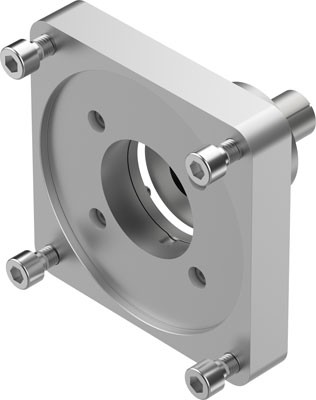

The Festo 557993 is an industrial component featuring an actuator interface code of K62 and a motor input interface code of 140A, delivering a transferable torque of 47 Nm with a product weight of 1,590 g. Designed with VDMA24364-B2-L PWIS conformity and RoHS-compliant materials, it operates in ambient temperatures from -10 to 60 °C and relative air humidity up to 95%, while maintaining an IP40 protection class in any assembly position and withstanding storage temperatures between -25 and 60 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo 559259 is a double-acting industrial component featuring a 25 mm piston diameter, a 300 mm stroke, and an M10x1,25 male piston rod thread designed to ISO 6432 and CETOP RP 52 P standards. Operating on compressed air within a 1 to 10 bar pressure range and -20 to 80 °C ambient temperature limits, this unit utilizes self-adjusting pneumatic end-position cushioning along a 17 mm cushioning length. It delivers a theoretical force of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar, with a CRC 2 moderate corrosion resistance classification and a moving mass of 71 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 559258 is a double-acting industrial component featuring a 25 mm piston diameter, a 250 mm stroke, and an M10x1,25 male piston rod thread that conforms to ISO 6432 and CETOP RP 52 P standards. Operating on compressed air within a 1 to 10 bar pressure range, this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 17 mm cushioning length and delivers theoretical forces of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar. Constructed with a single-ended piston rod design and a CRC 2 moderate corrosion resistance classification, it functions in ambient temperatures from -20 to 80 °C with a moving mass of 71 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 559257 is a double-acting industrial component featuring a 25 mm piston diameter, a 200 mm stroke, and an M10x1,25 male piston rod thread conforming to CETOP RP 52 P and ISO 6432 standards. Operating within a 1 to 10 bar pressure range and handling ambient temperatures from -20 to 80 °C, this unit utilizes self-adjusting pneumatic end-position cushioning (PPS) across a 17 mm cushioning length. It delivers a theoretical force of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar using compressed air meeting ISO 8573-1:2010 [7:4:4] specifications. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo industrial component, part number 557990, features an actuator interface code of L62 and a motor input interface code of 140A with a transferable torque of 47 Nm. Weighing 2,420 g, this unit permits any assembly position and operates within an ambient temperature range of -10 to 60 °C, a storage temperature range of -25 to 60 °C, and a relative air humidity of 0 to 95%. It provides an IP40 protection class, adheres to VDMA24364-B2-L PWIS conformity, and includes materials that conform to RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 559256 is a double-acting industrial component featuring a 25 mm piston diameter, a 160 mm stroke, and a male M10x1.25 piston rod thread. Built with self-adjusting pneumatic end-position cushioning (PPS) and conforming to CETOP RP 52 P and ISO 6432 standards, this single-ended piston rod cylinder operates within a 1 to 10 bar pressure range using compressed air. It delivers a theoretical force of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 559255 is a double-acting industrial component featuring a 25 mm piston diameter, a 125 mm stroke, and an M10x1,25 male piston rod thread conforming to ISO 6432 and CETOP RP 52 P standards. Operating on compressed air within a 1 to 10 bar pressure range, it incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 17 mm cushioning length and a 0.3 J impact energy rating in end positions. Designed for assembly in any position, this unit delivers theoretical forces of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar, while maintaining a moderate corrosion resistance classification of CRC 2 across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo

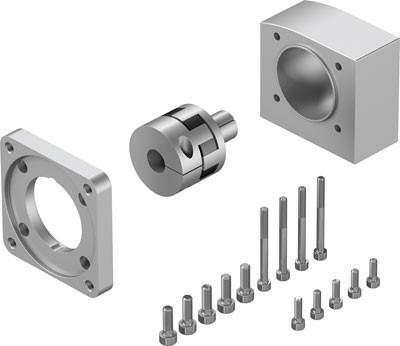

The Festo industrial component, part number 557988, features any assembly position and a transferable torque of 47 Nm with a product weight of 1,610 g. This RoHS-compliant unit meets VDMA24364-B2-L PWIS conformity and includes IP40 protection alongside actuator interface code L62 and motor input interface code 100A. Operating parameters include an ambient temperature range of -10 to 60 °C, a storage temperature range of -25 to 60 °C, and a relative air humidity tolerance of 0 to 95 %. Submit the exact part number, quantity, and application requirements for a formal price quote.
View product details →Festo
This Festo industrial component, part number 559254, is a double-acting cylinder featuring a 25 mm piston diameter, a 100 mm stroke, and an M10x1,25 male piston rod thread conforming to ISO 6432 and CETOP RP 52 P standards. Operating within a 1 to 10 bar pressure range and an ambient temperature span of -20 to 80 °C, it utilizes self-adjusting pneumatic end-position cushioning (PPS) across a 17 mm cushioning length with a 0.3 J impact energy rating. The unit delivers theoretical forces of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar, with a moving mass of 71 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

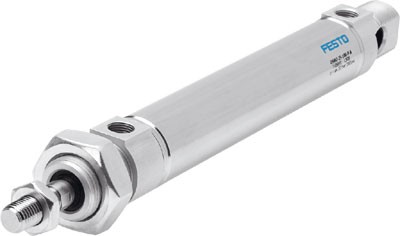

The Festo 559253 is a double-acting industrial component featuring a 25 mm piston diameter and an 80 mm stroke with a single-ended piston rod terminating in a male M10x1,25 thread. Operating at pressures from 1 to 10 bar on compressed air meeting ISO8573-1:2010 [7:4:4], this cylinder conforms to CETOP RP 52 P and ISO 6432 standards while incorporating self-adjusting pneumatic end-position cushioning. It delivers theoretical forces of 294.5 N on advance stroke and 247.4 N on return stroke at 6 bar across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo part number 559252 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and an M10x1,25 male piston-rod thread conforming to ISO 6432 and CETOP RP 52 P standards. Operating within a 1 to 10 bar pressure range and an ambient temperature span of -20 to 80 °C, this unit utilizes self-adjusting pneumatic end-position cushioning alongside a 17 mm cushioning length and 0.3 J impact energy capacity. It delivers theoretical forces of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar, with a moving mass of 71 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 559251 is a double-acting industrial component featuring a 25 mm piston diameter, a 40 mm stroke, and an M10x1,25 male piston-rod thread conforming to ISO 6432 and CETOP RP 52 P standards. Operating on compressed air within a 1 to 10 bar pressure range and -20 to 80 °C ambient temperatures, it utilizes self-adjusting pneumatic end-position cushioning (PPS) with a 17 mm cushioning length and 0.3 J end-position impact energy. This single-ended piston rod design delivers theoretical forces of 294.5 N on the advance stroke and 247.4 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
