Festo

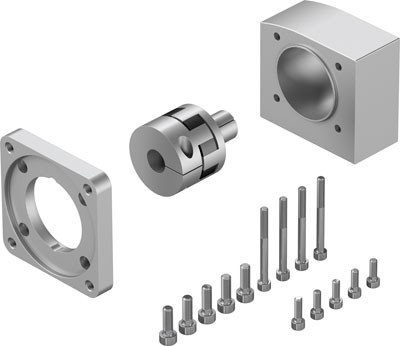

The Festo part number 557984 is an industrial component weighing 990 g with an actuator interface code of L48 and a motor input interface code of 100A. This unit features a transferable torque of 17 Nm, an IP40 protection class, and RoHS-compliant materials conforming to VDMA24364-B2-L PWIS conformity. It supports any assembly position, operates within an ambient temperature range of -10 to 60 °C, and withstands storage temperatures from -25 to 60 °C alongside 0 to 95 % relative air humidity. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 559250 is a double-acting industrial component featuring a 20 mm piston diameter, a 320 mm stroke, and a male M8 piston rod thread conforming to CETOP RP 52 P and ISO 6432 standards. Designed with a single-ended piston rod, piston, and cylinder barrel, it operates within a 1 to 10 bar pressure range utilizing compressed air in accordance with ISO 8573-1:2010 [7:4:4] and incorporates self-adjusting pneumatic end-position cushioning (PPS). This unit delivers a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar, functioning across an ambient temperature range of -20 to 80 °C with a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 559249 is a double-acting industrial component featuring a 20 mm piston diameter, a 300 mm stroke, and an M8 male piston rod thread designed to ISO 6432 and CETOP RP 52 P standards. It operates on compressed air within a 1 to 10 bar pressure range and -20 to 80 °C ambient temperature, utilizing PPS self-adjusting pneumatic end-position cushioning across a 15 mm cushioning length. This single-ended piston rod unit delivers a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar, with a 44 g moving mass at 0 mm stroke and CRC 2 moderate corrosion resistance. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 559248 is a double-acting industrial component featuring a 20 mm piston diameter, a 250 mm stroke, and a male M8 piston rod thread designed to conform to ISO 6432 and CETOP RP 52 P standards. It operates on compressed air matching ISO 8573-1:2010 [7:4:4] within a 1 to 10 bar working range and incorporates PPS self-adjusting pneumatic end-position cushioning over a 15 mm length. Built with a CRC 2 moderate corrosion resistance classification, this single-ended piston rod cylinder functions in ambient temperatures from -20 to 80 °C while delivering theoretical forces of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 559247 is a double-acting industrial component featuring a 20 mm piston diameter and a 200 mm stroke with an M8 male piston rod thread. Operating on compressed air within a 1 to 10 bar pressure range and a temperature span of -20 to 80 °C, this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) along a 15 mm cushioning length. Built to CETOP RP 52 P and ISO 6432 standards with a CRC 2 moderate corrosion resistance classification, it delivers a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar. Submit part number 559247, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 559246 is a double-acting industrial component featuring a 20 mm piston diameter, a 160 mm stroke, and a male M8 piston rod thread designed to ISO 6432 and CETOP RP 52 P standards. Operating across a pressure range of 1 to 10 bar using compressed air, this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) and accommodates any assembly position within an ambient temperature range of -20 to 80 °C. At 6 bar, it delivers a theoretical advance force of 188.5 N and a return force of 158.3 N with a moving mass of 44 g at 0 mm stroke and a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 559245 is a double-acting industrial component featuring a 20 mm piston diameter, a 125 mm stroke, and a male M8 piston rod thread conforming to ISO 6432 and CETOP RP 52 P standards. Operating within a pressure range of 1 to 10 bar using compressed air meeting ISO8573-1:2010 [7:4:4], it delivers theoretical forces of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar. This unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 15 mm cushioning length, a CRC 2 moderate corrosion resistance classification, and an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 559244 is a double-acting industrial component featuring a 20 mm piston diameter, a 100 mm stroke, and an M8 male piston rod thread designed for compressed air operation in accordance with ISO8573-1:2010 [7:4:4]. This unit conforms to CETOP RP 52 P and ISO 6432 standards, operating across a pressure range of 1 to 10 bar with self-adjusting pneumatic end-position cushioning (PPS). It delivers a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar, while maintaining a moderate corrosion resistance classification of CRC 2 within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

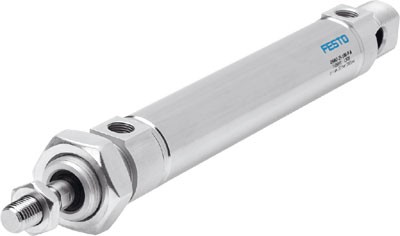

The Festo 559243 is a double-acting industrial component featuring a 20 mm piston diameter, an 80 mm stroke, and an M8 male piston rod thread designed to ISO 6432 and CETOP RP 52 P standards. It operates on compressed air within a 1 to 10 bar working pressure range across ambient temperatures from -20 to 80 °C, utilizing self-adjusting pneumatic end-position cushioning. This single-ended piston rod unit delivers theoretical forces of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 559242 is a double-acting industrial component featuring a 20 mm piston diameter and a 50 mm stroke, operating on compressed air conforming to ISO 8573-1:2010 [7:4:4] within a 1 to 10 bar working range. Built with a male M8 piston rod thread, single-ended piston rod, and self-adjusting pneumatic end-position cushioning (PPS), this unit conforms to CETOP RP 52 P and ISO 6432 standards while delivering a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar. It functions in any assembly position across an ambient temperature range of -20 to 80 °C, exhibits a CRC 2 moderate corrosion resistance classification, and provides a 15 mm cushioning length with 0.2 J impact energy in the end positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 559241 is a double-acting industrial component featuring a 20 mm piston diameter and a 40 mm stroke with a male M8 piston rod thread. Designed with a single-ended piston rod, this unit operates on compressed air within a 1 to 10 bar working pressure range and incorporates self-adjusting PPS pneumatic end-position cushioning. It conforms to ISO 6432 and CETOP RP 52 P standards, delivering a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 559240 is a double-acting industrial component featuring a 16 mm piston diameter, a 200 mm stroke, and a male M6 piston rod thread with a single-ended piston rod design structure comprising a piston, piston rod, and cylinder barrel. Conforming to CETOP RP 52 P and ISO 6432 standards, this unit operates on compressed air within a 1 to 10 bar working pressure range and features PPS self-adjusting pneumatic end-position cushioning over a 12 mm cushioning length. It delivers theoretical forces of 120.6 N on the advance stroke and 103.7 N on the return stroke at 6 bar, while maintaining a CRC 2 moderate corrosion resistance classification across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 559239 is a double-acting industrial component featuring a 16 mm piston diameter, a 160 mm stroke, and an M6 male piston rod thread designed to ISO 6432 and CETOP RP 52 P standards. Operating on compressed air within a 1 to 10 bar pressure range and -20 to 80 °C ambient temperatures, it utilizes self-adjusting pneumatic end-position cushioning (PPS) across a 12 mm cushioning length. This unit generates a theoretical force of 120.6 N on the advance stroke and 103.7 N on the return stroke at 6 bar, with a moving mass of 23 g at 0 mm stroke and a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 559238 is a double-acting industrial component featuring a 16 mm piston diameter, a 125 mm stroke, and a male M6 piston rod thread. Built to ISO 6432 and CETOP RP 52 P standards, this design structure incorporates a piston, piston rod, and cylinder barrel operating at 1 to 10 bar with self-adjusting pneumatic end-position cushioning. It functions within an ambient temperature range of -20 to 80 °C using compressed air conforming to ISO 8573-1:2010 [7:4:4], delivering theoretical forces of 103.7 N on the return stroke and 120.6 N on the advance stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive an RFQ for this Festo component.
View product details →Festo
The Festo part number 559237 is a double-acting industrial component featuring a 16 mm piston diameter, a 100 mm stroke, and a male M6 piston rod thread conforming to CETOP RP 52 P and ISO 6432 standards. Designed with a single-ended piston rod, piston, piston rod, and cylinder barrel, it operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar and an ambient temperature range of -20 to 80 °C. This unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 12 mm cushioning length, delivering a theoretical force of 120.6 N on the advance stroke and 103.7 N on the return stroke at 6 bar. Built with a CRC 2 moderate corrosion resistance classification, it supports any assembly position and lubricated operation. Submit your exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
This Festo 16 mm piston diameter industrial component features an 80 mm stroke and an M6 piston rod thread with a male end. Built as a double-acting unit with self-adjusting pneumatic end-position cushioning, it operates on compressed air within a 1 to 10 bar pressure range and conforms to ISO 6432 and CETOP RP 52 P standards. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 559235 is a double-acting industrial component featuring a 16 mm piston diameter, a 50 mm stroke, and an M6 male piston rod thread designed to ISO 6432 and CETOP RP 52 P standards. It operates on compressed air within a 1 to 10 bar working pressure range across ambient temperatures from -20 to 80 °C, utilizing PPS self-adjusting pneumatic end-position cushioning with a 12 mm cushioning length. This single-ended piston rod unit delivers a theoretical force of 120.6 N on the advance stroke and 103.7 N on the return stroke at 6 bar, while achieving a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component, part number 559234, is a double-acting pneumatic cylinder featuring a 16 mm piston diameter and a 40 mm stroke. Conforming to ISO 6432 and CETOP RP 52 P standards, the unit incorporates PPS self-adjusting pneumatic end-position cushioning and operates within a pressure range of 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It delivers theoretical forces of 120.6 N on the advance stroke and 103.7 N on the return stroke at 6 bar, while functioning across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo
The Festo size 38 industrial component, part number 558908, supports installation in any assembly position. It functions within an ambient temperature range of 0 to 50 °C, a storage temperature range of -25 to 60 °C, and relative air humidity levels from 0 to 95 percent, while featuring materials conforming to RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo industrial component, part number 558907, features a size 38 specification and supports installation in any assembly position. The unit accommodates a storage temperature range of -25 to 60 °C, an ambient temperature range of 0 to 50 °C, and a relative air humidity of 0 to 95 %, with materials conforming to RoHS standards. Submit the exact part number, quantity, and application requirements for a quote.
