Festo

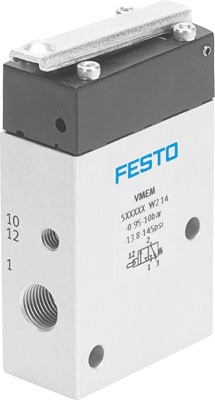

The Festo 555623 is a 20 mm wide mechanical industrial component featuring a 3/2 open, monostable valve function with a poppet seat design and a nominal size of 4 mm. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.95 to 8 bar, utilizing an external pilot air supply with a pilot pressure of 4.5 to 8 bar. Operating within a medium and ambient temperature range of -10 to 60 °C, the unit requires an actuating force of 15.5 N and withstands a maximum force on the actuator of 80 N at a switching frequency up to 3 Hz. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 555622 is a 20 mm wide mechanical industrial component featuring a 3/2 closed, monostable valve function with a poppet seat design structure and a 4 mm nominal size. It delivers a standard nominal flow rate of 500 l/min across an operating pressure range of -0.95 to 8 bar, utilizing an external pilot air supply with a pilot pressure of 3.5 to 8 bar, a mechanical spring reset, and an actuating force of 15.5 N with a maximum actuator force of 80 N. Operating within a medium and ambient temperature range of -10 to 60 °C, the unit requires compressed air in accordance with ISO8573-1:2010 [7:-:-] where lubricated operation is possible, exhibits a CRC 2 moderate corrosion stress classification, and has a maximum switching frequency of 3 Hz while strictly prohibiting use as a mechanical stop. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 555621 is a 20 mm wide mechanical industrial component featuring a 3/2 open, monostable poppet seat design with a 4 mm nominal size and a standard nominal flow rate of 500 l/min. Operating at a working pressure of 4.5 to 8 bar with internal pilot air supply, this piloted valve requires an actuating force of 15.5 N, supports a maximum force on the actuator of 80 N, and operates within a medium and ambient temperature range of -10 to 60 °C. Lubricated operation is possible and subsequently required for further operation using compressed air in accordance with ISO8573-1:2010 [7:-:-]. Please submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 555620 is a 20 mm wide mechanical industrial component featuring a 3/2 closed, monostable valve function with a poppet seat design and internal pilot air supply. This piloted valve delivers a standard nominal flow rate of 500 l/min across a working pressure range of 3.5 to 8 bar, utilizing a mechanical spring reset and requiring an actuating force of 15.5 N with a maximum actuator force of 80 N. Operating within a medium and ambient temperature range of -10 to 60 °C, the 152 g unit handles compressed air according to ISO8573-1:2010 [7:-:-] and allows lubricated operation, though it must not function as a mechanical stop. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

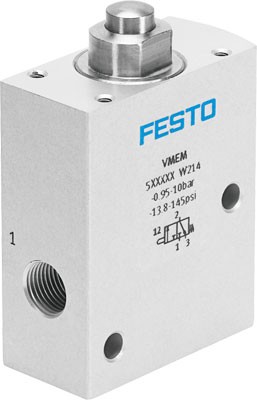

The Festo 555619 is a 20 mm wide mechanical industrial component featuring a 3/2 open, monostable valve function with direct piloting and a poppet seat design structure. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.95 to 8 bar utilizing compressed air in accordance with ISO8573-1:2010 [7:-:-]. This unit operates within a temperature range of -10 to 60 °C, requires an actuating force of 130 N with a maximum actuator force of 170 N, and features through-hole mounting with a product weight of 130 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 555618 is a mechanical 3/2 closed, monostable industrial component featuring a 20 mm width, a 4 mm nominal size, and a poppet seat design structure with direct piloting. Engineered for compressed air media in accordance with ISO8573-1:2010 [7:-:-], it operates within a -0.95 to 8 bar working pressure range, a standard nominal flow rate of 500 l/min, and temperature limits of -10 to 60 °C. The unit requires an 80 N actuating force, withstands a maximum actuator force of 170 N, achieves a 3 Hz maximum switching frequency, and mounts via through holes with a product weight of 130 g. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 555577 is a double-acting industrial component featuring a single-ended piston rod with a toggle lever design structure, 80 mm piston diameter, and 40 mm stroke. Operating at a working pressure of 2 to 10 bar with compressed air in accordance with ISO8573-1:2010 [7:-:-], this unit delivers an impact force of 6,000 N and incorporates flexible cushioning rings or plates at both ends. It includes a guide rod for torque protection, position detection capabilities for proximity and inductive sensors, and aluminum die-cast cover materials with an ambient temperature range of 5 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 6,850 g assembly.
View product details →Festo
The Festo 555576 is a single-acting industrial component featuring a pulling action, an 80 mm piston diameter, and a 40 mm stroke driven by a piston rod with a toggle lever and guide rod. Designed for a working pressure of 2 to 10 bar utilizing compressed air per ISO8573-1:2010 [7:-:-], this 6,850 g unit delivers an impact force of 6,000 N and incorporates flexible cushioning rings at both ends. It includes position detection for proximity sensors, sensing for inductive sensors, through-hole mounting, a G1/8 pneumatic connection, an aluminum die cast cover, and a CRC 1 corrosion resistance classification for ambient temperatures between 5 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
Engineered with a 63 mm piston diameter and a 30 mm stroke, this Festo double-acting industrial component features a piston rod with a toggle lever, a guide rod for torque protection, and flexible cushioning rings at both ends. The unit operates on compressed air within a 2 to 10 bar working pressure range, supports position detection via proximity and inductive sensors, and delivers an impact force of 5,000 N. Constructed with an aluminum die-cast cover and weighing 3,500 g, the device accommodates vertical assembly using a through-hole mounting type and G1/8 pneumatic connections. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

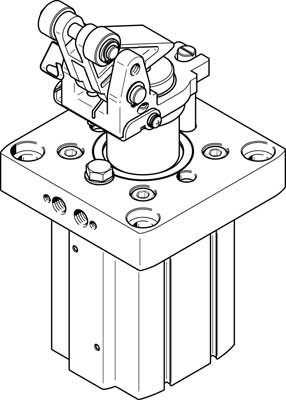

The Festo 555574 is a single-acting industrial component featuring a 63 mm piston diameter, a 30 mm stroke, and a pulling action design structure utilizing a piston rod with a toggle lever. Operating on compressed air in accordance with ISO8573-1:2010 [7:-:-] at a working pressure of 2 to 10 bar, this unit delivers an impact force of 5,000 N and incorporates flexible cushioning rings or plates at both ends. It weighs 3,500 g, includes a guide rod for torque protection, features an aluminum die-cast cover, and is equipped for position detection via proximity and inductive sensors. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →Festo

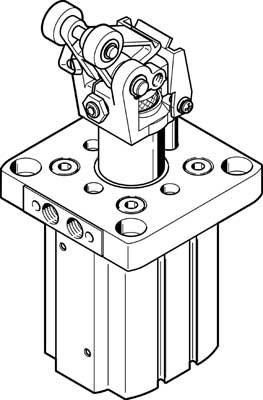

The Festo 555573 is a double-acting industrial component featuring a 50 mm piston diameter, a 30 mm stroke, and a piston rod with a toggle lever design structure. Operating on compressed air in accordance with ISO8573-1:2010 [7:-:-] at working pressures between 3 and 10 bar, this unit incorporates a guide rod for torque protection, flexible cushioning rings or plates at both ends, and an aluminum die-cast cover with a CRC 1 corrosion resistance classification. Weighing 1,800 g with a product weight of 1,800 g, it provides an impact force of 3,000 N and accommodates position detection via proximity sensors alongside toggle lever position sensing via inductive sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo part number 555572 is a single-acting industrial component featuring a 50 mm piston diameter, a 30 mm stroke, and a pulling action design structure utilizing a piston rod with a toggle lever. Operating at a working pressure of 3 to 10 bar with compressed air in accordance with ISO8573-1:2010 [7:-:-], this 1,800 g unit delivers an impact force of 3,000 N and includes flexible cushioning rings or plates at both ends. It is equipped with a guide rod for torque protection, aluminum die-cast cover materials, position detection capabilities for proximity sensors, and sensing of the toggle lever position for inductive sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 555472 is an electro-cylinder with a ball screw design, featuring a 63 size, a 100 mm working stroke, and a 0 mm stroke reserve. This component utilizes an M16x1,5 piston rod thread, a 20 mm spindle diameter, a 20 mm/U spindle pitch, and includes a non-rotating piston rod variant with a plain-bearing guide providing torque protection and a maximum angular deflection of +/-0.2 degrees. Built in accordance with ISO 15552, it achieves a maximum speed of 1 m/s, a maximum acceleration of 6 m/s2, a 0.05 mm reversing backlash, and a repetition accuracy of +/-0.02 mm for use with stepper motors or servomotors and proximity sensors in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 555471 is an electro-cylinder with a ball screw actuator based on the ISO 15552 standard, featuring a size 63 design with a 300 mm working stroke and 0 mm stroke reserve. This component incorporates a 20 mm spindle diameter with a 10 mm/U spindle pitch, an M16x1,5 piston rod thread, a plain-bearing guide for torque protection with a non-rotating piston rod, and a reversing backlash of 0.05 mm. Operational parameters include a maximum speed of 0.5 m/s, maximum acceleration of 6 m/s2, repetition accuracy of +/-0.02 mm, and a maximum angular deflection of the piston rod of +/-0.2 degrees configured for any assembly position, a stepper motor or servomotor, and position detection via a proximity sensor. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →Festo
The Festo 555470 is an electro-cylinder with a ball screw design, featuring a 63 size, a 100 mm working stroke, and a 100 mm stroke with zero stroke reserve. Built on the ISO 15552 standard, this component incorporates a ball screw actuator with a 20 mm spindle diameter, a 10 mm/U spindle pitch, an M16x1,5 piston rod thread, and a non-rotating piston rod with a plain-bearing guide providing torque protection. Operating with either a stepper motor or a servomotor, the unit delivers a maximum speed of 0.5 m/s, a maximum acceleration of 6 m/s2, a repetition accuracy of +/-0.02 mm, a reversing backlash of 0.05 mm, and a maximum piston rod angular deflection of +/-0.2 degrees in any assembly position with provisions for proximity sensor position detection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 555469 is an electro-cylinder with a lead screw featuring a size 63 build, a 300 mm working stroke, and a 20 mm plain thread spindle with a 4 mm/U pitch. Built on the ISO 15552 standard, this unit incorporates a non-rotating piston rod with a plain-bearing guide, an M16x1,5 piston rod thread, and position detection for proximity sensors compatible with stepper or DC servo motors. It operates with any assembly position, a 0.2 mm reversing backlash, a maximum speed of 0.07 m/s, a maximum acceleration of 1 m/s2, and a repetition accuracy of +/-0,07 mm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 555468 is an electro-cylinder with a lead screw and plain-bearing guide featuring a size 63 designation, a 100 mm working stroke, and a non-rotating piston rod with an M16x1,5 thread. This ISO 15552 compliant component operates with a stepper motor or DC servo motor, utilizing a 20 mm spindle diameter and 4 mm/U spindle pitch to deliver a maximum speed of 0.07 m/s, a maximum acceleration of 1 m/s2, and a repetition accuracy of +/-0,07 mm. It includes provision for position detection via proximity sensor, a 0.2 mm reversing backlash, and a maximum angular deflection of the piston rod of +/- 0.2 degrees for any assembly position. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo
The Festo part number 555467 is an electro-cylinder with a ball screw actuator and size 40 design, featuring a 300 mm working stroke, a 300 mm stroke with 0 mm stroke reserve, and an M12x1,25 piston rod thread. Built to ISO 15552 standards, this unit incorporates a ball screw spindle of 12.7 mm diameter with a 12.7 mm/U pitch, a non-rotating piston rod variant with a plain-bearing guide, a 0.05 mm reversing backlash, and a maximum angular deflection of +/- 0.25 degrees. It accommodates stepper motors or servomotors, operates in any assembly position with position detection for proximity sensors, and delivers a maximum acceleration of 6 m/s2, a maximum speed of 0.635 m/s, and a repetition accuracy of +/- 0.02 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 553155 is an industrial piezoresistive pressure sensor with a display designed to measure relative pressure within a range of -1 bar to 1 bar and an overload range of 5 bar. This component operates using compressed air in accordance with ISO8573-1:2010 [7:4:4], does not support lubricated operation, and functions in ambient temperatures from -10 to 50 °C. It features a freely programmable NPN switch output with a switchable switching element function, a 0.1% switching point reproducibility, a 1 - 5 V analog output, and carries C-Tick and c UL us - Recognized (OL) authorizations alongside the CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo 555466 is an electro-cylinder with a ball screw actuator and a size 40 profile based on the ISO 15552 standard. It features a 300 mm working stroke, a 12 mm spindle diameter with a 5 mm/U pitch, an M12x1,25 piston rod thread, and a non-rotating piston rod with a plain-bearing guide. Operating with a stepper motor or servomotor, this unit delivers a maximum speed of 0.25 m/s, a maximum acceleration of 6 m/s2, a repetition accuracy of +/-0.02 mm, and a reversing backlash of 0.05 mm in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
