Festo

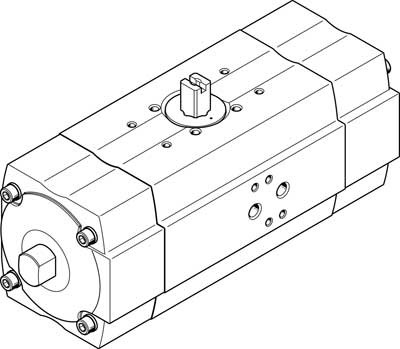

The Festo 557558 is a single-acting rack and pinion industrial component featuring an actuator size of 40, an F05 flange hole pattern, and a 90-degree swivel angle without cushioning. Operating at a nominal working pressure of 5.6 bar and maximum working pressures up to 8 bar, this unit is designed for any assembly position using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It includes a NAMUR valve connection based on VDI/VDE 3845, achieves Safety Integrity Level up to SIL 3 in Low Demand mode, and carries ATEX certifications for explosive atmospheres with an ambient temperature range of -20°C to 80°C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 557557 is a single-acting rack and pinion industrial component featuring a size 40 actuator, an F05 flange hole pattern, and a 90-degree swivel angle operating at a nominal working pressure of 5.6 bar up to a maximum of 8 bar. Designed with a NAMUR-based valve connection and compliance up to SIL 3 Low Demand mode, this unit operates without cushioning or position detection in any assembly position using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It carries ATEX certifications for II 2G gas and II 2D dust environments with an explosion-proof ambient temperature range of -20°C to +80°C and supports lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

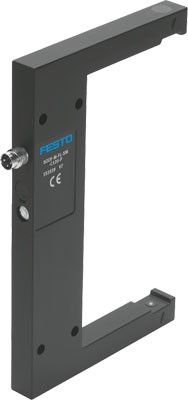

The Festo 553560 is an optoelectronic industrial component utilizing a fork light barrier and red light to measure position with a minimal object diameter of 2 mm and a repetition accuracy of 0.06 mm. Operating on a DC voltage range of 10 to 35 V with an NPN switch output, this part delivers a maximum switching frequency of 2,000 Hz, a max output current of 200 mA, and a hysteresis of <= 0.25 mm across an ambient temperature range of -10 to 60 °C. The unit features pulsing short circuit strength, polarity protection for operating voltage connections, and conforms to RoHS while carrying RCM Mark and c UL us - Listed (OL) authorizations alongside a CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo

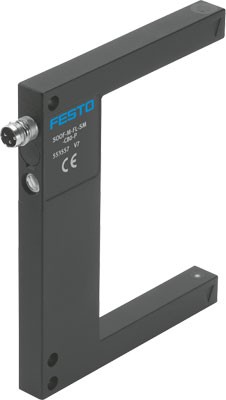

The Festo 553558 is an optoelectronic fork light barrier utilizing red light to measure position with a minimal object diameter of 0.5 mm and a repetition accuracy of 0.06 mm. Operating on a 10 to 35 V DC voltage range with a 4,000 Hz max switching frequency and NPN switch output, this industrial component features pulsing short circuit strength, polarity protection for operating voltage connections, and a hysteresis of <= 0.25 mm. Built to function within an ambient temperature range of -10 to 60 °C, the unit conforms to RoHS, contains PWIS substances, is free of copper and PTFE, and bears the RCM Mark, c UL us - Listed (OL) authorization, and CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

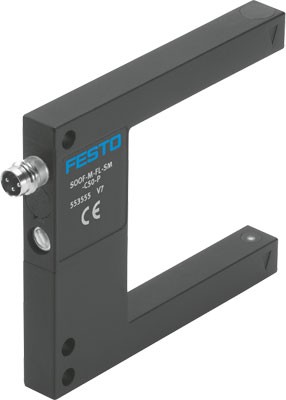

The Festo 553556 is an optoelectronic fork light barrier utilizing red light to measure position with a repetition accuracy of 0.04 mm and a minimal object diameter of 0.5 mm. Operating on a 10 to 35 V DC voltage range, this component features an NPN switch output, a maximum switching frequency of 4,000 Hz, and pulsing short-circuit strength with polarity protection for operating voltage connections. The assembly is built in accordance with the EU-EMV guideline, carries RCM and c UL us - Listed (OL) authorizations, and conforms to RoHS while being free of copper and PTFE, though it contains PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
View product details →Festo

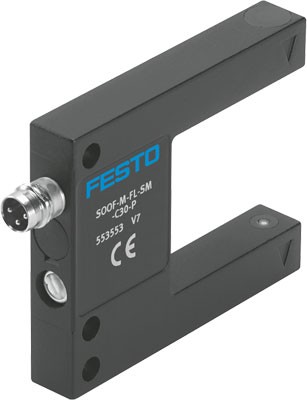

The Festo 553554 is an optoelectronic fork light barrier utilizing red light to measure position with a minimal object diameter of 0.5 mm, a repetition accuracy of 0.02 mm, and a hysteresis of 0.25 mm or less. Operating on a 10 to 35 V DC voltage range with a maximum switching frequency of 4,000 Hz, this component features an NPN switch output, switchable switching element function, pulsing short circuit strength, and polarity protection for operating voltage connections. Constructed with materials that are free of copper and PTFE, contain PWIS substances, and conform to RoHS, the unit functions within an ambient temperature range of -10 to 60 °C and carries RCM Mark and c UL us - Listed (OL) authorizations alongside a CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →Festo
The Festo part number 556799 is an industrial component featuring a 10 m shielded cable with a structure of 5 x (2 x 0,34 mm²)+ 2 x 0,5mm², an 11 mm cable diameter, and a TPE-U(PUR) cable sheath. It is suitable for chain link trunking with a minimum cable bending radius of 82 mm, provides an IP65 protection class in assembled condition, and maintains a degree of contamination rating of 3. This RoHS-compliant unit operates across an ambient temperature range of -50 to 90 °C, or -40 to 90 °C with flexible cable installation, and contains PWIS substances. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo

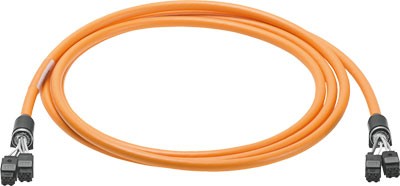

This Festo industrial component, part number 556798, features a 10 m shielded cable structure with 6 x 1 mm² conductors and an 8 mm cable diameter housed in a TPE-U(PUR) sheath suitable for chain link trunking with a minimum cable bending radius of 60 mm. The assembly operates within a flexible cable installation ambient temperature range of -40 to 90 °C and a general ambient temperature range of -50 to 90 °C, achieving an IP65 protection class when assembled and maintaining a degree of contamination rating of 3. While the materials note indicates the presence of PWIS substances, the construction conforms to RoHS directives. Submit part number 556798, quantity, and application requirements to request a quote.
View product details →Festo

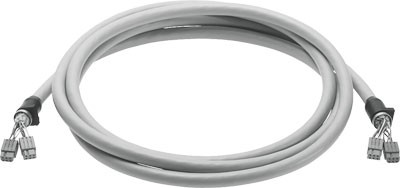

The Festo 556797 industrial component features a 5-meter shielded cable with a structure of 5 x (2 x 0,34 mm²) plus 2 x 0,5 mm² and a diameter of 11 mm, utilizing TPE-U(PUR) cable sheaths that contain PWIS substances while conforming to RoHS. Engineered with a minimum cable bending radius of 82 mm, this part is suitable for chain link trunking and maintains an IP65 protection class in assembled condition with a degree of contamination of 3. It operates within an ambient temperature range of -50 to 90 °C, and -40 to 90 °C during flexible cable installation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component, part number 556796, features a 5 m shielded cable with a structure of 6 x 1 mm² and an 8 mm cable diameter constructed from TPE-U(PUR) cable sheaths. The assembly provides an IP65 protection class in the assembled condition, operates within a contamination degree of 3, and supports a minimum cable bending radius of 60 mm while being suitable for chain link trunking. Ambient temperatures range from -50 to 90 °C, and from -40 to 90 °C with flexible cable installation, while the materials contain PWIS substances and conform to RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo industrial component, part number 556795, features a 2.5 m shielded cable with a 11 mm diameter, a cable structure of 5 x (2 x 0,34 mm²) + 2 x 0,5mm², and TPE-U(PUR) cable sheaths. Rated to IP65 in assembled condition with a contamination degree of 3, it accommodates ambient temperatures from -50 to 90 °C and -40 to 90 °C during flexible cable installation. The design has a minimum cable bending radius of 82 mm, is suitable for chain link trunking, conforms to RoHS, and contains PWIS substances. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 556794 is an industrial component featuring a shielded 6 x 1 mm² cable structure with a length of 2.5 m and a diameter of 8 mm, utilizing TPE-U(PUR) cable sheaths that contain PWIS substances while conforming to RoHS. Constructed for chain link trunking with a minimum cable bending radius of 60 mm, this assembly provides an IP65 protection class in assembled condition and a degree of contamination rating of 3. It operates within an ambient temperature range of -50 to 90 °C, which adjusts to -40 to 90 °C specifically for flexible cable installations. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
Engineered with a 50 mm width and a 4/2 monostable valve function, this Festo industrial component utilizes a pneumatic actuation method with a mechanical spring reset and a poppet seat design structure. The unit delivers a standard nominal flow rate of 600 l/min across a working and pilot pressure range of 2 to 10 bar, accommodating compressed air matching ISO8573-1:2010 [7:4:4] standards with NBR seals. Weighing 500 g with a CRC 2 moderate corrosion resistance classification, it features through-hole mounting, an M20x1 pilot air port 12, and four G1/4 pneumatic connection ports supporting medium and ambient temperatures from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 556168 industrial component features a housing constructed from PA and PC materials with a corrosion resistance classification CRC of 1. Equipped with an IP65 and IP67 protection class, the unit includes a 4x socket electrical connection utilizing an M12, 8-pin configuration and is designed for mounting on an interlinking block CPX-M-GE.. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 556166 industrial component features an 8x socket electrical connection with M8, 4-pin configurations and mounts directly onto an interlinking block CPX-M-GE.. model. Constructed with a housing made of PA and PC materials, the unit includes a corrosion resistance classification of CRC 1 and provides IP65 and IP67 protection classes. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo
The Festo part number 554032 is an industrial component featuring an assembly position for any orientation, an IP40 protection class, and a CRC 4 corrosion resistance classification. It operates within an AC and DC voltage range of 4.5 to 26.4 V, delivers a maximum output current of 2,000 mA, and includes a 5 m PVC cable with a straight socket and 2-core electrical connection designed for static applications. The unit is constructed with a POM and PUR housing, features a yellow LED operating status display, and weighs 120 g with copper- and PTFE-free materials. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 554031 industrial component features an any-position assembly design with a clip mounting type and a 2.5 m straight socket cable with 2 cores for static applications. Constructed with a POM and PUR housing, PVC cable sheaths, and copper- and PTFE-free materials, this part operates on an AC/DC voltage range of 4.5 to 26.4 V with a maximum output current of 2,000 mA. It includes a yellow LED operating status display, offers IP40 protection, and provides a CRC 4 corrosion resistance classification alongside an ambient temperature range of -5 to 70 °C or -20 to 70 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 554030 is an industrial component featuring an any-position assembly, clip mounting, and a 24 g product weight with a straight socket and 2-core cable measuring 1 m for static applications. It operates within an AC and DC voltage range of 4.5 to 26.4 V, delivers a maximum output current of 2,000 mA, and includes a yellow LED operating status display, 0.8 kV surge resistance, and IP40 protection class across ambient temperatures from -5 to 70 °C or -20 to 70 °C. Constructed with a POM and PUR housing, PVC cable sheaths, and core insulation color-coded with Pin 1 black and Pin 3 black/red, this non-polarity protected unit provides CRC 4 corrosion resistance while remaining free of copper and PTFE. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 554029 is a 12 g industrial component featuring a 2-core electrical connection with a straight socket and a 0.5 m PVC cable designated for static applications. It operates on an AC and DC voltage range of 4.5 to 26.4 V, delivers a maximum output current of 2,000 mA, and includes a yellow LED operating status display alongside a clip mounting type. Constructed with a POM and PUR housing, this non-polarity-protected unit provides IP40 protection, a CRC corrosion resistance classification of 4, and an ambient temperature range of -5 to 70 °C or -20 to 70 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo VAME-S3-2-H mounting features a Corrosion Resistance Class (CRC) rating of 1 for low corrosion stress environments and conforms to VDMA24364-B2-L LABS (PWIS) specifications. This RoHS compliant industrial component adheres to official Festo material standards. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
