Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo part number 552436 is a double-acting industrial component featuring an 80 mm piston diameter, an M20x1,5 piston-rod end male thread, and an adjustable pneumatic cushioning at both ends (PPV) with a 30 mm cushioning length. Built in accordance with ISO 15552, this unit operates within a working pressure range of 0.6 to 10 bar using compressed air meeting ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 2,721 N at 6 bar for both advance and return strokes. It accommodates a stroke length from 1 to 2,000 mm in any assembly position, includes position detection for proximity sensors, and offers variants with a through piston rod or heat resistant seals up to 120°C within an ambient temperature range of -20 to 80°C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 552435 is a double-acting industrial component featuring a 63 mm piston diameter, an M16x1,5 piston rod thread, and an adjustable stroke length from 1 to 500 mm based on ISO 15552. It operates at working pressures between 0.6 and 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 1,682 N for both advance and return strokes at 6 bar. This unit incorporates adjustable pneumatic cushioning at both ends with a 23 mm cushioning length, position detection for proximity sensors, and a corrosion resistance classification of CRC 2 for ambient temperatures ranging from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

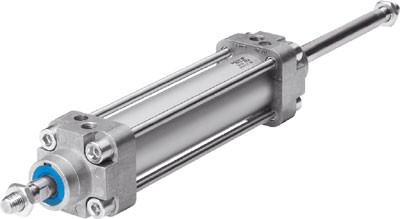

The Festo part number 552434 is a double-acting industrial component featuring a 50 mm piston diameter, an M16x1,5 piston rod thread, and an adjustable pneumatic cushioning (PPV) at both ends operating over a stroke length of 1 to 2,000 mm. Built on the ISO 15552 standard with a working pressure range of 0.6 to 10 bar, this unit operates on compressed air per ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -20 to 80 °C. It provides a theoretical force of 990 N at 6 bar for both advance and return strokes, incorporates position detection for proximity sensors, and offers variants including a through piston rod and heat resistant seals up to 120 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo 553068 is an industrial component belonging to the MS series, size 9, featuring a fiber filter structural design with a 1 µm filtration grade and 99.99% filter efficiency. It operates within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar, 29 psi to 174 psi) using compressed air as per ISO 8573-1:2010 [6:-:4], delivering an output air quality class of ISO 8573-1:2010 [5:-:3] with standard flow rates between 500 l/min and 10000 l/min. The unit includes fully automatic and manual non-detenting condensate drains accommodating a maximum condensate volume of 225 ml, a residual oil content of 0.5 mg/m³, fine particle filter efficiency of 99%, and operates across medium, ambient, and storage temperatures from -10 °C to 60 °C. Rated for moderate corrosion stress (CRC 2), VDMA24364-B1/B2-L LABS conformity, and ISO 14644-1 Class 7 cleanroom suitability, please submit the exact part number, quantity, and application requirements for an RFQ.
View product details →Festo
The Festo 552433 is a double-acting industrial component featuring a 40 mm piston diameter, an M12x1,25 piston rod thread, and an adjustable stroke length from 1 to 500 mm based on ISO 15552. Built with pneumatic cushioning adjustable at both ends and position detection for proximity sensors, this unit operates on compressed air from 0.6 to 10 bar within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 553066 is an industrial component from the MS series, size 9, featuring a fiber filter structural design with a 1 µm grade of filtration and 99.99% filter efficiency. This unit operates within a pressure range of 0 MPa to 2 MPa (0 bar to 20 bar, 0 psi to 290 psi) and handles a standard flow rate between 500 l/min and 10000 l/min for compressed air media conforming to ISO 8573-1:2010 [6:-:4]. It includes a manual rotating condensate drain with a maximum condensate volume of 225 ml, a moderate corrosion resistance class (CRC 2), and delivers an output air quality class of ISO 8573-1:2010 [5:-:3] with a residual oil content of 0.5 mg/m³. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 553064 is an MS-series size 9 industrial component featuring a fiber filter structural design with a 0.01 µm grade of filtration and 99.9999% filter efficiency. Operating within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar), it processes compressed air according to ISO 8573-1:2010 [6:-:4] with a maximum standard flow rate of 7800 l/min and a maximum condensate volume of 225 ml. This unit includes both fully automatic and manual, non-detenting condensate drains, operates at medium and ambient temperatures between 5 °C and 60 °C, and achieves ISO 14644-1 Class 7 cleanroom suitability. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

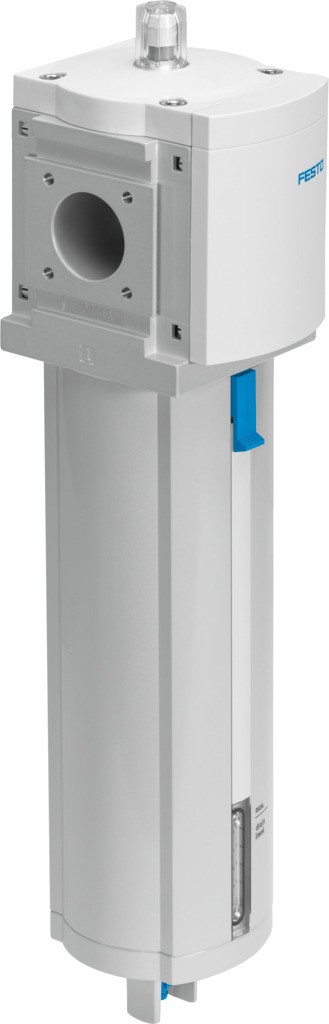

The Festo part number 553062 is an industrial component from the MS series, size 9, featuring a fiber filter structural design with a 0.01 µm grade of filtration and a manual, rotating condensate drain. This unit operates within a pressure range of 0 MPa to 2 MPa (0 bar to 20 bar) and processes compressed air according to ISO 8573-1:2010 [6:-:4], delivering an output air quality class of ISO 8573-1:2010 [3:-:2] with a max standard flow rate of 7800 l/min and min standard flow rate of 390 l/min. It achieves a 99.9999% filter efficiency, a 99.995% fine particle filter efficiency at an MPPS of 0.1 µm, and accommodates a maximum condensate volume of 225 ml within a medium and ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 553762 is a cold-regeneratable adsorption dryer featuring a wrought aluminum alloy housing with a CRC 2 corrosion resistance classification and a product weight of 47,000 g. It operates with an inlet pressure of 4 to 16 bar for compressed air conforming to ISO 8573-1:2010 [6:4:4], delivering an output air purity class of ISO 8573-1:2010 [2:2:2] at a -40 °C pressure dew point and ISO 8573-1:2010 [2:1:2] at a -70 °C pressure dew point for a reduced rate of flow. This unit complies with the EU low voltage, EU-EMV, and EU printing device guidelines, accommodates horizontal or vertical assembly positions via accessory mounting, and utilizes 2 NPT1/2-14 pneumatic connection ports for media temperatures between 2 and 50 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 553761 is a cold-regeneratable adsorption dryer featuring a wrought aluminum alloy housing with a product weight of 31,000 g and a CRC corrosion resistance classification of 2. Designed for horizontal or vertical assembly with accessories, this industrial component operates at an inlet pressure of 4 to 16 bar using compressed air in accordance with ISO 8573-1:2010 [6:4:4] where lubricated operation is not possible. It delivers an output air purity class of ISO 8573-1:2010 [2:2:2] at a -40 °C pressure dew point, or [2:1:2] at a -70 °C pressure dew point for a reduced rate of flow, conforming to EU low voltage, EMV, and printing device guidelines as well as RoHS standards. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

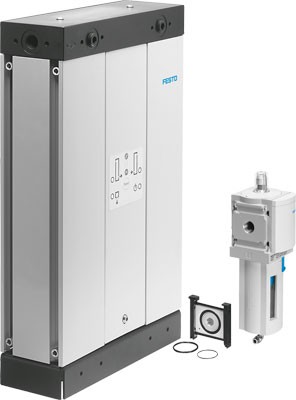

The Festo 553760 is a cold-regeneratable adsorption dryer weighing 24,000 g with a wrought aluminum alloy housing featuring CRC 2 corrosion resistance and NPT3/8-18 pneumatic connections for horizontal or vertical mounting with accessories. Operating at an inlet pressure of 4 to 16 bar for compressed air matching ISO 8573-1:2010 [6:4:4] without lubricated operation, it delivers a pressure dew point of -40 °C yielding ISO 8573-1:2010 [2:2:2] air purity, or -70 °C for reduced flow yielding ISO 8573-1:2010 [2:1:2] air purity. This RoHS-conforming component functions within medium temperatures of 2 to 50 °C and ambient temperatures of 5 to 50 °C, carrying CE symbols according to EU low voltage, EMV, and printing device guidelines. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 553759 is a cold-regeneratable adsorption dryer featuring a wrought aluminum alloy housing and a product weight of 16,500 g, designed for horizontal or vertical assembly with accessories. Operating with a 4 to 16 bar inlet pressure and an NPT3/8-18 pneumatic connection port, this component processes compressed air according to ISO 8573-1:2010 [6:4:4] to deliver an output air purity class of ISO 8573-1:2010 [2:2:2] at a -40 °C pressure dew point or [2:1:2] at a -70 °C pressure dew point for reduced flow rates. It complies with EU low voltage, EMV, and printing device guidelines while operating without lubrication within a 2 to 50 °C medium temperature range. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 553052 is an MS-series size 9 industrial component featuring a fiber filter structural design with a 1 µm grade of filtration and 99.99% filter efficiency. This unit operates within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar, 29 psi to 174 psi) and supports compressed air conforming to ISO 8573-1:2010 [6:-:4] with a maximum standard flow rate of 10000 l/min and minimum of 500 l/min. It incorporates a fully automatic and manual non-detenting condensate drain with a maximum condensate volume of 225 ml, operating at temperatures between -10 °C and 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 553758 is a cold-regeneratable adsorption dryer featuring a wrought aluminum alloy housing and a product weight of 14,000 g, designed for horizontal or vertical assembly with accessories. It operates with an inlet pressure of 4 to 16 bar and a medium temperature of 2 to 50 °C, delivering compressed air output meeting ISO 8573-1:2010 [2:2:2] at a -40 °C pressure dew point or [2:1:2] at a -70 °C pressure dew point for a reduced rate of flow. This RoHS-conforming component complies with EU low voltage, EMV, and printing device guidelines, featuring a CRC 2 corrosion resistance classification and NPT3/8-18 pneumatic connections. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 553050 is an industrial component from the MS series, size 9, featuring a fiber filter structural design with a 1 µm grade of filtration and 99.99% filter efficiency. It operates within a pressure range of 0 MPa to 2 MPa (0 bar to 20 bar, 0 psi to 290 psi) and handles compressed air media per ISO 8573-1:2010 [6:-:4], discharging condensate via a manual, rotating drain with a maximum volume of 225 ml. The unit delivers output air quality per ISO 8573-1:2010 [5:-:3] with standard flow rates from 500 l/min to 10000 l/min, a residual oil content of 0.5 mg/m³, and a fine particle filter efficiency of 99% across a temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 553757 is a cold-regeneratable adsorption dryer featuring a wrought aluminum alloy housing with a CRC rating of 2 and a product weight of 13,000 g, designed for horizontal or vertical assembly with accessories using 2 NPT3/8-18 pneumatic connection ports. Operating with an inlet pressure of 4 to 16 bar and a medium temperature of 2 to 50 °C on compressed air conforming to ISO 8573-1:2010 [6:4:4] where lubricated operation is not possible, this unit achieves a pressure dew point of -40 °C delivering ISO 8573-1:2010 [2:2:2] air purity, or -70 °C for a reduced rate of flow delivering ISO 8573-1:2010 [2:1:2] air purity. CE marked according to EU low voltage, EU-EMV, and EU printing device guidelines, the assembly maintains RoHS conformity while operating in ambient temperatures from 5 to 50 °C and storing from -20 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 553048 is an MS-series size 9 industrial component featuring a fiber filter structural design with a 0.01 µm filtration grade and 99.9999% filter efficiency. This unit operates within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar) and supports a maximum standard flow rate of 7800 l/min for compressed air meeting ISO 8573-1:2010 [3:-:2] output quality. It includes fully automatic and manual non-detenting condensate drains with a maximum condensate volume of 225 ml, along with a corrosion resistance class of 2 and ISO 14644-1 class 7 cleanroom suitability. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 553046 is a Size 9 MS-series industrial component featuring a fiber filter structural design with a 0.01 µm filtration grade and a manual, rotating condensate drain. It operates at pressures from 0 MPa to 2 MPa (0 bar to 20 bar) within a temperature range of -10 °C to 60 °C, utilizing compressed air as per ISO 8573-1:2010 [6:-:4] to deliver an output air quality class of ISO 8573-1:2010 [3:-:2]. This part achieves a 99.9999% filter efficiency, a 99.995% fine particle filter efficiency at 0.1 µm MPPS, a maximum standard flow rate of 7800 l/min, a minimum standard flow rate of 390 l/min, and a maximum condensate volume of 225 ml. Built with a Corrosion Resistance Class of 2, LABS conformity of VDMA24364-B1/B2-L, and ISO 14644-1 Class 7 cleanroom suitability, this component meets strict environmental specifications. Please submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo Hollow bolt VTB-1/4-AJ-P, designated by part number 552413, features a G1/4 pneumatic connection and a corrosion resistance classification CRC of 2 for moderate corrosion stress, as documented in the official Festo EN-US data sheet. Request a formal quotation for this industrial component by submitting the exact part number, quantity, and application requirements.
View product details →Festo

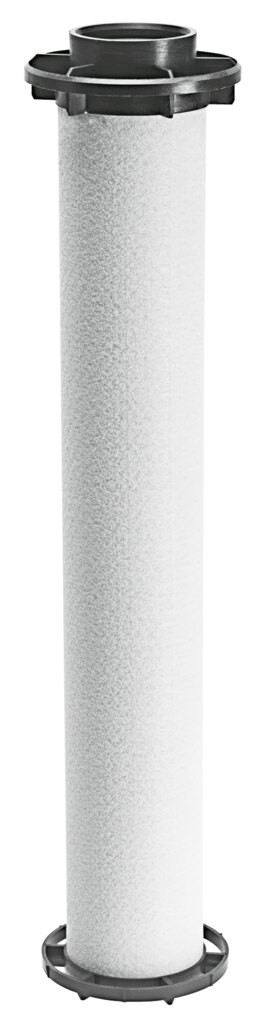

The Festo 553036 is an industrial component from the MS series in size 9, featuring a borosilicate glass fiber compressed air filter with a 0.01 µm grade of filtration. This unit possesses a corrosion resistance class (CRC) of 2 for moderate corrosion stress and conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
