Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo part number 553012 is an MS-series size 9 industrial component featuring a fiber filter with a 1 µm filtration grade and a manual, rotating condensate drain. It operates within a pressure range of 0 MPa to 2 MPa (0 bar to 20 bar, 0 psi to 290 psi) using compressed air meeting ISO 8573-1:2010 [6:-:4], delivering an output air quality class of ISO 8573-1:2010 [5:-:3] at standard flow rates between 350 l/min and 7000 l/min. The unit achieves a 99.99% filter efficiency, a 99% fine particle filter efficiency, a 0.5 mg/m³ residual oil content, and a maximum condensate volume of 225 ml within a medium and ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo SAMH-P4-A mounting bracket is an industrial component constructed from steel with chromed and galvanized material finishes. It features a CRC 2 corrosion resistance classification for moderate corrosion stress and conforms to RoHS materials requirements. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 553156 is a piezoresistive pressure sensor with a display designed to measure relative pressure within a range of -1 to 1 bar with a 5 bar overload range and 0.1% switching point reproducibility. This component operates on compressed air conforming to ISO8573-1:2010 [7:4:4] across an ambient temperature of -10 to 50 °C, featuring an NPN switch output, a 1 - 5 V analog output, and compliance with the EU-EMV guideline alongside C-Tick and c UL us - Recognized (OL) authorizations. The unit contains PWIS substances, conforms to RoHS, and prohibits lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

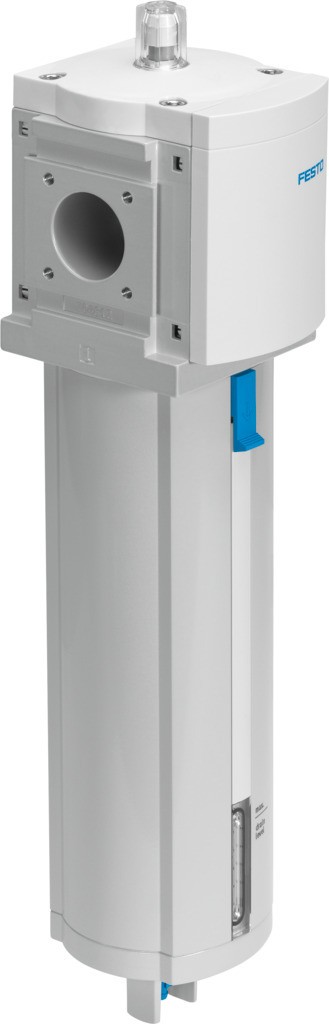

The Festo 553010 is an MS-series size 9 industrial component featuring a fiber filter structural design with a 0.01 µm filtration grade and 99.9999 % filter efficiency. It operates within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar) using compressed air as per ISO 8573-1:2010 [6:-:4], delivering an output air quality class of ISO 8573-1:2010 [3:-:2] at standard flow rates between 325 l/min and 6500 l/min. Equipped with fully automatic and manual non-detenting condensate drains accommodating a maximum condensate volume of 225 ml, the unit achieves a corrosion resistance class of CRC 2 and meets ISO 14644-1 Class 7 cleanroom suitability. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 552375 is an industrial component featuring a straight socket-to-cable electrical connection with a square design and open end. This 4-pole, 4-wire assembly utilizes a 5 m PVC cable with a 3.7 mm diameter and a 4 x 0.25 mm² cable structure, conforming to RoHS materials standards. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 550342 is an industrial component featuring a 2-way ball valve and swivel actuator design with a nominal size of 25 mm and a 2/2 valve function. This unit supports electrical and pneumatic actuation, utilizes line installation mounting, and accommodates any assembly position with a product weight of 4,500 g. Constructed with materials containing PWIS substances, the assembly achieves a corrosion resistance classification CRC of 3. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo Size 9 industrial component from the MS series is a fiber filter featuring a 0.01 µm filtration grade, a manual rotating condensate drain, and a maximum condensate volume of 225 ml. Operating within a pressure range of 0 bar to 20 bar, it processes compressed air as per ISO 8573-1:2010 [6:-:4] to deliver an output air quality class of ISO 8573-1:2010 [3:-:2] with standard flow rates between 325 l/min and 6500 l/min. The unit achieves a 99.9999% filter efficiency, a 99.995% fine particle filter efficiency at an MPPS of 0.08 µm, and operates at medium and ambient temperatures from -10 °C to 60 °C with a moderate corrosion resistance class (CRC 2). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 552374 is a 4-pole, 4-wire industrial component featuring a straight socket-to-cable square design with an open end. Its 2.5 m PVC cable has a 3.7 mm diameter and a 4 x 0.25 mm² structure while conforming to RoHS materials standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 550341 is a 2-way ball valve with a swivel actuator featuring electrical and pneumatic types of actuation. This 3,100 g industrial component has a 20 mm nominal size, a 2/2 valve function, and a corrosion resistance classification CRC of 3. It utilizes a line installation mounting type, allows for any assembly position, and features a materials note indicating it contains PWIS substances. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 552373 is a piezoresistive pressure sensor with an integrated display configured for measuring relative pressure from 0 bar to 10 bar with an overload range of 15 bar. This component operates with compressed air complying with ISO8573-1:2010 [7:4:4] where lubricated operation is not possible, featuring an NPN switch output with freely programmable and switchable functions alongside a 1-5 V analog output. Authorized by C-Tick and c UL us - Recognized (OL) with a CE symbol according to the EU-EMV guideline, the unit functions within an ambient temperature range of -10 to 50 °C and conforms to RoHS while containing PWIS substances. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 550340 is a 2-way ball valve featuring a swivel actuator and a 15 mm nominal size with a 2/2 valve function. This industrial component utilizes line installation mounting and supports any assembly position with electrical and pneumatic actuation types. Weighing 3,000 g, the unit carries a corrosion resistance classification CRC of 3 and a materials note indicating it contains PWIS substances. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 550339 industrial component features a 2-way ball valve with a swivel actuator supporting both electrical and pneumatic actuation types. Weighing 1,600 g with a nominal size of 10 mm and a 2/2 valve function, this unit is classified with a corrosion resistance CRC of 3 and contains PWIS substances. It is configured for line installation in any assembly position and includes a materials note regarding PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 552372 is an industrial component utilizing a piezoresistive pressure sensor with a display to measure relative pressure from 0 bar to 10 bar with a 15 bar overload range. Operating with compressed air in accordance with ISO8573-1:2010 [7:4:4] within an ambient temperature range of -10 to 50 °C, this device features an NPN switch output with a freely programmable and switchable switching element function, alongside a 1 to 5 V analog output. It includes C-Tick and c UL us - Recognized (OL) authorizations, carries the CE symbol according to the EU-EMV guideline, conforms to RoHS, and contains PWIS substances. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 550338 industrial component features a 2-way ball valve with a swivel actuator supporting both electrical and pneumatic actuation types. Built with a nominal size of 8 mm, a 2/2 valve function, and a product weight of 1,600 g, this unit allows for line installation in any assembly position and carries a corrosion resistance classification CRC of 3 with materials containing PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 552371 is a piezoresistive pressure sensor with a display that measures relative pressure from 0 bar to 10 bar with a 15 bar overload range, operating with compressed air in accordance with ISO8573-1:2010 [7:4:4] where lubricated operation is not possible. This industrial component features an NPN switch output with a freely programmable and switchable switching element function, a repetition accuracy of 0.2 %FS, and a maximum output current of 100 mA alongside 4 - 20 mA and 1 - 5 V analog outputs. Built with a CE symbol according to the EU-EMV guideline, it carries RCM Mark and c UL us - Recognized (OL) authorizations, contains PWIS substances, conforms to RoHS, and functions within an ambient temperature range of -10 to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

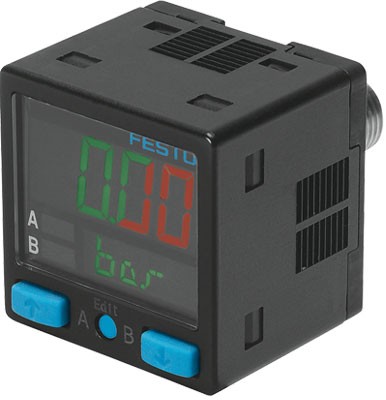

The Festo 552370 is a piezoresistive pressure sensor with a display that measures relative pressure from 0 bar to 10 bar with a 15 bar overload range, operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] where lubricated operation is not possible. Certified with C-Tick and c UL us - Recognized (OL) authorizations alongside a CE symbol according to the EU-EMV guideline, this component features a freely programmable PNP switch output with a switchable switching element function, 0.2% switching point reproducibility, and a maximum output current of 100 mA. It also provides a 1 - 5 V analog output with 0.2% reproducibility and 5 %FS precision for both the zero point and margin, while incorporating materials that contain PWIS substances and conform to RoHS within an ambient temperature range of -10 to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
View product details →Festo
The Festo part number 552369 is a piezoresistive pressure sensor with a display that measures relative pressure from 0 bar to 10 bar with a 15 bar overload range, operating on compressed air conforming to ISO8573-1:2010 [7:4:4] without lubricated operation. Featuring a PNP switch output with a freely programmable and switchable switching element function, it provides 0.2% switching point reproducibility, a 1-5 V analog output, and a maximum output current of 100 mA within an ambient temperature range of -10 to 50 °C. This industrial component carries authorization from C-Tick and c UL us - Recognized (OL) alongside a CE symbol according to the EU-EMV guideline, and features a materials note indicating it contains PWIS substances while conforming to RoHS. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

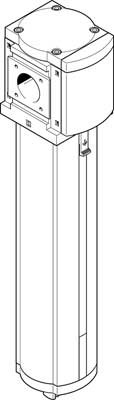

The Festo active carbon filter component, part number 552998, is engineered in size 9 of the MS series for vertical assembly positions within a plus or minus 5-degree tolerance. Operating with a working pressure range of 0 to 20 bar and a 2 3/4 NPT pneumatic connection port, this unit achieves a maximum standard flow rate of 6,500 l/min for air quality class. Featuring a PA cover, NBR seals, and an active carbon filter element, the 2,000 g assembly delivers output compressed air purity to ISO 8573-1:2010 [1:4:1] with a residual oil content of 0.003 mg/m3 from a compressed air operating medium in accordance with ISO 8573-1:2010 [1:4:2]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 552368 is an industrial component utilizing a piezoresistive pressure sensor with a display to measure relative pressure from 0 bar to 10 bar with a 15 bar overload range. Operating with compressed air in accordance with ISO8573-1:2010 [7:4:4] where lubricated operation is not possible, this device features a PNP switch output with freely programmable and switchable switching functions, an analog output of 4-20 mA and 1-5 V, and functions within an ambient temperature range of -10 to 50 °C. It bears the RCM Mark, is c UL us - Recognized (OL), and complies with the CE symbol according to the EU-EMV guideline and RoHS, though its materials note indicates it contains PWIS substances. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

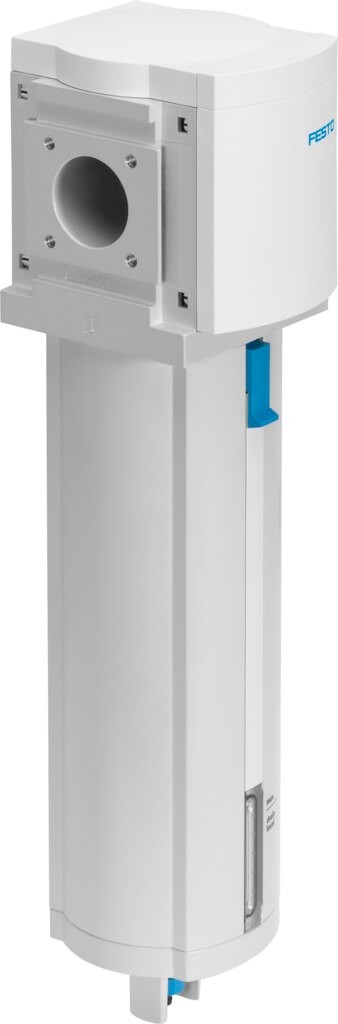

The Festo 552996 is an MS series size 9 activated carbon filter featuring G3/4 pneumatic connections and a PA covering material with a product weight of 2000 g. It delivers a maximum standard flow rate of 6500 l/min for compressed air operating between 0 bar and 20 bar, processing media temperatures from 5 °C to 30 °C while maintaining a residual oil content of 0.003 mg/m³. Designed for vertical installation within ±5°, this component achieves ISO 8573-1:2010 [3:4:1] output air quality, CRC 2 moderate corrosion stress resistance, and ISO 14644-1 class 7 cleanroom suitability. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
