Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

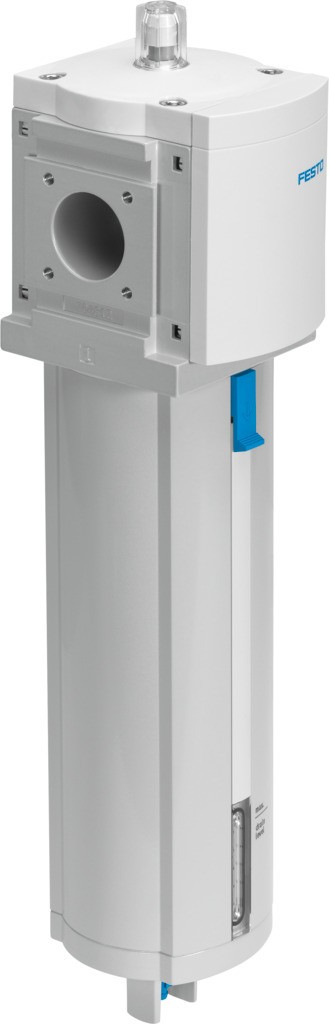

The Festo 552974 is an industrial MS-series size 9 fiber filter featuring a 0.01 µm filtration grade, a 99.9999% filter efficiency, and a maximum standard flow rate of 7800 l/min for compressed air conforming to ISO 8573-1:2010 [6:-:4]. It operates within a pressure range of 0.2 MPa to 1.2 MPa and includes both fully automatic and manual, non-detenting condensate drains with a maximum condensate volume of 225 ml. This component achieves an output air quality class of ISO 8573-1:2010 [3:-:2] while operating at medium and ambient temperatures between 5 °C and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

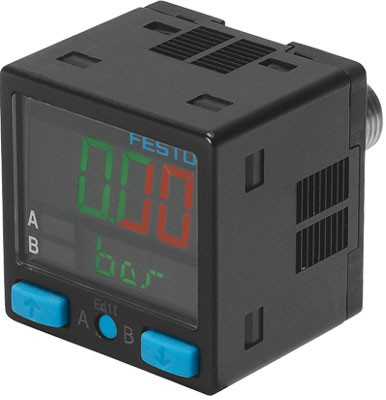

The Festo 552353 is an industrial piezoresistive pressure sensor featuring an integrated display for measuring relative pressure from -1 bar to 1 bar with an overload range of 5 bar. It operates on a 12 to 24 V DC voltage range, uses compressed air complying with ISO8573-1:2010 [7:4:4], and includes two programmable NPN switch outputs with a 0.1% switching point reproducibility and 100 mA max output current. Certified with C-Tick and c UL us Recognized approvals, this component functions within an ambient temperature range of -10 to 50 °C and conforms to RoHS regulations with PWIS-containing materials. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 552972 is a size 9 industrial component from the MS series featuring a fiber filter structural design with a 0.01 µm filtration grade and 99.9999% filter efficiency. This unit operates within a pressure range of 0 MPa to 2 MPa and accommodates compressed air media according to ISO 8573-1:2010 [6:-:4], delivering an output air quality class of ISO 8573-1:2010 [3:-:2] across a standard flow rate range of 390 l/min to 7800 l/min. Additional specifications include a manual rotating condensate drain with a 225 ml maximum capacity, moderate corrosion stress resistance (CRC 2), and cleanroom suitability conforming to ISO 14644-1 Class 7. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 552352 is a piezoresistive pressure sensor with a display designed to measure relative pressure from -1 bar to 1 bar with an overload range of 5 bar. Operating on a 12 to 24 V DC voltage range with polarity protection, this component features two programmable PNP switch outputs capable of a maximum output current of 100 mA and a switching point reproducibility of 0.1 %. It functions with compressed air conforming to ISO8573-1:2010 [7:4:4] in ambient temperatures from -10 to 50 °C, carries C-Tick and c UL us-Recognized authorizations, and conforms to RoHS while containing PWIS substances. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 552351 is a piezoresistive pressure sensor with a display designed to measure relative pressure within a range of -1 to 1 bar with an overload range of 5 bar. Operating on a 12 to 24 V DC voltage range, this component features two PNP switch outputs with a repetition accuracy of 0.1 percent FS and a maximum output current of 100 mA for compressed air media conforming to ISO8573-1:2010 [7:4:4]. It carries RCM and c UL us - Recognized (OL) authorizations, features a CE symbol according to the EU-EMV guideline, and conforms to RoHS while containing PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 552350 is a piezoresistive pressure sensor with display designed for measuring relative pressure within a -1 to 1 bar range and a 5 bar overload range using compressed air meeting ISO8573-1:2010 [7:4:4] standards without lubricated operation. Powered by a 12 to 24 V DC operating voltage range with polarity protection for all electrical connections, this industrial component features two freely programmable and switchable PNP switch outputs delivering a max output current of 100 mA with short circuit strength and a repetition accuracy of 0.1 %FS. Operating within an ambient temperature range of -10 to 50 °C, the unit bears the RCM Mark, c UL us Recognized (OL) authorization, and a CE symbol according to the EU-EMV guideline, while its materials note indicates it conforms to RoHS and contains PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 552347 industrial component is an adaptive status controller featuring an integrated mains filter, a 128 x 64 pixel graphical LCD display, and 4 control elements. This unit operates with a nominal controller power of 480 VA, a peak power of 960 VA, a maximum intermediate circuit DC voltage of 48 V, and incorporates protective functions including I²t monitoring, current monitoring, voltage failure detection, drag error monitoring, and software end-position detection. Configuration and commissioning are handled via an RS232 interface operating at 38400 Baud, alongside a rotor position sensor encoder and an external 120 Ohm bus terminating resistor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 552346 is an industrial component featuring an adaptive status controller operating mode, an integrated mains filter, and an encoder rotor position sensor with an external 120 Ohm bus terminating resistor. It delivers a nominal controller power of 480 VA, a peak power of 960 VA, a nominal load supply DC voltage of 48 V at 10 A nominal current, and a nominal logic power supply DC voltage of 24 V at 0.5 A nominal current. Comprehensive protective functions include I²t monitoring, current monitoring, voltage failure detection, drag error monitoring, and software end-position detection, alongside an RS232 interface operating at 38400 Baud for parameter configuration and commissioning. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 552280 is an industrial component featuring a working pressure range of 0 to 10 bar and an accuracy of 2.5 %FS. This unit operates within an ambient temperature range of -5 to 50 °C, carries an IP65 protection class, and holds a corrosion resistance classification CRC of 0 for no corrosion stress. Additionally, the device bears the CE symbol according to the EU-EMV guideline and contains materials that conform to RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

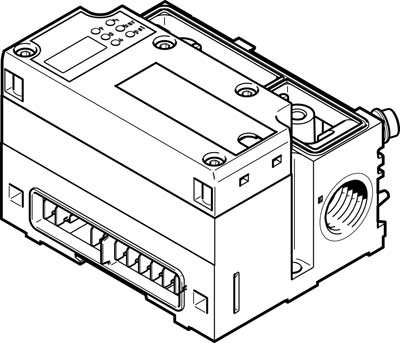

The Festo 552279 is an industrial component engineered for a working pressure range of -0.9 to 10 bar within an ambient temperature range of -5 to 50 °C. It features IP65 protection and a CRC corrosion resistance classification of 0 for environments with no corrosion stress, while complying with the EU-EMV guideline for the CE symbol and meeting RoHS material standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

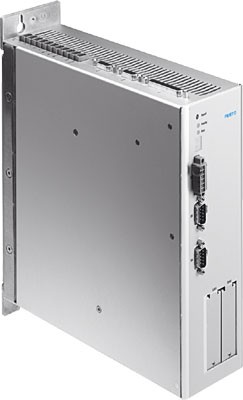

The Festo part number 551024 is an industrial component featuring an integrated mains filter, a seven-segment display, and an RS232 parameters configuring interface operating at 9600 to 115000 Bits/s for control interface and commissioning. It delivers a nominal controller power of 6,000 VA with a nominal operating voltage of 400 V AC, an output voltage range from 0 to 360 V AC, an output frequency of 0 to 1,000 Hz, a nominal current of 11 A, and a nominal output current of 10 A. Safety functions include Safe Torque Off (STO) conforming to SIL 2 and category 3, performance level d. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 551023 industrial component features an integrated mains filter, a seven-segment display, and an RS232 parameters configuring interface supporting PtP control at 9600 to 115000 Bits/s. It operates at a nominal AC voltage of 400 V, a line frequency of 50 to 60 Hz, and a nominal controller power of 3,000 VA with an output frequency ranging from 0 to 1,000 Hz and an AC output voltage range of 0 to 360 V. Safety features include Safe Torque Off (STO) certified to SIL 2 and category 3, performance level d, alongside electrically isolated, freely configurable digital logic outputs with a maximum current of 100 mA. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo part number 551022 is an industrial component featuring a sensor resolution of 1280 x 1024 pixels (SXGA) and a CS mount lens attachment with a lens protection tubing. Measuring 45 mm in width, 45 mm in height, and 139.4 mm in length, this unit operates at a nominal voltage of 24 V DC with a permissible voltage fluctuation of +/- 10% and a current consumption of 120 mA with load-free outputs. It includes two inputs for trigger signals and accepting inputs, alongside outputs that support operational status and parameterizable functions for good, reject, or oriented parts, while offering storage and ambient temperature ranges of -10 to 60 °C and -10 to 50 °C respectively under IP65 and IP67 protection classes. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

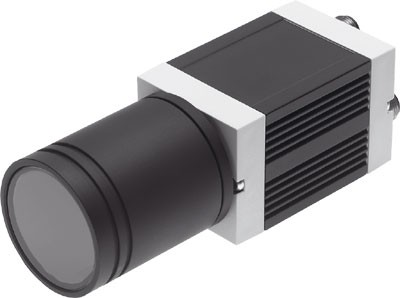

The Festo 551021 industrial component features a 1280 x 1024 pixel sensor resolution and a CS mount lens attachment with lens protection tubing, while maintaining dimensions of 45 mm in width, 45 mm in height, and 139.4 mm in length. It operates on a nominal DC voltage of 24 V with a permissible voltage fluctuation of plus or minus 10 percent, drawing 120 mA with load-free outputs and supporting a maximum residual current of 1.5 A on the 24 V outputs. The unit provides two inputs for trigger signals and accepted inputs, outputs for operational status alongside parameterizable good part, reject part, orientation, and external illumination signals, and supports up to 8 orientations per part type, 256 test programs, and sorting for up to 16 types or test programs. Protected to IP65 and IP67 ratings with CE conformity according to the EU-EMV guideline, it functions within ambient and storage temperatures ranging from -10 to 50 degrees Celsius and -10 to 60 degrees Celsius respectively, requiring screening from extreme external light sources and cleanest possible ambient air. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo 551001 is an industrial component featuring a size 65 designation, a nominal length of 90 mm, and dual holder diameters of 25 mm and 40 mm. This RoHS-conforming unit weighs 535 g, exhibits a mass moment of inertia of 417 kgmm2, and transmits up to 62 Nm of torque at a maximum speed of 4,500 1/min. It operates and stores within a temperature range of -25 to 60 °C and 0 to 95% relative air humidity while supporting any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

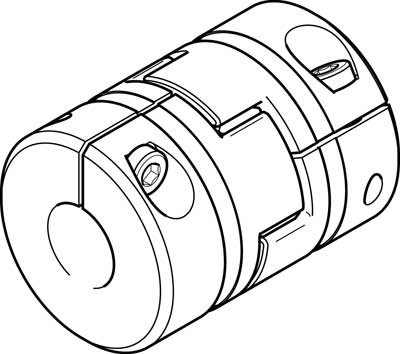

The Festo 551000 industrial component features a holder diameter 1 of 19 mm, a holder diameter 2 of 25 mm, a size of 65, and a nominal length of 90 mm with a product weight of 535 g and RoHS-conforming materials. This unit operates in any assembly position at a maximum speed of 4,500 1/min, a transferable torque of 85 Nm, and a mass moment of inertia of 417 kgmm2 across ambient and storage temperatures ranging from -25 to 60 °C and 0 to 95 % relative air humidity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
Engineered with a nominal length of 66 mm and dual holder diameters of 11 mm and 20 mm, this Festo industrial component accommodates a size 40 build with a product weight of 139 g and RoHS-compliant materials. The unit supports an assembly position in any orientation, operating up to a maximum speed of 6,500 1/min while delivering a transferable torque of 21 Nm alongside a mass moment of inertia of 42.3 kgmm2 within ambient and storage temperatures ranging from -25 to 60 °C and 0 to 95 % relative air humidity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

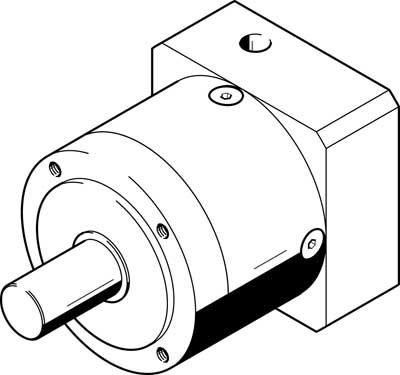

The Festo 552193 is a planetary gear unit featuring an 80 mm gear unit flange size, a 70 mm motor flange size, and a 5:1 gear ratio with an 80G output shaft interface and a 70A drive shaft interface. This component delivers a continuous output torque of 110 Nm, a maximum output torque of 176 Nm, and operates at a maximum input speed of 7,000 1/min with an efficiency of up to 98 percent. Built with a torsional backlash of 0.12 deg, a torsional resistance of 6 Nm/arcmin, and an IP54 protection class, the 2,100 g unit functions within a temperature range of -25 to 90 °C and conforms to RoHS materials notes. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 550997 is a size 40 industrial component featuring an 8 mm holder diameter 1 and an 11 mm holder diameter 2, with an overall product weight of 139 g. Constructed with materials conforming to RoHS, this part supports any assembly position, a maximum speed of 6,500 1/min, a mass moment of inertia of 42.3 kgmm2, and a transferable torque of 17 Nm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 552192 is a planetary gear unit featuring an 80 mm gear unit flange size, a 70 mm motor flange size, and a 3:1 gear unit ratio. This component delivers a continuous output torque of 85 Nm, a maximum output torque of 136 Nm, a maximum input speed of 7,000 1/min, and an IP54 protection class within a temperature range of -25 to 90 °C. The unit weighs 2,100 g, incorporates a 0.12 degree torsional backlash, a torsional resistance of 6 Nm/arcmin, and a mass moment of inertia of 0.77 kgcm2 with up to 98% maximum efficiency, featuring an output shaft interface of 80G and a drive shaft interface of 70A while conforming to RoHS materials notes. Submit the exact part number, quantity, and application requirements for a quote.
