Festo

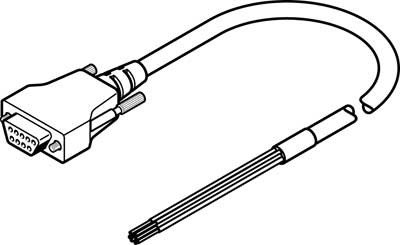

Engineered by Festo, part number 550742 is an industrial component featuring a 9-pin Sub-D straight plug socket on the field device side with 6 occupied pins and an open-ended cable with wire end ferrules on the controller side containing 7 pins and 6 occupied wires. This assembly operates within a DC voltage range of 0 to 72 V and provides IP65 protection when assembled, while supporting a flexible cable installation ambient temperature range of -40 to 70 °C and a minimum bending radius of 58 mm within chain link trunking. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 552001 is an industrial component featuring a 0.5 m straight socket cable with 2-core electrical connection, designed for static applications with a maximum output current of 2,000 mA and an operating voltage range of 0 to 30 V AC/DC. Constructed with a POM and PUR housing, PVC cable sheaths, and a weight of 12 g, this part offers IP40 protection, 0.8 kV surge resistance, and CRC 4 corrosion resistance while remaining free of copper and PTFE. It operates within ambient temperatures from -20 to 70 °C, supports clip mounting in any assembly position, and includes built-in polarity protection across all electrical connections with core insulation color-coded as Pin 1 black and Pin 3 black/red. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

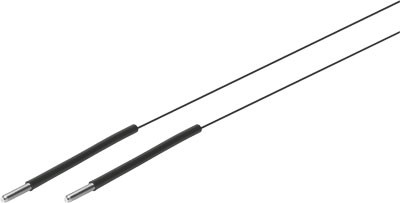

The Festo 552820 is a precision through-beam sensor fiber-optic cable featuring an M3 head size, a 2 m length, and a 30 mm working range to detect a minimal object diameter of 0.05 mm. Housed in non-corrosive high alloy steel with a 40 mm sleeve length and 1 mm outside diameter, this component operates within an ambient temperature range of -55 to 70 °C and achieves an IP66 protection class with a CRC 1 corrosion resistance classification. The assembly includes a PE fiber optic cable, contains PWIS substances, requires a min. bending radius of 10 mm, and is rated for a max. tightening torque of 1 Nm. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →Festo

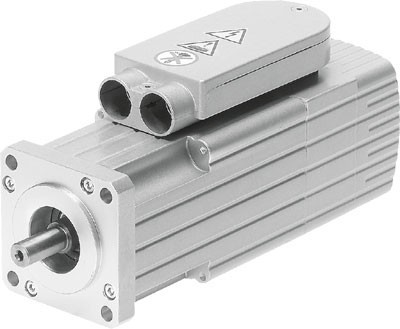

The Festo 550110 is an industrial component featuring a nominal DC voltage of 360 V, a star inside winding switch, 4 pole pairs, and a nominal rotary speed of 6,600 1/min, delivering a standstill torque of 0.98 Nm, a nominal torque of 0.68 Nm, and a peak torque of 2.7 Nm. Built with a plug electrical connector system and insulation protection class F, it conforms to IEC 60034, achieves an S1 rating class according to EN 60034-1 with PTC resistor temperature monitoring, and offers IP54 protection with moderate corrosion stress CRC 2. Certified by RCM Mark and c UL us - Recognized (OL), with the CE symbol per EU-EMV and low voltage guidelines, it operates within an ambient temperature range of -10 to 40 °C, a storage temperature of -20 to 60 °C, and 0 to 90 % relative air humidity while utilizing RoHS-conforming materials. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 550741 is an industrial component featuring a straight, angular 9-pin Sub-D plug socket on the field device side with 6 occupied pins, and an open-end cable on the controller side with 7 wires and 6 occupied pins terminating in wire end ferrules. This assembly operates within a DC voltage range of 0 to 72 V and provides an IP65 protection class in its assembled condition. Rated for ambient temperatures from -40 to 70 °C, the flexible cable installation supports a bending radius of 58 mm or greater and is suitable for chain link trunking. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo
The Festo 552819 is an M3 size through-beam sensor fiber-optic cable with a length of 2 meters and an outside diameter of 1 mm. Featuring precision special features and a working range of 30 mm, this precision component detects a minimal object diameter of 0.05 mm within an ambient temperature range of -55 to 70 °C. Constructed with a non-corrosive high alloy steel housing and a PE fiber-optic material, the unit offers IP66 protection, a minimum bending radius of 10 mm, and a maximum tightening torque of 1 Nm while conforming to RoHS, CRC class 1, and VDMA24364 zone III PWIS standards. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →Festo

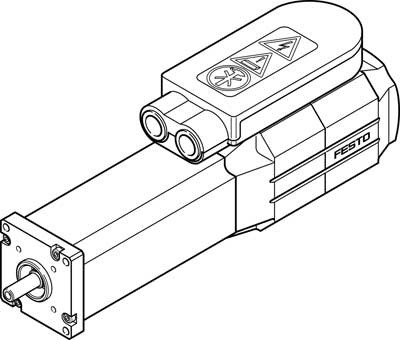

Engineered by Festo, the part number 550109 is an industrial component featuring a 360 V DC nominal voltage, 4 pole pairs, and a star inside winding switch configuration that delivers a standstill torque of 0.26 Nm, nominal torque of 0.22 Nm, peak torque of 1 Nm, and a nominal rotary speed of 10,300 1/min. Built to IEC 60034 standards with an IP54 protection class, insulation class F, and S1 rating class according to EN 60034-1, this unit incorporates a PTC resistor for temperature monitoring and operates within an ambient temperature range of -10 to 40 °C. The assembly includes an electrical connector plug, complies with RoHS materials notes, features a CRC 2 moderate corrosion stress rating, and carries RCM Mark and c UL us Recognized authorizations alongside CE conformity to EU-EMV and low voltage guidelines. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
The Festo 550740 is an industrial component featuring a straight, angular 9-pin Sub-D plug socket with 6 occupied pins on the field device side and an open-end cable with 7 pins and 6 occupied wires terminating in wire end ferrules on the controller side. Rated for an operating voltage range of 0 to 72 V DC, this assembly provides an IP65 protection class when in an assembled condition and is suitable for chain link trunking with a flexible cable installation bending radius of 58 mm or greater. Both the general and flexible cable installation ambient temperature ranges span from -40 to 70 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

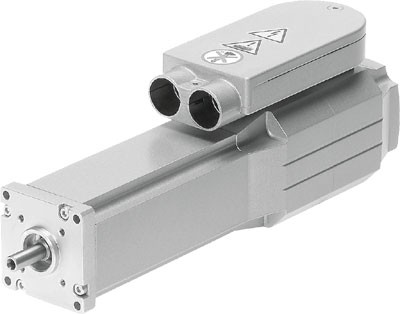

The Festo 550108 is an industrial component featuring a 360 V DC nominal voltage, 4 pole pairs, a star inside winding switch, a standstill torque of 0.26 Nm, a nominal torque of 0.22 Nm, a peak torque of 1 Nm, and a nominal rotary speed of 10,300 1/min. Built with insulation protection class F, PTC resistor temperature monitoring, and IP54 protection, it conforms to IEC 60034 and holds an S1 rating class according to EN 60034-1 with an electrical connector plug system. It operates within an ambient temperature range of -10 to 40 °C, a storage temperature of -20 to 60 °C, 0 to 90 % relative air humidity, and features CRC 2 moderate corrosion stress resistance with RoHS-conforming materials, RCM Mark, c UL us recognition, and CE symbol compliance under EU-EMV and low voltage guidelines. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 551676 is a double-acting industrial component featuring a 25 mm piston diameter, a 100 mm stroke, and an M10x1,25 piston rod thread conforming to ISO 6432. Operating on compressed air within a 1 to 8 bar pressure range, it delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. This unit incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a CRC 2 moderate corrosion resistance classification for operation between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 550107 industrial component operates on a nominal voltage of 360 V DC with a star-inside winding switch and 4 pole pairs. It delivers a standstill torque of 0.26 Nm, a nominal torque of 0.22 Nm, a peak torque of 1 Nm, and a nominal rotary speed of 10,300 1/min within an ambient temperature range of -10 to 40 °C. Featuring IP54 protection, insulation class F, and an S1 rating class according to EN 60034-1, the unit conforms to IEC 60034 with RoHS-compliant materials and CRC 2 moderate corrosion resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 552817 is a through-beam sensor industrial component featuring an M4 head size, a 1 m fiber-optic cable length, and a 2.2 mm outside diameter with a 40 mm minimum bending radius. Built with a non-corrosive high alloy steel housing, PE fiber-optic material, and an IP66 protection class, this RoHS-conforming unit operates within an ambient temperature range of -55 to 70 °C, withstands a maximum tightening torque of 2 Nm, and delivers a 650 mm working range with a 0.2 mm minimal object diameter, classified under CRC 1 for low corrosion stress and VDMA24364 zone III PWIS conformity. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo 551675 is a double-acting industrial component conforming to ISO 6432 with a 25 mm piston diameter, a 50 mm stroke, and an M10x1,25 piston rod thread. Featuring flexible cushioning rings at both ends, this unit operates on compressed air from 1 to 8 bar within an ambient temperature range of -10 to 60 °C, delivering theoretical forces of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. Position detection is enabled for proximity sensors, and the assembly position is unrestricted with a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo industrial component, part number 550106, is an IEC 60034 conforming device featuring 4 pole pairs, a star inside winding switch type, a nominal voltage DC of 360 V, and an IP54 protection class with insulation protection class F. It operates within an ambient temperature range of -10 to 40 °C, supports storage temperatures from -20 to 60 °C, handles 0 to 90 % relative air humidity, and provides a standstill torque of 0.26 Nm, a nominal torque of 0.22 Nm, a peak torque of 1 Nm, and a nominal rotary speed of 10,300 1/min. The unit includes PTC resistor temperature monitoring, a plug electrical connector system, moderate corrosion stress CRC 2 resistance, RoHS conformity, and holds RCM Mark and c UL us Recognized authorizations alongside CE symbol compliance with EU-EMV and low voltage guidelines. Submit part number 550106, quantity, and application requirements to request a formal quote.
View product details →Festo

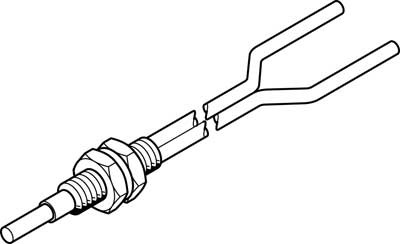

The Festo 552816 is an M4 through-beam sensor fiber-optic cable featuring a 2 m length, a 2.2 mm outside diameter, and a 650 mm working range capable of detecting a minimal object diameter of 0.2 mm. Constructed with a non-corrosive high alloy steel housing, a PE fiber-optic core, and a min. bending radius of 40 mm, this RoHS-conforming component operates within an ambient temperature range of -55 to 70 °C while withstanding a max. tightening torque of 2 Nm. It achieves IP66 protection, features a low corrosion stress CRC rating of 1, and meets VDMA24364 zone III PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

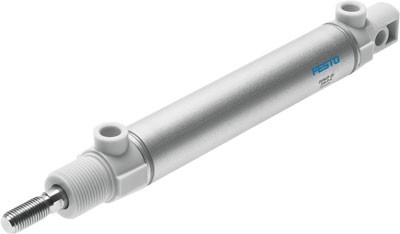

The Festo 551674 is a double-acting industrial component featuring a 25 mm piston diameter, a 25 mm stroke, and an M10x1,25 piston rod thread conforming to ISO 6432. Designed with flexible cushioning rings at both ends, a CRC 2 moderate corrosion resistance classification, and position detection for proximity sensors, it operates on compressed air from 1 to 8 bar within an ambient temperature range of -10 to 60 °C. At 6 bar, it delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke with an 86 g moving mass. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
This Festo industrial component, part number 552815, is a standard through-beam sensor fiber-optic cable with an M4 head size, a 1 m length, and a 40 mm sleeve length. Constructed with a high alloy non-corrosive steel housing, a PE fiber-optic material, and containing PWIS substances, it provides a 400 mm working range for a minimal object diameter of 0.35 mm. The assembly features an outside diameter of 2.2 mm, a minimum bending radius of 25 mm, a maximum tightening torque of 2 Nm, an IP66 protection class, a CRC corrosion resistance classification of 1, and operates within an ambient temperature range of -55 to 70 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 551673 is a double-acting industrial component featuring a 20 mm piston diameter and a 100 mm stroke with an M8 piston rod thread. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 8 bar pressure range, this unit incorporates flexible cushioning rings at both ends and provisions for proximity sensor position detection. It delivers theoretical forces of 189 N on the advance stroke and 158 N on the return stroke at 6 bar while functioning in any assembly position under ambient temperatures from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this ISO 6432 standard cylinder.
View product details →Festo
The Festo 551672 is a double-acting industrial component featuring a 20 mm piston diameter, a 50 mm stroke, and an M8 piston rod thread designed to ISO 6432 standards. Operating on compressed air within a 1 to 8 bar pressure range, this unit utilizes flexible cushioning rings at both ends and includes provisions for position detection via proximity sensor. It delivers a theoretical force of 189 N on the advance stroke and 158 N on the return stroke at 6 bar while functioning within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

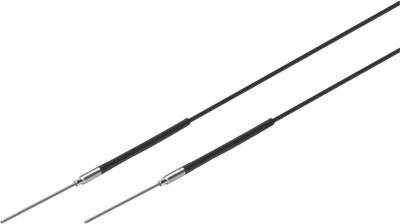

The Festo 552813 is an M4 through-beam sensor fiber-optic cable with a 2 m length, a 40 mm sleeve length, and a 2.2 mm outside diameter, utilizing a standard special feature and PE fiber-optic material inside a non-corrosive high-alloy steel housing. Featuring a working range of 400 mm, a minimal object diameter of 0.35 mm, a minimum bending radius of 25 mm, and a maximum tightening torque of 2 Nm, this component operates within an ambient temperature range of -55 to 70 °C and provides IP66 protection with a CRC rating of 1. Submit the exact part number, quantity, and application requirements to receive a quote for this assembly.
