Festo
The Festo 543118 is an electro-cylinder with a ball screw design, featuring a size 32 frame, a 400 mm working stroke with 0 mm stroke reserve, and a 10 mm spindle diameter with a 3 mm/U spindle pitch. Built with an M10x1,25 piston rod thread, non-rotating piston rod variants, and a plain-bearing guide for torque protection, it delivers a maximum speed of 0.15 m/s, a maximum acceleration of 6 m/s2, and a repetition accuracy of +/-0,02 mm with 0.05 mm reversing backlash and a +/- 0.3 degree maximum angular deflection of the piston rod. This unit complies with ISO 15552 standards, operates in any assembly position, includes position detection for proximity sensors, and accommodates either a stepper motor or a servomotor. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 543117 is an electro-cylinder with a ball screw design, featuring a size 32 frame and a 300 mm working stroke based on the ISO 15552 standard. This actuator includes an M10x1,25 piston rod thread, a 10 mm spindle diameter with a 3 mm/U pitch, a 0.05 mm reversing backlash, and a plain-bearing guide for torque protection with a non-rotating piston rod. It delivers a maximum speed of 0.15 m/s, a maximum acceleration of 6 m/s2, and a repetition accuracy of +/-0.02 mm, while accommodating stepper motors or servomotors and position detection via proximity sensors. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

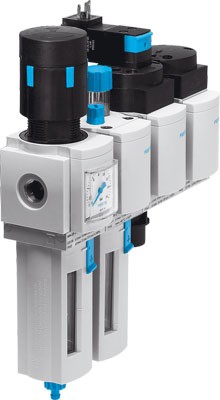

The Festo part number 542628 is an MS-series size 4 industrial component featuring a branching module, an on/off valve, and a filter regulator with a pressure gauge, designed for a standard nominal flow rate of 600 l/min and a working pressure of 4.5 to 10 bar. This unit operates with compressed air or inert gases within a temperature range of -10 to 50 °C, providing a 40 µm filtration grade, a manual rotary condensate drain, a plastic bowl guard, and a lockable rotary knob actuator lock. It delivers a constant output pressure with initial pressure compensation, secondary exhaust, and return flow, maintaining an air purity class of [7:4:-] at the output while classified under CRC 2 for corrosion resistance. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 543116 is an electro-cylinder featuring a ball screw actuator and a size 32 design structure built on the ISO 15552 standard. This unit provides a 200 mm working stroke, a 10 mm spindle diameter with a 3 mm/U pitch, an M10x1,25 piston rod thread, and a non-rotating piston rod with a plain-bearing guide. It operates with either a stepper motor or a servomotor, delivering a maximum speed of 0.15 m/s, a maximum acceleration of 6 m/s2, a repetition accuracy of +/-0,02 mm, and a reversing backlash of 0.05 mm in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

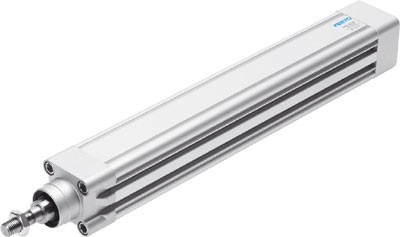

The Festo 543115 is an electro-cylinder with a ball screw actuator and size 32 design based on the ISO 15552 standard. It features a 100 mm working stroke, a 10 mm spindle diameter, a 3 mm/U spindle pitch, and an M10x1,25 piston rod thread with a non-rotating variant and plain-bearing guide for torque protection. Operating with a stepper motor or servomotor in any assembly position, this unit achieves a max acceleration of 6 m/s2, a max speed of 0.15 m/s, a repetition accuracy of +/-0,02 mm, a reversing backlash of 0.05 mm, and includes position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
The Festo part number 542626 is a size 4 industrial component from the MS series featuring a branching module, start-up valve, pressure sensor, on-off valve, and a filter regulator with pressure gauge. It operates with a working pressure of 4.5 to 10 bar, a pressure control range of 4 to 9 bar, and a standard nominal flow rate of 550 l/min using 24V DC characteristic coil data. Designed for vertical installation within +/- 5°, this unit incorporates a 5 µm filtration grade, a fully automatic condensate drain, a plastic bowl guard, and a rotary knob actuator lock with accessories. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 543114 is an electro-cylinder with a lead screw featuring a size 32 design and a 400 mm working stroke based on the ISO 15552 standard. This component integrates a plain thread spindle with a 9 mm diameter, a 1.5 mm/U pitch, a 0.2 mm reversing backlash, and a non-rotating piston rod with an M10x1,25 thread utilizing a plain-bearing guide for torque protection. Operating with either a stepper motor or DC servo motor, it achieves a max speed of 0.06 m/s, a max acceleration of 1 m/s2, a repetition accuracy of +/-0,07 mm, and a maximum piston rod angular deflection of +/-0.3 degrees for position detection via proximity sensor in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 542625 is an MS series size 4 industrial component featuring an on-off valve and filter regulator with a pressure gauge, designed for a standard nominal flow rate of 700 l/min and an operating working pressure range of 4.5 to 10 bar. It incorporates a 5 µm filtration grade, fully automatic condensate drain, plastic bowl guard, and a rotary knob lockable actuator with accessories. Operating with compressed air conforming to ISO 8573-1:2010 [7:4:4] or inert gases within a medium temperature range of -10 to 50 µ0 °C, the unit delivers a constant output pressure control range of 4 to 9 bar with secondary exhaust and return flow functions. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 543113 is an electro-cylinder with a lead screw and plain-bearing guide featuring a 32 size, 300 mm working stroke, 300 mm stroke, and 0 mm stroke reserve based on the ISO 15552 standard. This component incorporates an M10x1,25 piston rod thread, a 9 mm spindle diameter, a 1.5 mm/U spindle pitch, plain thread spindle type, non-rotating piston rod variants, 0.2 mm reversing backlash, and a maximum angular deflection of the piston rod of plus or minus 0.3 degrees. Operating with either a stepper motor or DC servo motor in any assembly position, it achieves a maximum speed of 0.06 m/s, a maximum acceleration of 1 m/s2, repetition accuracy of plus or minus 0.07 mm, and includes position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 542624 is a size 4 industrial component from the MS series featuring an on-off valve, a filter regulator with a pressure gauge, and a standard oil-mist lubricator designed for a working pressure of 4.5 to 10 bar. It operates with a standard nominal flow rate of 550 l/min, a 24V DC characteristic coil, and a manual rotary condensate drain within a vertical assembly position of +/- 5°. The unit provides a pressure control range of 4 to 9 bar, a 5 µm filtration grade, and an actuator lock via a lockable rotary knob with accessories. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 543112 is an electro-cylinder with a lead screw design featuring a size 32 profile, a 200 mm working stroke, and a 200 mm total stroke with zero stroke reserve. Built on ISO 15552 standards, this component integrates a plain thread spindle, a 9 mm spindle diameter, a 1.5 mm/U spindle pitch, and an M10x1,25 piston rod thread with a non-rotating variant supported by a plain-bearing guide. It operates with either a stepper motor or a DC servo motor, achieving a maximum speed of 0.06 m/s, a maximum acceleration of 1 m/s2, a repetition accuracy of +/-0.07 mm, a reversing backlash of 0.2 mm, a maximum piston rod angular deflection of +/-0.3 degrees, and provision for proximity sensor position detection in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 542623 is an industrial component of the MS series, size 4, featuring a design structure that includes a branching module, start-up valve, pressure sensor, on-off valve, filter regulator with pressure gauge, and standard oil-mist lubricator. It operates within a working pressure of 4.5 to 10 bar, a pressure control range of 4 to 9 bar, and delivers a standard nominal flow rate of 700 l/min using 24V DC characteristic coil data. This unit utilizes a manual rotary condensate drain, a plastic guard, a 5 µm grade of filtration, and a rotary knob with lock actuator, functioning with compressed air in accordance with ISO8573-1:2010 [7:4:4] or inert gases within a medium temperature range of -10 to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 543111 is an electro-cylinder with a lead screw based on the ISO 15552 standard, featuring a size 32 design with a 100 mm working stroke and 0 mm stroke reserve. This component utilizes a plain thread spindle with a 9 mm spindle diameter, a 1.5 mm/U spindle pitch, an M10x1,25 piston rod thread, and a non-rotating piston rod with a plain-bearing guide providing a max angular deflection of +/- 0.3 degrees. Driven by a stepper motor or DC servo motor, the unit achieves a max speed of 0.06 m/s, a max acceleration of 1 m/s2, a repetition accuracy of +/- 0.07 mm, a reversing backlash of 0.2 mm, and includes position detection for a proximity sensor while supporting any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 542622 is an MS series industrial component in size 4, featuring a branching module, an on/off valve, a filter regulator with a pressure gauge, a plastic bowl guard, and a rotary knob actuator lock with accessory lockability. Operating on compressed air per ISO8573-1:2010 [7:4:4] or inert gases with a working pressure of 4.5 to 10 bar, this unit delivers a standard nominal flow rate of 600 l/min across a 4 to 9 bar pressure control range with a 40 µm filtration grade and fully automatic condensate drain. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo part number 542621 is an industrial component of the MS series in size 4, featuring a branching module, an on/off valve with 24V DC characteristic coil data, a filter regulator with a pressure gauge, and a standard oil-mist lubricator. This unit operates within a working pressure of 4.5 to 10 bar and a pressure control range of 4 to 9 bar, delivering a standard nominal flow rate of 750 l/min for compressed air conforming to ISO8573-1:2010 [7:4:4] or inert gases. Equipped with a fully automatic condensate drain, a 40 µm filtration grade, a plastic bowl guard, and a rotary knob lockable actuator, the assembly functions in a vertical position within a +/- 5° tolerance. Submit your exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 542619 is an industrial component from the MS series, size 4, featuring a design structure that integrates a branching module, start-up valve, pressure sensor, on-off valve, and a filter regulator with a pressure gauge. This unit operates within a working pressure range of 4.5 to 10 bar, a pressure control range of 4 to 9 bar, and delivers a standard nominal flow rate of 600 l/min using 24V DC characteristic coil data. It includes a 40 µm filtration grade, a manual rotary condensate drain, a plastic bowl guard, and a lockable rotary knob actuator lock while functioning with compressed air conforming to ISO8573-1:2010 [7:4:4] or inert gases. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo part number 542618 is an industrial component of the MS series in size 4, featuring an on-off valve and a filter regulator with a pressure gauge. It operates within a working pressure of 4.5 to 10 bar and a pressure control range of 4 to 9 bar, delivering a standard nominal flow rate of 750 l/min with 24V DC characteristic coil data. The unit includes a 40 µm filtration grade, a manual rotary condensate drain, a plastic bowl guard, and a lockable rotary knob actuator lock. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

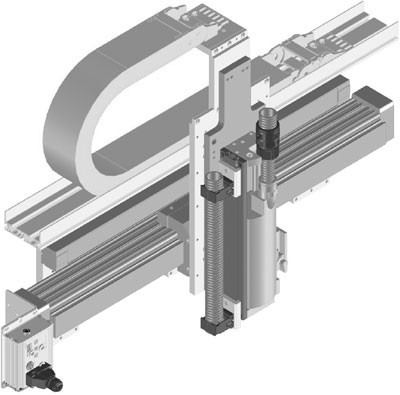

The Festo 543052 is a linear gantry 2.0 assembly featuring an effective load capacity of 0 to 4 kg. The Z axis utilizes an HMPL-20 pneumatic drive unit with a 0 to 200 mm stroke and an end and intermediate position repetition accuracy of ± 0.02 mm, including one intermediate position. The Y axis employs a DGPL-40-SPC11 servopneumatic drive system with a 0 to 1,600 mm stroke, two intermediate positions, an end position repetition accuracy of ± 0.02 mm, and an intermediate position repetition accuracy of ± 1 mm. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo

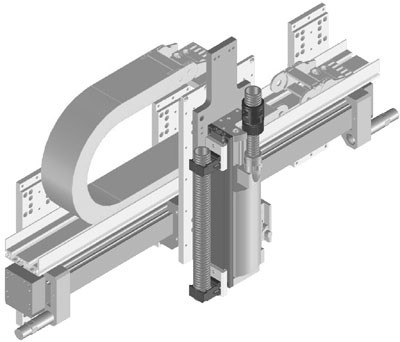

The Festo 543051 is a linear gantry 2.0 assembly with an effective load capacity of 0 to 4 kg. It features a pneumatic Z-axis drive unit HMPL-20 with a 0 to 200 mm stroke, one intermediate position, and a repetition accuracy of ± 0.02 mm in both end and intermediate positions. The Y-axis utilizes a pneumatic DGC-40 drive system providing a stroke from 0 to 3,000 mm, one intermediate position, an end position repetition accuracy of ± 0.02 mm, and an intermediate position repetition accuracy of ± 1 mm. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

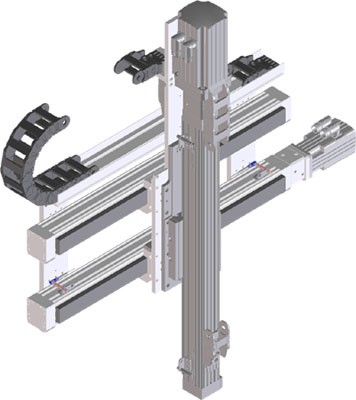

The Festo linear gantry 4.0, part number 543050, is an industrial component featuring an effective load capacity of 0 to 10 kg. Its Z axis utilizes a DGE-40-SP electrical spindle drive unit providing a stroke of 0 to 600 mm and a repetition accuracy of ± 0,02 mm in both end and intermediate positions, which are configurable to any point. The Y axis incorporates dual DGE-40-SP electrical spindle drive units delivering a stroke of 0 to 1,000 mm with an identical repetition accuracy of ± 0,02 mm for end and arbitrary intermediate positions. Submit the exact part number, quantity, and application requirements to request a quote for this assembly.
