Festo

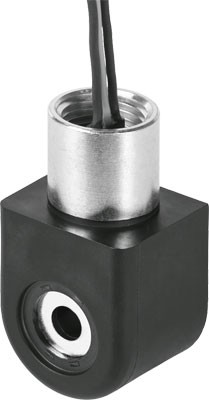

The Festo 541666 industrial component operates on 110 V AC at 50 Hz with a pick-up power of 12.5 VA and holding power of 7.5 VA, or 120 V AC at 60 Hz with a pick-up power of 11.5 VA and holding power of 6.5 VA, featuring a permissible voltage fluctuation of +/- 10 %. This RoHS-compliant unit achieves an IP65 protection class, a corrosion resistance classification CRC of 1, and holds NEC 500 Class I, Div. 1 explosion protection certification outside the EU. It is equipped with an integrated 0.5 m cable and functions within an ambient temperature range of -20 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

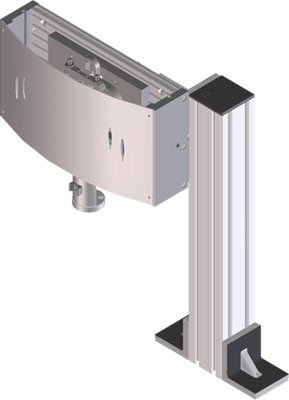

The Festo 543049 is a Pick&Place 1.0 assembly featuring a pneumatic drive system on the Z axis with a stroke of 20 to 70 mm and a repetition accuracy of ± 0.02 mm in both the end and intermediate positions. Its Y axis utilizes an HSP-25 pneumatic drive unit providing a stroke of 52 to 170 mm, a repetition accuracy of ± 0.02 mm at the end and intermediate positions, and an effective load capacity ranging from 0 to 1.6 kg. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 541665 is an industrial component featuring characteristic coil data of 24 V DC at 4.5 W with a permissible voltage fluctuation of plus or minus 10 percent. Built for an ambient temperature range of -20 to 60 °C, this unit provides IP65 protection, a CRC corrosion resistance classification of 1, and includes a 0.5 m cable while conforming to RoHS materials notes and carrying NEC 500 Class I, Div. 1 explosion protection certification outside the EU. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

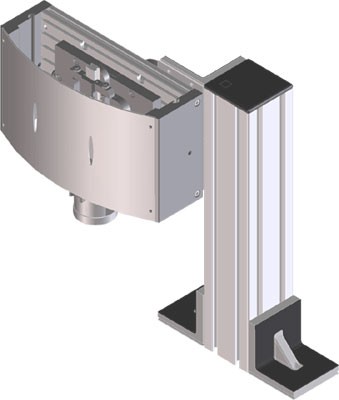

The Festo 543048 is a Pick&Place 1.0 assembly featuring a pneumatic Z-axis drive system with a stroke of 20 to 70 mm and a Y-axis drive unit HSP-16 utilizing a pneumatic drive system with a stroke of 52 to 170 mm. This component delivers an effective load capacity from 0 to 1.6 kg alongside a repetition accuracy of ± 0.01 mm in both the end and intermediate positions for the Z and Y axes. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

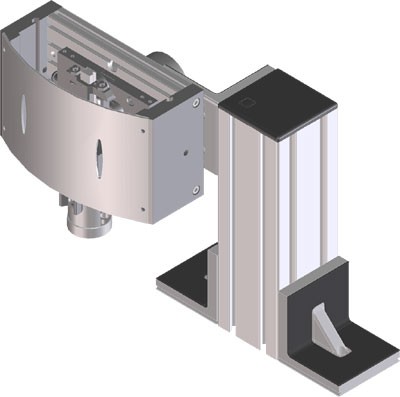

The Festo 543047 is a Pick&Place 1.0 assembly featuring a pneumatic Y-axis drive unit HSP-12 with a stroke of 52 to 170 mm and a pneumatic Z-axis drive system with a stroke of 20 to 70 mm. This component handles an effective load ranging from 0 to 0.7 kg while maintaining a repetition accuracy of ± 0.01 mm in both the end and intermediate positions for the Y and Z axes. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

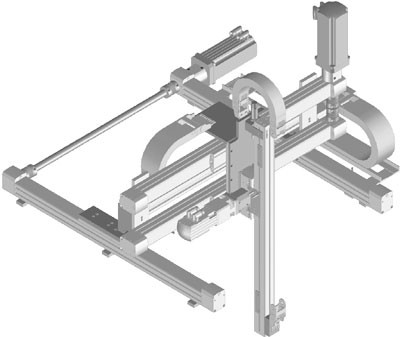

The Festo 543046 is a three-dimensional gantry 4.0 featuring an electrical DGEA toothed belt actuator on the Z axis with an effective load capacity of 0 to 10 kg and a stroke of 0 to 600 mm, alongside dual DGE-40-ZR-RF toothed belt roller guide drives on the Y axis providing a stroke of 0 to 1,200 mm. Its X axis utilizes a DGE-40-ZR-RF electrical toothed belt drive with a roller guide spanning a 0 to 3,000 mm stroke, supporting any intermediate position across all axes. The Z axis achieves a repetition accuracy of ± 0.05 mm in both end and intermediate positions, while the X and Y axes maintain a repetition accuracy of ± 0.1 mm in corresponding positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

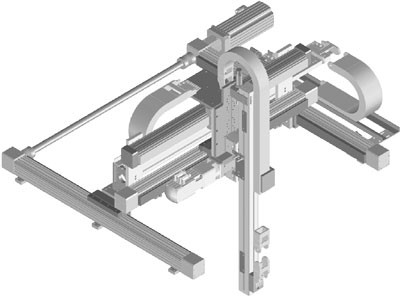

The Festo 543045 is a three-dimensional gantry 4.0 featuring an effective load capacity of 0 to 10 kg across a motorized, electrical axis architecture. The Z axis utilizes a DGEA-25 toothed belt actuator providing a stroke of 0 to 600 mm with an end and intermediate position repetition accuracy of ± 0.05 mm, while the Y and X axes incorporate DGE-40-ZR-KF toothed belt actuators with ball bearing guides delivering strokes of 0 to 1,200 mm and 0 to 3,000 mm respectively at a repetition accuracy of ± 0.1 mm. All axes support any intermediate position for flexible motion control operations. Submit the exact part number, quantity, and application requirements to receive an official quote.
View product details →Festo

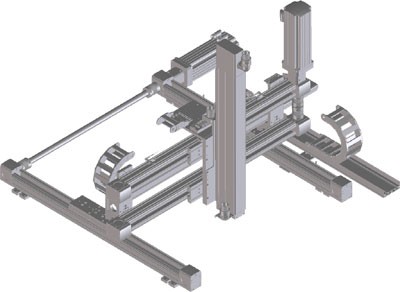

The Festo 543044 is a three-dimensional gantry 4.0 featuring an effective load capacity of 0 to 10 kg across its multi-axis configuration. The Z axis utilizes an HMP-25 pneumatic drive unit with a stroke of 0 to 400 mm, one intermediate position, and an end and intermediate position repetition accuracy of ± 0.02 mm. Motion along the Y axis is driven by two electrical DGE-40-ZR-RF toothed belt units with roller guides, providing a 0 to 1,200 mm stroke, any intermediate position, and an end and intermediate position repetition accuracy of ± 0.1 mm. The X axis incorporates an electrical DGE-40-ZR-RF toothed belt unit with a roller guide, delivering a stroke from 0 to 3,000 mm, any intermediate position, and an end and intermediate position repetition accuracy of ± 0.1 mm. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

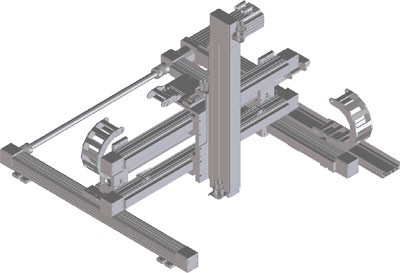

The Festo 543043 is a three-dimensional gantry 4.0 featuring an effective load capacity from 0 to 10 kg. The Z axis utilizes an HMP-25 pneumatic drive unit with one intermediate position and a stroke of 0 to 400 mm, achieving a repetition accuracy of ± 0.02 mm in both the end and intermediate positions. Dual electrical toothed belt actuators with ball bearing guides comprise the Y axis drive system, providing a stroke of 0 to 1,200 mm with any intermediate position and a repetition accuracy of ± 0.1 mm. The X axis employs an electrical toothed belt actuator with a ball bearing guide, offering a stroke from 0 to 3,000 mm, any intermediate position, and a repetition accuracy of ± 0.1 mm in the end and intermediate positions. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

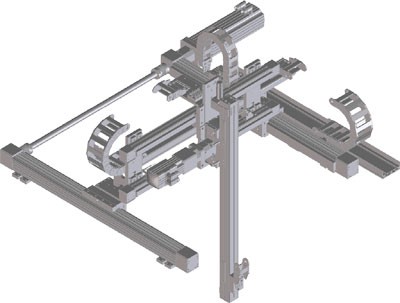

The Festo 543041 is a three-dimensional gantry 3.0 featuring an electrical drive system with an effective load capacity ranging from 0 to 6 kg. The Z axis utilizes a DGEA-25 toothed belt actuator providing a stroke of 0 to 800 mm with an end and intermediate position repetition accuracy of ± 0.05 mm, while the Y axis employs dual DGE-25-ZR-KF toothed belt actuators with ball bearing guides offering a 0 to 1,000 mm stroke and ± 0.1 mm repetition accuracy. Movement along the X axis is driven by a DGE-40-ZR-KF toothed belt actuator with a ball bearing guide, delivering a 0 to 3,000 mm stroke and a repetition accuracy of ± 0.1 mm in both end and intermediate positions, with any intermediate position available across all axes. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo three-dimensional gantry 3.0 supports an effective load of 0 to 6 kg utilizing a pneumatic Z axis drive unit HMP-20 with a stroke of 0 to 400 mm and a repetition accuracy of ± 0,02 mm in both end and intermediate positions. The system incorporates two electrical DGE-25-ZR-KF toothed belt actuators with ball bearing guides for the Y axis providing a stroke from 0 to 1,000 mm alongside an electrical DGE-40-ZR-KF toothed belt actuator with ball bearing guide for the X axis offering a stroke of 0 to 3,000 mm, achieving a repetition accuracy of ± 0,1 mm for end and intermediate positions on both axes. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

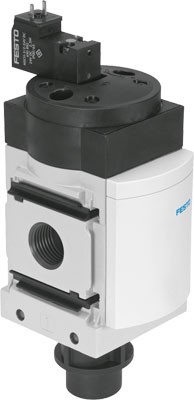

The Festo part number 542607 is an electrical piston slide industrial component featuring a piloted 3/2 closed, monostable valve function with a mechanical spring reset and a pushing manual override. It operates at a working pressure of 4 to 10 bar, delivers a standard nominal flow rate of 5,500 l/min with a 100% duty cycle, and functions on a 24V DC characteristic coil data of 2,5W with a permissible voltage fluctuation of +/- 10%. Constructed with a CRC of 2 and IP65 protection class, this unit utilizes compressed air in accordance with ISO8573-1:2010 [7:4:4] or inert gases within a medium temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

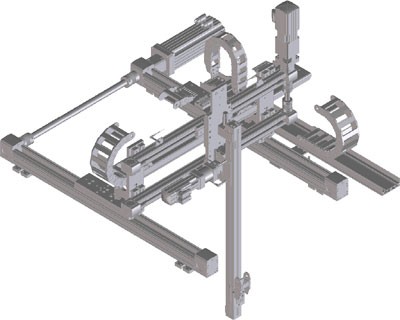

The Festo 543038 is a three-dimensional gantry 2.0 industrial component featuring an effective load capacity of 0 to 4 kg. The Z axis utilizes an electrical DGEA toothed belt actuator providing a stroke of 0 to 400 mm and a repetition accuracy of ± 0,05 mm in both the end and intermediate positions, while the Y and X axes incorporate electrical toothed belt drives with roller guides offering strokes of 0 to 1,000 mm and 0 to 3,000 mm respectively, with a repetition accuracy of ± 0,1 mm for all positions. All three axes support any intermediate position. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo

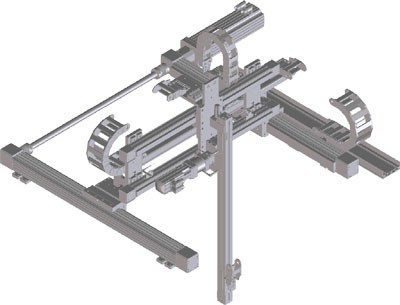

The Festo 543037 is a three-dimensional gantry 2.0 assembly featuring an electrical DGEA toothed belt actuator on the Z axis with a stroke of 0 to 400 mm, an effective load capacity of 0 to 4 kg, and an end and intermediate position repetition accuracy of ± 0,05 mm. Motion along the Y axis is driven by two DGE-25-ZR-KF toothed belt actuators with ball bearing guides providing a 0 to 1,000 mm stroke and a repetition accuracy of ± 0,1 mm for both end and intermediate positions. The X axis utilizes a DGE-25-ZR-KF toothed belt actuator with ball bearing guide delivering a 0 to 3,000 mm stroke and an end and intermediate position repetition accuracy of ± 0,1 mm, with any intermediate position accessible across all axes. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this assembly.
View product details →Festo

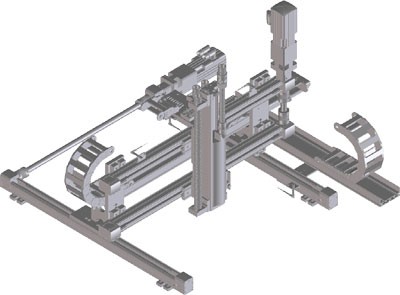

The Festo 543036 is a three-dimensional gantry 2.0 system featuring a pneumatic Z axis with an HMPL-20 drive unit, a 0 to 200 mm stroke, and one intermediate position, achieving a repetition accuracy of ± 0.02 mm in both end and intermediate positions for an effective load of 0 to 4 kg. Its electrical Y axis utilizes two DGE-25-ZR-RF drive units with toothed belts and roller guides providing a stroke from 0 to 1,000 mm, any intermediate position, and a repetition accuracy of ± 0.1 mm. Motion along the X axis is driven by a DGE-25-ZR-RF electrical toothed belt with a roller guide over a 0 to 3,000 mm stroke, delivering ± 0.1 mm repetition accuracy across any intermediate position and end position. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 542605 is an electrically actuated industrial component featuring a piston slide design and a 3/2 closed, monostable valve function with piloted operation. This unit operates within a working pressure range of 4 to 10 bar, delivers a standard nominal flow rate of 2,600 l/min, and incorporates a mechanical spring reset alongside a pushing manual override. Powered by a 24V DC 2.5W coil with a permissible voltage fluctuation of +/- 10 percent, it maintains a 100 percent duty cycle and an IP65 protection class across a medium temperature range of -10 to 60 degrees Celsius. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

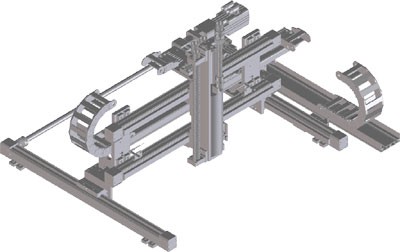

The Festo 543035 is a three-dimensional gantry 2.0 system featuring a pneumatic Z axis driven by an HMPL-20 unit with a stroke of 0 to 200 mm, an effective load capacity of 0 to 4 kg, and an end and intermediate position repetition accuracy of ± 0.02 mm with one intermediate position. The Y axis incorporates two DGE-25-ZR-KF electrical toothed belt actuators with ball bearing guides, offering a stroke from 0 to 1,000 mm, any intermediate position, and an end and intermediate position repetition accuracy of ± 0.1 mm. Motion along the X axis is provided by a single DGE-25-ZR-KF electrical toothed belt actuator with a ball bearing guide, delivering a stroke of 0 to 3,000 mm, any intermediate position, and an end and intermediate position repetition accuracy of ± 0.1 mm. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

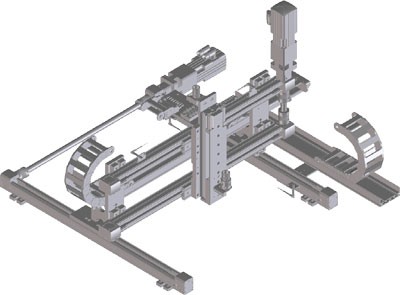

The Festo part number 543034 is a three-dimensional gantry 2.0 assembly featuring an effective load capacity from 0 to 4 kg. Its Z axis incorporates an SLT-20 pneumatic drive unit with a stroke of 0 to 200 mm and an end position repetition accuracy of ± 0.02 mm. The Y and X axes utilize DGE-25-ZR-RF electrical toothed belt drives with roller guides, providing strokes from 0 to 1,000 mm and 0 to 3,000 mm respectively, with any intermediate position capability and a repetition accuracy of ± 0.1 mm in both end and intermediate positions. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

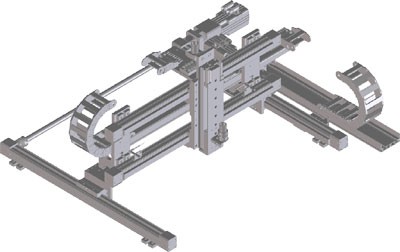

The Festo 543033 is a three-dimensional gantry 2.0 featuring a pneumatic Z axis drive unit SLT-20 with an effective load of 0 to 4 kg and a stroke of 0 to 200 mm achieving a repetition accuracy of ± 0.02 mm. Its Y axis incorporates two DGE-25-ZR-KF electrical toothed belt actuators with ball bearing guides, supporting any intermediate position across a 0 to 1,000 mm stroke with a repetition accuracy of ± 0.1 mm in both end and intermediate positions. The X axis utilizes a DGE-25-ZR-KF electrical toothed belt actuator with a ball bearing guide, providing a stroke of 0 to 3,000 mm, arbitrary intermediate positioning, and a repetition accuracy of ± 0.1 mm for end and intermediate positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

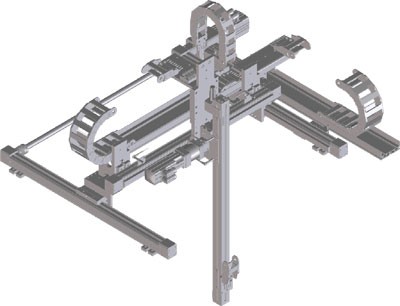

The Festo 543031 is a three-dimensional gantry 1.0 featuring an effective load capacity of 0 to 2 kg with electrical toothed belt actuation across all axes. The Z axis utilizes a DGEA-18 drive unit providing a 0 to 200 mm stroke with an end and intermediate position repetition accuracy of ± 0.05 mm, while the Y and X axes incorporate DGE-25-ZR-KF drives with ball bearing guides, delivering strokes of 0 to 1,000 mm and 0 to 3,000 mm respectively at a repetition accuracy of ± 0.1 mm. All axes support any intermediate position for flexible motion control configuration. Submit the exact part number, quantity, and application requirements for a formal quotation.
