Festo
The Festo part number 540455 is a double-acting industrial component utilizing a rack and pinion design with a size 16 specification and an M5 pneumatic connection. Operating on filtered compressed air at pressures from 2 to 10 bar, this unit delivers a torque of 1.6 Nm at 6 bar with a swivel angle of 0 to 180 degrees, an adjustable hard characteristic curve shock absorber for cushioning, and a maximum swivel frequency of 1.8 Hz. Constructed with an aluminum cover, a heat-treatment steel drive shaft, and NBR and TPE-U(PU) seals while remaining free of copper and PTFE, it features position detection for a proximity sensor and an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

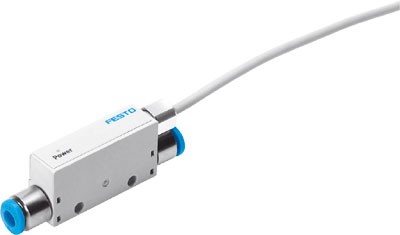

The Festo part number 538534 is an industrial component featuring a flow measurement range from -0.05 to 0.05 l/min and a working pressure of -0.9 to 2 bar for compressed air conforming to ISO8573-1:2010 [1:4:2] or nitrogen. This unit operates within a medium and ambient temperature range of 0 to 50 °C on a 12 to 24 V DC voltage range, utilizing a 3-meter PVC cable electrical connection and a 1-5 V analog output. It includes a C-Tick authorization, carries the CE symbol according to the EU-EMV guideline, contains PWIS substances, and supports vertical or horizontal assembly position with through-hole mounting. Submit the exact part number, quantity, and application requirements to receive an official price quote.
View product details →Festo

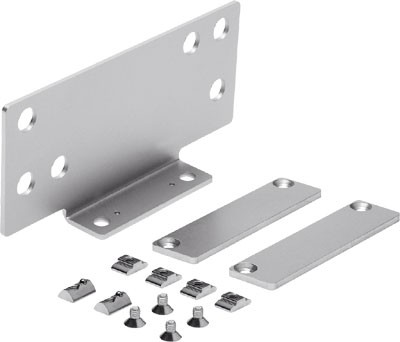

This Festo industrial component, part number 539937, is a size 40 assembly featuring a galvanized steel plate and galvanized steel screws. The unit has a product weight of 520 g and a corrosion resistance classification CRC of 2 for moderate corrosion stress. Request a formal quote by submitting this exact part number, along with your required quantity and application details.
View product details →Festo

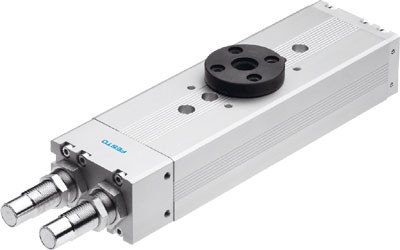

This Festo part number 540454 is a double-acting rack and pinion industrial component utilizing filtered compressed air within an operating pressure range of 2 to 10 bar. It delivers a torque of 1.6 Nm at 6 bar with a swivel angle of 0 to 180 degrees, a rotation angle adjustment range of -20 to 6 degrees, and an adjustable hard characteristic curve shock absorber for cushioning. Constructed with an aluminum cover, a heat-treatment steel drive shaft, and NBR and TPE-U(PU) seals, the unit features an M5 pneumatic connection, size 16 dimensions, and allows mounting via through holes or internal female threads. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

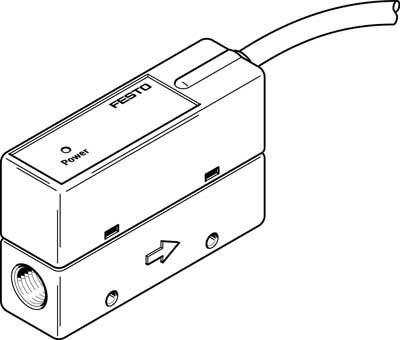

The Festo 538533 industrial component measures flow for compressed air in accordance with ISO8573-1:2010 [1:4:2] or nitrogen across a 5 to 50 l/min range within a -0.7 to 7 bar working pressure. This device operates on a 12 to 24 V DC voltage range, featuring a 1 m PVC cable for its electrical connection and delivering a 1 to 5 V analog output with a linearity error of 5 percent. It is certified with a C-Tick authorization and a CE symbol according to the EU-EMV guideline, designed with a through hole for vertical or horizontal assembly positions in ambient and medium temperatures ranging from 0 to 50 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo 539936 industrial component is a size 25 assembly featuring a galvanized steel plate and galvanized steel screws with a product weight of 250 g. This model provides a corrosion resistance classification CRC rating of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 539272 is a double-acting parallel industrial component featuring two gripper fingers and a size 20 designation with a 7 mm stroke per gripper jaw. Operating within a working pressure range of 4 to 8 bar using compressed air conforming to ISO8573-1:2010 [7:4:4], it achieves a repetition accuracy of <= 0.05 mm and a maximum replacement accuracy of <= 0.2 mm with zero angular gripper jaw backlash. Built with an inclined plane and guided motion sequence design structure featuring back-up on closing and proximity sensor position detection, this unit operates at a maximum frequency of 4 Hz with minimum opening and closing times of 105 ms and 75 ms respectively at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 538532 industrial component provides a flow measurement range from 1 to 10 l/min for compressed air in accordance with ISO8573-1:2010 [1:4:2] or nitrogen, operating across a working pressure of -0.7 to 7 bar and a medium and ambient temperature of 0 to 50 °C. This unit features a 1-5 V analog output with a 5% linearity error, 1% reproducibility, 50 kOhm load resistance, and a 50 ms switch-on time, powered by a 12 to 24 V DC operating voltage range via an integrated 1 m PVC cable. It carries C-Tick authorization and a CE symbol according to the EU-EMV guideline, includes PWIS substances, and supports vertical or horizontal mounting with a through hole. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 539935 is an industrial component measuring size 18 with a product weight of 170 g and a CRC corrosion resistance classification of 2 for moderate corrosion stress. Constructed with a galvanized steel plate and galvanized steel screws, this assembly features specified material compositions throughout. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 539271 is a double-acting parallel industrial component featuring two gripper fingers with a size of 20 and a 7 mm stroke per gripper jaw. Utilizing an inclined plane and guided motion sequence design structure, it operates on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 2 to 8 bar. This unit delivers a total opening and closing force of 126 N at 6 bar, a maximum operating frequency of 4 Hz, and a minimum opening and closing time of 90 ms at 6 bar. Position detection is enabled for a proximity sensor, and the component maintains a repetition accuracy of <= 0.05 mm alongside a maximum replacement and rotationally symmetrical accuracy of <= 0.2 mm in any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 539932 is an industrial component featuring a horizontal assembly position and conformance to the VDI/VDE 3845 NAMUR standard. Constructed with a nickel-plated steel housing and plate, galvanized steel screws and nut, and a POM-PE bearing, this unit has a corrosion resistance classification CRC of 2 and a product weight of 23,500 g. Its materials are free of copper and PTFE while containing PWIS substances. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo
The Festo part number 538531 is an industrial component featuring a flow measurement range of 0.5 to 5 l/min and a working pressure of -0.7 to 7 bar for compressed air conforming to ISO8573-1:2010 [1:4:2] or nitrogen. This unit operates on a 12 to 24 V DC voltage range with a 50 ms switch-on time, providing a 1 to 5 V analog output through an integrated 1 m PVC cable. It includes C-Tick authorization, carries the CE symbol according to the EU-EMV guideline, and incorporates materials containing PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This double-acting Festo industrial component, part number 539270, features a parallel 2-finger gripper function with a size 16 designation and a 5 mm stroke per gripper jaw. The design utilizes an inclined plane and guided motion sequence operating at a working pressure of 4 to 8 bar with compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It achieves a repetition accuracy of <= 0.05 mm, a maximum replacement accuracy of <= 0.2 mm, and a maximum operating frequency of 4 Hz with position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

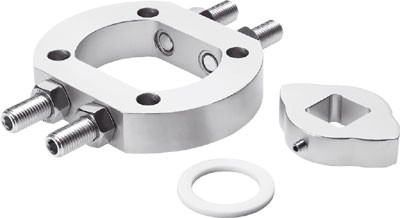

The Festo 539931 is an industrial component weighing 8,000 g designed for a horizontal assembly position. This unit conforms to the VDI/VDE 3845 NAMUR standard and features a nickel-plated steel housing and plate, galvanized steel screws and nut, and a POM-PE bearing, with a corrosion resistance classification CRC of 2. Its materials are free of copper and PTFE while containing PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 538530 is an industrial component utilizing a flow measurement range from 0.1 l/min to 1 l/min for compressed air in accordance with ISO8573-1:2010 [1:4:2] or nitrogen, operating within a working pressure of -0.7 to 7 bar and a medium and ambient temperature range of 0 to 50 °C. It features a 12 to 24 VDC operating voltage range, 1 to 5 V analog output with a 5% linearity error and 1% reproducibility, 50 kOhm load resistance, 50 ms switch-on time, and includes an attached 1 m PVC cable for electrical connection. Designated with a C-Tick authorization and a CE symbol according to the EU-EMV guideline, this unit contains PWIS substances and mounts via through-hole in either vertical or horizontal assembly positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

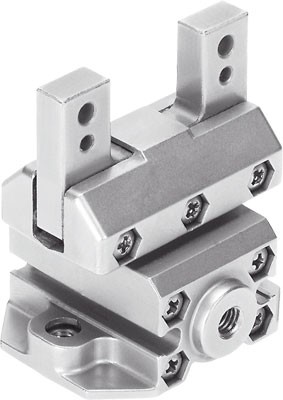

This Festo industrial component (Part Number 539269) is a double-acting parallel gripper featuring two gripper fingers and an inclined plane guided motion sequence design structure. It operates within a working pressure range of 2 to 8 bar on compressed air in accordance with ISO8573-1:2010 [7:4:4], delivering a total opening and closing force of 83 N at 6 bar with minimum opening and closing times of 60 ms. The unit provides a size 16 specification, a stroke of 5 mm per gripper jaw, a maximum operating frequency of 4 Hz, a repetition accuracy of 0.05 mm or less, and includes position detection capabilities for a proximity sensor with an assembly position in any orientation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 539930 is an industrial component built in accordance with the VDI/VDE 3845 NAMUR standard and configured for horizontal assembly position. This 5,000 g unit features a nickel-plated steel housing and plate, POM-PE bearing, galvanized steel nut, and galvanized steel screws, with materials that are free of copper and PTFE while containing PWIS substances and offering a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

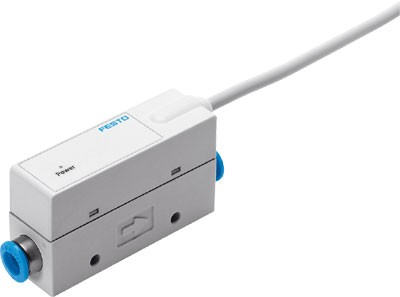

The Festo industrial component, part number 538529, provides a flow measurement range from 0.05 to 0.5 l/min for compressed air meeting ISO8573-1:2010 [1:4:2] and nitrogen within a working pressure of -0.7 to 7 bar. Operating on a DC voltage range of 12 to 24 V, it features a 1-5 V analog output, 50 ms switch-on time, and an integrated 1-meter PVC cable with a fixed electrical connection. Designed for vertical or horizontal mounting via a through hole, the unit functions across medium and ambient temperatures ranging from 0 to 50 °C, carries C-Tick authorization, and complies with the EU-EMV guideline for the CE symbol while containing PWIS substances. Submit the exact part number, quantity, and application requirements to receive an official quote.
View product details →Festo
The Festo part number 539268 is a double-acting industrial component featuring two parallel gripper fingers with a size 12 and a stroke of 3 mm per gripper jaw. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] at working pressures between 4 and 8 bar, this inclined plane design incorporates guided motion sequences, position detection for proximity sensors, and a gripper force back-up on closing. It achieves a maximum replacement and rotational symmetry accuracy of <= 0.2 mm, a repetition accuracy of <= 0.05 mm, zero angular gripper jaw backlash, zero jaw backlash Sz, and a maximum operating frequency of 4 Hz with minimum opening and closing times of 30 ms each at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

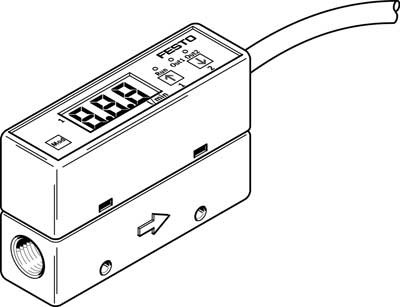

The Festo part number 538528 is an industrial component featuring a flow measurement range of 5 to 50 l/min and a working pressure from -0.7 to 7 bar. Designed to operate with compressed air in accordance with ISO8573-1:2010 [1:4:2] or nitrogen, this unit functions within a medium and ambient temperature range of 0 to 50 °C. It is equipped with an electrical cable connection, operates on a 12 to 24 V DC voltage range, and includes dual NPN switch outputs alongside a 1 - 5 V analog output. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
