Festo

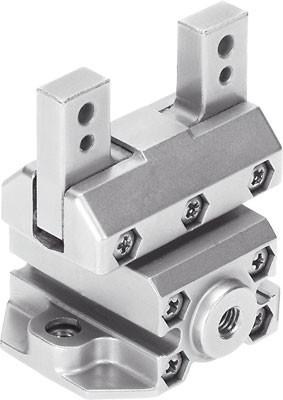

The Festo part number 539267 is a double-acting parallel industrial component featuring two gripper fingers with a size 12 and a stroke of 3 mm per gripper jaw. Utilizing an inclined plane and guided motion sequence design structure, it operates on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 2 to 8 bar to deliver 44 N of total force at 6 bar for both opening and closing. This unit includes position detection for a proximity sensor, achieves a repetition accuracy of <= 0.05 mm, and maintains a maximum operating frequency of 4 Hz with minimum opening and closing times of 30 ms at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 538527 is an industrial component designed for a flow measurement range of 1 to 10 l/min, operating within a working pressure of -0.7 to 7 bar with compressed air in accordance with ISO8573-1:2010 [1:4:2] or nitrogen. This unit features 2xNPN switch outputs supporting window and threshold value comparators, normally closed or normally open contact switching element functions, a 1-5 V analog output, and an electrical connection via cable operating on a 12 to 24 V DC voltage range. It carries C-Tick authorization and a CE symbol according to the EU-EMV guideline, functions within a medium and ambient temperature range of 0 to 50 °C, and includes a materials note indicating it contains PWIS substances. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo
The Festo 538526 is an industrial component designed for a flow measurement range of 0.5 to 5 l/min with an accuracy of 5 %FS and a switching point reproducibility of 1 % FS. Operating within a working pressure of -0.7 to 7 bar, this device processes compressed air in accordance with ISO8573-1:2010 [1:4:2] or nitrogen at medium and ambient temperatures ranging from 0 to 50 °C. It features 2xNPN switch outputs, a 1 - 5 V analog output, a cable electrical connection, and a DC operating voltage range of 12 to 24 V, while carrying C-Tick authorization and CE compliance according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 538525 is an industrial component featuring a flow measurement range from 0.1 to 1 l/min and a working pressure of -0.7 to 7 bar for compressed air conforming to ISO8573-1:2010 [1:4:2] or nitrogen. It operates on a 12 to 24 V DC voltage range with an electrical connection cable, providing 2xNPN switch outputs, a 1-5 V analog output, and an accuracy of 5 %FS within a medium and ambient temperature range of 0 to 50 °C. This unit carries C-Tick authorization and a CE symbol according to the EU-EMV guideline, with a materials note indicating it contains PWIS substances. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 538524 is an industrial component designed for a flow measurement range of 0.05 to 0.5 l/min with an accuracy of 8 %FS and a switching point reproducibility of 1 % FS. Operating on a 12 to 24 V DC voltage range, it supports a working pressure of -0.7 to 7 bar for compressed air meeting ISO8573-1:2010 [1:4:2] standards or nitrogen, across medium and ambient temperatures from 0 to 50 °C. This unit features 2xNPN switch outputs, a 1 - 5 V analog output, and a cable electrical connection while carrying C-Tick authorization and a CE symbol in accordance with the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

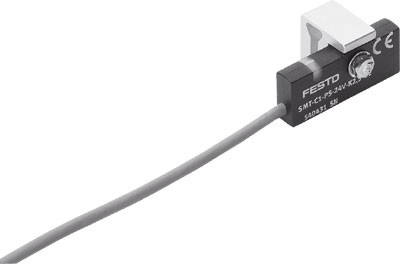

The Festo part number 540432 is a block design industrial component utilized for absolute position measurement via a magnetic inductive measuring principle based on the EN 60947-5-2 standard. This C-Tick authorized unit features a PNP switch output with a normally open contact, a maximum output current of 200 mA, a voltage drop under 1.8 V, and operates within an ambient temperature range of -20 to 70 °C. Constructed with copper-free, PTFE-free, and halogen-free cable materials, it incorporates pulsing short circuit strength and an inductive protective circuit adapted to MZ-, MY-, and ME coils. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo

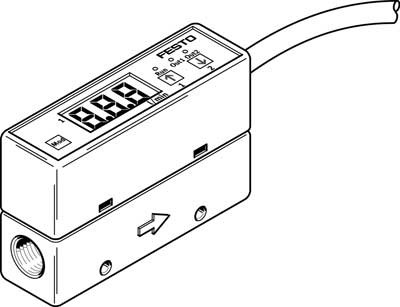

The Festo part number 538523 is an industrial component designed for a flow measurement range of 5 to 50 l/min, operating within a working pressure of -0.7 to 7 bar with compressed air conforming to ISO8573-1:2010 [1:4:2] or nitrogen. This unit features a medium and ambient temperature range of 0 to 50 °C, an accuracy of 5 %FS, 2xPNP switch outputs with window and threshold comparator functions, and a 1 - 5 V analog output powered by a 12 to 24 V DC operating voltage range via a cable electrical connection. Materials note indicates it contains PWIS substances, and it carries C-Tick authorization and a CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 540431 is an industrial component featuring a block design based on the EN 60947-5-2 standard with C-Tick authorization and a CE symbol according to the EU-EMV guideline. Built with copper-free, PTFE-free, and halogen-free cable materials, this magnetic inductive sensor provides absolute position measurement within an ambient temperature range of -20 to 70 °C. It utilizes a PNP switch output with a normally open contact function, delivering a maximum output current of 200 mA, a max DC contact rating of 6 W, a hysteresis of ≤ 2 mm, and equal switch-on and switch-off times of ≤ 0.5 ms. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 539905 is an industrial component featuring an electrical connection with 3 pins and a housing constructed from PA. Designed with any assembly position and a mounting type utilizing a soldering base, this product weighs 1 g and is supplied in a container size of 100. It operates within an ambient temperature range of -40 to 115 °C and provides an IP40 protection class. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 539904 is an industrial component featuring a PA housing with an IP40 protection class and a product weight of 1 g. Designed with a 3-pin electrical connection and a soldering base for mounting, this unit operates within an ambient temperature range of -40 to 115 °C with any assembly position and a container size of 10. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

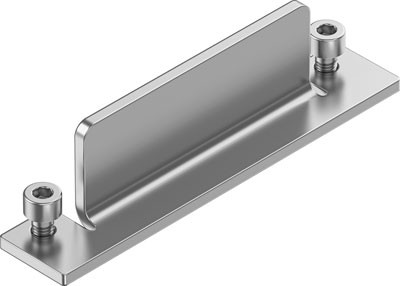

The Festo 540430 is a size 25 industrial component featuring a galvanized steel housing and a product weight of 70 g. This part operates within an ambient temperature range of -10 to 60 °C and includes a CRC rating of 2 for moderate corrosion stress, alongside a materials note confirming it is free of copper and PTFE. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

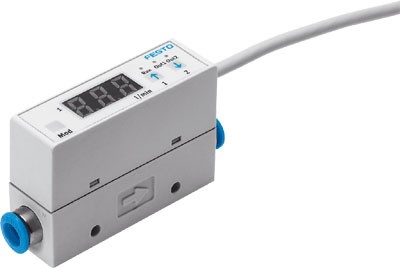

The Festo part number 538522 is an industrial component featuring a flow measurement range of 1 to 10 l/min and a working pressure of -0.7 to 7 bar for compressed air complying with ISO8573-1:2010 [1:4:2] or nitrogen. It operates on a 12 to 24 V DC voltage range with a cable connection, offering 2xPNP switch outputs, a 1-5 V analog output, and an accuracy of 5 %FS within a medium and ambient temperature range of 0 to 50 °C. This unit carries a C-Tick authorization, conforms to the EU-EMV guideline for the CE symbol, and contains PWIS substances in its materials. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

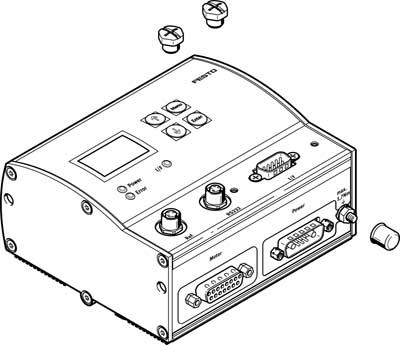

The Festo 540369 is an industrial component featuring a P position controller operating mode, an encoder rotor position sensor, and a 128 x 64 pixel graphical LCD display with four control elements. It operates on a nominal DC voltage of 24 V for both logic and load supplies, delivering a nominal controller power of 75 W with integrated protective functions including I²t monitoring, current monitoring, voltage failure detection, drag error monitoring, and software end-position detection. The unit provides an RS232 configuration interface operating at 9600 Baud, conforms to the EU-EMV guideline for the CE symbol, and offers an IP54 protection class within a storage temperature range of -25 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo industrial component, part number 539902, features a 10.5 mm grid dimension with pressure zone separation for 1, 3, and 5, supporting a maximum of 2 valve positions with label identification. This unit operates at a working pressure of up to 10 bar, a medium and ambient temperature range of -5 to 50 °C, and includes M5 auxiliary pilot air port 12/14, scavenging orifice, and pilot exhaust ports 82 and 82/84. Weighing 430 g with an IP40 protection class, CRC 2 corrosion resistance, and c UL us recognition, it accommodates any assembly position and mounts via through holes or top-hat rails with a 3-pin electrical valve interface and an 85 dB(A) sound pressure level. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 538521 industrial component is designed for flow measurement ranging from 0.5 to 5 l/min utilizing compressed air in accordance with ISO8573-1:2010 [1:4:2] or nitrogen as the operating medium. It operates within a working pressure of -0.7 to 7 bar and a temperature range of 0 to 50 °C for both the medium and ambient environment, featuring dual PNP switch outputs, a 1-5 V analog output, and an electrical cable connection powered by 12 to 24 V DC. This unit provides an accuracy of 5 %FS and a switching point reproducibility of 1 % FS, bearing C-Tick authorization and CE conformity according to the EU-EMV guideline with a materials note indicating the presence of PWIS substances. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

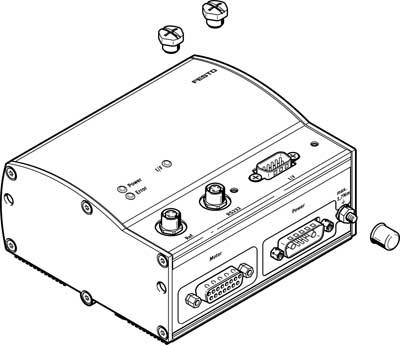

The Festo part number 540368 is an industrial component featuring a P position controller operating mode and an encoder rotor position sensor, driven by a nominal controller power of 75 W. It incorporates a 24 V nominal DC logic power supply with a 0.1 A nominal current and 0.8 A peak current, alongside a 24 V nominal load supply DC with a 3 A nominal current and 5 A peak current, operating within a permissible range of ± 10 % for both voltages. The unit provides comprehensive protective functions including I²t monitoring, current monitoring, voltage failure detection, drag error monitoring, and software end-position detection, supported by an RS232 interface for parameter configuration and commissioning at 9600 Baud. Rated to IP54 protection class and compliant with the EU-EMV guideline for CE marking, it functions within an ambient temperature range of 0 to 40 °C and includes an external 120 Ohm bus terminating resistor. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 539900 is an industrial component featuring a 10.5 mm grid dimension, a maximum of 2 valve positions, and pressure zone separation for channels 1, 3, and 5. This unit operates at a working pressure up to 10 bar within a medium and ambient temperature range of -5 to 50 °C, and includes M5 auxiliary pilot air ports 12/14, 12, scavenging orifice connection, and pilot exhaust port 82. Certified with IP40 protection, CRC 2 corrosion resistance, and c UL us recognition, the 430 g assembly supports optional mounting via through holes or top-hat rails. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 538520 is an industrial component designed for a flow measurement range of 0.1 to 1 l/min, operating with compressed air in accordance with ISO8573-1:2010 [1:4:2] or nitrogen at a working pressure from -0.7 to 7 bar. It features 2xPNP switch outputs with window and threshold value comparator functions, a 1 - 5 V analog output, and an electrical cable connection operating on a 12 to 24 V DC voltage range. This unit operates within a medium and ambient temperature range of 0 to 50 °C, provides an accuracy of 5 %FS with a 1 % FS switching point reproducibility, and contains PWIS substances. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

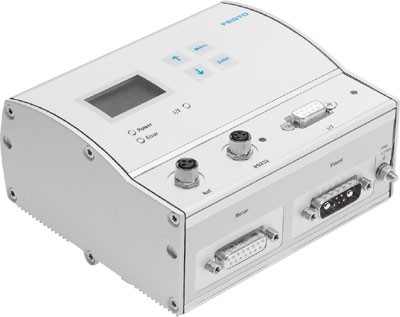

The Festo 540367 is an industrial component featuring a P position controller, a rotor position sensor encoder, and a nominal controller power of 75 W operating via a 128 x 64 pixel graphical LCD display with 4 keys. It operates on a 24 V nominal DC voltage for both logic and load supplies, drawing a nominal load current of 3 A and a logic current of 0.1 A, with peak currents of 5 A and 0.8 A respectively and a permissible range of ± 10 %. Integrated protective functions include I²t monitoring, current monitoring, voltage failure detection, drag error monitoring, and software end-position detection, alongside an external 120 Ohm bus terminating resistor and an RS232 9600 Baud parameters configuration interface. The unit complies with the EU-EMV guideline for the CE symbol, is shock resistant following DIN EN 60068-2-27, features an IP54 protection class, and supports storage temperatures between -25 and 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 539898 is an industrial component featuring a 10.5 mm grid dimension, a maximum of 2 valve positions with label identification, and pressure zone separation for channels 1, 3, and 5. Weighing 430 g, this unit operates at a working pressure of up to 10 bar, a medium and ambient temperature range of -5 to 50 °C, a sound pressure level of 85 dB(A), and holds c UL us - Recognized (OL) authorization with a CRC corrosion resistance classification of 2. It incorporates a 3-pin electrical valve interface, M5 connections for auxiliary pilot air port 12/14, scavenging orifice, and pilot exhaust ports 82 and 82/84, while supporting versatile mounting via through holes or top-hat rails in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
