Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 539211 is an industrial component from the MS series, sized at 4, featuring a fiber filter design structure with a 0.01 µm grade of filtration and 99.9999 % filter efficiency. It operates with a standard nominal flow rate of 120 l/min, an inlet pressure range of 2 to 12 bar, and a fully automatic condensate drain with a maximum condensate volume of 25 ml. Constructed with a product weight of 350 g, a CRC rating of 2, an integrated metal shell bowl guard, and vertical +/- 5° assembly positioning, it delivers filtered, unlubricated compressed air at an output air purity class of 1.7.2 per DIN ISO 8573-1 with 0.01 mg/m3 residual oil content within a 5 to 60 °C medium and ambient temperature range. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

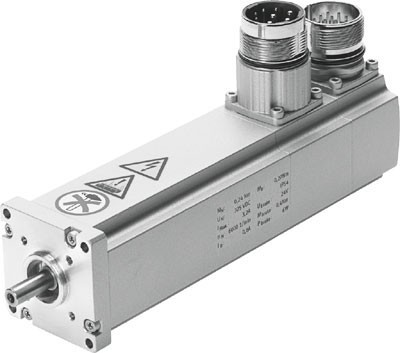

The Festo part number 540300 is an industrial component featuring a nominal motor power of 150 W, a nominal rotary speed of 6,000 1/min, and a maximum speed of 10,400 1/min at a nominal voltage DC of 325 V. Equipped with a resolver rotor position sensor, a PTC resistor for temperature monitoring, and a 24 V DC brake consuming 6 W, this IP54-rated assembly operates within an ambient temperature range of -40 to 40 °C and an insulation protection class of F. It complies with the CE symbol according to the EU-EMV and low voltage guidelines and holds a c UL us - Recognized (OL) authorization. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 540299 is an industrial component featuring a resolver rotor position sensor, a PTC resistor for temperature monitoring, and insulation protection class F. Operating at a nominal rotary speed of 6,000 1/min with a maximum speed of 10,400 1/min, this unit delivers a nominal motor power of 150 W at a nominal DC voltage of 325 V, providing a nominal torque of 0.24 Nm alongside a continuous open-circuit current of 0.78 A and a peak current of 3.3 A. Built to IP54 protection class within an ambient temperature range of -40 to 40 °C, it bears the CE symbol according to EU-EMV and low voltage guidelines and holds c UL us - Recognized (OL) authorization. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 539209 is a size 4 industrial component from the MS series featuring a fiber filter design structure with a 0.01 µm filtration grade and 99.9999% filter efficiency. This unit operates within an inlet pressure range of 2 to 12 bar, delivers a standard nominal flow rate of 120 l/min, and incorporates a fully automatic condensate drain with a maximum condensate volume of 25 ml. Built with an integrated metal shell bowl guard and a corrosion resistance classification CRC of 2, the assembly weighs 350 g and is designed for vertical +/- 5° installation using line installation or accessory mounting types. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 540285 is an industrial component featuring a size 16 design structure that combines a linear guide, rotating bearing, motor unit, and guided motion sequence driven by a planetary gear unit with a 13,73:1 gear unit ratio. It operates with a working stroke of 20 to 35 mm, a Z stroke of 80 to 100 mm, a max. linear stroke at 90° swivel angle of 175/175 mm, and a minimum cycle time of 1.2 s, utilizing an optical encoder, 500 increments per revolution, and a 128x64 pixel display while delivering 122.4 W of nominal motor power at 5.1 A. Additional specifications include noise absorption cushioning through a buffer with a predefined braking ramp, any assembly position, class F insulation protection, 60 mA max. current for digital logic outputs, over-temperature shutdown at >80°, intermediate position repetition accuracy under 2 mm, and end position repetition accuracy of +/-0,02 mm. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

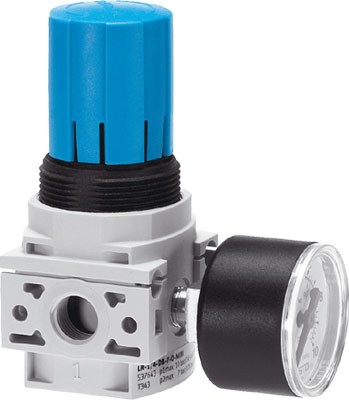

The Festo 539681 is a mini Series DB pressure regulator with a width of 44 mm, featuring a pressure gauge and a rotary knob with lock for actuator security. This component provides a controller function with secondary exhaust and return flow, operating within a working pressure range of 1.5 to 10 bar and a pressure regulation range of 0.5 to 7 bar. It delivers a standard nominal flow rate of 800 l/min or greater for compressed air complying with ISO8573-1:2010 [-:-:-], with a maximum pressure hysteresis of 0.5 bar and a product weight of 150 g. The unit supports versatile mounting via optional front panel installation, line installation, through holes, or a mounting bracket, featuring G1/8 connections for the pressure gauge and port 2. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 540284 is an industrial component featuring a size 16 design structure that combines a linear guide, rotating bearing, motor unit, and guided motion sequence driven by a 13,73:1 ratio planetary gear unit. This assembly delivers a working stroke of 20 to 35 mm, a Z stroke of 80 to 100 mm, and a maximum linear stroke of 175/175 mm at a 90° swivel angle, with cushioning provided by buffer noise absorption and a predefined braking ramp. Operating on a nominal motor power of 122.4 W and 5.1 A nominal motor current, the unit achieves an end position repetition accuracy of +/-0,02 mm, an intermediate position repetition accuracy under 2 mm, and a minimum cycle time of 1.2 s, while incorporating an optical encoder rotor position sensor and over-temperature shutdown at 80°. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

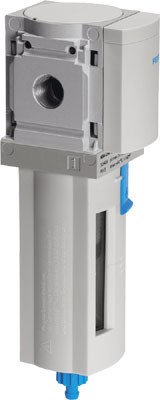

The Festo part number 539207 is an MS series industrial component size 4 featuring a 1 µm fiber filter design structure with 99.99 % filter efficiency and a fully automatic condensate drain. This unit operates with an inlet pressure range of 2 to 12 bar, a standard nominal flow rate of 180 l/min, and delivers filtered, unlubricated compressed air achieving an air purity class of 2.7.3 per DIN ISO 8573-1 with 0.5 mg/m3 residual oil content. Constructed with a 350 g weight, an integrated metal shell bowl guard, and CRC 2 corrosion resistance classification, it supports vertical +/- 5° assembly and line installation with optional accessories within a 5 to 60 °C medium and ambient temperature range. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 540283 is an industrial component featuring a size 16 design structure that combines a linear guide, rotating bearing, motor unit, and guided motion sequence with a planetary gear unit at a 13,73:1 ratio. It operates with a working stroke of 20 to 35 mm, a Z stroke of 80 to 100 mm, a maximum linear stroke of 175/175 mm at a 90° swivel angle, and achieves a minimum cycle time of 1.2 s with a nominal motor power of 122.4 W at 5.1 A. Additional specifications include an optical encoder providing 500 increments per revolution, a 128x64 pixel display, insulation protection class F, noise absorption cushioning through a buffer, thermal shutdown at over 80°C, and a repetition accuracy of +/-0,02 mm at end positions and < 2 mm at intermediate positions. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

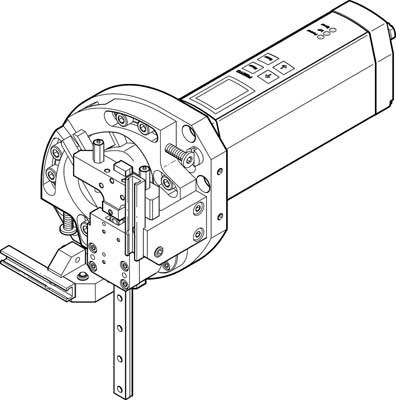

The Festo 540282 is an industrial component featuring a Size 16 design structure that combines a linear guide, rotating bearing, motor unit, and guided motion sequence driven by a planetary gear unit with a 13,73:1 ratio. This unit provides a working stroke of 20 to 35 mm, a Z stroke of 80 to 100 mm, a maximum linear stroke of 175/175 mm at a 90° swivel angle, and a minimum cycle time of 1.2 s, utilizing an optical encoder with 500 increments per revolution, a 128x64 pixel display, Class F insulation, and an over-temperature shutdown at 80°C. Cushioning is achieved via noise absorption through a buffer and a predefined braking ramp, while positioning delivers an end position repetition accuracy of +/-0,02 mm and an intermediate position repetition accuracy of < 2 mm. Operating with a nominal motor power of 122.4 W, a nominal motor current of 5.1 A, and a maximum digital logic output current of 60 mA in any assembly position, it includes rotor position sensors and supports 60 mA digital logic outputs. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 539205 is an industrial component featuring a size 4 MS series design structure utilizing a 1 µm fiber filter with 99.99 % filter efficiency. This assembly operates with a standard nominal flow rate of 180 l/min, an inlet pressure range of 2 to 12 bar, and a fully automatic condensate drain with a 25 ml max condensate volume inside an integrated metal shell bowl guard. The unit weighs 350 g, functions within a medium and ambient temperature of 5 to 60 µC, and delivers filtered, unlubricated compressed air achieving an air purity class of 2.7.3 per DIN ISO 8573-1 with a residual oil content of 0.5 mg/m³. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

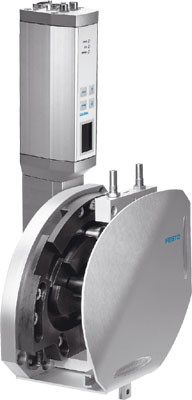

The Festo industrial component, part number 540269, features a linear guide plus rotating bearing, a motor unit, and a guided motion sequence driven by a planetary gear unit with a 13,73:1 gear unit ratio. It provides a working stroke of 15 to 25 mm, a Z stroke of 80 to 100 mm, a max. linear stroke at 90° swivel angle of 142/142 mm, a nominal motor power of 48 W, and a nominal motor current of 2 A with noise absorption through buffer and a predefined braking ramp cushioning. Equipped with an optical encoder rotor position sensor, insulation protection class F, and a 128x64 pixel display resolution, this size 12 unit delivers a repetition accuracy of < 2 mm for intermediate positions and +/-0,02 mm for end positions at a minimum cycle time of 1 s. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo

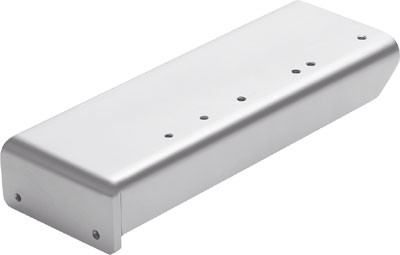

The Festo part number 539658 is an industrial component featuring a galvanized steel material adapter and a total product weight of 330 g. This assembly offers a CRC corrosion resistance classification of 2 for moderate corrosion stress and maintains VDMA24364-B2-L PWIS conformity with an any assembly position configuration. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo

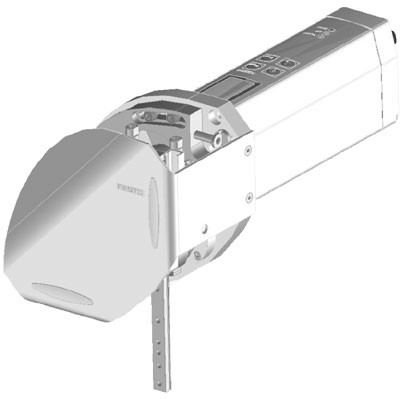

The Festo 540268 industrial component integrates a linear guide plus rotating bearing, a motor unit, and a guided motion sequence driven by a planetary gear unit with a 13,73:1 ratio. This size 12 unit features a working stroke of 15 to 25 mm, a Z stroke of 80 to 100 mm, a max linear stroke of 142/142 mm at a 90° swivel angle, and noise absorption cushioning through a buffer with a predefined braking ramp. Operating with a 48 W nominal motor power and 2 A nominal current, it includes an optical encoder, an over-temperature shutdown at >80°, Class F insulation, and a 128x64 pixel display resolution. Submit part number 540268, quantity, and application requirements to request a quote.
View product details →Festo

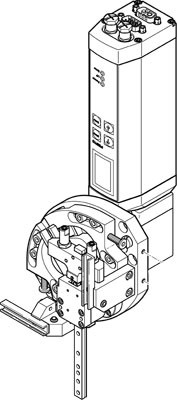

The Festo part number 540267 is an industrial component featuring a linear guide plus rotating bearing, a motor unit, a guided motion sequence, and a planetary gear unit with a 13,73:1 gear unit ratio. This unit operates with a size 12 specification, a working stroke of 15 to 25 mm, a Z stroke of 80 to 100 mm, a max. linear stroke at 90° swivel angle of 142/142 mm, and a minimum cycle time of 1 s. It includes an optical encoder rotor position sensor, insulation protection class F, 48 W nominal motor power, 2 A nominal motor current, a 128x64 pixel display resolution, and thermal shutdown at over-temperature greater than 80°. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo part number 540266 is an industrial component featuring a size 12 design structure with a linear guide plus rotating bearing, motor unit, and guided motion sequence driven by a planetary gear unit at a 13,73:1 ratio. This unit operates with a working stroke of 15 to 25 mm, a Z stroke of 80 to 100 mm, and a maximum linear stroke of 142/142 mm at a 90° swivel angle, utilizing noise absorption through a buffer and a predefined braking ramp for cushioning. Powered by a 48 W nominal motor current of 2 A with insulation protection class F, it includes an optical encoder providing 500 increments per revolution, a 128x64 pixel display resolution, and thermal monitoring that shuts down the system at temperatures exceeding 80°. The assembly achieves a minimum cycle time of 1 s, an end position repetition accuracy of +/-0,02 mm, an intermediate position repetition accuracy under 2 mm, digital logic outputs with a 200 mA maximum current, and functions in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 540253 industrial component features a size 10 design structure integrating a linear guide, rotating bearing, motor unit, and guided motion sequence with a 13,73:1 planetary gear unit ratio. Operating with a nominal motor power of 17.5 W, a nominal motor current of 0.73 A, and an F-class insulation protection, this unit achieves a working stroke of 9 to 15 mm, a Z stroke of 80 to 100 mm, and a maximum linear stroke at a 90° swivel angle of 90/90 mm. Control and safety attributes include an optical encoder providing 300 increments per revolution, a 128x64 pixel display, digital logic outputs supporting a maximum current of 200 mA, and over-temperature shutdown at greater than 80° alongside noise absorption buffer cushioning. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 540252 industrial component features a size 10 linear guide plus rotating bearing design structure with a planetary gear unit, a gear unit ratio of 13.73:1, and an optical encoder rotor position sensor. This unit provides a working stroke of 9 to 15 mm, a Z stroke of 80 to 100 mm, a maximum linear stroke of 90/90 mm at a 90° swivel angle, a nominal motor power of 17.5 W, and a minimum cycle time of 0.8 s. Operational parameters include a repetition accuracy of < 2 mm for intermediate positions, +/-0.02 mm for end positions, over-temperature shutdown at >80°, insulation protection class F, and noise absorption cushioning via buffer with a predefined braking ramp. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.
View product details →Festo
The Festo 540251 is an industrial component featuring a size 10 linear guide plus rotating bearing design structure, planetary gear unit with a 13,73:1 gear unit ratio, and a motor unit with 17.5 W nominal motor power and 0.73 A nominal motor current. It operates with a 9 to 15 mm working stroke, an 80 to 100 mm Z stroke, a 90/90 mm max. linear stroke at 90° swivel angle, and a minimum cycle time of 0.8 s, utilizing noise absorption through buffer and predefined braking ramp cushioning. The unit is equipped with an optical encoder rotor position sensor, 300 increments per revolution, 128x64 pixel display resolution, F insulation protection class, over-temperature shutdown at >80°, and digital logic outputs with 200 mA max. current, achieving repetition accuracies of < 2 mm for intermediate positions and +/-0,02 mm for end positions in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo industrial component, part number 540250, integrates a linear guide plus rotating bearing, motor unit, and guided motion sequence driven by a planetary gear unit with a 13,73:1 gear unit ratio. Featuring a nominal motor power of 17.5 W, a nominal motor current of 0.73 A, and an optical encoder rotor position sensor, the unit delivers a working stroke of 9 to 15 mm, a Z stroke of 80 to 100 mm, and a maximum linear stroke at a 90° swivel angle of 90/90 mm. It includes an insulation protection class of F, thermal shutdown at over-temperature above 80°, digital logic outputs with a max current of 200 mA, a 128x64 pixel display resolution, and a minimum cycle time of 0.8 s, achieving an end position repetition accuracy of +/-0,02 mm and an intermediate position repetition accuracy of < 2 mm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
