Festo
Engineered with a linear guide plus rotating bearing, the Festo 540231 industrial component features a size 12 design structure with a working stroke of 15 to 25 mm, a Z stroke of 80 to 100 mm, and a maximum Z-stroke wait position of 15 mm. Operating at a working pressure of 4 to 8 bar using filtered compressed air, this swivel actuator achieves a repetition accuracy of +/-0,02 mm at the end positions, a theoretical force of 35 N at 6 bar, and includes CC shock absorber cushioning at both ends with a soft characteristic. The unit weighs 3,140 g, functions across an ambient temperature range of 0 to 60 °C, and accommodates position detection via a proximity sensor with a minimum cycle time of 0.8 s. Submit the exact part number, quantity, and application requirements to request a quote for this part.
View product details →Festo

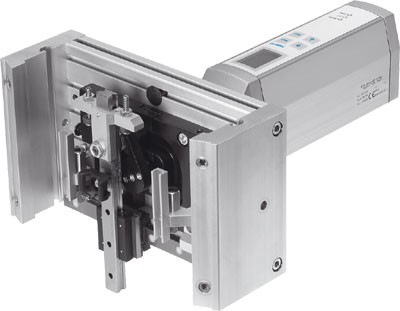

The Festo part number 539536 is an industrial component featuring a size 12 design structure with a cross-guide, motor unit, and guided motion sequence driven by a planetary gear unit with a 6,75:1 ratio. It provides a Y stroke of 52 to 68 mm, a Z stroke of 20 to 30 mm, a Z working stroke of 15 mm, a minimum cycle time of 0,8 s, and cushioning via noise absorption through a buffer and a predefined braking ramp. Operational parameters include a nominal motor power of 48 W, nominal motor current of 2 A, digital logic outputs max current of 200 mA, insulation protection class F, an optical encoder rotor position sensor, 500 increments per revolution, a 128x64 pixel display resolution, and over-temperature shutdown at greater than 70° with an assembly position of guide rail or vertically downwards. Repetition accuracy measures less than 1,5 mm for intermediate positions and plus or minus 0,01 mm for end positions. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

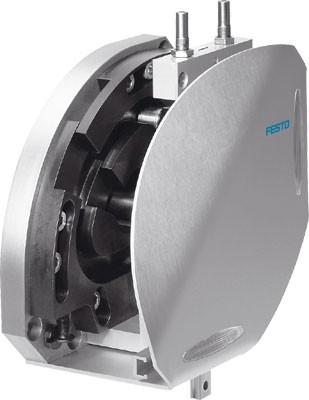

The Festo 540230 is an industrial component featuring a linear guide plus rotating bearing, swivel actuator, and guided motion sequence with a size 12 design structure. It operates within a working pressure of 4 to 8 bar on compressed air that is filtered and either unlubricated or lubricated, delivering a theoretical force of 35 N at 6 bar and a repetition accuracy of +/-0,02 mm at the end positions. Equipped with CC shock absorbers at both ends for soft characteristic cushioning, the unit supports a working stroke of 15 to 25 mm, a Z stroke of 80 to 100 mm, and a maximum product weight of 3,340 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo industrial component, part number 539512, is a 1-meter LifY11Y grey cable with a 3.4 mm diameter, featuring a 4 x 0.14 mm² cable structure and a 0.14 mm² nominal conductor cross-section. The black TPE-U(PU) housing includes a 4-pole, 5-wire electrical connection utilizing straight M5x0,5 and M12x1 plugs and sockets with nickel-plated brass locknuts, mounting via knurled and sleeve nuts with maximum tightening torques of 0.3 Nm for the plug socket and 0.5 Nm for the plug. It operates across an AC and DC voltage range of 30 V with a 1.7 A permissible current load, maintains IP65 and IP67 protection classes under a contamination degree of 3, and requires a minimum cable bending radius of 35 mm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

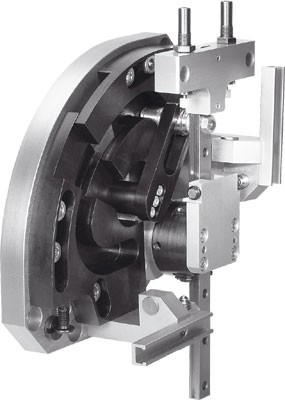

The Festo 540225 is an industrial component featuring a linear guide plus rotating bearing design structure, swivel actuator, and guided motion sequence with an operating pressure of 4 to 8 bar and a theoretical force of 30 N at 6 bar. This unit delivers a working stroke of 9 to 15 mm, a Z stroke of 80 to 100 mm, a maximum Z-stroke wait position of 10 mm, and a maximum linear stroke at a 90-degree swivel angle of 90/90 mm with a minimum cycle time of 0.6 s. It incorporates CC shock absorber cushioning at both ends with a soft characteristic, position detection for a proximity sensor, and operates within an ambient temperature range of 0 to 60 °C utilizing filtered and lubricated or unlubricated compressed air. Submit the exact part number, quantity, and application requirements to request a quote for this 1,350 g component.
View product details →Festo
Engineered by Festo with part number 540224, this industrial component features a design structure combining a linear guide, rotating bearing, swivel actuator, and guided motion sequence supporting any assembly position. Operating at a pressure of 4 to 8 bar using compressed air, it delivers a theoretical force of 30 N at 6 bar with a repetition accuracy of +/-0,02 mm at the end positions and a minimum cycle time of 0.6 s. The unit includes CC cushioning with shock absorbers at both ends featuring a soft characteristic, a working stroke of 9 to 15 mm, a Z stroke of 80 to 100 mm, and a maximum Z-stroke wait position of 10 mm. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 539495 is a magnetoresistive position sensor designed for round slots based on the DIN EN 60947-5-2 standard. It features a PNP/NPN switch output with a normally open contact function, a reproducibility of +/- 0.1 mm, 0.5 ms switch-on and switch-off times, an integrated inductive protective circuit, and short circuit strength. Operating within an ambient temperature range of -5 to 60 °C, this copper- and PTFE-free component carries C-Tick and c UL us - Listed (OL) authorizations alongside CE compliance according to EU-EMV and low voltage guidelines. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

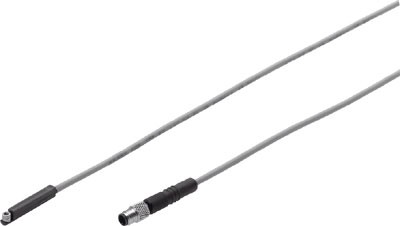

The Festo 539494 is a reed magnetic position sensor designed for round slots based on the DIN EN 60947-5-2 standard. Featuring a contact-type normally open switch output with a 500 mA maximum output current and a 10 ... 30 V AC/DC operating voltage range, this copper- and PTFE-free component operates within an ambient temperature range of -5 to 60 °C. It provides a switching value reproducibility of +/- 0.1 mm, a 0.5 ms switch-on time, and a 30 µs switch-off time while carrying c UL us - Listed (OL) authorization and CE compliance according to EU-EMV and low voltage guidelines. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 539493 is a magnetoresistive position sensor featuring a T-slot design for assembly in any position, operating on a 10 to 30 V DC voltage range with PNP/NPN switch outputs and a normally open contact function. This component includes an integrated inductive protective circuit, short-circuit strength, and polarity protection for all electrical connections, delivering a max output current of 100 mA, a max contact rating of 3 W, and a yellow LED operating status display. It is equipped with a 0.3 m cable terminating in an M5x0.5 plug, switch-on time of 0.5 ms, switch-off time between 7 ms and 11 ms, residual current of 0.1 mA, and a corrosion resistance classification of CRC 2 based on the DIN EN 60947-5-2 standard. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

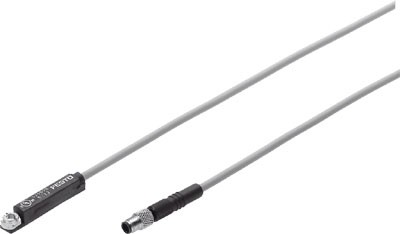

The Festo 539492 is an industrial component designed for T-slot mounting utilizing a reed magnetic measuring principle for position sensing. It features a contact-type normally open switch output operating on a 10 to 30 V DC or AC voltage range with a maximum output current of 500 mA and a 0.3 m cable with an M5x0.5 plug connection. Additional attributes include a yellow LED operating status display, CRC 2 corrosion resistance classification, DIN EN 60947-5-2 compliance, and any assembly position capability. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
This Festo industrial component, part number 539491, features a 10 m polyurethane cable with an orange sheath and a 15.9 mm cable diameter structured with 7 x 1,5mm² and 2 x (2x 0,34 mm²) conductors. The assembly has a CRC 0 corrosion resistance classification, an IP54 protection class, and supports a storage and ambient temperature range of -25 to 70 °C, while also being suitable for chain link trunking and carrying the CE symbol according to the EU-EMV guideline. Note that the materials contain PWIS substances. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 539490 is an industrial component featuring a 5-meter PUR cable sheath in orange with an outer diameter of 15.9 mm and a cable structure of 7 x 1,5mm² plus 2 x (2x 0,34 mm²). This assembly is suitable for chain link trunking, holds an IP54 protection class, and maintains a corrosion resistance classification CRC of 0 alongside operating and storage temperature ranges of -25 to 70 °C. Featuring materials containing PWIS substances, the unit complies with the EU-EMV guideline according to the CE declaration of conformity. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

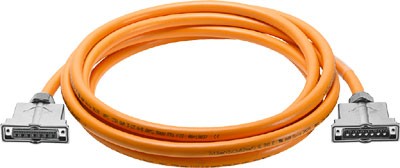

This Festo industrial component, part number 539489, is configured with a 2.5 m cable length featuring a cable structure of 7 x 1,5mm² + 2 x (2x 0,34 mm²) and a 15.9 mm cable diameter within an orange PUR sheath. The unit provides IP54 protection class, operates within an ambient and storage temperature range of -25 to 70 °C, features a corrosion resistance classification of CRC 0, and is suitable for chain link trunking. It carries the CE symbol according to the EU-EMV guideline and contains PWIS substances in its materials. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 539479 is a double-acting industrial component featuring a 50 mm piston diameter, an 80 mm stroke, and an M10 female thread piston-rod end based on the ISO 21287 standard. Operating on dried compressed air within a 0.6 to 10 bar working pressure and -10 to 60 °C ambient temperature range, this unit utilizes flexible cushioning rings at both ends and includes position detection for proximity sensors. It delivers a theoretical force of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar, with a CRC corrosion resistance rating of 2 and an initial moving mass of 94 g plus 41 g per 10 mm of stroke. Submit the exact part number, quantity, and application requirements for a formal quote on this Festo component.
View product details →Festo
The Festo 539478 is a double-acting industrial component featuring a 50 mm piston diameter and a 60 mm stroke based on the ISO 21287 standard. Designed with a single-ended piston rod with a female M10 thread, a piston, piston rod, and cylinder barrel, it operates on dried compressed air at a working pressure of 0.6 to 10 bar. It includes flexible cushioning rings at both ends for 0.8 J impact energy handling, position detection capabilities for proximity sensors, and a CRC 2 corrosion resistance classification across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 539477 is a double-acting industrial component featuring a 50 mm piston diameter, a 50 mm stroke, and an ISO 21287 design structure incorporating a piston, piston rod, and cylinder barrel. Operating on dried compressed air within a working pressure range of 0.6 to 10 bar, this unit delivers theoretical forces of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar. It is equipped with flexible cushioning rings at both ends, a female M10 piston-rod end, position detection capabilities for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 50 mm piston diameter industrial component with a 40 mm stroke operates on dried compressed air, lubricated or unlubricated, across a working pressure range of 0.6 to 10 bar. Designed according to ISO 21287, this double-acting unit features a single-ended piston rod with a female M10 thread, flexible cushioning rings at both ends, and position detection for proximity sensors. It delivers a theoretical force of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar, with a CRC corrosion resistance rating of 2 and an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 539475 is a double-acting industrial component featuring a 50 mm piston diameter, a 30 mm stroke, and an M10 female threaded piston rod based on the ISO 21287 standard. Operating on dried compressed air within a 0.6 to 10 bar working pressure range, this single-ended piston rod cylinder incorporates flexible cushioning rings at both ends and position detection for proximity sensors. It delivers a theoretical force of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar, operating within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

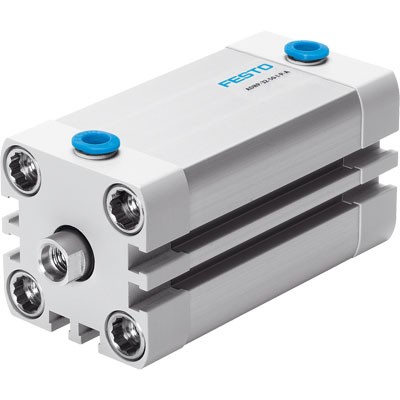

The Festo 539474 is a double-acting industrial component featuring a 50 mm piston diameter and a 25 mm stroke based on the ISO 21287 standard. Operating on dried compressed air within a 0.6 to 10 bar working pressure range, this unit utilizes flexible cushioning rings at both ends and includes a female M10 piston rod thread for any assembly position. It delivers theoretical forces of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar, while supporting position detection via proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 539473 is a double-acting industrial component featuring a 50 mm piston diameter, a 20 mm stroke, and an M10 female threaded piston-rod end based on the ISO 21287 standard. Operating at a working pressure of 0.6 to 10 bar using dried compressed air, this single-ended piston rod unit delivers theoretical forces of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
