Festo

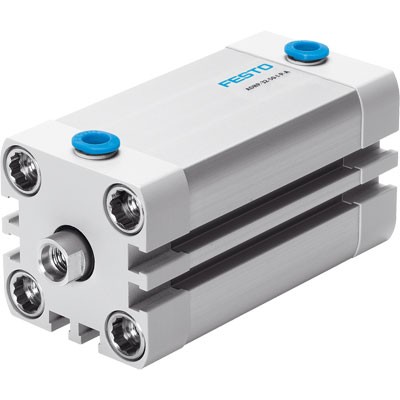

The Festo 539453 is a double-acting industrial component based on the ISO 21287 standard, featuring a 32 mm piston diameter and a 10 mm stroke. Designed with a single-ended piston rod with an M8 female thread, piston, piston rod, and cylinder barrel, it operates on dried compressed air at a working pressure of 0.6 to 10 bar. This unit includes flexible cushioning rings at both ends, position detection for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 539452 is a double-acting industrial component featuring a 25 mm piston diameter, a 60 mm stroke, and a female M6 piston rod thread built on the ISO 21287 standard. Operating within a pressure range of 0.6 to 10 bar on dried compressed air, this single-ended piston rod cylinder includes flexible cushioning rings at both ends and accommodates position detection via proximity sensors. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke while functioning across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 539451 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and an M6 female piston rod thread built to ISO 21287 standards. This single-ended piston rod unit operates on dried compressed air at working pressures between 0.6 and 10 bar, utilizing flexible cushioning rings at both ends with an impact energy rating of 0.24 J. Delivering theoretical forces of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, the assembly supports any mounting position and accommodates position detection via proximity sensors across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 539450 is a double-acting industrial component featuring a 25 mm piston diameter and a 40 mm stroke, designed in accordance with the ISO 21287 standard. Operating on dried compressed air within a working pressure range of 0.6 to 10 bar, this unit delivers a theoretical advance force of 295 N and a return force of 247 N at 6 bar. It incorporates flexible cushioning rings at both ends, a female M6 piston rod thread, and position detection capabilities for proximity sensors across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 539449 is a double-acting industrial component featuring a 25 mm piston diameter, a 30 mm stroke, and an M6 female piston rod thread based on ISO 21287. Operating at a working pressure of 0.6 to 10 bar with dried compressed air, this single-ended piston rod unit delivers a theoretical advance force of 295 N and a return force of 247 N at 6 bar. It incorporates flexible cushioning rings at both ends, position detection for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo 539448 is an ISO 21287 compliant double-acting industrial component featuring a 25 mm piston diameter, a 25 mm stroke, and an M6 female piston rod thread. Operating on dried compressed air within a 0.6 to 10 bar pressure range and an ambient temperature range of -10 to 60 °C, this single-ended piston rod unit incorporates flexible cushioning rings at both ends with a 0.24 J end-position impact energy. It delivers theoretical forces of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, while supporting position detection via proximity sensors in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 539447 is a double-acting industrial component featuring a 25 mm piston diameter, a 20 mm stroke, and an M6 female piston rod thread based on the ISO 21287 standard. Operating on dried compressed air between 0.6 and 10 bar, this single-ended piston rod unit delivers a theoretical advance force of 295 N and a return force of 247 N at 6 bar. It incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
View product details →Festo
The Festo 539446 is a double-acting industrial component featuring a 25 mm piston diameter, a 15 mm stroke, an M6 female piston-rod thread, and a single-ended piston rod based on the ISO 21287 standard. Operating on dried compressed air within a working pressure range of 0.6 to 10 bar, this unit delivers a theoretical advance force of 295 N and return force of 247 N at 6 bar. It incorporates flexible cushioning rings at both ends, position detection for proximity sensors, a CRC 2 corrosion resistance classification, and an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 539445 is a double-acting industrial component featuring a 25 mm piston diameter and a 10 mm stroke based on the ISO 21287 standard. Operating on dried compressed air within a working pressure range of 0.6 to 10 bar, this unit includes flexible cushioning rings at both ends, an M6 female piston rod thread, and position detection capabilities for proximity sensors. It delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
Manufactured by Festo, this double-acting industrial component features a 25 mm piston diameter, a 5 mm stroke, and an M6 female piston rod thread based on ISO 21287. Designed with a single-ended piston rod, piston, piston rod, and cylinder barrel, it operates on dried compressed air at working pressures from 0.6 to 10 bar within an ambient temperature range of -10 to 60 °C. The unit includes flexible cushioning rings at both ends for position detection via proximity sensors and delivers a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 539443 is a double-acting industrial component featuring a 20 mm piston diameter, a 60 mm stroke, and an M6 female piston rod thread based on ISO 21287. Operating on dried compressed air between 0.6 and 10 bar, this unit delivers theoretical forces of 188 N on the advance stroke and 141 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, position detection for proximity sensors, and a corrosion resistance classification of CRC 2 for ambient temperatures from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 539442 is a double-acting industrial component featuring a 20 mm piston diameter, a 50 mm stroke, and an M6 female piston rod thread based on ISO 21287. Operating at pressures from 0.6 to 10 bar with dried compressed air, this single-ended piston rod cylinder delivers a theoretical advance force of 188 N and a return force of 141 N at 6 bar. It incorporates flexible cushioning rings at both ends for 0.16 J impact energy in end positions, position detection for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →Festo
This Festo industrial component, part number 539441, is a double-acting piston cylinder designed with a 20 mm piston diameter, a 40 mm stroke, and an M6 female thread on the piston-rod end based on the ISO 21287 standard. Operating on dried compressed air within a working pressure range of 0.6 to 10 bar, the unit features flexible cushioning rings at both ends, position detection capability for proximity sensors, and a corrosion resistance classification of CRC 2. It delivers a theoretical force of 188 N on the advance stroke and 141 N on the return stroke at 6 bar across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo
The Festo 539440 is a double-acting industrial component featuring a 20 mm piston diameter, a 30 mm stroke, and an M6 female piston rod thread based on the ISO 21287 standard. Operating within a pressure range of 0.6 to 10 bar on dried compressed air, it delivers a theoretical force of 188 N on the advance stroke and 141 N on the return stroke at 6 bar. This unit incorporates flexible cushioning rings at both ends, position detection for proximity sensors, a CRC 2 corrosion resistance classification, and an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo industrial component, part number 539439, is a double-acting compact cylinder featuring a 20 mm piston diameter, a 25 mm stroke, and an ISO 21287 design structure with a female M6 piston rod thread. Operating on dried compressed air at working pressures from 0.6 to 10 bar, the unit provides flexible cushioning rings at both ends, position detection for proximity sensors, and theoretical forces of 188 N on the advance stroke and 141 N on the return stroke at 6 bar. It functions within an ambient temperature range of -10 to 60 °C and exhibits a CRC 2 corrosion resistance classification, a moving mass of 20 g at 0 mm stroke, and an additional weight of 17 g per 10 mm stroke. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 539438 is a double-acting industrial component featuring a 20 mm piston diameter, a 20 mm stroke, and a female M6 piston rod thread based on the ISO 21287 standard. Operating within a pressure range of 0.6 to 10 bar using dried compressed air, this unit incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a corrosion resistance classification of CRC 2. It delivers a theoretical return force of 141 N and a theoretical advance force of 188 N at 6 bar across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 539437 is a double-acting industrial component featuring a 20 mm piston diameter and a 15 mm stroke, constructed with a piston, piston rod, and cylinder barrel based on the ISO 21287 standard. Operating on dried compressed air within a working pressure range of 0.6 to 10 bar, this variant incorporates an M6 female piston rod thread, flexible cushioning rings at both ends, and position detection capabilities for proximity sensors. It delivers theoretical forces of 188 N on the advance stroke and 141 N on the return stroke at 6 bar while functioning across an ambient temperature range of -10 to 60 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo 539436 is a double-acting industrial component featuring a 20 mm piston diameter and a 10 mm stroke based on ISO 21287 standards. This single-ended piston rod design operates on dried compressed air, lubricated or unlubricated, across a working pressure range of 0.6 to 10 bar and an ambient temperature range of -10 to 60 °C. It incorporates flexible cushioning rings at both ends, a female M6 piston-rod end, and position detection capabilities for proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 539435 is a double-acting industrial component featuring a 20 mm piston diameter and a 5 mm stroke, built to the ISO 21287 standard with a single-ended piston rod and female M6 thread. Operating at working pressures between 0.6 and 10 bar on dried compressed air, this unit utilizes flexible cushioning rings at both ends and includes position detection capabilities for proximity sensors. It delivers a theoretical force of 188 N on the advance stroke and 141 N on the return stroke at 6 bar, with a CRC 2 corrosion resistance classification and an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

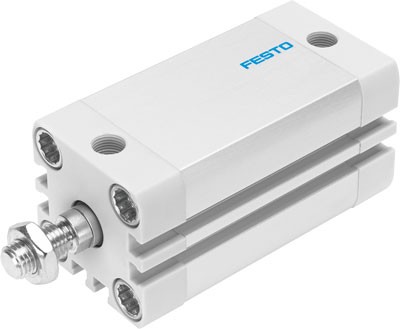

The Festo part number 539434 is a double-acting industrial component featuring a 20 mm piston diameter and an 80 mm stroke based on the ISO 21287 standard. Operating on dried compressed air within a working pressure range of 0.6 to 10 bar, this unit delivers a theoretical force of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, position detection for proximity sensors, and an M12x1,25 male piston-rod thread for any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
