Festo
The Festo part number 538244 is an industrial component featuring a safety function for stopping a linear movement with a static holding force of 8,000 N and a round material to be clamped of 25 mm. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 3.8 to 8 bar, this assembly operates in any position utilizing clamping with a spring and release with compressed air at a minimum release pressure of 3.8 bar. Certified by the IFA under department 0404021 with performance level Kat. 1, PLc, the unit weighs 15,600 g and incorporates NBR and TPE-U(PU) seals with a CRC corrosion resistance classification of 0. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 538817 is a Reed magnetic industrial component designed for T-slot mounting with a bipolar switch output and a normally open contact switching element function. It operates within an ambient temperature range of -5 to 60 °C, supporting AC and DC operating voltage ranges of 5 to 250 V with a maximum output current of 120 mA, a reproducibility of +/- 0,1 mm, and copper- and PTFE-free materials. Compliance includes the CE symbol according to the EU-EMV guideline and EU low voltage guideline, while lacking short-circuit strength and overload withstand capability. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 539433 is a double-acting industrial component featuring a 50 mm piston diameter, a 60 mm stroke, and an M12x1,25 male piston rod thread designed according to ISO 21287. Operating on dried compressed air within a 0.6 to 10 bar working range, it delivers theoretical forces of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar. This unit incorporates flexible cushioning rings at both ends, position detection for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 538243 is an industrial component designed to stop linear movement utilizing a clamping mechanism at both ends that operates via spring action and releases with compressed air between 3.8 and 8 bar, featuring a maximum permissible test pressure of 10 bar, a minimum release pressure of 3.8 bar, and a static holding force of 3,200 N for 20 mm round material. Built with NBR and TPE-U(PU) seal materials in any assembly position, this unit weighs 4,515 g, exhibits a corrosion resistance classification CRC of 0, operates within an ambient temperature range of -10 to 60 °C using compressed air conforming to ISO8573-1:2010 [7:4:4], and includes a G1/4 release connection for the clamping unit along with internal female thread or accessory mounting. Authorized by IFA with certificate issuing department IFA 0404023, it achieves Kat. 1, PLc performance level and complies with the EU machines guideline bearing the CE symbol while maintaining RoHS conformance. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

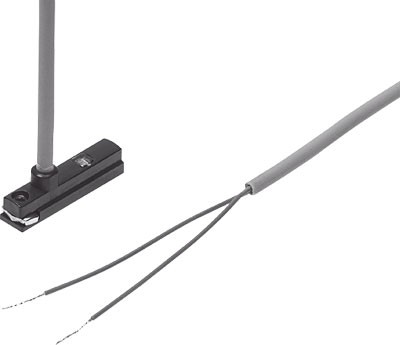

The Festo part number 538816 is a Reed magnetic industrial component designed for T-slot mounting with a reproducibility of switching value of +/- 0,1 mm. It features a bipolar contact switch output with a normally open contact function, operating within an ambient temperature range of -5 to 60 °C and an AC or DC operating voltage range of 5 to 250 V. This copper- and PTFE-free component carries the CE symbol according to the EU-EMV guideline and EU low voltage guideline, handling a max output current of 120 mA and a max switching frequency of 50 Hz. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

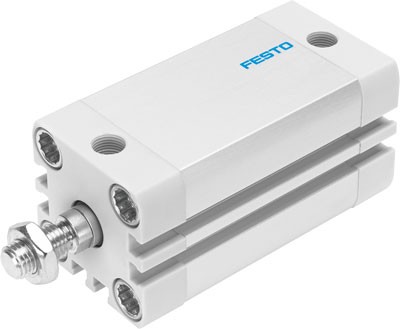

The Festo 539432 is a double-acting industrial component featuring a 50 mm piston diameter and a 50 mm stroke, designed in accordance with the ISO 21287 standard. Operating on dried compressed air with a working pressure range of 0.6 to 10 bar, this unit incorporates flexible cushioning rings at both ends and provides position detection for proximity sensors. It delivers a theoretical force of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar, utilizing a single-ended piston rod with an M12x1,25 male thread. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 538242 is an industrial component engineered to stop linear movement utilizing a clamping mechanism at both ends that clamps with a spring and releases with compressed air at a minimum release pressure of 3.8 bar within a working pressure range of 3.8 to 8 bar. Designed for a 16 mm round material to be clamped, this unit delivers a static holding force of 1,300 N, achieves a performance level of Kat. 1, PLc with IFA authorization, and features a G1/8 release connection with NBR and TPE-U(PU) seals. Operating on compressed air according to ISO8573-1:2010 [7:4:4] across an ambient temperature of -10 to 60 °C, the 1,860 g assembly accommodates any assembly position and mounts via internal thread or accessories. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 539431 is a double-acting industrial component featuring a 50 mm piston diameter, a 40 mm stroke, and an M12x1,25 male piston rod thread based on the ISO 21287 standard. Operating on dried compressed air within a 0.6 to 10 bar working range and -10 to 60 °C ambient temperatures, it delivers a theoretical force of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar. This unit incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a CRC 2 corrosion resistance classification with any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
View product details →Festo
The Festo 538241 is a double-acting industrial component featuring a 100 mm piston diameter, an adjustable stroke length from 10 to 2,000 mm, and an M20x1,5 male piston rod thread designed to ISO 15552 standards. Operating within a working pressure range of 0.6 to 8 bar, this profile barrel assembly incorporates adjustable pneumatic cushioning at both ends and integrated clamping at both ends that uses a spring to clamp and compressed air to release. Certified to Cat. 1, PLc under the EU machines guideline with IFA authorization and certificate 0404020, it provides a safety function for stopping linear movement via proximity sensor position detection in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 539430 is a double-acting industrial component featuring a 50 mm piston diameter, a 30 mm stroke, and a male M12x1,25 piston rod thread based on the ISO 21287 standard. Operating on dried compressed air at working pressures from 0.6 to 10 bar, this unit delivers theoretical forces of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, position detection for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 538240 is a double-acting industrial component featuring a 63 mm piston diameter, an M16x1,5 piston rod thread, and an adjustable pneumatic cushioning (PPV) at both ends designed for a stroke length of 10 to 2,000 mm. Built on the ISO 15552 standard with a profile barrel design structure and male piston-rod end, it operates within a working pressure range of 0.6 to 8 bar and includes an integrated safety function for stopping linear movement at Cat. 1, PLc performance levels authorized by the IFA. This unit incorporates a clamping type at both ends utilizing spring action and compressed air release, position detection for proximity sensors, and an assembly position that can be oriented in any direction. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 539429 is a double-acting industrial component featuring a 50 mm piston diameter, a 25 mm stroke, and an M12x1,25 male piston rod thread based on the ISO 21287 standard. Operating on dried compressed air at working pressures between 0.6 and 10 bar, this unit delivers theoretical forces of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures of -10 to 60 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →Festo

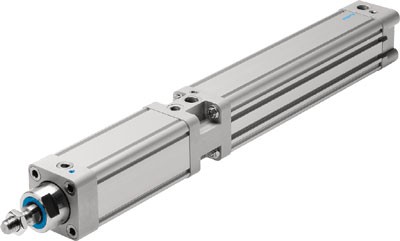

The Festo 538239 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke range of 10 to 2,000 mm, and an M12x1,25 piston rod thread based on the ISO 15552 standard. Designed with a profile barrel, male piston-rod end, and adjustable pneumatic cushioning at both ends, it operates within a working pressure range of 0.6 to 8 bar and incorporates a safety function for stopping linear movement rated at Cat. 1, PLc under EU machines guidelines with IFA authorization. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo
The Festo 539428 is a double-acting industrial component featuring a 50 mm piston diameter, a 20 mm stroke, and an M12x1,25 piston rod thread built to ISO 21287 standards. Operating on dried compressed air within a 0.6 to 10 bar working range, it delivers a theoretical advance force of 1,178 N and return force of 1,057 N at 6 bar. This unit incorporates flexible cushioning rings at both ends, position detection for proximity sensors, and a CRC 2 corrosion resistance classification for temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 539427 is a double-acting industrial component featuring a 50 mm piston diameter, a 15 mm stroke, and a male M12x1,25 piston rod thread based on ISO 21287. Operating on dried compressed air at working pressures from 0.6 to 10 bar, this unit delivers a theoretical return force of 1,057 N and an advance force of 1,178 N at 6 bar. It incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures between -10 and 60 °C. Request a quote today by providing the exact part number, required quantity, and your specific application parameters.
View product details →Festo
The Festo 539426 is a double-acting industrial component featuring a 50 mm piston diameter and a 10 mm stroke based on the ISO 21287 standard. Operating on dried compressed air within a 0.6 to 10 bar working range, it delivers a theoretical force of 1,178 N on the advance stroke and 1,057 N on the return stroke at 6 bar. This unit incorporates flexible cushioning rings at both ends, position detection for proximity sensors, a male M12x1,25 piston rod thread, and a CRC 2 corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo 539425 is a double-acting industrial component featuring a 40 mm piston diameter, an 80 mm stroke, and an M10x1,25 male piston rod thread based on the ISO 21287 standard. Operating on dried compressed air within a 0.6 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and position detection for proximity sensors. It delivers a theoretical force of 754 N on the advance stroke and 686 N on the return stroke at 6 bar, with a moving mass of 55 g at 0 mm stroke and a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 539424 is a double-acting industrial component featuring a 40 mm piston diameter, a 60 mm stroke, and an M10x1,25 piston rod thread based on the ISO 21287 standard. Operating on dried compressed air at working pressures from 0.6 to 10 bar, this unit delivers theoretical forces of 754 N on the advance stroke and 686 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 539423 is a double-acting industrial component featuring a 40 mm piston diameter and a 50 mm stroke based on the ISO 21287 standard. Operating on dried compressed air within a 0.6 to 10 bar working pressure range, this unit utilizes flexible cushioning rings at both ends and includes a male M10x1,25 piston rod thread. It provides theoretical forces of 754 N on the advance stroke and 686 N on the return stroke at 6 bar while accommodating ambient temperatures from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

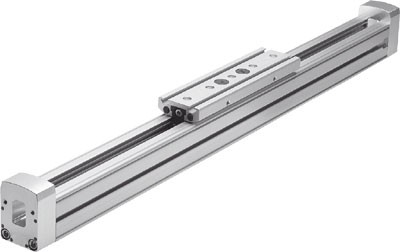

The Festo part number 538793 is an industrial component guide featuring a size 63 roller guide design structure with a steel guide rail, PA cover caps, and a stroke range of 1 to 5,000 mm alongside a 244 mm stroke reserve. This unit operates in any assembly position at a maximum speed of 10 m/s and acceleration of 50 m/s2 within an ambient temperature range of 0 to 60 °C, exhibiting a displacement force of 5 to 30 N and an additional weight of 138.4 g per 10 mm of stroke. It supports a maximum force Fy and Fz of 600 N each, a maximum torque Mx of 65 Nm, area moments of inertia Ix of 16,640E+03 mm4 and Iy of 5,997E+03 mm4, and includes a copper- and PTFE-free materials note with mounting via accessories. Submit the exact part number, quantity, and application requirements to request a quote.
