Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 536891 is an industrial component featuring a Size 6 MS series design structure with a fiber filter, vertical +/- 5 degrees assembly position, and plastic bowl guard weighing 600 g. This unit achieves a 0.01 µm filtration grade with 99.9999% filter efficiency, delivering an air purity class of 1.7.2 per DIN ISO 8573-1, a standard nominal flow rate of 430 l/min, and a residual oil content of 0.01 mg/m3 when operating with filtered, unlubricated compressed air at an inlet pressure of 0 to 20 bar. Additional features include a manual rotary condensate drain with a 38 cm3 maximum volume, a visual differential pressure display, and a corrosion resistance classification CRC of 2 for operating, storage, and ambient temperatures ranging from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

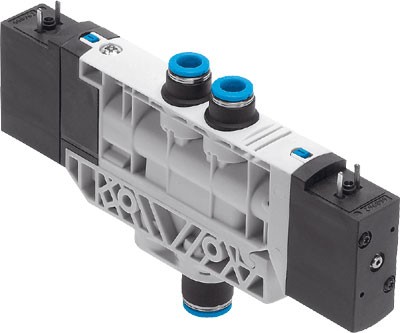

The Festo part number 537482 is an electrical 4/2 bistable industrial component featuring a 20 mm valve size, a 7 mm nominal size, and a piston slide design structure with soft seals. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 8 bar, utilizing external pilot air supply with a 2 to 8 bar pilot pressure and 24 V DC 1.5 W characteristic coil data. Constructed with an IP65 protection class, this non-reversible unit supports any assembly position, features detenting and pushing manual override, and achieves a 20 ms switching time reversal. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

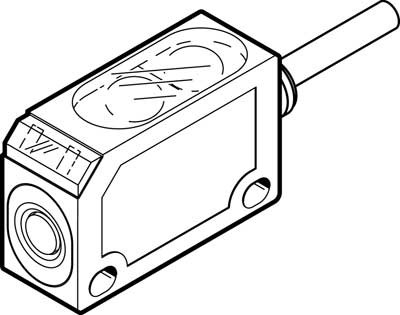

The Festo 537760 is a block-design optoelectronic retro-reflective sensor conforming to EN 60947-5-2 with RCM and c UL us - Listed (OL) authorizations and a CE symbol according to the EU-EMV guideline. Featuring a copper- and PTFE-free materials note, this component utilizes polarized red light to measure position within a working range of 70 to 3,000 mm, producing a maximum spot diameter of 1 mm at a 300 mm sensing range. Operating on a 10 to 30 V DC voltage range, it includes a switchable PNP switch output with a maximum switching frequency of 4,000 Hz, a 100 mA max output current, pulsing short circuit strength, and a voltage drop of 2.4 V or less across an ambient temperature range of -20 to 60 °C using a 51 x 51 mm laser reflector as reference material. Submit the exact part number, quantity, and application requirements to receive an official quote.
View product details →Festo

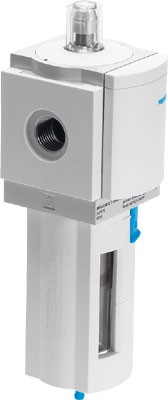

The Festo 536890 is a Size 6 industrial component from the MS series featuring a fiber filter design structure with a manual rotary condensate drain and a plastic bowl guard. It operates with a standard nominal flow rate of 380 l/min, a 0.01 µm grade of filtration, and a 99.9999 % filter efficiency for filtered, unlubricated compressed air. This unit weighs 600 g, achieves an air purity class of 1.7.2 per DIN ISO 8573-1 with a residual oil content of 0.01 mg/m3, and includes a visual differential pressure display for inlet pressures ranging from 0 to 20 bar within a temperature span of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo

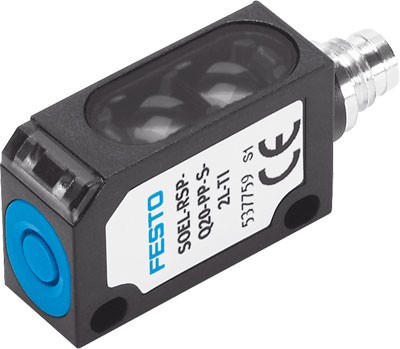

This Festo industrial component, part number 537759, features an optoelectronic retro-reflective sensor design complying with EN 60947-5-2 and utilizing polarized red light within a working range of 70 to 3,000 mm. Operating on a 10 to 30 V DC voltage range with a residual ripple of 10%, the block design unit incorporates a switchable PNP switch output supporting a max switching frequency of 4,000 Hz, a max output current of 100 mA, and pulsing short circuit strength. The unit is free of copper and PTFE, holds RCM Mark and c UL us - Listed (OL) authorizations, carries a CE symbol according to the EU-EMV guideline, and functions within an ambient temperature of -20 to 60 °C using a 51 x 51 mm laser reflector as reference material. Submit part number 537759, quantity, and application requirements to receive an RFQ quote.
View product details →Festo
The Festo part number 537758 is an optoelectronic distance sensor featuring a block design and a working range of 20 to 80 mm for travel measurement. This component utilizes red light with a max. spot diameter of 5 x 5 mm at a 60 mm sensing range, operating on a 15 to 30 V DC voltage range with an ambient temperature tolerance of 0 to 60 °C. It provides a travel resolution of 0.5 mm, a PNP switch output with a switchable switching element function, a max. switching frequency of 200 Hz, a max. output current of 100 mA, and a 0 - 10 V analog output while being free of copper and PTFE. Authorized by RCM Mark and c UL us - Listed (OL) with a CE symbol according to the EU-EMV guideline, this unit includes pulsing short-circuit strength and a voltage drop of ≤ 2.4 V. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo

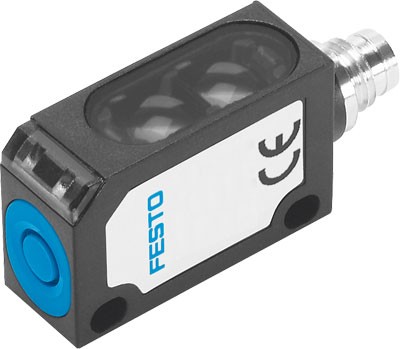

The Festo 537757 is a block-design industrial component utilizing an optoelectronic distance sensor measuring principle with red light to monitor travel across a working range of 20 to 60 mm, featuring a max spot diameter of 5 x 5 mm, a travel resolution of 0.5 mm, and copper- and PTFE-free materials. Operating on a 15 to 30 V DC voltage range, it includes a PNP switch output, a max switching frequency of 200 Hz, a max output current of 100 mA, and a 0 to 10 V analog output while carrying c UL us - Listed (OL) and RCM Mark authorizations with CE compliance according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo

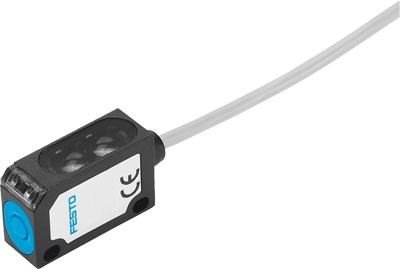

The Festo 537754 is an optoelectronic retro-reflective sensor featuring a block design that conforms to EN 60947-5-2 and is free of copper and PTFE. Operating on 10 to 30 V DC, this component utilizes polarized red light with a working range of 5 to 500 mm to measure position on transparent objects via a PNP switch output with a maximum switching frequency of 1,000 Hz. It carries RCM Mark and c UL us - Listed (OL) authorizations while featuring a CE symbol according to the EU-EMV guideline and an ambient temperature range of -20 to 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo
The Festo 537753 is an optoelectronic retro-reflective sensor featuring a block design and a working range of 5 to 500 mm with polarized red light for detecting transparent objects. Conforming to EN 60947-5-2 with an RCM Mark and c UL us - Listed authorization, this component operates on 10 to 30 V DC with a PNP switch output, 1,000 Hz max. switching frequency, and pulsing short circuit strength. Its copper- and PTFE-free materials note and ambient temperature range of -20 to 60 °C support reliable positioning measurements according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 537752 is an optoelectronic retro-reflective sensor featuring a block design that conforms to EN 60947-5-2 standards. It utilizes polarized red light with a maximum spot diameter of 75 by 75 millimeters at 2 meters, operating within a working range of 0 to 2,500 millimeters across ambient temperatures from -20 to 60 degrees Celsius. The component operates on a 10 to 30 VDC voltage range and provides an NPN switch output with a maximum switching frequency of 1,000 Hz, a maximum output current of 100 mA, and pulsing short circuit strength. Materials are free of copper and PTFE, carrying RCM and c UL us listings along with a CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo 537475 is a 20 mm electrical industrial component featuring a 4/2 bistable valve function with a piston slide design structure and soft sealing principle. Operating at a working and pilot pressure range of 2 to 8 bar, this piloted unit delivers a standard nominal flow rate of 800 l/min with a nominal size of 7 mm, internal pilot air supply, and non-reversible flow direction. It includes a detenting and pushing manual override, IP65 protection class, and a 24 V DC characteristic coil data drawing 1.5 W with a 20 ms switching time reversal, 0.8 kV surge strength, and degree of contamination 3 rating for any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537751 is a block design optoelectronic retro-reflective sensor conforming to EN 60947-5-2 with RCM Mark and c UL us - Listed (OL) authorizations and a CE symbol according to the EU-EMV guideline. Featuring a polarized red light type with a working range of 0 to 2,500 mm, a max. spot diameter of 75 x 75 mm at 2 m, and copper- and PTFE-free materials, this sensor measures position across an ambient temperature range of -20 to 60 °C using an 84 mm diameter reflector as reference material. It operates on a 10 to 30 V DC voltage range with an NPN switch output, switchable switching element function, max. switching frequency of 1,000 Hz, max. output current of 100 mA, voltage drop <= 2.4 V, and pulsing short circuit strength. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo 537474 is a 20 mm industrial component featuring a 4/2 bistable valve function and an electrical actuation type with internal pilot air supply. Built with a piston slide design structure and soft sealing principle, this piloted unit delivers a standard nominal flow rate of 500 l/min across a working and pilot pressure range of 2 to 8 bar. It operates on 24 V DC at 1.5 W with an IP65 protection class, a 7 mm nominal size, and a 20 ms switching time reversal. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537750 is an optoelectronic retro-reflective sensor featuring a block design that conforms to EN 60947-5-2 with RCM Mark and c UL us - Listed (OL) authorizations, and a CE symbol according to the EU-EMV guideline. Built with copper- and PTFE-free materials, this sensor utilizes polarized red light to measure position across a 0 to 2,500 mm working range using an 84 mm diameter reflector as reference material within an ambient temperature range of -20 to 60 °C. It provides a switchable PNP switch output with a maximum switching frequency of 1,000 Hz, a maximum output current of 100 mA, a voltage drop of 2.4 V or less, pulsing short circuit strength, a 10 to 30 V DC operating voltage range, and 10% residual ripple. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo

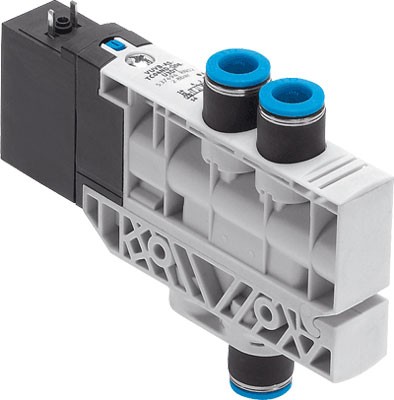

The Festo 537473 is a 20 mm electrical industrial component featuring a 4/2 monostable valve function and a piston slide design structure. Operating with a standard nominal flow rate of 800 l/min across a working pressure range of 2 to 8 bar, this unit utilizes an internal pilot air supply with an air spring reset mechanism. It includes an IP65 protection class, soft sealing principle, detenting and pushing manual override, and a 24 V DC 1.5 W coil operating with equal 25 ms switching times on and off. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 537749 is an optoelectronic retro-reflective sensor featuring a block design and polarized red light with a working range of 0 to 2,500 mm using an 84 mm diameter reference reflector. Conforming to EN 60947-5-2 and carrying RCM and c UL us - Listed (OL) authorizations alongside CE compliance per the EU-EMV guideline, this component operates on 10 to 30 V DC with a PNP switchable output, 1,000 Hz maximum switching frequency, and pulsing short-circuit strength across an ambient temperature range of -20 to 60 °C. Constructed free of copper and PTFE, it provides position measurement with a maximum output current of 100 mA and 10% residual ripple. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537472 is an electrical 4/2 monostable industrial component featuring a 20 mm valve size, a piston slide design structure, and a standard nominal flow rate of 500 l/min. Operating with an internal pilot air supply, it utilizes an air spring reset, a soft sealing principle, and a working and pilot pressure range of 2 to 8 bar. This IP65-rated unit delivers equal on and off switching times of 25 ms, non-reversible flow direction, and characteristic coil data of 24 V DC at 1.5 W with detenting or pushing manual override. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537748 is a block design optoelectronic through-beam sensor receiver utilizing red light with a working range of 0 to 6,000 mm. Operating on a DC voltage range of 10 to 30 V, this EN 60947-5-2 compliant component features an NPN switch output, a maximum switching frequency of 500 Hz, and a maximum output current of 100 mA within an ambient temperature range of -20 to 60 °C. Constructed free of copper and PTFE, it includes pulsing short-circuit strength, a switchable switching element function, and bears the RCM Mark, c UL us - Listed (OL) authorizations, and CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

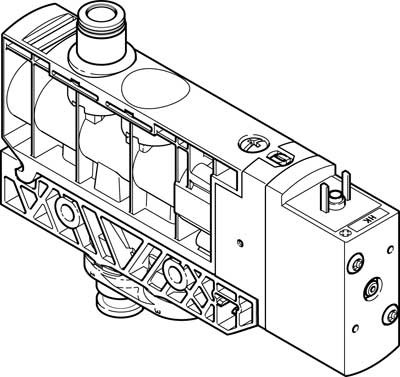

The Festo 537471 is an electrical industrial component featuring a 3/2 open, monostable piston slide valve design with a 20 mm valve size and a 7 mm nominal size. Operating at a working and pilot pressure range of 2 to 8 bar, this piloted unit delivers a standard nominal flow rate of 800 l/min utilizing internal pilot air supply, soft sealing, and an air spring reset mechanism with 20 ms switching times. It is equipped with detenting and pushing manual override, non-reversible flow direction, an IP65 protection class, and operates on 24 V DC characteristic coil data at 1.5 W in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 537747 is an optoelectronic through-beam sensor receiver featuring a block design and red light operating across a working range of 0 to 6,000 mm. Conforming to EN 60947-5-2 with RCM and c UL us listings, this component operates on a 10 to 30 V DC voltage range and incorporates a switchable NPN switch output with a maximum switching frequency of 500 Hz. Constructed from materials free of copper and PTFE, the unit functions within an ambient temperature range of -20 to 60 °C and includes pulsing short circuit strength. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
