Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo part number 537499 is a 20 mm electrical 4/2 bistable valve featuring a piston slide design structure and soft sealing principle with a standard nominal flow rate of 1,000 l/min. This piloted component operates within a working pressure range of -0.9 to 8 bar, utilizing external pilot air supply at 2 to 8 bar, a nominal size of 7 mm, and a 24 V DC 1.5 W characteristic coil data with IP65 protection class. Additional specifications include an assembly position of any, detenting or pushing manual override, non-reversible flow direction, non-throttleable exhaust-air function, 0.8 kV surge strength, degree of contamination 3, and a 20 ms switching time reversal. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 537777 is an optoelectronic industrial component utilizing a diffuse reflection sensor with background suppression and pulsed red 650 nm laser light to measure position within a 50 to 300 mm working range. This block design sensor conforms to EN 60947-5-2, features copper- and PTFE-free materials, carries RCM and c UL us - Listed (OL) authorizations, and complies with the EU-EMV guideline. Operating on a 10 to 30 V DC voltage range, it delivers a PNP antivalent switch output with a maximum switching frequency of 2,500 Hz, a maximum output current of 200 mA, and pulsing short circuit strength. Submit your required quantity and application details for an official price and lead-time quote on part number 537777.
View product details →Festo

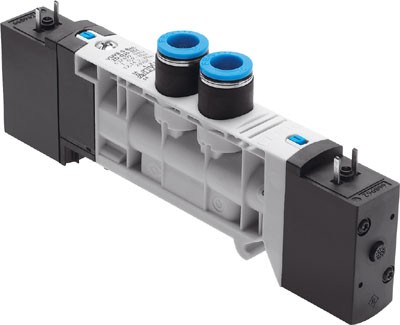

The Festo 537498 is an electrical 4/2 bistable industrial component featuring a 20 mm valve size, a piston slide design structure, and a soft sealing principle. It delivers a standard nominal flow rate of 800 l/min across a working pressure range of -0.9 to 8 bar, utilizing an external pilot air supply with a pilot pressure of 2 to 8 bar and characteristic coil data of 24 V DC at 1.5 W. The unit provides IP65 protection, a 7 mm nominal size, non-reversible flow direction, and a 20 ms switching time reversal with detenting or pushing manual override. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 537776 is an industrial component featuring a block design that conforms to standard EN 60947-5-2 and carries the RCM Mark and c UL us - Listed (OL) authorizations with a CE symbol according to the EU-EMV guideline. This optoelectronic diffuse reflection sensor with background suppression utilizes a pulsed red 650 nm laser light to measure position within a working range of 50 to 300 mm at ambient temperatures between -20 and 45 °C. The unit includes an NPN antivalent switch output operating on a 10 to 30 V DC range, delivering a maximum switching frequency of 2,500 Hz, a max output current of 200 mA, and pulsing short circuit strength while utilizing copper-free and PTFE-free materials. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537497 is an electrical 4/2 bistable industrial component featuring a 20 mm valve size and a piston slide design structure. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 8 bar, utilizing external pilot air supply with a pilot pressure of 2 to 8 bar. Operating on 24 V DC at 1.5 W with an IP65 protection class, this piloted unit includes detenting and pushing manual override functions along with a soft sealing principle. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 536904 is a size 6 industrial component from the MS series utilizing a fiber filter design structure with a vertical assembly position of +/- 5° and a product weight of 820 g. Operating within an inlet pressure range of 2 to 12 bar and a medium and ambient temperature range of 5 to 60 °C, it delivers a standard nominal flow rate of 480 l/min, a filtration grade of 0.01 µm, and a filter efficiency of 99.9999% for filtered, unlubricated compressed air with 1 µm filtration. This unit features a fully automatic condensate drain with a maximum condensate volume of 38 cm3, a metal bowl guard, a visual indicator for differential pressure display, a corrosion resistance classification CRC of 2, and achieves an air purity class at the output of 1.7.2 per DIN ISO 8573-1 with a residual oil content of 0.01 mg/m3. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

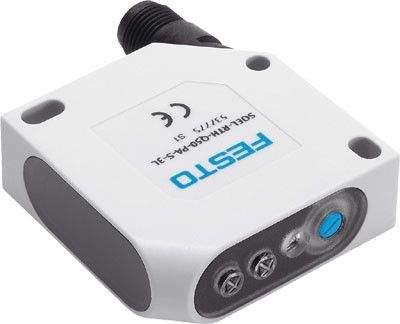

The Festo 537775 is an optoelectronic industrial component utilizing a diffuse reflection sensor with background suppression and pulsed red laser light at 650 nm for position measurement within a 50 to 300 mm working range. Built in a block design conforming to EN 60947-5-2, this unit operates on a 10 to 30 V DC voltage range and features a PNP antivalent switch output supporting a max switching frequency of 2,500 Hz and 200 mA output current with pulsing short circuit strength. Materials are free of copper and PTFE, while compliance includes RCM Mark, c UL us - Listed (OL), and CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537496 is an electrical 4/2 bistable industrial component featuring a 20 mm valve size, a piston slide design structure, and a standard nominal flow rate of 200 l/min. Operating with an external pilot air supply and a working pressure ranging from -0.9 to 8 bar, this unit utilizes soft sealing principles and includes a detenting and pushing manual override. It requires a 24 V DC, 1.5 W characteristic coil, achieves a 20 ms switching time reversal, and maintains an IP65 protection class in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 536903 is an industrial component from the MS series, size 6, utilizing a fiber filter design structure with a vertical assembly position tolerance of +/- 5°. This unit operates with an inlet pressure of 2 to 12 bar, providing a standard nominal flow rate of 430 l/min, a 0.01 µm grade of filtration, and 99.9999 % filter efficiency for filtered, unlubricated compressed air with 1 µm filtration. Features include a fully automatic condensate drain with a 38 cm3 maximum condensate volume, a visual indicator for differential pressure display, a metal bowl guard, a corrosion resistance classification CRC of 2, a product weight of 820 g, and an output air purity class of 1.7.2 per DIN ISO 8573-1 at a residual oil content of 0.01 mg/m3 within a medium and ambient temperature range of 5 to 60 °C and storage temperature of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 537774 is an optoelectronic industrial component featuring a block design and a diffuse reflection sensor with background suppression that conforms to EN 60947-5-2. This red-light sensor operates within a 30 to 300 mm working range at ambient temperatures from -20 to 60 °C, utilizing an NPN antivalent switch output with a maximum switching frequency of 1,000 Hz and pulsing short-circuit strength. Authorized by RCM Mark and c UL us - Listed (OL) with a CE symbol according to the EU-EMV guideline, the copper- and PTFE-free unit maintains a maximum grey tone shift of 8 % at a 200 mm spot diameter of 8 x 8 mm. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
The Festo 537495 is a 20 mm electrical industrial component featuring a 4/2 monostable valve function and a piston slide design structure with a soft sealing principle. Operating within a working pressure range of -0.9 to 8 bar, this piloted valve delivers a standard nominal flow rate of 1,000 l/min using an external pilot air supply with 2 to 8 bar pilot pressure and an air spring reset. It is built with an IP65 protection class, a 7 mm nominal size, non-reversible flow direction, detenting and pushing manual override, non-throttleable exhaust-air function, 25 ms on and off switching times, and 24 V DC at 1.5 W characteristic coil data for any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 536902 is a size 6 MS-series industrial component featuring a fiber filter design with a 0.01 µm filtration grade, a 99.9999% filter efficiency, and a fully automatic condensate drain supporting a maximum condensate volume of 38 cm3. Operating within an inlet pressure range of 2 to 12 bar and a standard nominal flow rate of 380 l/min, this unit delivers filtered, unlubricated compressed air at an air purity class of 1.7.2 per DIN ISO 8573-1 with a residual oil content of 0.01 mg/m3. It includes a metal bowl guard, a visual differential pressure display, and a CRC corrosion resistance classification of 2, functioning in medium and ambient temperatures between 5 and 60 °C with a vertical +/- 5° assembly position and a product weight of 820 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

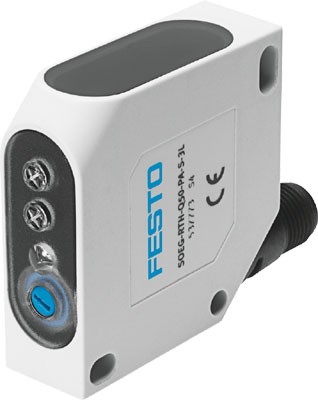

The Festo 537773 is an optoelectronic diffuse reflection sensor with background suppression featuring a block design and red light type. Operating within a 30 to 300 mm working range, this component conforms to EN 60947-5-2, carries RCM and c UL us listings, and complies with the EU-EMV guideline with copper- and PTFE-free materials. It utilizes a PNP antivalent switch output capable of a 1,000 Hz max switching frequency, 200 mA max output current, and pulsing short circuit strength across an ambient temperature range of -20 to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

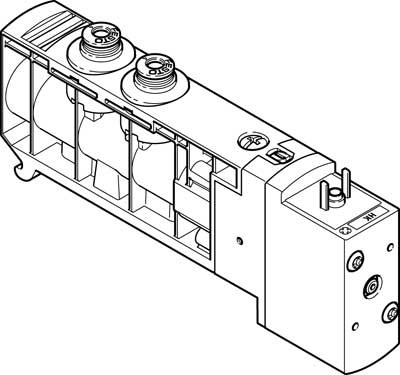

The Festo 537494 is an electrical 4/2 monostable industrial component featuring a 20 mm valve size, a piston slide design structure, and a standard nominal flow rate of 800 l/min. It operates within a working pressure range of -0.9 to 8 bar utilizing a soft sealing principle, an air spring reset, and an external pilot air supply with a pilot pressure of 2 to 8 bar. Enclosed in an IP65 protection class housing, this piloted unit includes a 24 V DC, 1.5 W coil and achieves matching on and off switching times of 25 ms. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 537772 is an optoelectronic diffuse reflection sensor with background suppression featuring a block design that conforms to EN 60947-5-2 and carries RCM and c UL us - Listed (OL) authorizations. Utilizing a red light source with a 30 to 300 mm working range, this copper-free and PTFE-free component provides a max. switching frequency of 1,000 Hz, an NPN antivalent switch output, and pulsing short circuit strength. CE marked according to the EU-EMV guideline, it operates within an ambient temperature range of -20 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537493 is a 20 mm electrical industrial component featuring a 4/2 monostable piston slide valve design with an IP65 protection class and soft sealing principle. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 8 bar, utilizing an external pilot air supply with 2 to 8 bar pilot pressure, an air spring reset, and 24 V DC 1.5 W characteristic coil data yielding 25 ms switching times. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →Festo

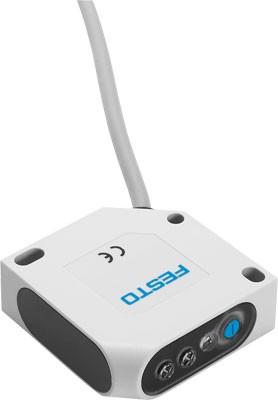

The Festo part number 537771 is an industrial block design diffuse reflection sensor featuring background suppression and an optoelectronic measuring principle with red light. It operates within a working range of 30 to 300 millimeters at ambient temperatures from -20 to 60 °C, utilizing a PNP switch output with an antivalent switching element function and a maximum switching frequency of 1,000 Hz. Constructed free of copper and PTFE, this component complies with EN 60947-5-2 and carries c UL us - Listed (OL) and RCM Mark authorizations alongside a CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537492 is a 20 mm industrial component featuring a 4/2 monostable valve function, piston slide design, and electrical actuation with 24 V DC, 1.5 W characteristic coil data. This piloted valve operates within a working pressure range of -0.9 to 8 bar and a pilot pressure of 2 to 8 bar, delivering a standard nominal flow rate of 200 l/min alongside symmetrical on and off switching times of 25 ms. Built with an IP65 protection class, soft sealing principle, and air spring reset, it supports any assembly position, external pilot air supply, non-reversible flow direction, and non-throttleable exhaust-air function with detenting and pushing manual override. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

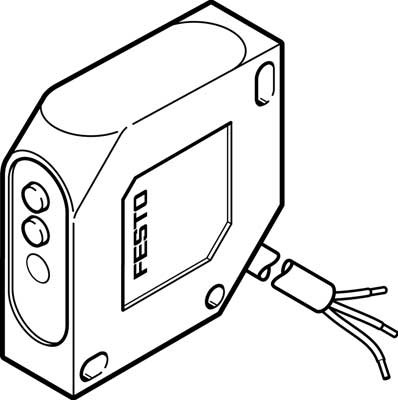

The Festo 537770 is an optoelectronic retro-reflective sensor featuring a block design that conforms to EN 60947-5-2 with RCM Mark and c UL us - Listed (OL) authorizations alongside a CE symbol according to the EU-EMV guideline. This component utilizes a pulsed red 650 nm laser light with a 0 to 20,000 mm working range, a max. spot diameter of 15 mm at an 8 m sensing range, and operates on a 10 to 30 V DC voltage range with an NPN antivalent switch output rated for a max. switching frequency of 2,500 Hz and 200 mA output current. Constructed copper- and PTFE-free, the unit functions within an ambient temperature range of -20 to 45 °C and includes pulsing short circuit strength. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

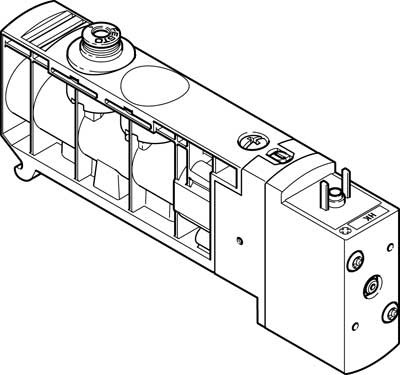

The Festo 537491 is a 20 mm electrical industrial component featuring a 3/2 open, monostable valve function and a piston slide design structure with soft sealing. It delivers a standard nominal flow rate of 1,000 l/min across a working pressure range of -0.9 to 8 bar using external pilot air supply with a pilot pressure of 2 to 8 bar, an air spring reset, and a 24 V DC, 1.5 W coil. The unit achieves 20 ms switching times for both on and off states, incorporates detenting and pushing manual override, features non-reversible flow direction, supports any assembly position, and provides IP65 protection class. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
