Festo

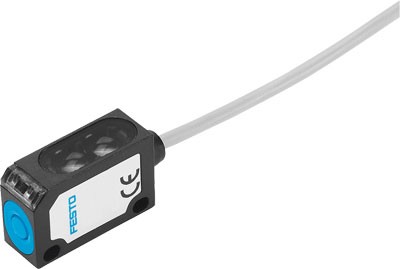

The Festo part number 537724 is a block-design optoelectronic diffuse reflection sensor with background suppression that conforms to EN 60947-5-2 and features RCM Mark and c UL us - Listed (OL) authorizations alongside a CE symbol according to the EU-EMV guideline. Fabricated copper-free and PTFE-free, this component measures position using red light with a working range of 25 to 100 mm, a maximum spot diameter of 5 x 5 mm at a 60 mm sensing range, and a maximum grey tone shift of 7 % based on 18 % reference material within an ambient temperature of -20 to 60 °C. It provides a switchable PNP switch output with a maximum switching frequency of 1,000 Hz, a maximum output current of 100 mA, a voltage drop of 2.4 V or less, and pulsing short circuit strength. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

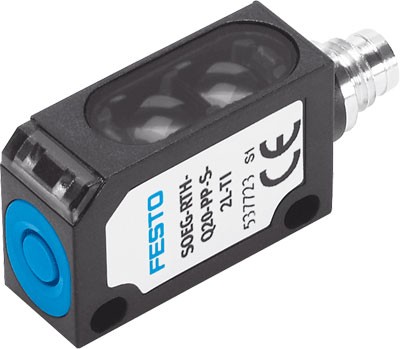

The Festo part number 537723 is an industrial component featuring a block design that conforms to EN 60947-5-2 and carries RCM Mark and c UL us - Listed (OL) authorizations with a CE symbol according to the EU-EMV guideline. This optoelectronic diffuse reflection sensor utilizes red light with background suppression to measure position across a 25 to 100 mm working range, a maximum spot diameter of 5 x 5 mm at 60 mm, a max grey tone shift of 7 %, and an 18 % reference material while operating within an ambient temperature range of -20 to 60 °C. Constructed free of copper and PTFE, it includes a switchable PNP switch output with a max switching frequency of 1,000 Hz, max output current of 100 mA, voltage drop of <= 2.4 V, and pulsing short circuit strength. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537722 is a block design optoelectronic diffuse reflection sensor with background suppression that conforms to EN 60947-5-2, featuring RCM Mark and c UL us - Listed (OL) authorizations alongside a CE symbol according to the EU-EMV guideline. This copper- and PTFE-free sensor measures position using red light across a 15 to 150 mm working range within an ambient temperature span of -25 to 55 °C. Operating on a 10 to 36 V DC voltage range with 20% residual ripple and 25 mA idle current, the unit incorporates an NPN light-switching output delivering a maximum output current of 200 mA at a 500 Hz switching frequency, 2 V maximum voltage drop, and pulsing short circuit strength. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 537721 is a block-design industrial component utilizing an optoelectronic measuring principle with a diffuse reflection sensor and background suppression for position measurement. It features a red light working range of 15 to 150 mm, an NPN light-switching output with a max switching frequency of 500 Hz, and a DC operating voltage range of 10 to 36 V while conforming to EN 60947-5-2 with RCM and c UL us - Listed authorizations. Constructed copper-free and PTFE-free, this unit operates within ambient temperatures from -25 to 55 °C and includes pulsing short-circuit strength with a max output current of 200 mA. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 536856 is an industrial component of the MS series, size 6, featuring a fiber filter design structure with a 1 µm filtration grade and 99.99% filter efficiency. This unit operates with a standard nominal flow rate of 850 l/min, an inlet pressure range of 0 to 20 bar, and a manual rotary condensate drain with a maximum condensate volume of 38 cm3. It operates within a temperature range of -10 to 60 µC, weighs 600 g, and provides an air purity class at the output of 2.7.3 per DIN ISO 8573-1. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

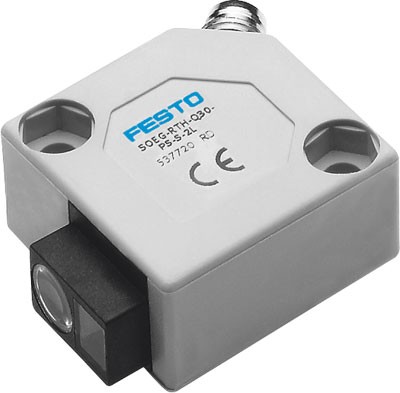

The Festo part number 537720 is an optoelectronic diffuse reflection sensor featuring background suppression and a block design conforming to EN 60947-5-2. Operating within a 15 to 150 mm working range utilizing red light, this copper-free and PTFE-free component delivers a PNP switch output with a maximum switching frequency of 500 Hz and a 200 mA max output current across a 10 to 36 VDC operating voltage range. Carrying RCM and c UL us - Listed authorizations alongside a CE symbol according to the EU-EMV guideline, it functions within an ambient temperature range of -25 to 55 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 536855 is an industrial component from the MS series, size 6, designed with a fiber filter structure requiring a vertical assembly position within plus or minus 5 degrees. It delivers a 700 l/min standard nominal flow rate across an inlet pressure range of 0 to 20 bar, achieving a 1 µm filtration grade with 99.99% filter efficiency and a 2.7.3 air purity class output per DIN ISO 8573-1. Featuring a manual rotary condensate drain, 38 cm3 max condensate volume, plastic bowl guard, and visual differential pressure display, the unit operates in ambient and medium temperatures from -10 to 60 µC while weighing 600 g with a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →Festo

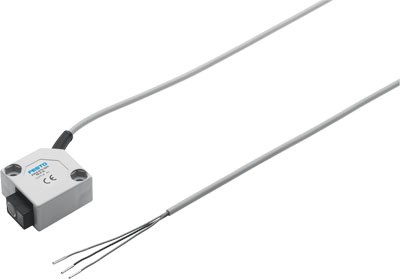

The Festo 537719 is an industrial optoelectronic diffuse reflection sensor featuring background suppression and a block design conforming to EN 60947-5-2. Operating on a 10 to 36 V DC range, this copper- and PTFE-free component utilizes red light with a working range of 15 to 150 mm, a PNP light-switching output, and a maximum switching frequency of 500 Hz. It is authorized by the RCM Mark and c UL us - Listed (OL) while carrying a CE symbol according to the EU-EMV guideline for ambient temperatures between -25 and 55 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo 536854 is an MS-series industrial component of size 6 featuring a fiber filter design structure with a 1 µm filtration grade and 99.99% filter efficiency. This unit operates with a standard nominal flow rate of 550 l/min, an inlet pressure range of 0 to 20 bar, and a manual rotary condensate drain with a maximum condensate volume of 38 cm3. Incorporating a visual differential pressure display, a plastic bowl guard, and a product weight of 600 g, the assembly functions within a medium and ambient temperature range of -10 to 60 µC and maintains a vertical +/- 5° assembly position. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
The Festo part number 536849 is an industrial component belonging to the MS series in size 6, featuring a fiber filter design structure with a 1 µm filtration grade and 99.99 % filter efficiency. This unit operates with filtered, unlubricated compressed air requiring a 5 µm inlet filtration, supporting an inlet pressure range of 2 to 12 bar and a standard nominal flow rate of 700 l/min within an ambient and medium temperature range of 5 to 60 °C. Equipped with a fully automatic condensate drain, a 38 cm3 maximum condensate volume, a metal bowl guard, and a visual differential pressure display, the 820 g component achieves an air purity class at output of 2.7.3 per DIN ISO 8573-1 with a residual oil content of 0.5 mg/m3 and CRC 2 corrosion resistance when mounted vertically within +/- 5°. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 536848 is an MS series industrial component featuring a size 6 fiber filter design structure with a 1 µm filtration grade and 99.99% filter efficiency. This unit operates with an inlet pressure of 2 to 12 bar, a standard nominal flow rate of 550 l/min, and a fully automatic condensate drain holding a maximum condensate volume of 38 cm3. Incorporating a visual differential pressure display, a metal bowl guard, and a CRC 2 corrosion resistance classification, it delivers an output air purity class of 2.7.3 per DIN ISO 8573-1 at a product weight of 820 g within an operating medium temperature range of 5 to 60 µC. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 536843 is an industrial component from the MS series in size 6, featuring a fiber filter design structure with a 1 µm filtration grade and 99.99% filter efficiency. This unit operates with an inlet pressure range of 2 to 12 bar, delivering a standard nominal flow rate of 700 l/min for filtered, unlubricated compressed air at a 5 µm filtration level, while utilizing a fully automatic condensate drain, a plastic bowl guard, and a visual differential pressure display. Engineered for a vertical assembly position within plus or minus 5 degrees, the 600 g component maintains medium and ambient temperatures between 5 and 60 µC, a storage temperature range of -10 to 60 µC, a maximum condensate volume of 38 cm3, and a corrosion resistance classification CRC of 2, producing an air purity class at the output of 2.7.3 per DIN ISO 8573-1 with a residual oil content of 0.5 mg/m3. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo part number 536837 is an MS series industrial component in size 6, featuring a fiber filter design structure with a 1 µm grade of filtration and 99.99 % filter efficiency. This assembly operates within an inlet pressure range of 0 to 20 bar, providing a standard nominal flow rate of 700 l/min and delivering an air purity class at output of 2.7.3 per DIN ISO 8573-1 with a residual oil content of 0.5 mg/m3. Additional features include a manual rotary condensate drain, a 38 cm3 maximum condensate volume, a plastic bowl guard, a visual differential pressure display, and a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 536832 is an industrial component of size 4 within the MS series, featuring a fiber filter design structure and a plastic bowl guard. It provides a filtration grade of 0.01 µm, a filter efficiency of 99.9999 %, a standard nominal flow rate of 120 l/min, and an air purity class at output of 1.7.2 per DIN ISO 8573-1 with a residual oil content of 0.01 mg/m3. Operating within a temperature range of -10 to 60 °C and an inlet pressure from 0 to 14 bar, this unit includes a manual rotary condensate drain with a 19 ml maximum condensate volume, a visual differential pressure display, and a product weight of 190 g. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 536831 is a size 4 industrial component from the MS series featuring a fiber filter design structure with a 0.01 µm grade of filtration and a 99.9999 % filter efficiency. This unit operates with a standard nominal flow rate of 120 l/min, a manual rotary condensate drain with a 19 ml maximum condensate volume, a plastic bowl guard, and a visual differential pressure display for vertical ± 5° assembly positions. It maintains an air purity class at output of 1.7.2 per DIN ISO 8573-1 with a residual oil content of 0.01 mg/m3 when supplied with filtered, unlubricated compressed air at an inlet pressure between 0 and 14 bar. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 536828 is an industrial component featuring a size 4 MS series design structure with a fiber filter, vertical +/- 5 degrees assembly position, and a standard nominal flow rate of 180 l/min. It achieves a 1 µm grade of filtration with 99.99% filter efficiency, a manual rotary condensate drain, a plastic bowl guard, and a visual differential pressure display operating across an inlet pressure of 0 to 14 bar. The unit handles an operating medium of filtered, unlubricated compressed air with 5 µm filtration, providing an air purity class at the output of 2.7.3 per DIN ISO 8573-1 and a residual oil content of 0.5 mg/m3 within a temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 190 g component.
View product details →Festo
The Festo part number 536827 is an MS series industrial component featuring a size 4 design structure with a fiber filter, a 1 µm grade of filtration, and 99.99 % filter efficiency. This unit operates within an inlet pressure range of 0 to 14 bar, delivering a standard nominal flow rate of 180 l/min for filtered, unlubricated compressed air with a 5 µm filtration requirement. It incorporates a manual rotary condensate drain, a 19 ml maximum condensate volume, a plastic bowl guard, and a visual differential pressure display, while maintaining an air purity class of 2.7.3 per DIN ISO 8573-1 and a residual oil content of 0.5 mg/m3. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 536823 is an industrial component of size 4 from the MS series featuring a fiber filter design structure and a plastic guard bowl. It delivers a standard nominal flow rate of 120 l/min, a filtration grade of 0.01 µm, a filter efficiency of 99.9999%, and achieves an air purity class at output of 1.7.2 per DIN ISO 8573-1 with a residual oil content of 0.01 mg/m3. Operating with a manual rotary condensate drain, a visual differential pressure display, and an inlet pressure range of 0 to 14 bar, this 190 g component functions within a medium and ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537220 is a size 4 industrial component from the MS series featuring a fiber filter design with a 1 µm filtration grade and 99.99% filter efficiency. This assembly operates at an inlet pressure of 2 to 12 bar, delivering a standard nominal flow rate of 180 l/min for filtered, unlubricated compressed air requiring 5 µm filtration. Equipped with a fully automatic condensate drain, a 25 ml max. condensate volume, an integrated metal shell bowl guard, and a visual differential pressure display, the unit maintains an output air purity class of 2.7.3 per DIN ISO 8573-1 and a residual oil content of 0.5 mg/m3. Submit the exact part number, quantity, and application requirements to request a formal quote for this 350 g component.
View product details →Festo
The Festo part number 537219 is an industrial component from the MS series, size 4, featuring a fiber filter design with a 1 µm filtration grade and 99.99% filter efficiency. This unit operates within an inlet pressure range of 2 to 12 bar, delivering a standard nominal flow rate of 180 l/min of filtered, unlubricated compressed air with a residual oil content of 0.5 mg/m3 and achieving air purity class 2.7.3 per DIN ISO 8573-1. Constructed with an integrated metal shell bowl guard, a visual differential pressure display, and a fully automatic condensate drain holding a maximum volume of 25 ml, the 350 g assembly functions in a vertical +/- 5° position within a medium and ambient temperature range of 5 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
