Festo
The Festo part number 536819 is an industrial component of size 4 from the MS series featuring a vertical plus-or-minus 5-degree assembly position and a fiber filter design structure with a plastic bowl guard. It provides a 1 µm grade of filtration, 99.99 percent filter efficiency, and a standard nominal flow rate of 180 l/min for filtered, unlubricated compressed air operating at an inlet pressure of 0 to 14 bar. The unit includes a manual rotary condensate drain with a maximum condensate volume of 19 cm3, a visual differential pressure display, and delivers an air purity class of 2.7.3 per DIN ISO 8573-1 with a residual oil content of 0.5 mg/m3. Weighing 190 g with a corrosion resistance classification CRC of 2, this component operates and stores within temperatures of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 536815 is an industrial component featuring a length of 56 mm, a product weight of 510 g, and a maximum of 2 valve positions. It is built with a corrosion resistance classification CRC of 3 and includes 5 G1/8 pneumatic connection ports, utilizing internal thread and stud bolt mounting while conforming to RoHS materials standards. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

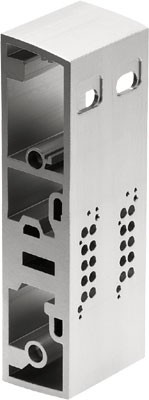

The Festo 536813 is an industrial component featuring a length of 56 mm, a product weight of 510 g, and a maximum of 2 valve positions. This RoHS-compliant unit offers a corrosion resistance classification CRC of 3 and incorporates mounting via internal thread and stud bolt alongside a 4 G1/8 pneumatic connection port. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

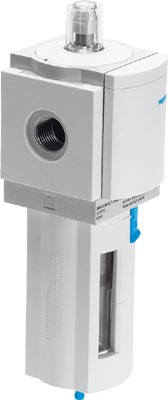

The Festo 537215 is an MS-series industrial component of size 4 featuring a fiber filter design with a 0.01 µm filtration grade and 99.9999 % filter efficiency. Operating with an inlet pressure of 2 to 12 bar and a standard nominal flow rate of 120 l/min, this unit delivers an air purity class of 1.7.2 per DIN ISO 8573-1 with a residual oil content of 0.01 mg/m3. It incorporates a fully automatic condensate drain with a maximum condensate volume of 25 ml, a visual differential pressure display, and an integrated metal shell bowl guard for vertical assembly within +/- 5°. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537212 is a size 4 industrial component from the MS series featuring a fiber filter design with a 1 µm filtration grade, 99.99% filter efficiency, and a fully automatic condensate drain supporting a maximum condensate volume of 25 ml. Operating with a standard nominal flow rate of 180 l/min across an inlet pressure range of 2 to 12 bar, this unit includes an integrated metal shell bowl guard, a visual differential pressure display, and achieves an output air purity class of 2.7.3 per DIN ISO 8573-1 with a residual oil content of 0.5 mg/m3. Designed for vertical installation within a +/- 5° tolerance, the 350 g component functions with filtered, unlubricated compressed air having a 5 µm filtration at medium and ambient temperatures between 5 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 537211 is a Size 4 industrial component from the MS series featuring a fiber filter design with a 1 µm filtration grade and 99.99% filter efficiency. Operating with an inlet pressure range of 2 to 12 bar and a standard nominal flow rate of 180 l/min, this unit delivers an air purity class of 2.7.3 per DIN ISO 8573-1 with a residual oil content of 0.5 mg/m3. It incorporates a fully automatic condensate drain, a visual differential pressure display, and a bowl guard integrated as a metal shell within a 350 g assembly. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

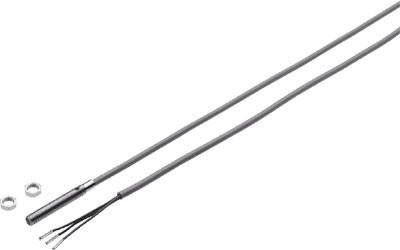

The Festo 537680 is a round optoelectronic industrial component utilizing a diffuse reflection sensor with infrared light to measure position across a 50 mm working range. Conforming to EN 60947-5-2 and featuring copper- and PTFE-free materials, this NPN light-switching sensor operates on a 10 to 30 V DC voltage range with a maximum switching frequency of 250 Hz and a 100 mA max output current. It carries RCM and c UL us listings, adheres to the EU-EMV guideline for the CE symbol, and functions in ambient temperatures from 0 to 55 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

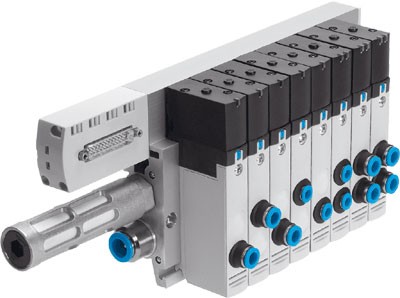

The Festo 537662 is a 20 mm industrial component featuring a piston slide design structure with a soft sealing principle and electrical actuation. This piloted unit supports 3/2 closed monostable, 3/2 open monostable, 4/2 bistable, and 4/2 monostable valve functions within a fixed-grid valve manifold structure accommodating up to 16 valve positions. Operating at a working pressure range of -0.9 to 8 bar, it delivers a standard nominal flow rate between 200 and 1,000 l/min with a maximum standard nominal flow rate of 1000 l/min at 20 mm. The assembly includes an IP65 protection class rating, an LED signal status display, individual or multi-pin electrical connections, and internal or external pilot air supply options for ambient temperatures from -5 to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 537204 industrial component features a size 63 designation and a product weight of 1,230 g per gripper jaw, constructed from an unmachined wrought aluminum alloy that is free of copper and PTFE. It offers a CRC 2 corrosion resistance classification, an ambient temperature range of 5 to 60 °C, and supports any assembly position with mounting via a through-hole and centering sleeve. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 537661 is a mini-sized DB series filter regulator lubricator with a width of 88 mm and a vertical assembly position tolerance of plus or minus 5 degrees. This unit features a semi-automatic condensate drain, a pressure gauge, a rotary knob with lock actuator, and a 5 µm grade of filtration operating within a working pressure of 1.5 to 10 bar and a regulation range of 0.5 to 7 bar. It incorporates secondary exhaust and return flow controller functions, maintains a standard nominal flow rate of 400 l/min or greater, and operates with compressed air or inert gases at temperatures between -5 and 50 ¼irc C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537203 is an industrial component featuring a size 50 design constructed from unmachined wrought aluminum alloy with a copper- and PTFE-free material composition. Each gripper jaw weighs 638 g, supports any assembly position, and provides a corrosion resistance classification of CRC 2 within an ambient temperature range of 5 to 60 °C. This part utilizes a mounting type with a through-hole and centering sleeve. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 537202 is an industrial component featuring a size 40 construction with a product weight of 314 g per gripper jaw. Fabricated from unmachined wrought aluminum alloy, the assembly incorporates materials that are free of copper and PTFE, alongside a corrosion resistance classification CRC of 2. It supports any assembly position and mounts via a through-hole and centering sleeve within an ambient temperature range of 5 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 537659 is a mini filter regulator/lubricator combination from the DB series featuring an 88 mm width, a rotary knob actuator lock, and a manual rotary condensate drain. This unit operates within a working pressure range of 1.5 to 10 bar, a pressure regulation range of 0.5 to 7 bar, and delivers a standard nominal flow rate of >= 400 l/min with a 5 µm filtration grade. It incorporates a pressure gauge, secondary exhaust, and return flow function for compressed air or inert gases conforming to ISO 8573-1:2010 [-:-:-]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo industrial component, part number 537201, features a size 35 specification with a product weight of 182 g per gripper jaw. Constructed from wrought aluminum alloy with a CRC 2 corrosion resistance classification, the unit is free of copper and PTFE while supporting any assembly position. Mounting is achieved via a through-hole and centering sleeve within an ambient temperature range of 5 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 537200 is an industrial component featuring a size 25 specification and a product weight of 112 g per gripper jaw, constructed from wrought aluminum alloy with a materials note indicating it is free of copper and PTFE. This part supports any assembly position and includes a corrosion resistance classification CRC of 2 alongside a designated ambient temperature range of 5 to 60 °C. Installation is executed via a mounting type utilizing a through-hole and centering sleeve. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 537199 is an industrial component utilizing an unmachined part made from wrought aluminum alloy with a size 20 specification and a product weight of 53 g per gripper jaw. Featuring a CRC 2 corrosion resistance classification and a copper- and PTFE-free materials note, this unit operates within an ambient temperature range of 5 to 60 °C and supports any assembly position with mounting via a through-hole and centering sleeve. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo

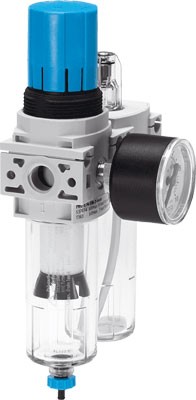

The Festo 537657 is a mini-sized DB series filter regulator/lubricator featuring a rotary knob with lock actuator, a semi-automatic condensate drain, and an integrated pressure gauge. It operates within a working pressure range of 1.5 to 10 bar, a pressure regulation range of 0.5 to 7 bar, and delivers a standard nominal flow rate of 550 l/min or greater with a 40 µm filtration grade. Designed for vertical installation within +/- 5°, this unit processes compressed air conforming to ISO 8573-1:2010 [-:-:-] or inert gases at temperatures from -5 to 50 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo

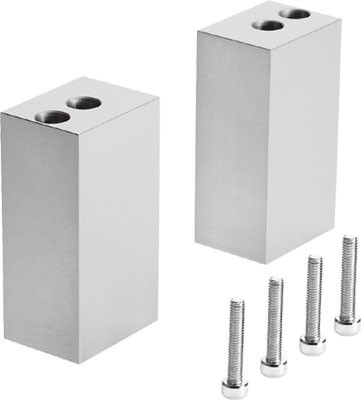

The Festo industrial component, part number 537198, is configured in size 16 with an assembly position that can be set to any orientation and a product weight of 28 g per gripper jaw. Manufactured from wrought aluminum alloy with a corrosion resistance classification of CRC 2, this unit operates within an ambient temperature range of 5 to 60 °C and features materials that are free of copper and PTFE. Mounting is executed using a through-hole and centering sleeve. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo 537655 is a mini DB-series filter regulator/lubricator featuring a 40 µm grade of filtration, manual rotary condensate drain, and a rotary knob with lock actuator. This unit operates within a working pressure of 1.5 to 10 bar, a pressure regulation range of 0.5 to 7 bar, and delivers a standard nominal flow rate of ≥ 550 l/min using compressed air or inert gases. Designed with a secondary exhaust, return flow function, and pressure gauge, it functions in medium temperatures from -5 to 50 °C with a vertical assembly position of +/- 5°. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo

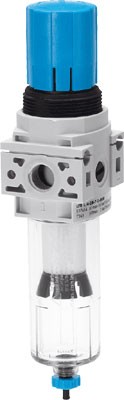

The Festo 537651 is a mini DB-series filter regulator featuring a 44 mm width, a 40 µm filtration grade, and a manual rotary condensate drain. This component operates within a working pressure range of 1.5 to 10 bar, a pressure regulation range of 0.5 to 7 bar, and delivers a standard nominal flow rate of 700 l/min or greater for compressed air to ISO 8573-1:2010 [-:9:-] or inert gases. Equipped with a lockable rotary knob actuator, secondary exhaust, return flow, and a G1/8-prepared pressure gauge port, the 200 g unit functions within a medium and ambient temperature range of -5 to 50 µC. Submit part number 537651, required quantity, and application specifications to request a formal quote.
View product details →
