Festo
The Festo part number 536426 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke length from 85 to 500 mm, built in accordance with ISO 15552 standards. Operating within a 3 to 8 bar pressure range and powered by 24 V DC with a coil data profile of 0.5 W in the low current phase and 1.23 W in the high current phase, this unit incorporates double-ended adjustable pneumatic cushioning (PPV) with a 22 mm cushioning length. It delivers a theoretical force of 990 N on the return stroke and 1,178 N on the advance stroke using filtered compressed air with 40 µm filtration, while achieving an IP65 protection class and CRC 2 corrosion resistance across an ambient temperature range of -5 to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

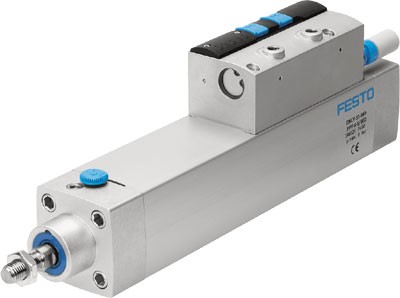

The Festo 536425 is a double-acting industrial component with a 40 mm piston diameter and an adjustable stroke ranging from 70 to 500 mm, built to ISO 15552 standards. Operating on 24 V DC with a low current phase of 0.5 W and high current phase of 1.23 W, this unit features IP65 protection, adjustable pneumatic cushioning at both ends, and an ambient temperature range of -5 to 50 °C. It delivers theoretical forces of 754 N on the advance stroke and 633 N on the return stroke at 6 bar working pressure using filtered compressed air. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 536424 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke range from 70 to 500 mm, built in accordance with ISO 15552 standards. Operating at 3 to 8 bar with an operating voltage of 24 V DC, this unit delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar using filtered compressed air. It incorporates double-ended adjustable pneumatic cushioning (PPV) with a 20 mm cushioning length, IP65 protection, and CRC 2 corrosion resistance for an ambient temperature range of -5 to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

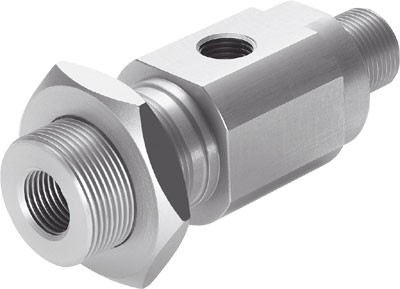

This Festo industrial component, part number 534405, features a size 20 specification and a product weight of 263 g. The assembly incorporates an adapter made of wrought aluminum alloy with a neutral anodized finish, NBR seals, and a galvanized steel nut. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 534404 is an industrial component weighing 184 g with a size of 20. Its assembly features an adapter constructed from neutral anodized wrought aluminum alloy, seals made of NBR, and a galvanized steel nut. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

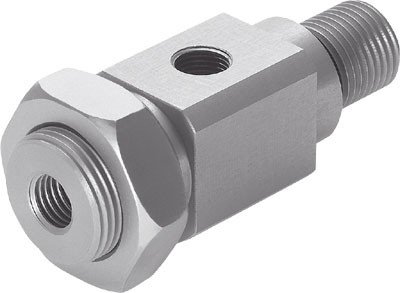

The Festo 534403 is an industrial component weighing 109 g with a size of 16. It features an adapter constructed from wrought aluminum alloy with a neutral anodization, NBR seals, and a galvanized steel nut. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo
The Festo part number 534402 is an industrial component featuring a size 16 specification and a product weight of 69 g. This assembly incorporates an adapter constructed from wrought aluminum alloy with a neutral anodization, NBR seals, and a galvanized steel nut. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

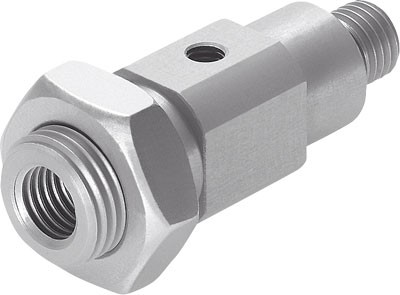

The Festo part number 534401 is an industrial component weighing 44 g with a size of 10. This assembly features an adapter constructed from wrought aluminum alloy with a neutral anodization finish, NBR seals, and a galvanized steel nut. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

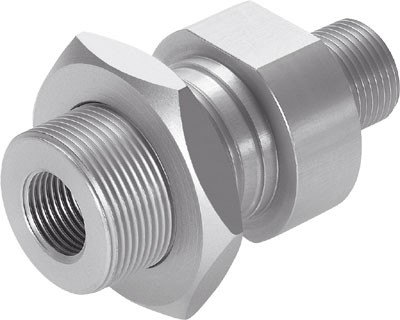

This Festo industrial component, part number 534400, features a size 10 specification and a product weight of 33 g. The assembly incorporates a wrought aluminum alloy adapter with neutral anodization, NBR seals, and a galvanized steel nut. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo industrial component, designated as part number 534396, features an actuator interface code of F80 and coupling housing interface codes of 118A, 118B, and 118C. Built with materials that conform to RoHS, the unit supports an any assembly position and operates within an ambient temperature range of -10 to 60 °C, a storage temperature range of -25 to 60 °C, and a relative air humidity level of 0 to 95 %. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 534395 is an industrial component featuring an actuator interface code of F47 and a coupling housing interface code of 64A, with an assembly position that can be set to any orientation. It operates within an ambient temperature range of -10 to 60 °C, withstands storage temperatures from -25 to 60 °C, and accommodates a relative air humidity of 0 to 95%, while maintaining materials that conform to RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo industrial component, designated by part number 534394, features actuator interface code F37 and coupling housing interface codes 44A and 44C with an any assembly position. The unit operates within an ambient temperature range of -10 to 60 °C, supports a storage temperature range of -25 to 60 °C, and accommodates a relative air humidity of 0 to 95 percent while maintaining a materials note that conforms to RoHS. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 534393 is a Size 63 electromechanical linear axis featuring a toothed-belt design with an 8 mm pitch, a 73.85 mm drive pinion effective diameter, and a working stroke adjustable from 1 to 5,000 mm with a 172 mm stroke reserve. Driven by a servomotor supporting a maximum speed of 10 m/s and a max drive torque of 55.38 Nm, this roller-guided component achieves a repetition accuracy of ±0,1 mm, a 0.15 % toothed-belt stretch, and IP40 protection within a 0 to 60 °C ambient temperature range. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
View product details →Festo
The Festo size 40 electromechanical linear axis features an integrated toothed belt with a 5 mm pitch, a 39.79 mm effective drive pinion diameter, and a working stroke adjustable from 1 mm to 5,000 mm. Operating with a roller guide, servomotor compatibility, and a toothed-belt stretch of 0.11 %, this component delivers a maximum speed of 10 m/s, a repetition accuracy of ±0.1 mm, and a maximum drive torque of 12.1 Nm within an ambient temperature range of 0 to 60 °C. It provides area moments of inertia Ix of 703x10^3 mm⁴ and Iy of 946.3x10^3 mm⁴, a 100 mm stroke reserve, maximum forces Fy and Fz of 300 N, and an IP40 protection class. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo

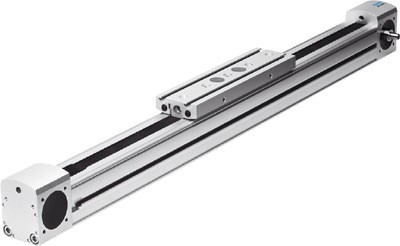

The Festo 534391 is an electromechanical linear axis featuring a toothed-belt design with a size 25 roller guide and a working stroke spanning 1 to 5,000 mm. Driven by a servomotor with a maximum drive torque of 3.7 Nm and a 28.65 mm effective diameter drive pinion, this unit achieves speeds up to 10 m/s with a repetition accuracy of ±0.1 mm. It operates within an ambient temperature range of 0 to 60 °C under an IP40 protection class, accommodating any assembly position while withstanding maximum forces of 150 N for both Fy and Fz. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

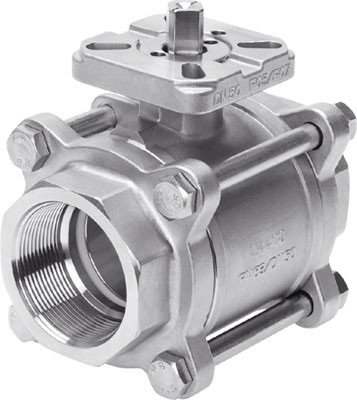

This Festo 534321 is a mechanically actuated 2-way ball valve featuring a soft sealing principle and a nominal diameter DN 100 with a 100 mm inside diameter. Constructed with a high alloy steel non-corrosive housing, ball, and shaft alongside FPM and PTFE seals, the unit handles an operating medium of compressed air, inert gases, water, and neutral fluids across a medium temperature range of -10 to 180 °C. The component provides an Rp4 process valve connection, an F10 flange hole pattern, a nominal pressure of 63, an actuation torque of 95 Nm, and a flow rate Kv of 1,414 cubic meters per hour for line installation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 534320 is a mechanical 2-way ball valve featuring an 80 mm inside diameter, a nominal diameter DN of 80, and an Rp3 process valve connection with an F07 and F10 flange hole pattern. Built with a non-corrosive high alloy steel housing (material number 1.4408), a 1.4401 high alloy steel ball and shaft, and FPM and PTFE soft seals, this assembly supports a nominal pressure of 63, an actuation torque of 78 Nm, and a flow rate Kv of 905 m3/h across a medium temperature range of -10 to 180 °C. It accommodates compressed air in accordance with ISO8573-1:2010 [-:-:-], inert gases, water, and neutral fluids via line installation. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 534319 is a mechanical 2-way ball valve featuring a soft sealing principle and line installation mounting for an Rp2 1/2 process valve connection. Constructed with a non-corrosive high alloy steel housing (material number 1.4408), globe (1.4401), and shaft (1.4401), this component utilizes FPM and PTFE seals, F07 and F10 flange hole patterns, a 65 mm inside diameter, a nominal diameter DN of 65, and a nominal pressure rating of 63. Operating with a 69 Nm actuation torque, it handles a Kv flow rate of 507 m3/h across a medium temperature range of -10 to 180 °C for compressed air in accordance with ISO8573-1:2010 [-:-:-], inert gases, water, and neutral fluids. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

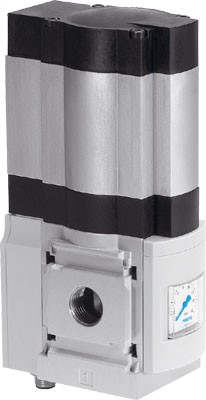

The Festo 535364 is an electrically adjustable pressure regulator of size 6 from the MS series, designed for assembly in any position and preferably vertical. This component features a standard nominal flow rate of 2,700 l/min with an operating pressure range of 0.8 to 20 bar, a pressure regulation range of 0.5 to 12 bar, and includes an integrated pressure gauge. Operating on a nominal voltage of 24 V DC with a maximum current consumption of 3.5 A, the unit complies with EU-EMV guidelines and incorporates short-circuit strength for all electrical connections. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 534318 is a mechanical 2-way ball valve featuring a soft sealing principle and an Rp2 process valve connection with an F05 and F07 flange hole pattern for line installation. Built with a nominal diameter DN of 50, a 50 mm inside diameter, and a nominal pressure rating of 63, this component delivers a flow rate Kv of 275 m3/h under an actuation torque of 64 Nm. The housing is constructed from high alloy non-corrosive steel material number 1.4408, complemented by a globe and shaft of high alloy non-corrosive steel material number 1.4401 alongside FPM and PTFE seals. This valve operates within a medium temperature range of -10 to 180 °C using compressed air in accordance with ISO8573-1:2010 [-:-:-], inert gases, water, and neutral fluids. Submit the exact part number, quantity, and application requirements for a formal quote.
