Festo
534315

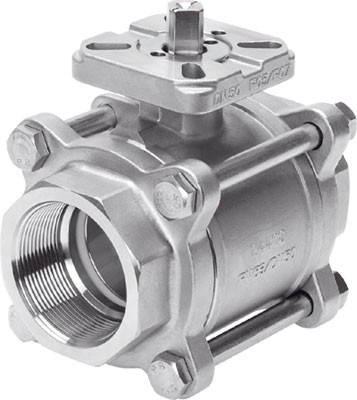

Ball valve VAPB-1-F-63-F0405-CR
The Festo part number 534315 is a mechanical 2-way ball valve featuring a soft sealing principle and line installation mounting type with an Rp1 process valve connection and F04 or F05 flange hole pattern. This component provides a 25 mm inside diameter, nominal diameter DN 25, 63 nominal pressure, 17 Nm actuation torque, and a 72 m3/h flow rate Kv, operating across a medium temperature range of -10 to 180 °C with compressed air in accordance with ISO8573-1:2010 [-:-:-], inert gases, water, and neutral fluids. Constructed with a high alloy steel non-corrosive housing of material number 1.4408, high alloy steel non-corrosive ball and shaft of material number 1.4401, and FPM and PTFE seals, this industrial component is built for precise process control. Submit your exact part number, quantity, and application requirements to receive a formal quotation.
